Post 42 hull #3. The return

Discussion in 'Post Yacht' started by baltimore bob, May 27, 2014.

You need to be registered and signed in to view this content.
  1. baltimore bob

    baltimore bob Member

    Joined:
    Sep 22, 2013
    Messages:
    315
    Location:
    Baltimore, Maryland

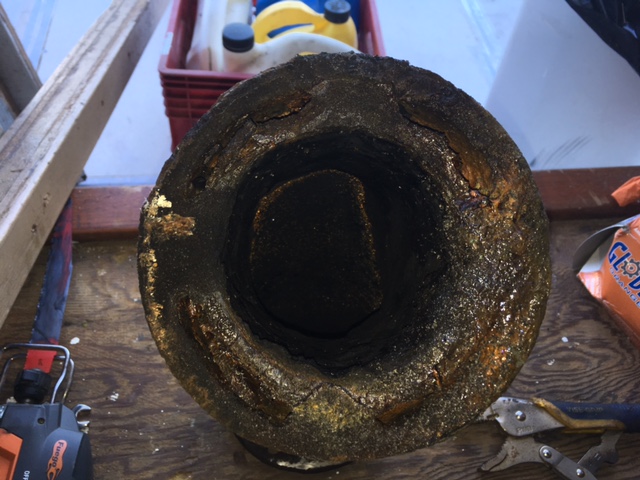

    Well there's yer problem!

    old elbow.JPG
  2. Capt J

    Capt J Senior Member

    Joined:
    Jul 11, 2005
    Messages:
    12,775
    Location:
    Fort Lauderdale
    What are we looking at in the picture?
  3. baltimore bob

    baltimore bob Member

    Joined:
    Sep 22, 2013
    Messages:
    315
    Location:
    Baltimore, Maryland
    That is the discharge side of the exhaust elbow from my Port engine. There should be 4 water discharge ports!
  4. Capt Ralph

    Capt Ralph Senior Member

    Joined:
    Sep 8, 2004
    Messages:
    8,764
    Location:
    Satsuma, FL
    Uuhhgg..
  5. mfan46

    mfan46 Member

    Joined:
    Jul 20, 2011
    Messages:
    50
    Location:
    chesapeake bay
    No wonder you had to bypass,you will have good temps now.
  6. shawn

    shawn New Member

    Joined:
    Feb 13, 2006
    Messages:
    121
    Location:
    old saybrook ct
    With that kind of back pressure on the water I am surprised you did not blow anything. With normal flow going through the 671 you should only have 4 lbs back pressure.
  7. chesapeake46

    chesapeake46 Senior Member

    Joined:
    Jul 26, 2009
    Messages:
    1,486
    Location:
    Chesapeake Bay, Delaware Bay & S.Jersey
    Hi Bob,
    Holy cow, how did they ever cool off !

    Are your 671's turbo'd ? I have cast iron mixing elbow I would part with if you need it but it is for 410 HP turbocharged 671. The elbow is new and in perfect condition.
  8. baltimore bob

    baltimore bob Member

    Joined:
    Sep 22, 2013
    Messages:
    315
    Location:
    Baltimore, Maryland
    Yup, that's why I added 1/2 inch bypasses to both engines to get through the season. It manifested itself by blowing off hoses after I replaced impellers. Even with the bypasses it was running 30+psi at cruise. I knew it was coming and you can see the new stainless elbows a few pages back. I'm finding out my old body doesn't bend like it used to!
  9. shawn

    shawn New Member

    Joined:
    Feb 13, 2006
    Messages:
    121
    Location:
    old saybrook ct
    Yea I know, I am not as young and rubbery as use too be. L.O.L
  10. Beau

    Beau Senior Member

    Joined:
    Jan 15, 2010
    Messages:
    2,150
    Location:
    Cold Spring Harbor, NY
    Teach me. Where would those 4 ports usually be located?
  11. baltimore bob

    baltimore bob Member

    Joined:
    Sep 22, 2013
    Messages:
    315
    Location:
    Baltimore, Maryland
    If you look closely you can see the oval shapes at 2, 4, 8, & 10 o'clock.
  12. mwwhit1

    mwwhit1 Senior Member

    Joined:
    Jan 19, 2006
    Messages:
    233
    Location:
    Jersey City NJ\Boca Raton FL
    Hi Bob!! Wow that thing is gone. At least that confirms your issue. Always good when that happens. Do you also have the aluminum exhaust angle piece between this elbow and the muffler? If so, good to check the condition of these since you have the exhaust apart. These rot out too over the years. I shipped my old ones to D'Angelo's in Fl and they made perfect copies.

    http://www.yachtforums.com/threads/exhaust-fabrication.12689/#post-95805
    Last edited: Dec 29, 2016
  13. chesapeake46

    chesapeake46 Senior Member

    Joined:
    Jul 26, 2009
    Messages:
    1,486
    Location:
    Chesapeake Bay, Delaware Bay & S.Jersey
    Me too with the same good results.
  14. porthole

    porthole Member

    Joined:
    Mar 15, 2016
    Messages:
    79
    Location:
    Jersey Shore

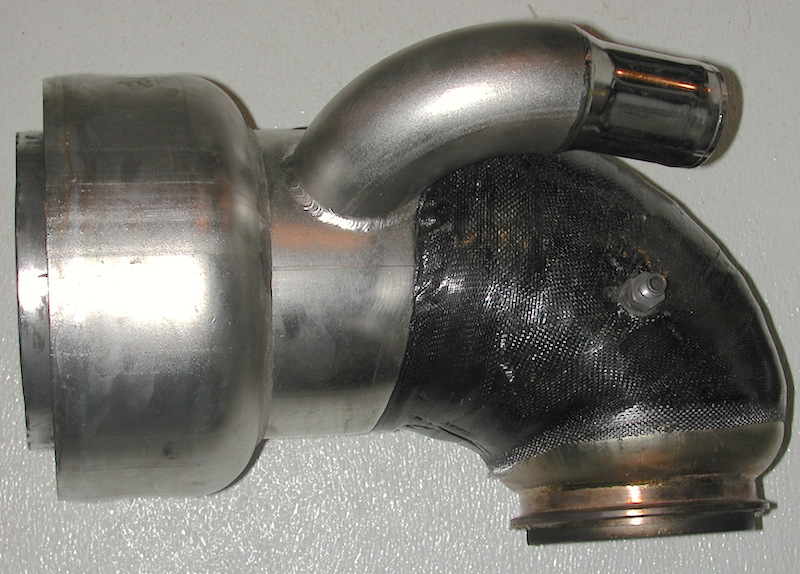

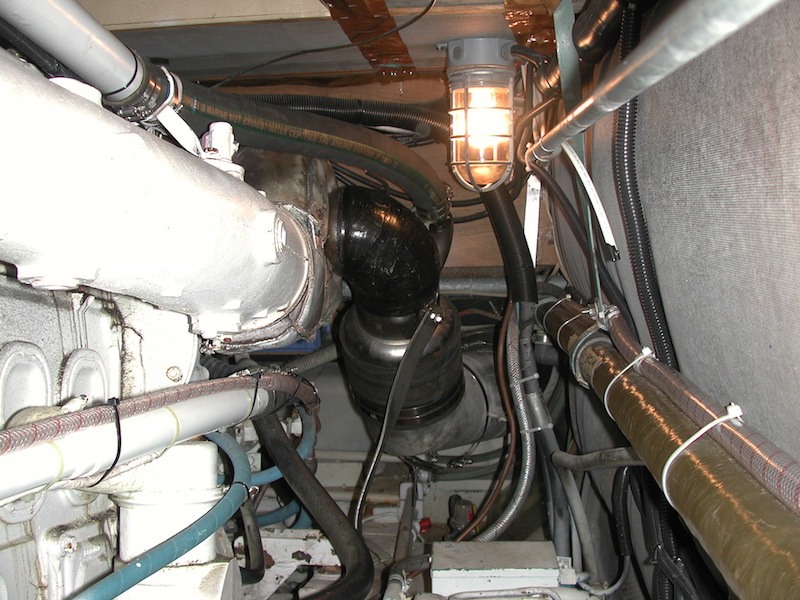

    FWIIW, when I had to replace my cast iron elbows, I used Marine Exhaust in Farmingdale NY.
    http://www.marinemanifoldcorp.com/Risers.html

    Didn't have to send the old ones, they were able to build based on my application (J&T 6-71 TI).
    Top notch work.

    Exhaust_elbow_01 copy.jpg Exhaust_elbow_05 copy.jpg
  15. porthole

    porthole Member

    Joined:
    Mar 15, 2016
    Messages:
    79
    Location:
    Jersey Shore

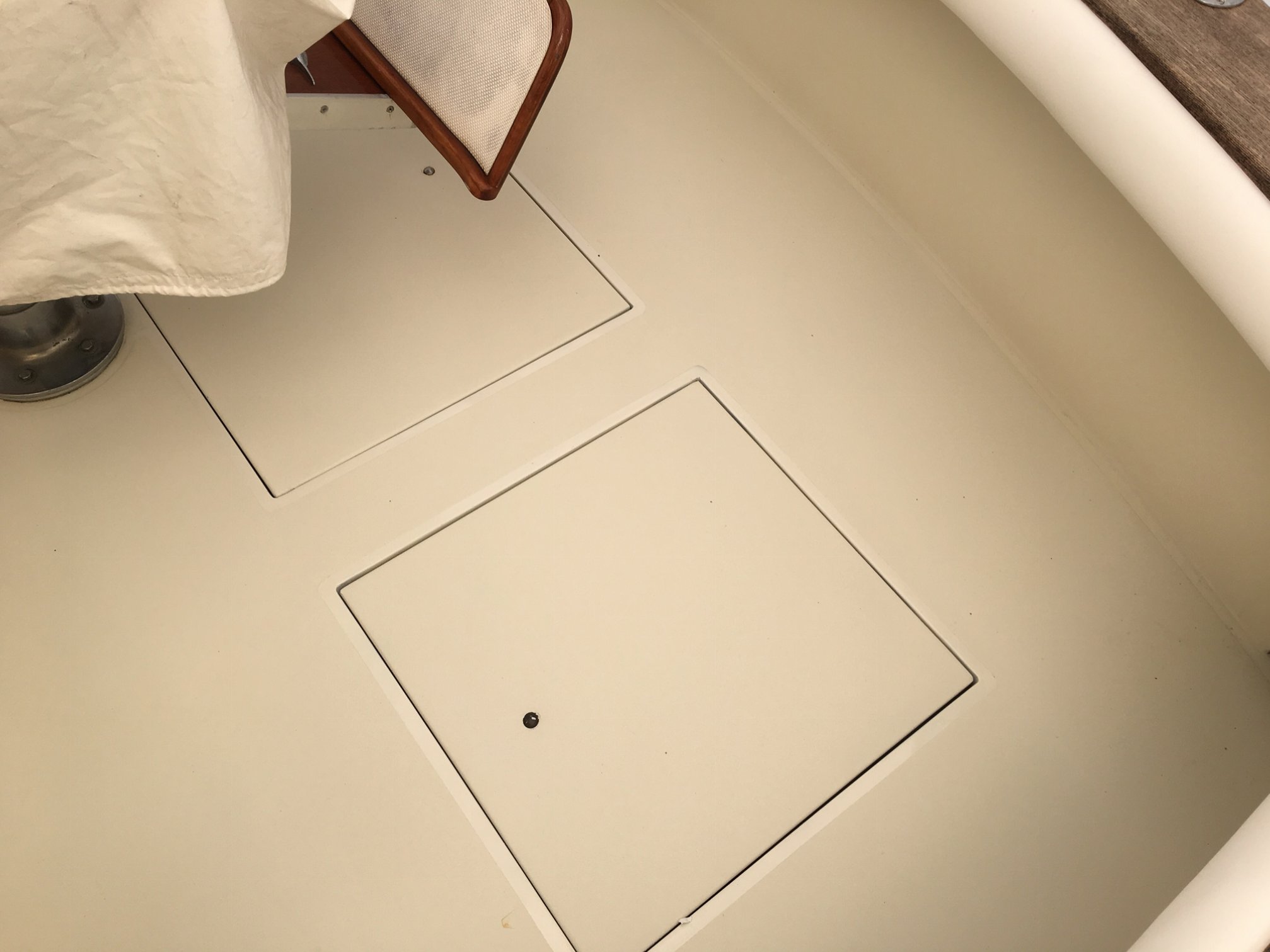

    My 1982 42 had the same port and starboard hatches as shown here, but I did not have the center hatch.

  16. shawn

    shawn New Member

    Joined:
    Feb 13, 2006
    Messages:
    121
    Location:
    old saybrook ct
    I had them do mine as well years ago, but he redesigned and did your's a lot better.
  17. baltimore bob

    baltimore bob Member

    Joined:
    Sep 22, 2013
    Messages:
    315
    Location:
    Baltimore, Maryland
    That appears to be OK. Mine is a Y the other branch acts as a surge tube. I hope to get back on her next week. Somebody has to keep posting during the winter!
  18. baltimore bob

    baltimore bob Member

    Joined:
    Sep 22, 2013
    Messages:
    315
    Location:
    Baltimore, Maryland

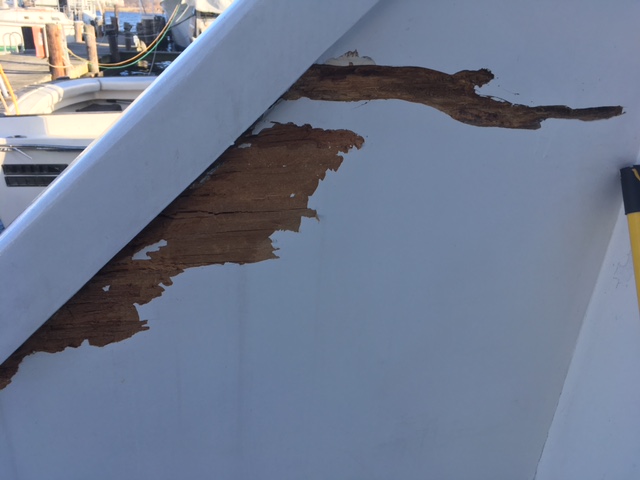

    2017 rot.JPG
    Well time to get started on the boat. Figured I'd get started installing the new exhaust elbows when I noticed some paint lifting. A few minutes of poking and all is normal in my world!
  19. baltimore bob

    baltimore bob Member

    Joined:
    Sep 22, 2013
    Messages:
    315
    Location:
    Baltimore, Maryland
    I've been posting so much ugliness, Here's a shot of her cleaned up at last summers casual meet. I hope we do that again!

    post cambridge 2.jpg
  20. Davidoc

    Davidoc Senior Member

    Joined:
    Aug 29, 2005
    Messages:
    214
    Location:
    Winter:Delray Beach, Fl Summer: Bahamas
    Every time I go to take care of the next project I get side tracked because I look around too much and spend a few days fixing something else so I feel better about fixing what I started out to do. Knock it out. Summer is coming up there and May for me is Bahamas time. New power cord is next on the list for me.
