Discussion in 'General Sailing Discussion' started by brian eiland, Nov 21, 2007.

  1. brian eiland

    brian eiland Senior Member

    Joined:
    Jul 28, 2004
    Messages:
    2,879
    Location:
    St Augustine, Fl and Thailand
    The latest measurements made aboard the cargo ship “Michael A.“ of the
    Wessels Shipping Company demonstrate how the towing kite propulsion system delivers far more than five times the performance per square meter of sail than traditional wind propulsion systems. With the help of the wind, the 160 square meter kite generates up to 8 metric tons of traction force – this approximately corresponds to the thrust of an Airbus A318 turbine engine.

    “Our own measurements show that we were able to temporarily save far more than half the fuel by deploying SkySails in favourable wind conditions,” reports Gerd Wessels (37), managing director of the Wessels shipping company based in Haren/Ems, adding that “alternatively we were able to increase the ship’s cruising speed from 10 to 11.6 knots with the help of this towing kite propulsion.”

    Each of the shipping company’s next three new 88-meter, multipurpose sister ships with a deadweight capacity of some 3,700 metric tons and nearly 1,500 kW of power will be fitted with a 160 m² kite. With favourable wind conditions, a kite of this size can generate up to 8 tons of traction power. For comparison: in order to reach a cruising speed of 11 knots, these ships require approx. 11 tons of thrust.


    ...excerpt from http://hiswasymposium.com/symposium-papers
    Vessel propulsion using kites
    Stephan Brabeck (Skysails Gmbh & Co KG)
    Tom Schnackenberg (North Sails A/S)

    PDF document
  2. brian eiland

    brian eiland Senior Member

    Joined:
    Jul 28, 2004
    Messages:
    2,879
    Location:
    St Augustine, Fl and Thailand
    Tri-Hull designs..... in the smaller range :)

    Here is a fellow out in New Caledonia that is doing some very creative experimentations with tri-hull designs...
    ....interesting subject thread, and photos, and prototypes:

    http://www.boatdesign.net/forums/boat-design/trimaran-motorboat-stabilized-monohull-29665-4.html
  3. brian eiland

    brian eiland Senior Member

    Joined:
    Jul 28, 2004
    Messages:
    2,879
    Location:
    St Augustine, Fl and Thailand
  4. lovinlifenc

    lovinlifenc Member

    Joined:
    Mar 28, 2010
    Messages:
    135
    Location:
    Wilmington NC
    It seems the cost/benefit curves have finally met. Now, will the naysayers ever acknowledge it?
  5. brian eiland

    brian eiland Senior Member

    Joined:
    Jul 28, 2004
    Messages:
    2,879
    Location:
    St Augustine, Fl and Thailand
    Cross Continent in Kite Powered Car

    A television host and an engineer from Germany have completed an almost 5,000 km (3,107 mile) journey across Australia in their Wind Explorer, a lightweight electric vehicle powered by the wind – not only through electricity-generating wind turbines but also using kites. The pioneering 18-day trip by Dirk Gion and Stefan Simmerer set three world records – the first time a continent has been crossed be a wind-powered vehicle, the longest overall distance covered by an exclusively wind-powered land vehicle, and the longest distance covered by such a vehicle in 36 hours.

    http://www.gizmag.com/wind-powered-car-completes-cross-continental-journey/17892/
  6. brian eiland

    brian eiland Senior Member

    Joined:
    Jul 28, 2004
    Messages:
    2,879
    Location:
    St Augustine, Fl and Thailand
    Cargill ship will be largest ever to utilize kite power

    For the past ten years, Hamburg-based SkySails has been engineering and producing what are essentially giant kites, designed to help ships reduce their fuel use by catching the wind and pulling them across the surface of the ocean. The system was put into regular shipping use for the first time in 2008, when one of the kites was attached to the 132-meter (433-foot) multi purpose heavy lift carrier MS Beluga SkySails. Now, Cargill Ocean Transportation has announced that it plans to use the technology on one of its long-term charter ships, a vessel of between 25,000 and 30,000 deadweight tonnes (27,558 to 33,069 US tons). It will be the largest kite-assisted ship in the world.

    The kite will measure 320 square meters (382.7 square yards), and will fly ahead of the ship in a figure-8 pattern at a height of 100 to 420 meters (328 to 1,378 feet). Its flight path will be controlled by an automated system, and the kite itself will be launched and retrieved via a winch-equipped telescoping tower on the bow – definitely a better approach than having someone desperately bracing themselves against the deck of the ship, while clutching a couple of control lines! Information regarding the system's operation will be displayed on a monitor on the ship's bridge, although it is said to require a minimum of input from the crew.

    Use of a SkySails sysytem is claimed to reduce a cargo vessel's fuel consumption by an average of 10 to 35 percent annually, and by up to 50 percent temporarily. Due to its "dynamic flight maneuvers," the kite reportedly generates 5 to 25 times more power per square meter sail area than a conventional sail. A study by the United Nations' International Maritime Organization suggested that up to 100 million tonnes (110.2 million US tons) of carbon dioxide could be saved each year, if the technology was broadly applied to the world's merchant fleet.

    Cargill plans to install the SkySails system this December, and hopes to have it fully operational within the first quarter of 2012.
    http://www.gizmag.com/cargill-ship-will-be-largest-ever-to-utilize-kite-power/18005/
  7. brian eiland

    brian eiland Senior Member

    Joined:
    Jul 28, 2004
    Messages:
    2,879
    Location:
    St Augustine, Fl and Thailand
    Shuttleworth kite experiments

    John wrote recently on a forum discussion:

    We are installing the winch and gear to fly a kite like the Skysails system off the 42 m Power tri. We will develop our own control system. The kite is a large version of a normal kite boarding kite. The numbers show that if we can fly the kite in a pattern at 300 m high we can generate enough power to pull the boat under kite alone at 15 knots.


    The trick is the height of the kite. At 300 meters the wind speed is higher and you can make the kite travel further and faster across the sky. This is what generates the higher power.


    With the low drag of the power tri this concept becomes realistic as a significant power source, where the boat can sail at a good speed. Not just fuel saving.
    ****************************************
    http://www.john-shuttleworth.com/New.html
    Orion Shuttleworth has spent the past 5 years working for Bernard Olesinski, a specialist in powerboat design, primarily concentrating on deck design and styling for the Princess Yachts. He has developed extensive skills in 3 D modelling with Unigraphics NX surfacing programme, and brings a wealth of Big Boat design experience and understanding of LY2 and RINA regulations to offer as a service to our design office.

    His expertise in 3D rendering can immediately be seen in his work on the new Power 41 meter Tri, currently building in China, in which he is playing a significant role in all aspects of the final stages of the design and preparing for classification under the Hong Kong flag authority.

    Orion is also bringing his kiteboarding extpertise to developing a kite assist system for the 41 m Superyacht. Current systems for ships are very heavy and complex. Orion is working on a system that uses conventional kites which can be water launched, or launched off the deck of the boat. Progress will be reported on our site.
  8. brian eiland

    brian eiland Senior Member

    Joined:
    Jul 28, 2004
    Messages:
    2,879
    Location:
    St Augustine, Fl and Thailand
  9. brian eiland

    brian eiland Senior Member

    Joined:
    Jul 28, 2004
    Messages:
    2,879
    Location:
    St Augustine, Fl and Thailand
    Single Pod Drive System

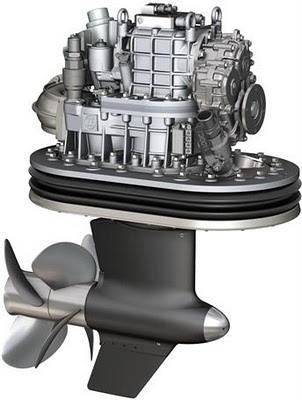

    This new ZF Marine 'Single Pod Unit' looks to be an applicable power transmission unit for this single engined vessel.

    "ZF Marine Group introduces a revolutionary new approach to Pod drive and joystick control technology in small pleasure craft applications, which extends its availability to a larger segment of the pleasure boat market. In conjunction with SeaVee boats, ZF Marine has developed a complete propulsion system solution around a center console sport fishing application that will offer joystick control and maneuverability while employing the pleasure craft industry’s first single Pod drive line. The heart of the propulsion package from ZF Marine incorporates 3 main components. The ZF 2800 Series Pod drive rated at 480hp. This Pod has been redesigned to offer 180 degrees of total movement, 90 degrees of rotation to both port and starboard from the cent reline. The ZF 185 AC Thruster that introduced to the market at last year’s Fort Lauderdale show. The ZF 185 Thruster is designed to offer proportional thrust, 30 minute continuous duty cycle, and smooth, quiet operation thanks to a patented thruster tube design. ZF Marine’s proven SmartCommand controls with Joystick. The joystick system is engaged when the Easidock feature is activated via a button touch on the SmartCommand control head. During normal at sea operation the 2800 Pod drive is restricted to 30 degrees of movement in either direction from center. This restriction of movement is released in Easidock mode and the POD now has full 180 degree movement. The ZF 185 AC Thruster is also brought online at this time. As the vessel operator directs the joystick in any direction or combination of directions the joystick system incorporates POD thrust and varying amounts of thrust from the bow thruster. Proportional control of the thruster means smooth engagement, and only as much thrust as needed to move the vessel in the desired direction. Proportional thrust, combined with an electronic compass tied to the main JMS control unit means there is no vessel yaw during sideways movement. ZF Marine’s patented iAnchor station keeping functionality is also included in the Single Pod System. With the press of a button, iAnchor will compensate for wind and current holding the vessel’s position to as little as a 3 foot radius."

    Attached Files:

  10. brian eiland

    brian eiland Senior Member

    Joined:
    Jul 28, 2004
    Messages:
    2,879
    Location:
    St Augustine, Fl and Thailand
    Shorter Tri-hull Kite Vessel

    I recently ran across these wonderful computer generated illustrations by Mike Kagan. I asked him if he might generate a few for the smaller versions of the tri-hull kite assisted vessel. Here is one of those versions.

    Go to this page for a few more rendenings on that vessel idea:
    http://www.yachtforums.com/forums/yacht-renderings-plans/14713-mike-kajan-yacht-designs-ii-7.html

    Its time for some yachtsman to start planning for a vessel like this.

    Attached Files:

  11. brian eiland

    brian eiland Senior Member

    Joined:
    Jul 28, 2004
    Messages:
    2,879
    Location:
    St Augustine, Fl and Thailand
    Energy-generating Kite Aces LabVIEW tests

    Control unit for energy-generating kite aces LabVIEW tests

    KITEnergy is a revolutionary technology that converts higher-altitude wind energy (between 200 and 1,000 m above the ground), with respect to the actual wind turbines, into electricity. High-altitude winds are stronger and more constant. Because the generated power grows with the cube of wind speed, it can achieve a significant increase of power production.

    To exploit high-altitude wind, KITEnergy uses wings (or power kites) linked to the ground by two cables. The flight of the wings is tracked using onboard wireless instrumentation driven by an automatic control unit that can differentially pull the lines to influence the wing motion. Electricity is generated at ground level by converting the traction forces acting on the lines into electrical power, using suitable rotating mechanisms and electric generators. Recent studies – including theoretical analyses, numerical simulations, and experimental tests – carried out at the Politecnico di Torino, indicate that KITEnergy technology can produce large amounts of renewable energy that is available practically everywhere in the world at a lower cost than fossil fuels; thus, it does not require public incentives for its diffusion, a difference from the available renewable energy technologies.

    ....more here:
    http://www.designfax.net/enews/20110802/feature1.php
  12. brian eiland

    brian eiland Senior Member

    Joined:
    Jul 28, 2004
    Messages:
    2,879
    Location:
    St Augustine, Fl and Thailand
    Kiteboat Project

    Check out these videos,...and website :eek:

    Video
  13. chuckb

    chuckb Senior Member

    Joined:
    Mar 26, 2011
    Messages:
    200
    Location:
    Maine
    Wow! But if you stuff a hull....

    That's awesome! Looking at it, I'd hate to see what a "bad day" looks like. I noted gizmos on the bows that seemed designed to both keep the foils lifting, and prevent stuffing a hull. Dumping the sail quickly would be critical. That said... however you slice it, that setup is an adrenalin pump on steroids!
  14. brian eiland

    brian eiland Senior Member

    Joined:
    Jul 28, 2004
    Messages:
    2,879
    Location:
    St Augustine, Fl and Thailand
    I just went back and looked at that video again....WOW,... that boat is really booking :eek:

    ....and then started looking thru their website...some real interesting experimentation

    Team
  15. brian eiland

    brian eiland Senior Member

    Joined:
    Jul 28, 2004
    Messages:
    2,879
    Location:
    St Augustine, Fl and Thailand
    I just found that the link I provided to the Humphrey's design back in my original posting is no longer valid, so since I could no longer edit that posting, I'll provide a revised link here:
    Humphreys SkySail Yacht[1]
  16. brian eiland

    brian eiland Senior Member

    Joined:
    Jul 28, 2004
    Messages:
    2,879
    Location:
    St Augustine, Fl and Thailand
    Link to SkySail Yacht PDF

    Now that link is not good as it only links you to the first page, and not the illustrations on the second page. So here is a link to the document posted in my personal gallery section in another forum:
    http://www.boatdesign.net/gallery/data/500/Humphreys_SkySail_Yacht.pdf

    I'm amazed how often older links in various forum discussions go 'bad'.
  17. HTMO9

    HTMO9 Senior Member

    Joined:
    Jan 13, 2009
    Messages:
    1,450
    Location:
    Planet Earth
    Beluga Skysail

    I was invited to one of the official presentations of the skysail system and was onboard Beluga Skysail during one of the shakedown cruises in the German Bay.

    Very interesting system, but very difficult handling, especially during heavy weather and higher seastate. In heavy weather, the system could not be retracted without crew working on the skysail launch platform. The kite acted pretty violently and could have easily thrown somebody overboard. In this case, the system had to be jettisoned!!!!

    Taking the costs of the system in account plus the danger of its handling, I decided, that no man (or woman) on my payroll would work with skysail, end of story.

    In a later state of development a computer controlled, hydraulic steering system was implemented into the upper part of the kite. At that time, handling became saver and much more reliable. But even today fuel is much to cheap for armortisation of a skysail. A commercial ship will already be scrapped, before the skysail pays off, sorry.

    My personal favorite for the distant future, if fuel prices get out of control, is this type of cargo vessel (but at this date I will already watch the grass growing from underneath)

    Attached Files:

  18. brian eiland

    brian eiland Senior Member

    Joined:
    Jul 28, 2004
    Messages:
    2,879
    Location:
    St Augustine, Fl and Thailand
    'Idiling Kite'

    Did you happen to view this video link I presented in a previous posting?

    I'm thinking that what you might have viewed was an early trial of theirs wherein the first reaction is to try and 'control' the situation?? Sometimes that restraining of the control lines can cause more problems than it tries to cure. I've seen the same thing happen with normal sailing rigs being operated by inexperienced sailors. Sometimes you have to 'go with the flow'.

    I don't have personal experience with kite-sailing myself, so I have to look thru as many 'presentations' as I can find on the internet. Unfortuntely a number of video links I find seem to disappear or become an invalid link in a short time.
  19. brian eiland

    brian eiland Senior Member

    Joined:
    Jul 28, 2004
    Messages:
    2,879
    Location:
    St Augustine, Fl and Thailand
    The 'system' in total that SkySail has sought to fully develop for large ship application is indeed expensive. Of course it includes a total ship navigation- optimization program as well as other features.

    I would hope that the 'yacht version' could be 'simplfied' to make it more affordable as an auxillary power source / cruising range extender rather than an agressive fuel saver in commericial applications
  20. HTMO9

    HTMO9 Senior Member

    Joined:
    Jan 13, 2009
    Messages:
    1,450
    Location:
    Planet Earth
    Beluga Skysail

    B.T.W. Beluga Skysail and Beluga Shipping is history. Beluga, one of my trade rivals and competive firms is broke and elimated by liquidators and investors. The owner, Mr. Nils Stollberg had his company growing to fast and came into financial trouble. He invited the US investor Oaktree as a shareholder in the company. In order to make his company more attractive to the investor, he "polished" his records a little bit to much. The investor found out, kicked him out of his own company, took over everything and had confiscated his complete business and private wealth. Mr. Stollberg is awaiting his trail and may have to expect jail. So no more Beluga Skysail.

    If you want to play with the big boys, you have to be very smart:eek:.

    Sky sail:

    If we talk about skysail assisted ships and yachts, we have to devide (as you did) between commercial ships and pleasure boats. In the sailboat business, the skysail in Europe evolved from the blue water sailors, as we called them. The circumnavigators were looking for the perfect balanced sail for atlantic crossings in the trade winds. The first version of that type of sailing on my fathers yawl, when I was a small boy, was a double furling forestay with 2 large special cut genoas, he called butterfly sail. Later special spinnacker and gennacker for tradewind sailing came up and finally the free flying spinnacker with an aerodynamic opening was invented. This piece of kit later evolved into the kite sail, as we know today. Sailing smaller boats (up to maybe 50 ft) with sky sails is a lot of fun and gives great speed. But you only do that for fun and in favorite circumstances and weather.

    Commercial skysail assisted shipping is a total different world. Here, amortisation, savings and pay offs are paramount. I have a procedual setup in the company, where my R&D departement regularly reports new inventions, developements and inovations. But always under the aspect of commercial utilization. 10 years ago, skysail was one of those. It looked perfect for shipping, fuel saving almost for free. But..... After we calculated our routing profiles and schedules under the aspect of kite usage, we found out, that the investment would never pay off. Plus the danger of operation for ship and crew, we decided to forget about this method of fuel saving.

    I still believe, for certain operators, on specific routes, on specific sized ships, it might be usefull to work with skysail assisted shipping. But I do not see the very large bulk carrier sailing across the atlantic with a skysail as large as a football field.

    There will be sail assisted shipping in the future with climbing fuel prices. But the most flexible, most reliable and the most practicable sailing system, for commercial ships, at the moment, is the Dyna Rigg.

    TBC if you want
