work in progress

Discussion in 'Yacht Renderings & Plans' started by Mov-it!, Apr 11, 2008.

You need to be registered and signed in to view this content.
  1. Mov-it!

    Mov-it! New Member

    Joined:
    Nov 8, 2005
    Messages:
    194
    Location:
    Katwijk Netherlands
    some new renderings of a project under development

    Attached Files:

  2. Yacht News

    Yacht News YF News Editor

    Joined:
    Mar 29, 2006
    Messages:
    18,569
    Location:
    Caribbean
    Bjorn, I just have to smile at the sophistication of rendering software. Makes things look so realistic! Thanks man.
  3. coismov

    coismov Member

    Joined:
    Feb 4, 2006
    Messages:
    94
    Location:
    Milwaukee, WI
    what software was this done with?
  4. Mov-it!

    Mov-it! New Member

    Joined:
    Nov 8, 2005
    Messages:
    194
    Location:
    Katwijk Netherlands
    Coismov,

    I honestly don't know what they use. The CAD design was done using Mastership software. The rendering is done by a subcontractor. They make the surface models from the Mastership files.
  5. Mov-it!

    Mov-it! New Member

    Joined:
    Nov 8, 2005
    Messages:
    194
    Location:
    Katwijk Netherlands
    For the people of Rotterdam

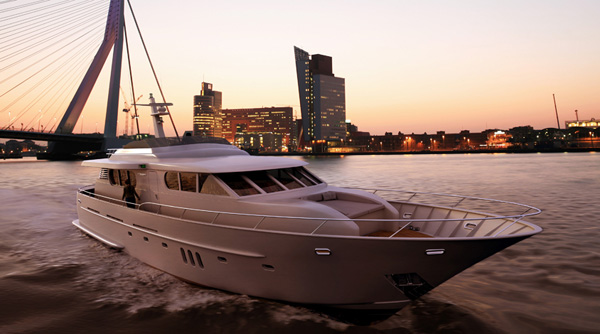

    Since there are only a few groups of people that take so much pride in their city as the people of Rotterdam, I thought it would be nice to have a rendering of a yacht in the Rotterdam skyline instead of a sunny sea.

    Attached Files:

  6. KCook

    KCook Senior Member

    Joined:
    Jun 24, 2005
    Messages:
    1,161
    Location:
    Phoenix
    Wow! Very cool with the city skyline Björn.

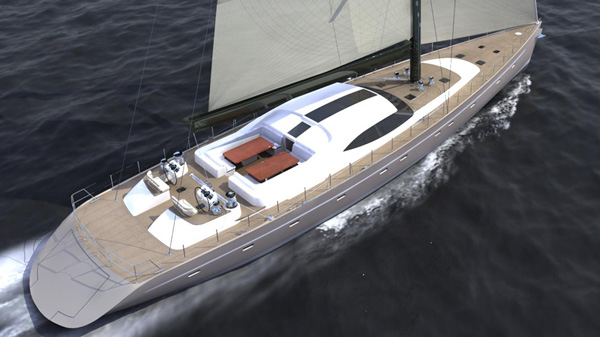

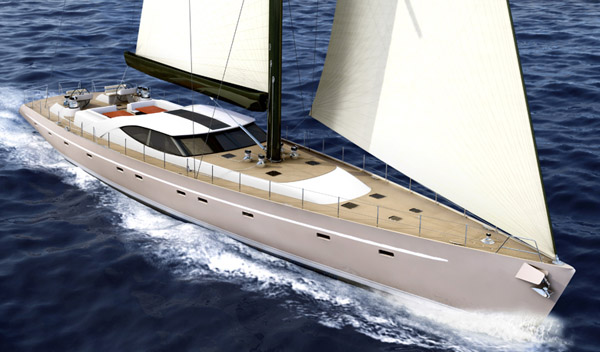

    BTW, there is a serious problem with the outside renderings of the sloop. From the trim of the sails it's very clear that this yacht is close hauled. And yet there is no heel at all!

    Kelly
  7. Codger

    Codger YF Wisdom Dept.

    Joined:
    May 29, 2005
    Messages:
    926
    Location:
    Western Canada
    light winds and lots of ballast.:D
  8. Mov-it!

    Mov-it! New Member

    Joined:
    Nov 8, 2005
    Messages:
    194
    Location:
    Katwijk Netherlands
    Kelly, this is indeed a small problem. Although it should heel just a little, this one simply is not very accurate. We had some difficulties with the first sloop they did, where the mast and boom were not properly alligned with the longitudal axis of the yacht. The motoryachts are a lot easier, so they cause no difficulties. These guys are experienced renderers but that experienced with the characteristics of a sailingyacht.

    The yacht itself on the other hand looks pretty good, so the renderings are good enough for our purposes. I think the scale model will take care of any uncertainties once it's ready.
  9. Brian

    Brian Senior Member

    Joined:
    Nov 14, 2005
    Messages:
    377
    Location:
    Halfmoon Bay, B.C. Canada
    I think the scale model will take care of any uncertainties once it's ready.

    Here here!!
  10. tz3d

    tz3d New Member

    Joined:
    Feb 22, 2008
    Messages:
    27
    Location:
    Fuzhou China
    good renderings .can pls let me know how much $ cost a view rendring ?thanks
  11. tz3d

    tz3d New Member

    Joined:
    Feb 22, 2008
    Messages:
    27
    Location:
    Fuzhou China
    I think maybe the rendering by 3dmax + v-ray .
