Volvo Quad 600 Simrad AP 26 Auto Pilot to Garmin Plotter “Nav” function

Discussion in 'Technical Discussion' started by Ral, Feb 25, 2022.

  1. Ral

    Ral New Member

    Joined:
    Sep 9, 2021
    Messages:
    3
    Location:
    Palm Beach

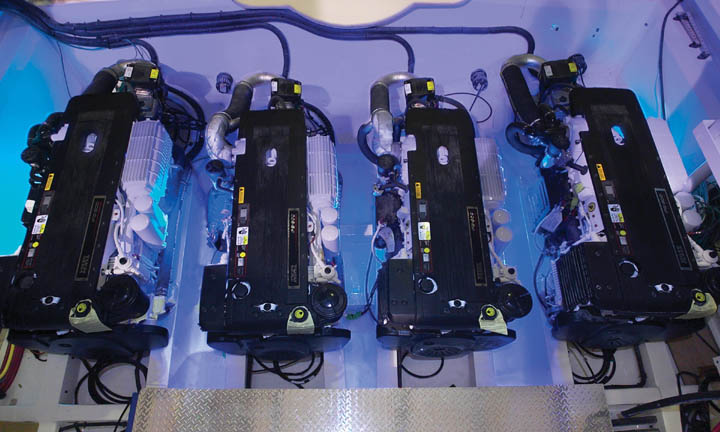

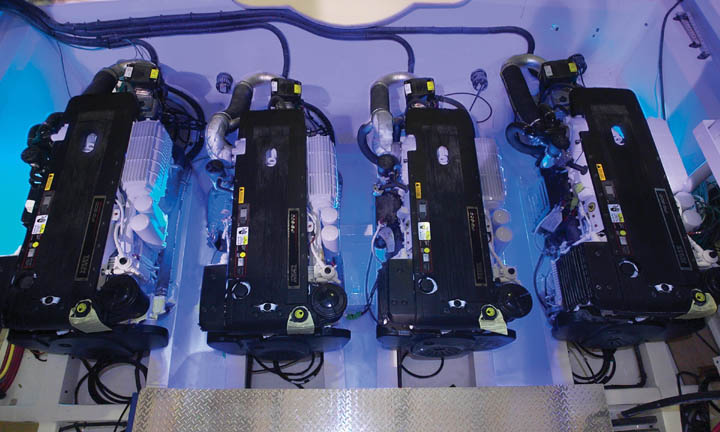

    B04C92AC-A609-42DB-9E5C-E32631EABEE7.jpeg Hi I have a quad Volvo 600 IPS with original 2008 Simrad AP 26 Autopilot. Pilot is connected via gateway to Volvo IPS drives. Holds steady on “Auto” but I would like to connect to my new Garmin 8616 plotters and use the “Nav” function. How would/could I accomplish this. Any help would be appreciated.
  2. Capt Ralph

    Capt Ralph Senior Member

    Joined:
    Sep 8, 2004
    Messages:
    11,023
    Location:
    Satsuma, FL
    Both products has a common Quasi N2k . Neither is 100% N2k.
    Time to contact a dealer familiar with both products.

    I hope it works out for you.
    Please keep us up on your results.
    Ral likes this.
  3. Rob Greenwood

    Rob Greenwood New Member

    Joined:
    Mar 11, 2021
    Messages:
    25
    Location:
    Long Island NY
    I am in the process of the same conversion from that Simrad autopilot to a Garmin reactor 40 autopilot paired with my new 8616 plotters. I have Three 2009 D6-435 IPS-600s. I am currently waiting on an autopilot gateway from Volvo. Please keep me updated with your conversion.
  4. Rob Greenwood

    Rob Greenwood New Member

    Joined:
    Mar 11, 2021
    Messages:
    25
    Location:
    Long Island NY
    Also I have to ask. What kind of boat do you have? That quad setup looks great.
  5. Ral

    Ral New Member

    Joined:
    Sep 9, 2021
    Messages:
    3
    Location:
    Palm Beach
    Rob thanks for the note. The boat is a Lazzara 75’ LSX. Lets keep in touch to see if this can be worked in thanks
    Rob Greenwood likes this.
  6. Rob Greenwood

    Rob Greenwood New Member

    Joined:
    Mar 11, 2021
    Messages:
    25
    Location:
    Long Island NY
    Absolutely. I've put a few hours into this so far so if you have any question feel free to reach out. By the end of this we'll both be up and running. Love your boat. BTW I have a 2009 52 Ovation. Thanks.
    Capt Ralph likes this.
  7. Ral

    Ral New Member

    Joined:
    Sep 9, 2021
    Messages:
    3
    Location:
    Palm Beach
    That 52’ Ovation looks like the perfect boat
    Rob Greenwood likes this.
  8. Rob Greenwood

    Rob Greenwood New Member

    Joined:
    Mar 11, 2021
    Messages:
    25
    Location:
    Long Island NY
    Thank you. It was the perfect fit for my family. Definitely not in the same class as your Lazzara tho lol.
  9. Rob Greenwood

    Rob Greenwood New Member

    Joined:
    Mar 11, 2021
    Messages:
    25
    Location:
    Long Island NY
    Quick update for those who are interested: New autopilots are only compatible with EVC C3 and above. If you have EVC C1/C2 you need to get new HCU’s to bring your system up to EVC C3.
  10. Pascal

    Pascal Senior Member

    Joined:
    Feb 29, 2008
    Messages:
    7,341
    Location:
    Miami, FL
    Not sure why you d want to go they all the trouble and $ to hook up the AP to the plotters. In all these years and tens of thousands of miles I have only used the AP heading function.
  11. Rob Greenwood

    Rob Greenwood New Member

    Joined:
    Mar 11, 2021
    Messages:
    25
    Location:
    Long Island NY
    Hi Ral. Any update on the autopilot project?
  12. captholli

    captholli Senior Member

    Joined:
    Jan 4, 2010
    Messages:
    1,149
    Location:
    In The Bilge
    If I'm interpreting this thread correctly it would be nice when the AP and plotters work together to compensate and display set & drift and cross track error. Certainly nothing new so I must be missing something here.
  13. Rob Greenwood

    Rob Greenwood New Member

    Joined:
    Mar 11, 2021
    Messages:
    25
    Location:
    Long Island NY
    We are running into difficulties trying to install a new garmin autopilot with out EVC-C boats.
  14. ranger58sb

    ranger58sb Senior member

    Joined:
    Aug 20, 2013
    Messages:
    668
    Location:
    Chesapeake Bay, USA
    If I'm interpreting correctly, it sounds like the problem being described here isn't about connecting AP to plotter... but instead it seems to be about connecting AP to engines/pods. Or at least getting the AP to work with those specific engines/pods.

    Maybe.

    -Chris
    Rob Greenwood likes this.
  15. captholli

    captholli Senior Member

    Joined:
    Jan 4, 2010
    Messages:
    1,149
    Location:
    In The Bilge
    See post #1, He wants to connect his new plotters and use the Nav function. I'm getting old, Grey and senile, I had to look up just what a EVC 1,2, and 3 was as it's a new world out there. ;)
  16. ranger58sb

    ranger58sb Senior member

    Joined:
    Aug 20, 2013
    Messages:
    668
    Location:
    Chesapeake Bay, USA
    Yep, understood that, connecting the two should be easy, usable nav functions follow.... as you say, not much new there.

    But posts #3 and #9 suggest that another problem is getting the (an) AP to work (at all) with those engine/pod versions.

    -Chris
