Upgrading an Alternator

Discussion in 'Technical Discussion' started by Capt Fred, Feb 10, 2020.

You need to be registered and signed in to view this content.
  1. Capt Fred

    Capt Fred Senior Member

    Joined:
    Jun 22, 2009
    Messages:
    249
    Location:
    Long Beach CA
    Lepke, Thanks for your input.
  2. Capt Ralph

    Capt Ralph Senior Member

    Joined:
    Sep 8, 2004
    Messages:
    8,241
    Location:
    Satsuma, FL
    How much larger is the frame/case over the 10/12SI? I think that was the OPs topic before I contributed to some side tracks.
  3. Lepke

    Lepke Member

    Joined:
    Dec 26, 2015
    Messages:
    105
    Location:
    US West Coast. Cruise NW Passage to Alaska.
    The CS-144 is about a 1/2" bigger in diameter and maybe 1/2" longer not counting pulleys or fan in either. My 12v ones run off a dual pulley from one of the back accessory spots. The 48v runs off the front on a custom mount. The 12v ones use the original mounts for the 10si, just leaned over a little more.
  4. Capt Fred

    Capt Fred Senior Member

    Joined:
    Jun 22, 2009
    Messages:
    249
    Location:
    Long Beach CA
    Well I bit the bullet and installed a CS144 on my DD. The fit is tight but I got her in place. On the stbd engine I had to rotate the housing 180 degrees to get the battery bolt on the inboard side. Just did a quick test and it puts out over 14 volts at idle. So far I'm pleased. Thanks for all the help.
  5. Capt Ralph

    Capt Ralph Senior Member

    Joined:
    Sep 8, 2004
    Messages:
    8,241
    Location:
    Satsuma, FL
    So, How much larger of a case is it? Did you have to mod the tension gizmo??
    Cant leave us hanging?
    Did you shop for a 21SI vs the CS144? What prices issues did you find?
    Dual belts? Same size? Able to match easily?
    AND You didn't send any pictures. Ya know, I like to watch..
  6. Capt Fred

    Capt Fred Senior Member

    Joined:
    Jun 22, 2009
    Messages:
    249
    Location:
    Long Beach CA
    The foot to ear dimension is 1/2" wider, the adjustment tensioner bolt is 3/8 verses 5/16 and the case diameter is about 1/2 wider. It is probably about a 1/2 longer as Lepke mentioned but I did not measure that. I did not have to mod the tensioner or foot. Both the 12SI and CS144 are about the same price on Amazon, I paid $109 with free shipping but the CS144 is 140 vs 100 amps for the 12si. Also no core charge. I got the CS144 connector with resistor from eBay for 10 bucks. For now went with single belt will monitor. I'm pleased with the performance based on a one time dock test, time will tell. Will grab a picture next time on the boat.
  7. Capt Ralph

    Capt Ralph Senior Member

    Joined:
    Sep 8, 2004
    Messages:
    8,241
    Location:
    Satsuma, FL
    Good report. Now go catch some fish and have fun.
  8. Capt Fred

    Capt Fred Senior Member

    Joined:
    Jun 22, 2009
    Messages:
    249
    Location:
    Long Beach CA

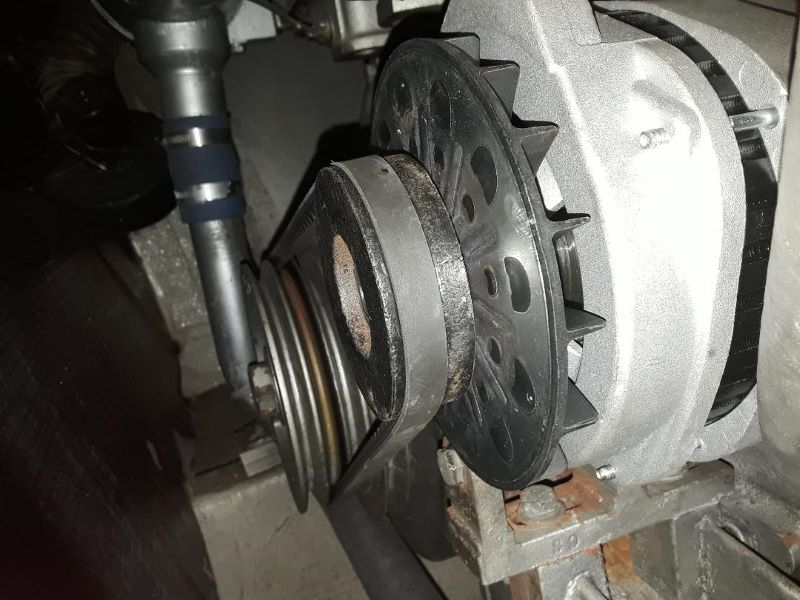

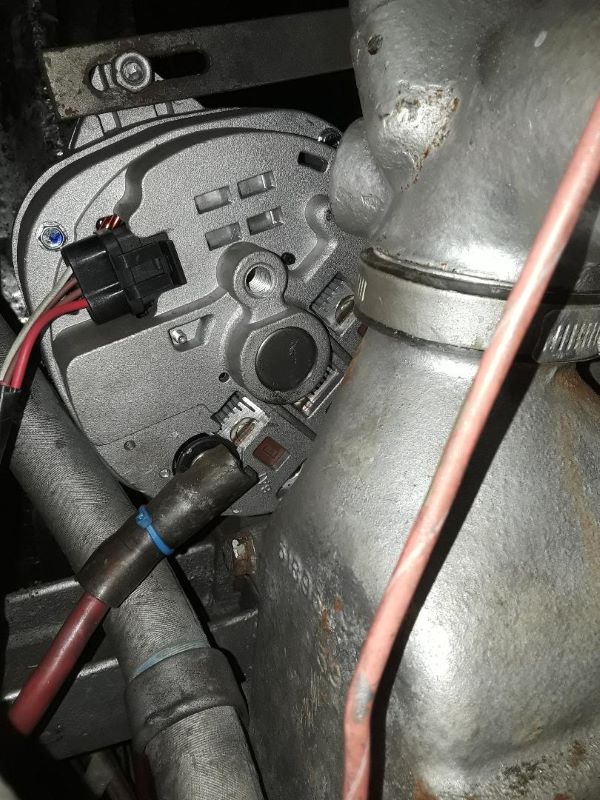

    CR, as requested a few pictures of the CS144 installation.

    Attached Files:

  9. Capt Ralph

    Capt Ralph Senior Member

    Joined:
    Sep 8, 2004
    Messages:
    8,241
    Location:
    Satsuma, FL
    Mighty Fine.
