Underwater lights - are they worth it?

Discussion in 'Electronics' started by SoCalD, Feb 27, 2021.

You need to be registered and signed in to view this content.
  1. Capt Ralph

    Capt Ralph Senior Member

    Joined:
    Sep 8, 2004
    Messages:
    9,806
    Location:
    Satsuma, FL
    Don't mean to throw out a sales pitch,, but I do have a fave brand not mentioned.

    We sold, installed and upgraded many Aqualuma lights for our customers. The one-piece polymer housing lens / shell is bomb proof.

    Over 5 years ago, one customer, many years after original purchase, tapped on us to upgrade their lights, not from failures, just the technology had improved and the new lights were multi colored and brighter.
    All serviced from inside the hull. No haul required.
    That's when we got involved with the company.

    Not many folks know of this Aussie brand but well worth a look.
    PM me if you need details.
  2. Danvilletim

    Danvilletim Senior Member

    Joined:
    Oct 30, 2011
    Messages:
    774
    Location:
    isleton, ca
    What are new lights going for these days installed! I think I have 4-5 lights and don’t seem to be working.
  3. Capt Ralph

    Capt Ralph Senior Member

    Joined:
    Sep 8, 2004
    Messages:
    9,806
    Location:
    Satsuma, FL
    What brand & model do you have now?
  4. Capt J

    Capt J Senior Member

    Joined:
    Jul 11, 2005
    Messages:
    13,930
    Location:
    Fort Lauderdale
    Best to stick with the brand and model you have now, otherwise you get into the hole being too big, too small, etc. I would have an electrician look at the lights and diagnose them, might simply be a fuse or connection. I just did 4 on a boat and replaced the housings etc. It was around $12k including the parts......but all depends on access.

    I've had good luck with Aqualuma's and have a set that are going on 7 years old now and work fine.
  5. SoCalD

    SoCalD New Member

    Joined:
    Feb 27, 2021
    Messages:
    6
    Location:
    San Diego

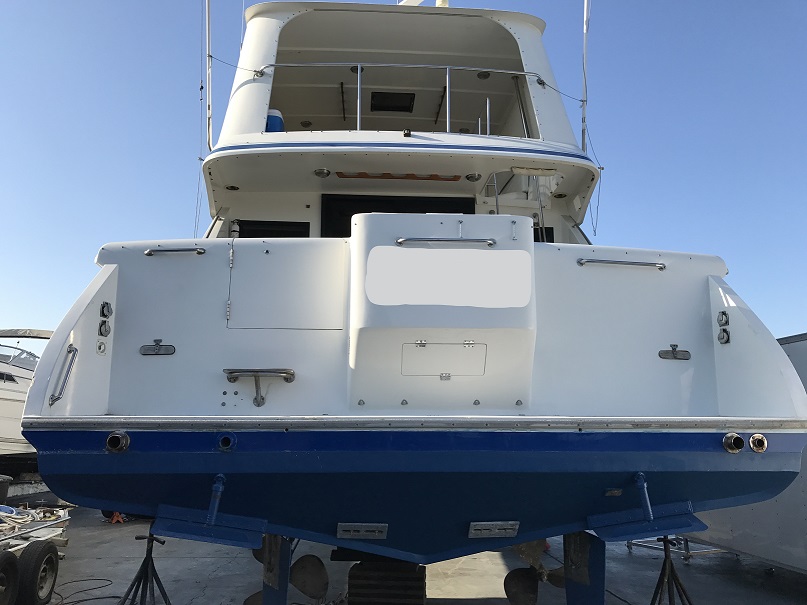

    Ok you guys are making it difficult, now I am leaning towards getting lights again! My biggest concern now is the beam angle. Does anyone here have a reverse or angled transom below the water line? As you can see in the attached picture, the mounting area for my lights would be angled downward roughly 30-40deg. Has anyone installed lights on an angle like this and do the lights have a wide enough beam angle that the light still shines aft fairly strongly versus just downward? Pics would be great if you have them![​IMG]
    [​IMG]

    Attached Files:

    Last edited: Mar 3, 2021
  6. Pascal

    Pascal Senior Member

    Joined:
    Feb 29, 2008
    Messages:
    6,558
    Location:
    Miami, FL
    I had this on a 70 johnson years ago. The yard did a mounting block out of fiberglass. Easy to do with Coosa as well
  7. Capt J

    Capt J Senior Member

    Joined:
    Jul 11, 2005
    Messages:
    13,930
    Location:
    Fort Lauderdale
    That's easy, they just put an angled spacer in between the light and the hull. That's easy peasy.
  8. NYCAP123

    NYCAP123 Senior Member

    Joined:
    Mar 14, 2008
    Messages:
    11,218
    Location:
    Long Island, NY
    Sorry to hijack but what kind of boat is that? Can't say I've ever seen a (is it considered transom or bottom) like that. That said, although angling the lights should be no problem would putting them on the perpendicular area just below the water line work? I might be concerned with the amount of force water flowing past the lights might exert in that lower area.
  9. SoCalD

    SoCalD New Member

    Joined:
    Feb 27, 2021
    Messages:
    6
    Location:
    San Diego
    Do you know who makes spacers like that? I tried to search and I just saw spacers for transducers meant to go inside the boat.
  10. SoCalD

    SoCalD New Member

    Joined:
    Feb 27, 2021
    Messages:
    6
    Location:
    San Diego
    Its an older Mikelson (link) . And it is the only one I have seen with an enclosed flybridge so makes it look a bit different.
  11. Pascal

    Pascal Senior Member

    Joined:
    Feb 29, 2008
    Messages:
    6,558
    Location:
    Miami, FL
    Easy to make. Take some 2” coosa, epoxy two pieces and cut at an angle matching the transom. Epoxy on the transom. Install the lights.
    SoCalD likes this.
  12. Capt J

    Capt J Senior Member

    Joined:
    Jul 11, 2005
    Messages:
    13,930
    Location:
    Fort Lauderdale
    Exactly. Any boat yard can make them.......they're pretty easy to make.
    SoCalD likes this.
  13. NYCAP123

    NYCAP123 Senior Member

    Joined:
    Mar 14, 2008
    Messages:
    11,218
    Location:
    Long Island, NY
    Thank you. Interesting deign. Nice. DK that I've run across one before. J or Pascal what would you think about mounting them on the perpendicular section just below the surface. My thought is that on the slanted section you'd put the lights on blocks, which is easy, but they're going to disturb the water flow. That looks like a very detailed slanted section. Might create vibration.
  14. Capt J

    Capt J Senior Member

    Joined:
    Jul 11, 2005
    Messages:
    13,930
    Location:
    Fort Lauderdale
    Just put them on angled blocks so they're level. At anything above idle speed, they'll be out of the water so won't effect anything.
  15. NYCAP123

    NYCAP123 Senior Member

    Joined:
    Mar 14, 2008
    Messages:
    11,218
    Location:
    Long Island, NY
    Really???
  16. mapism

    mapism Senior Member

    Joined:
    Aug 9, 2008
    Messages:
    1,395
    Location:
    Sardinia
    I can think of a couple of boats that I've seen with a similar transom.
    Both from small Italian builders, whose name is irrelevant, but I can see why you find that unusual, anyway.
    In the cases I'm aware of, it was a sort of builder's afterthought, driven by the market demand for extended swim platforms.
    Which is more easily addressed by making an additional mould for it, and then bolt it to an existing hull transom (fairing the joint with filler and gelcoat), adding also a bit of static stern buoyancy in the process.
    Maybe that's what also Mikelson did, 'dunno.

    Back to SoCalD question, I wouldn't bother doing anything at all, because the u/w light effect can be even nicer, when they are angled downward.
    So much so, that I've seen downward angled blocks made as Pascal suggested, but for the opposite reason, i.e. to point downward the lights installed on a more "normal", almost vertical hull stern.
    Last edited: Mar 4, 2021
  17. NYCAP123

    NYCAP123 Senior Member

    Joined:
    Mar 14, 2008
    Messages:
    11,218
    Location:
    Long Island, NY
    Only time I remember seeing similar bottom design was on the old oar-driven life-saving surf boats and whaling boats. The V-shaped ridge (not from those old designs) looks like it's designed to break up the water flow in a very specific way as it goes across a plate to reduce drag as the water leaves behind the boat breaking suction. That's why I think putting a few wedges there for lights could be a really big mistake.
  18. gr8trn

    gr8trn Senior Member

    Joined:
    Dec 3, 2012
    Messages:
    504
    Location:
    Portland, OR
    I thought I read that you hang a flashlight overboard, does that point downward or float more horizontally and spin around?

    My tender has UW lights, not my idea just packaging at the dealer. That doesn’t sit in the water but it is fun to pull up to the gatherings with that light on.

    I would do it if I were confident in the person doing the install, it sounds like you want to so just be sure it is done properly.
  19. mapism

    mapism Senior Member

    Joined:
    Aug 9, 2008
    Messages:
    1,395
    Location:
    Sardinia
    I mostly use them pointed towards the bottom, for two reasons: firstly, most of my preferred anchorages are in no more than 20 feet of depth, and secondly all of them are in crystal clear water.
    Consequently, by hanging a pair of diving flashlights from the stern cleats at 8 or 10 feet from the bottom and pointing down, you can create a very nice effect of being floating "suspended" on an illuminated seabed - without being disturbed by direct light, as can happen if you are swimming behind normal stern u/w lights.
    But in principle, you can point the flashlights as you prefer, depending on where you tie the hanging line to them, and possibly using also some fishing sinker attached to the side that you want to keep down.
    For instance, I experimented with the opposite of what I previously said, i.e. hang the flashlights at 6 or 8 feet from the surface, pointing upwards and illuminating the hull.
    Which also creates a nice lighting, but not as "soft/distributed" as with the lights pointing to the seabed.
  20. NYCAP123

    NYCAP123 Senior Member

    Joined:
    Mar 14, 2008
    Messages:
    11,218
    Location:
    Long Island, NY
    The pointing down or spinning idea is why I suggested hanging a glow stick.
    That's novel with the tender. Don't think I ever saw them on a tender, maybe cause it's a lot of money for a small boat.
