Try to build an aluminum 40' sportfishing

Discussion in 'General Sportfish Discussion' started by JeffSheu, Dec 20, 2009.

  1. JeffSheu

    JeffSheu Member

    Joined:
    Apr 30, 2007
    Messages:
    49
    Location:
    Taiwan
    Dear all,

    I'm working in a shipyard in Taiwan.
    Our shipyard is skilled in aluminum patrol/rescue boat building.

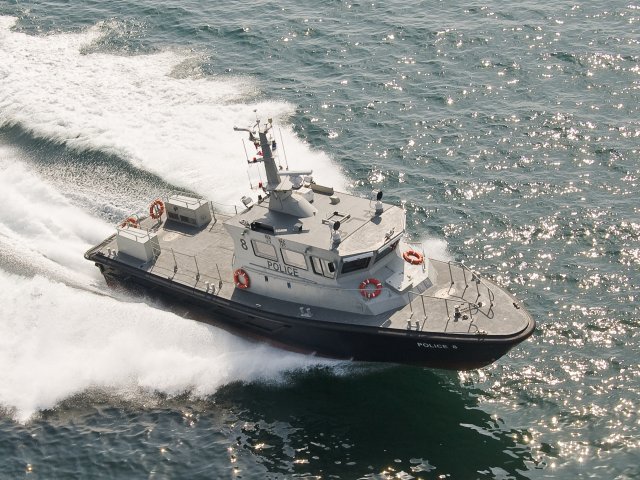

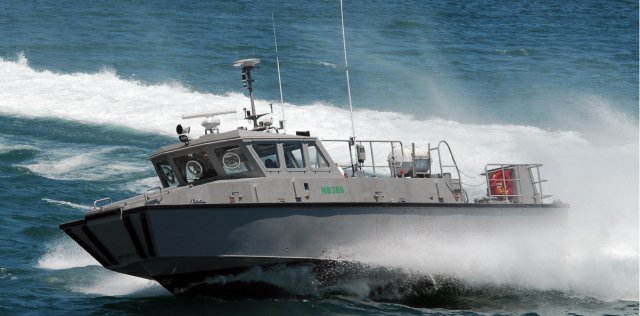

    The following boats are all designed and built by our own.

    Recently, my boss has an idea to develop some new products.
    One of the ideas is to try to build an aluminum sportfishing yacht.
    His idea model is :
    length over all is about 40ft,
    aluminum hull,
    express type with tower sportfishing yacht.

    In all honesty,
    our engineers are professional in ultra fast boat design,
    but not in yacht design.
    We don't know the concepts, systems and hardwares of a sportfishing yacht well.
    Therefore, we think taht we need some outside helps to develop the prototype.

    Could someone introduce us any design company good at sportfishing yacht design?
    Or if there is someone familiar with the operating of a sportfishing yacht might be interested in this project?

    Thanks!

    Attached Files:

    • 01.jpg
      File size:
      40.4 KB
      Views:
      3,181
    • 02.jpg
      File size:
      59.6 KB
      Views:
      2,536
    • 03.jpg
      File size:
      93.3 KB
      Views:
      2,291
    • 04.jpg
      File size:
      66.4 KB
      Views:
      2,294
  2. Teddy1

    Teddy1 New Member

    Joined:
    Dec 17, 2009
    Messages:
    43
    Location:
    westhampton beach, ny
    You might want to try Michael Peters Yacht design, use this link:
    http://www.mpyd.net/.

    They have designed many successful sportfish boats, incliding my 43' Egg Harbor.
  3. Capt J

    Capt J Senior Member

    Joined:
    Jul 11, 2005
    Messages:
    11,704
    Location:
    Fort Lauderdale
    Yes, as well as many Cabo hulls and I believe Rybovich. However, aluminum sportfish have really grown out of favor and are disliked by most of the sportfishing crowd. Striker was the major company that made aluminum sportfish. But Fiberglass (production boats) and then cold molded (Jim Smith, Paul Mann, Bayliss etc.) seem to be the two hull materials that everyone wants
  4. NYCAP123

    NYCAP123 Senior Member

    Joined:
    Mar 14, 2008
    Messages:
    8,781
    Location:
    Long Island, NY
    You might consider expanding into a more related direction such as water taxis, ferries, crewboats, etc.
  5. JeffSheu

    JeffSheu Member

    Joined:
    Apr 30, 2007
    Messages:
    49
    Location:
    Taiwan
    Thanks for the above suggestions!

    Striker is a famous sportfishing yacht builder before,
    but nowadays I don't hear any news from Striker.
    Why did aluminum sportfish have really grown out of favor?

    For price?
    Or maintenance?
  6. Capt J

    Capt J Senior Member

    Joined:
    Jul 11, 2005
    Messages:
    11,704
    Location:
    Fort Lauderdale
    Maintanence, noise while fishing, nowadays there isn't a large weight savings over using fiberglass, long term maintanence.
  7. JeffSheu

    JeffSheu Member

    Joined:
    Apr 30, 2007
    Messages:
    49
    Location:
    Taiwan
    Thanks for your suggestion!
    We now have the above products indeed.

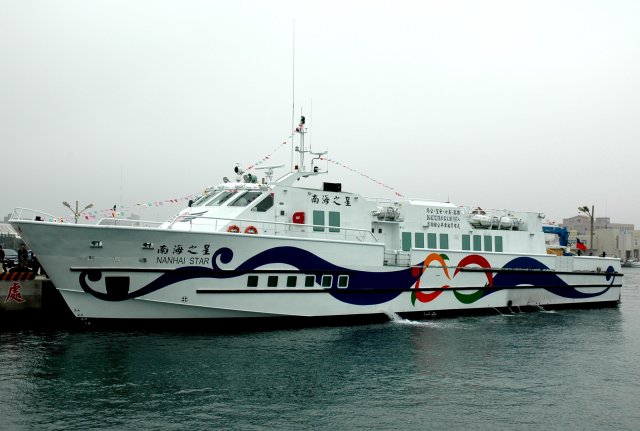

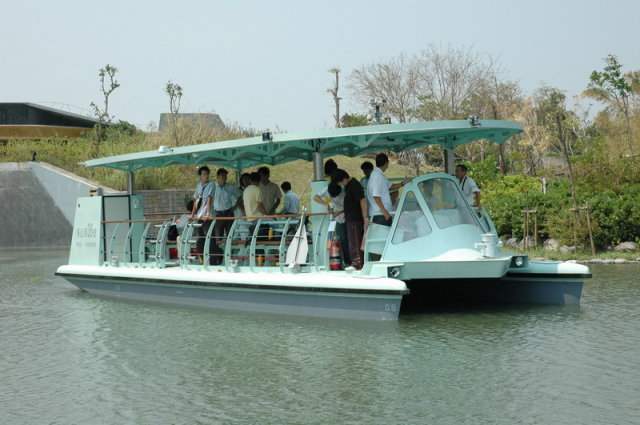

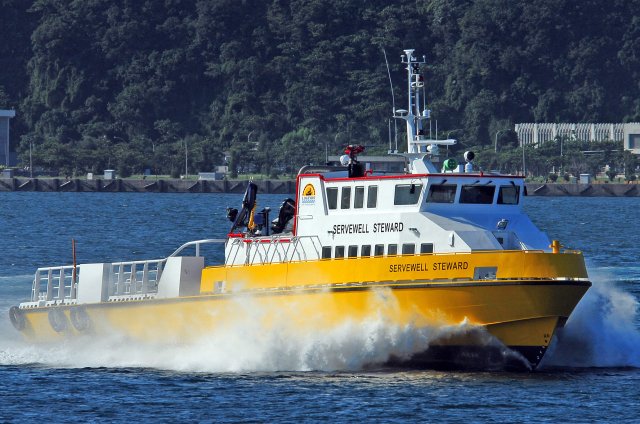

    Our company built aluminum solar water taxi, ferries and crewboat.
    Here comes the photos.

    My boss wants to try something different from before.
    Sportfishing yacht is one of his ideas.

    Attached Files:

    • 001.jpg
      File size:
      99.8 KB
      Views:
      2,117
    • 002.jpg
      File size:
      45.6 KB
      Views:
      2,303
    • 003.jpg
      File size:
      95.2 KB
      Views:
      2,155
  8. NYCAP123

    NYCAP123 Senior Member

    Joined:
    Mar 14, 2008
    Messages:
    8,781
    Location:
    Long Island, NY
    You guys build some nice looking boats. Especially like that tour boat; very unusual. If he really wants to go SF might I suggest you go high end, especially since you'll be going Aluminum. It's really a bad time to enter the small yacht market with companies closing and cutting back all over.
  9. JeffSheu

    JeffSheu Member

    Joined:
    Apr 30, 2007
    Messages:
    49
    Location:
    Taiwan
    Thanks!
    I'll tell my coworkers that their design obtained your appreciation.

    My boos want to build a small SF (abt. 40ft) as a beginning.
    (This boat is only a prototype and owned by ourself.)
    Because we didn't have any experience to build a high end yacht before,
    he thinks that we might not satisfy the high end owner's require now.

    He wants us to use it as an "exercise book" to enhace our yacht-building and design capability, such as system design, mirror finish painting, high glossy polishing stainless steel fitting and interior decoration.

    Furthermore,
    we do all design work by ourself before.
    Our staff still need to learn how to do design work together with international yacht design company.
  10. NYCAP123

    NYCAP123 Senior Member

    Joined:
    Mar 14, 2008
    Messages:
    8,781
    Location:
    Long Island, NY
    Oh, a prototype. Cool. Dig into the Strikers. Their about your best example.
  11. Capt J

    Capt J Senior Member

    Joined:
    Jul 11, 2005
    Messages:
    11,704
    Location:
    Fort Lauderdale
    I would see if you can find and take a look at a Vicem sportfish in your area or a charles Jannice. They are both sold here in the US market and pretty well finished off. I'm not sure aluminum would be the material of choice for a sportfish. Either that or going to a boat show here in the US and taking a look at the usual sportfish Cabo, Viking, Hatteras, a few custom sportfish like Merritt, Jim Smith, Weaver, Bayliss, etc etc.........The biggest problem you're going to run into is the actual application of the sportfishing end of the boat. Understanding what you need in the way of live-wells, fish boxes, tackle storage, rod storage, bait freezers etc. and locations of them in the cockpit and rest of boat.

    Have you thought about producing airboats or dive boats?
  12. JeffSheu

    JeffSheu Member

    Joined:
    Apr 30, 2007
    Messages:
    49
    Location:
    Taiwan
    I think my boss would be pleased to built airboats or dive boats if there is someone want to build one in our factory. :D

    Could the yacht design company guide us to find a good place to set the equipments such as fish boxes, tackle storage, rod storage, bait freezers?
  13. Capt J

    Capt J Senior Member

    Joined:
    Jul 11, 2005
    Messages:
    11,704
    Location:
    Fort Lauderdale
    Yes, some yacht design companies can set you in the right direction as to where to place fishboxes and such. Keep in mind this also determines where you can place fuel tanks and such under the cockpit floor. I would take a solid look at the 40' Cabo express as it has a really good cockpit layout for everything in my opinion and is the size you're looking to build. Their website I believe shows the cockpit layout........It sounds like you're looking to build one just for the factory's own personal use.
  14. JeffSheu

    JeffSheu Member

    Joined:
    Apr 30, 2007
    Messages:
    49
    Location:
    Taiwan
    Yes, there is no buyer for the project now.
    Our company just want to build a prototype boat for training,
    including yacht design and building capacity,
    cockpit layout optimum, etc.
  15. CaptainSilva

    CaptainSilva Senior Member

    Joined:
    Dec 9, 2006
    Messages:
    159
    Location:
    Newport, RI

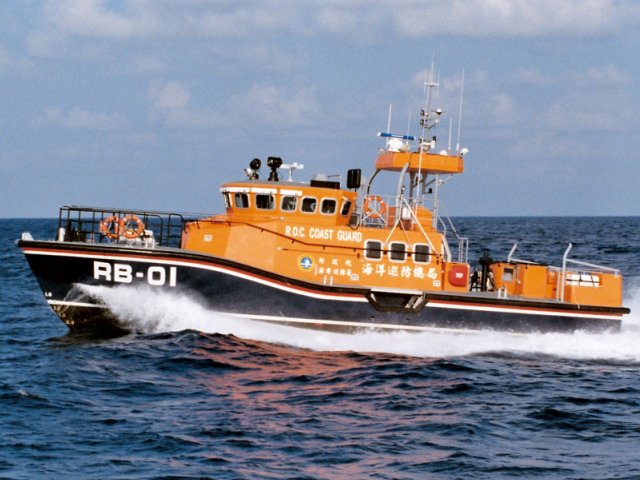

    Looks to me like you have the start of a nice hull to work with on that RB-01 Coast Guard boat. The bow has a nice flair to it.
  16. JeffSheu

    JeffSheu Member

    Joined:
    Apr 30, 2007
    Messages:
    49
    Location:
    Taiwan

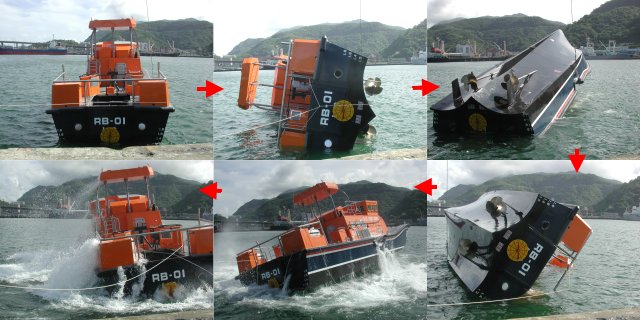

    RB-01 is a self-righting rescue boat for Coast Guard.
    We delivered three from 2001 to 2002.

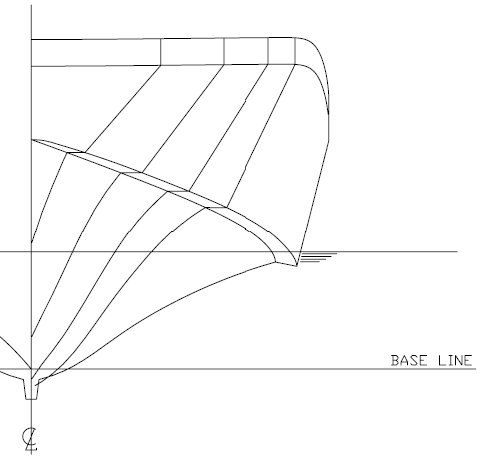

    The sections of the bow is as the attached picture.
    Is the flair also good for Sportfishing yacht?

    Attached Files:

    • 003.jpg
      File size:
      59 KB
      Views:
      2,126
    • 002.jpg
      File size:
      21.8 KB
      Views:
      1,270
  17. Patudo

    Patudo New Member

    Joined:
    Dec 28, 2011
    Messages:
    18
    Location:
    Eastern Atlantic, South East Asia
    I realize this post is over two years old and the original poster may well have moved on, but there are bits in there that still are/could be worth discussing.

    - I realize the original poster's intention was to build a company prototype - but I get the definite impression that the market for sportfishers around the 40 foot mark is probably very saturated right now. The worldwide recession and low US dollar have made it more cost effective than ever before to bring in second hand US sportfishers. I read some comments in the Riveira thread (that the influx of good quality second hand US sportfishers was a major factor in Riveira going under) with interest. These boats, which are normally well built and have an established sportfishing pedigree, are going to be very serious competition for potential non-US sportfish builders, especially as demand for such vessels outside the US and maybe Australia is limited. It's been very interesting to find there is some demand for sportfishermen from the cruising crowd, but I'd guess most folks that purchase such vessels still do so with the intention of fishing for billfish and tuna. There is an odd paradox here, because sportfishing for billfish and tuna is carried out in a great number of places, including some very far flung locations indeed (such places often being the very best locations to fish for big game), yet billfish and tuna fishermen are a definite minority amongst owners or potential owners of boats in the 40-foot class (especially outside the United States and Australia). Very careful consideration therefore needs to be made before entering this small and quite competitive market.

    - Aluminium sportfish are more widely accepted in non-US markets and maybe the West Coast USA (?) than the US East Coast.

    - Capt J is right when he says "The biggest problem you're going to run into is the actual application of the sportfishing end of the boat. Understanding what you need in the way of live-wells, fish boxes, tackle storage, rod storage, bait freezers etc. and locations of them in the cockpit and rest of boat." There is a lot that can be added, including but not limited to: low-speed manoeuverability (backing up, spinning and turning), helmsman's view of the cockpit and bow, location of helm station and electronics displays, etc. Ease of maintenance is also essential when a boat is being fished hard. To really understand how all these things come together, you really need to see a good sportfishing boat doing the work it is designed for. Yes, it's a good idea to visit boat shows and take snapshots of leading US production and custom boats; but what will really help make a good sportfisherman - I mean not just a boat that has the exterior appearance of a Bertram or Viking but a boat that is truly fit for the purpose of sport fishing for billfish and tuna - would be to have your boss charter a week's fishing in Cairns Australia, or Kona Hawaii, with a good professional skipper on a good boat, observe everything that is done during the fishing process, and ask lots of questions about what is good and not so good about the vessel he is running and vessels he has operated previously (which should provide you with a notebook full of information).

    - From what I gather, Taiwan wouldn't be a bad place to fish for billfish and tuna! I understand Taiwanese coastal fishermen take black marlin and other billfish by harpooning - a fishery report available on the internet shows that the coastal harpoon fishery took around 500 tons of billfish in 2009. I've found that Asian anglers are mainly interested in catching table fish, but sport fishing for amberjack, giant trevally and dogtooth tuna is becoming more popular. Trolling for billfish and tuna may be too expensive for most anglers (the same is true in most parts of the world, not just Asia) but it looks as though the fish are likely to be there for anyone willing to try.
  18. Patudo

    Patudo New Member

    Joined:
    Dec 28, 2011
    Messages:
    18
    Location:
    Eastern Atlantic, South East Asia

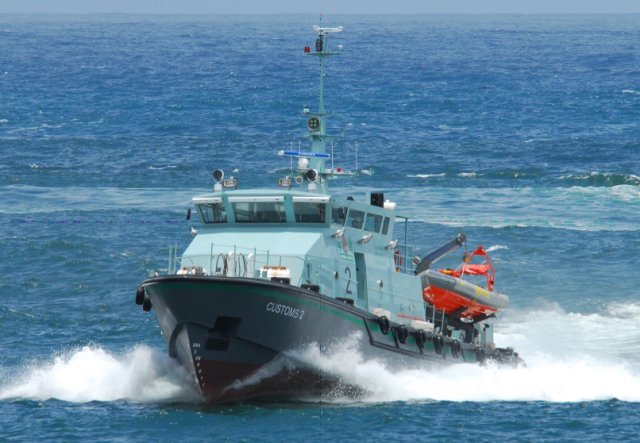

    Apologies for the long post above. I was looking at the photos of the boats JeffSheu posted, especially the Customs 2 boat and RB-01, as well as Jeff's last post on this thread, and found myself looking at the prominent spray deflectors that can be seen doing their job on both boats. I've seen similar examples on other boats but seldom from US builders, which seem to use smaller spray rails and place them lower down, and I wonder why this is.

    Jeff: how long are the hulls in your original post?
  19. JeffSheu

    JeffSheu Member

    Joined:
    Apr 30, 2007
    Messages:
    49
    Location:
    Taiwan
    Dear Patudo,

    Thanks for your kindly suggestion.
    We understand that it is a difficult topic to design and build a good sportfishing yacht.

    The original idea for us is to build a 40ft prototype and test its performance.
