Transducer location 42 Post hull #200

Discussion in 'Post Yacht' started by taggeam, Jan 9, 2019.

You need to be registered and signed in to view this content.
  1. taggeam

    taggeam New Member

    Joined:
    Aug 1, 2018
    Messages:
    4
    Location:
    08322
    I'm about to install a 1kw B260 transducer in my 42 Post. I've removed one of the two transducers that were existing. ...but I'm not sure if I love the location. The one I removed is aft of the port engine, inboard of the water intake. The other ducer is forward of the port engine. I'm wondering who's got what...so to speak. I've no issue filling the holes if one location is preferred over another.

    Thanks in advance....
  2. Capt Ralph

    Capt Ralph Senior Member

    Joined:
    Sep 8, 2004
    Messages:
    6,253
    Location:
    Jax FL
    In your best imagination, what location is getting the best passing of water. Nice clear water with no bubbles from the bow chopping it down.
    Then, with a fair block, ensure it's pointing straight down with just a degree or two forward view. You may achieve this and more with bow rise while running but ensure it's not pointing aft at all when full of forward fuel trolling or idling.
    I'm leaning towards your more forward location.
  3. mwwhit1

    mwwhit1 Senior Member

    Joined:
    Jan 19, 2006
    Messages:
    218
    Location:
    Jersey City NJ\Boca Raton FL
    Mine has worked fine on the inboard side of the intake strainer. Mine is starboard, but doesn't matter.

    This location is nice because running the wire up to the bridge is easier. You are very close to the wire chase in the rear corner of the salon.
  4. taggeam

    taggeam New Member

    Joined:
    Aug 1, 2018
    Messages:
    4
    Location:
    08322

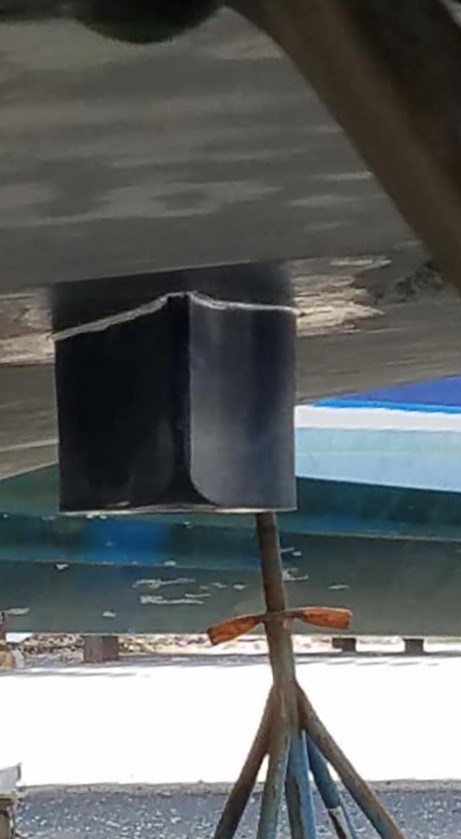

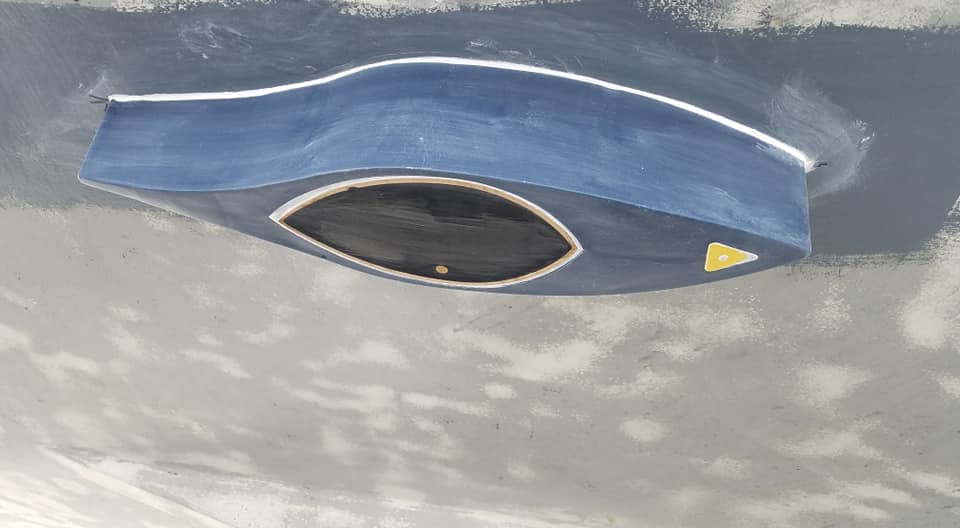

    Thank you...that's exactly what I was looking for...Appreciate the input, folks. I just wanted to see if that was the typical location...as there are 2 in my boat....and it made more sense to me. It'd seem it gets relatively clean water in that spot...I can't see it not picking up at cruise with the 1kw ducer.

    Can't wait to get this puppy out doing what she was made to do. She's not been fished in over 35 years.
  5. chesapeake46

    chesapeake46 Senior Member

    Joined:
    Jul 26, 2009
    Messages:
    1,128
    Location:
    Chesapeake Bay, Delaware Bay & S.Jersey

    Same here.
