The whole story

Discussion in 'Chris Craft Roamer Yacht' started by Oneiros, Dec 12, 2009.

You need to be registered and signed in to view this content.
  1. Kiwipushrod

    Kiwipushrod New Member

    Joined:
    Mar 17, 2010
    Messages:
    52
    Location:
    Trempeleau Wisconsin
    For the rest of us in the Roamer forum....

    LROS: Lloyd's Register of Shipping

    ABS: American Bureau of Shipping

    IACS: International Association of Classification Societies? (I had to google this one)

    I think that they radius the new plate and therefore the weld, without corners so there is less stress to the new plate, cause we all know welds pull.

    I dont understand the "5 times the plate thickness for the corners of welded inserts" though.

    Kiwi
  2. Marmot

    Marmot Senior Member

    Joined:
    May 20, 2007
    Messages:
    3,320
    Location:
    9114 S. Central Ave
    Sorry, K1W1 and I get carried away sometimes.

    Five times the plate thickness means that the corner radius for a 6mm thick plate should be 30mm. Class standards are generally written for large ships so the reference to a 100mm minimum radius would be for plates 20mm or less. That is a bit much for the 5 or 6mm plate used on smaller vessels so if the boat is not classed, a 20 or 30mm radius for thin plates is perfectly adequate, in my opinion anyway.

    In case you are interested, the IACS document I referenced is "Shipbuilding and Repair Quality Standard No.47" and it is just a Google away.
  3. K1W1

    K1W1 Senior Member

    Joined:
    Sep 30, 2005
    Messages:
    7,393
    Location:
    My Office
    Hi,

    Google doesn't have all the answers.

    LROS: Loose Rules, Obsolete Standards

    ABS: All Below Standard

    IACS: Intentionally Antiquated Construction Standards.

    If you are ever involved in a situation where you have a Classification Society Surveyor working on a project you might be surprised that what can be accepted is often really down to the individual surveyors interpretation of the rules. They are also not unknown to change their interpretation of the same rule at a later stage.

    On new constructions the Surveyors generally work for the building yard, the yards are their customers not the ship owners. The yards press the Surveyors to inspect things and accept them before they are finished which they often give in and do. You then have to really stand up to them and demand that they list all the defects and deficiencies on their acceptance protocol plus demand a re inspection (something they do not like to do as it costs their customers money for a re inspection)when it's actually finished or you will find your self in a very deep tank where some SOB has removed the ladder.

    As far as Classification Society inspections of vessels in service ..... well that's a whole other ball game but needless to say there are some real junkers out there with current Class certificates - Haven't you recently been involved with one Marmot?
  4. Marmot

    Marmot Senior Member

    Joined:
    May 20, 2007
    Messages:
    3,320
    Location:
    9114 S. Central Ave
    You don't know how much I wish I could write about that. It was the non-sinking steel version of the sunken Bert without being able to blame manufacturing defects, followed by unbending insistence on following class rules that have little applicability to the purpose. But the surveyor was as much a victim of the situation as the vessel, he was just trying to protect himself.

    If yacht stories were on afternoon television that one would have been a mini-series.

    In any event, the sight of sharp corners and saw kerfs makes me cringe. There are reasons most of the class rules came too exist and most of them are just good fabrication practice.
  5. K1W1

    K1W1 Senior Member

    Joined:
    Sep 30, 2005
    Messages:
    7,393
    Location:
    My Office
    You are not alone in that wish :)

    I have no doubt the attending surveyor was a bit uneasy when the actual extent of the problems were revealed. The ones who were each partially to blame were the preceding 20 yrs worth who did not do their inspections as the should have done.

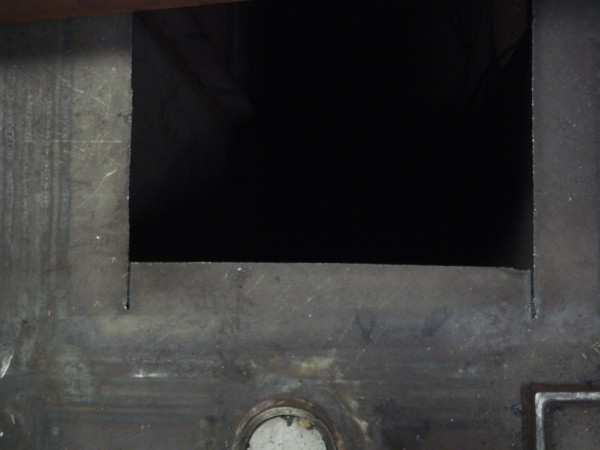

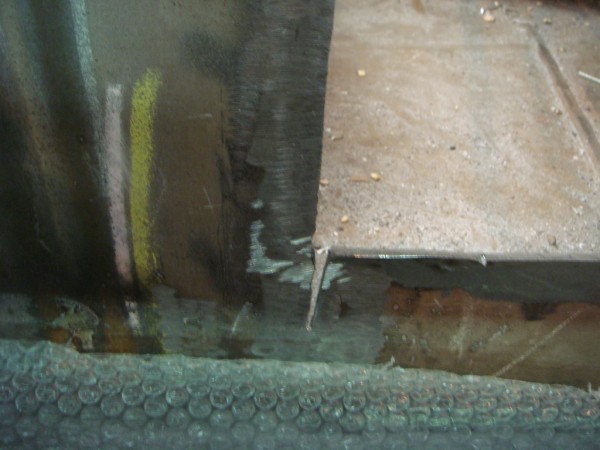

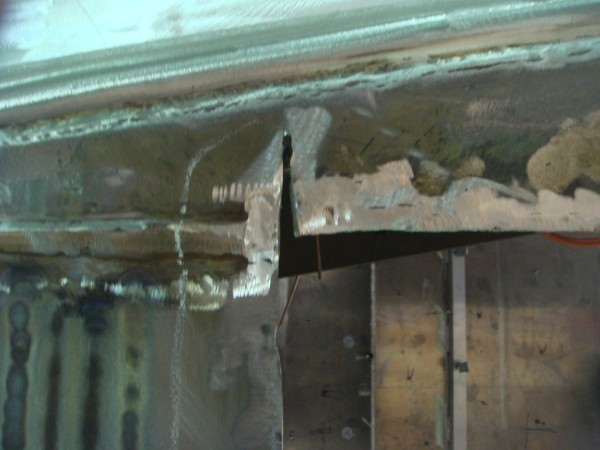

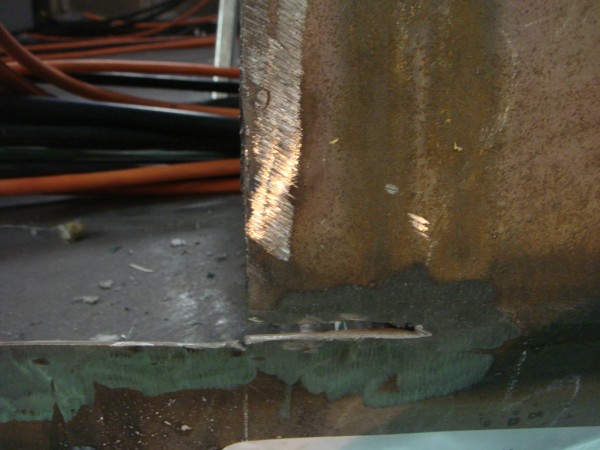

    Here are a some photos to show what I have to deal with on one project I am involved with.

    The third photo down is actually a correct procedure as the horizontal cut line follows the route of a weld through an existing shell plate joint.

    LROS will normally accept the others if the longitudinal weld seam exceeds the insert length by 100mm and a new development as of today after more complaints they want to see each corner X Rayed when no radius is employed.

    MODS: If this is too much a hijack of the original thread please feel free to move or delete this post.

    Attached Files:

  6. Marmot

    Marmot Senior Member

    Joined:
    May 20, 2007
    Messages:
    3,320
    Location:
    9114 S. Central Ave

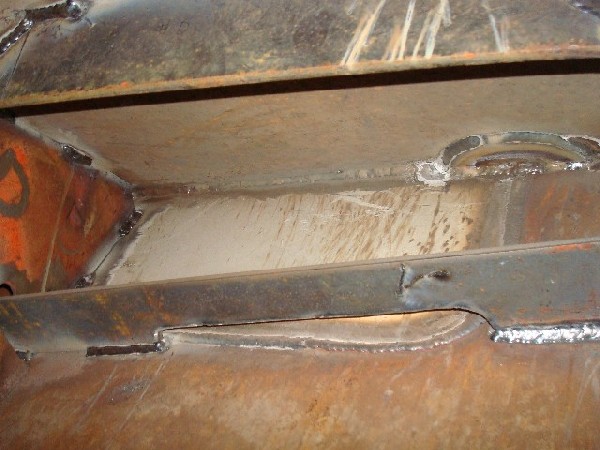

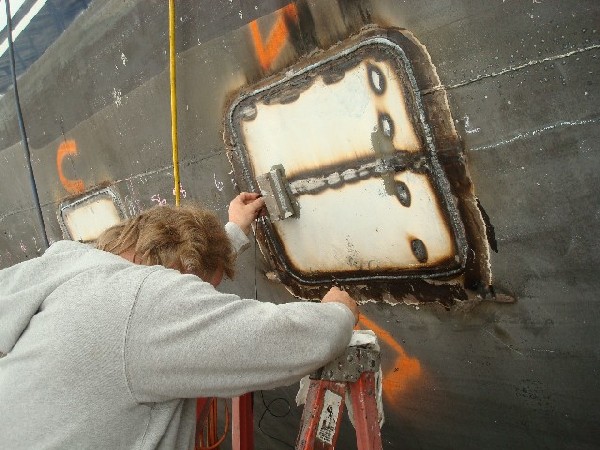

    Well, as long as we have hijacked this one, let me add to the collection of hull repair examples. Here are a couple of pictures of a lloyds approved insert that pretty much covers all the possible configurations. It overlaps a stringer, has no edge on an existing weld and penetrates a tank. I didn't measure the radius but it appears to be around 100mm even though the plate thickness is 6mm. Both sides of the insert are shown. The gentleman in the picture is flaw checking the welds acoustically. The lower picture is the internal side of the patch viewed from inside the fuel tank.

    Attached Files:

  7. Oneiros

    Oneiros Member

    Joined:
    Dec 17, 2006
    Messages:
    297
    Location:
    lulea Sweden the land of the midnightsun
    Yes, I found out after we had welded the mostly small holes now I do not know how much weaker the weld is as I understand it right was built 37 feet in three parts I have seen the weld on the inside is unsanded
  8. Oneiros

    Oneiros Member

    Joined:
    Dec 17, 2006
    Messages:
    297
    Location:
    lulea Sweden the land of the midnightsun
    Season07

    At last it was launching some beautiful autumn trips before the season was over 07

    Attached Files:

  9. watjam

    watjam New Member

    Joined:
    Feb 2, 2006
    Messages:
    77
    Location:
    We hail from Huron, Oh.
    Very nice pictures from the "Great Swede" You are an inspiration.
    Will you eventually go with real teak on that aft deck? Just finishing with
    the plywood on my deck and I am leaning towards the "ridged" version of
    Plas-Teak. I have to order soon so I am open to your thoughts.
  10. Oneiros

    Oneiros Member

    Joined:
    Dec 17, 2006
    Messages:
    297
    Location:
    lulea Sweden the land of the midnightsun
    Steram wood

    check this file
    http://www.dlh.se/Galleri/Fotoarkiv/Steamwood.aspx?page=2
    HI
    Thanks Yes our arcipelage here up north is so wonderful with the midnight sun but climate could be a bit warmer
    I was going to a teak deck on the aft deck, but think I'll put a steam wood There is a heat-treated wood Ash called it in Swedish it has the characteristics of a teak deck, but it is slightly cheaper and the deck of our boat is approximately 12m2
    your boat is really nice i like 41 feet roamers nice layout
  11. scolba

    scolba New Member

    Joined:
    Jul 2, 2010
    Messages:
    2
    Location:
    Bloomington, IL
    wow that was quite the job! I'm jealous of you guys that have the patience and attention span to finisht these things through! I would have gotten frustrated or distra---

    ---oh look, something shiney!

    Good job man!
  12. Oneiros

    Oneiros Member

    Joined:
    Dec 17, 2006
    Messages:
    297
    Location:
    lulea Sweden the land of the midnightsun
    Thanks is so nice to see her return back to bee a queen on the sea
  13. Oneiros

    Oneiros Member

    Joined:
    Dec 17, 2006
    Messages:
    297
    Location:
    lulea Sweden the land of the midnightsun
    Happy new year!! all roamers
  14. Oneiros

    Oneiros Member

    Joined:
    Dec 17, 2006
    Messages:
    297
    Location:
    lulea Sweden the land of the midnightsun
    More from the north

    Hi
    Now I add images I have not done it in a long time our boat project has been down for a while I have built a new thrust bearing on the port shaft and in the summer, we painted Dog House
  15. Oneiros

    Oneiros Member

    Joined:
    Dec 17, 2006
    Messages:
    297
    Location:
    lulea Sweden the land of the midnightsun
    Hi summer 2011

    Attached Files:

  16. Oneiros

    Oneiros Member

    Joined:
    Dec 17, 2006
    Messages:
    297
    Location:
    lulea Sweden the land of the midnightsun
    wanted !

    Hi!
    Can anybody help me to track the previous owner of our boat?
    We bought it in millwaukee in 05 the marina name is skipperbud.
    Have a registration plate from Wisconsin 2003 the number is WS 3949DP
    best regards Erik Finni Lulea Sweden
  17. Maxwell

    Maxwell Senior Member

    Joined:
    Sep 16, 2010
    Messages:
    145
    Location:
    Door County, WI
    Hi Erik,

    I tried signing in to Wisconsin DNR website and attempted to re-register the boat in WI to see if it would give me the previous owner's name... no luck. Did you check with Skipper Bud's to see if they knew who the previous owner was? I'm guessing it was a vessel that they owned as if it was a brokerage boat the PO's information would be on your sales docs.

    Do you know if the boat previously had a name/hailing port? If so, I can ask some of the folks around our YC if the recognize that.

    You also may be able to contact the Wisconsin DNR and see if an open records request is possible. Open Records Requests - WDNR

    Be well,

    max
  18. Oneiros

    Oneiros Member

    Joined:
    Dec 17, 2006
    Messages:
    297
    Location:
    lulea Sweden the land of the midnightsun
    Hello!
    Thank you for your prompt reply I have spoken to skipper bud but they were not so keen on helping me boat seems only had two or only one owner of the engines were swapped in 1988, it sits detroit diesel 8.2l she was in a bad shape so it seems to have been most of the port Ihave not see any name on her I see that you live in millwaukee do you recognize the boat on the first picture I have on my side it seems to be a large house behind the boat it was so nice and know who owned her before me, I'll call boat registry in wisconsin
  19. flivverguy

    flivverguy Guest

  20. flivverguy

    flivverguy Guest

    Merry Christmas Erik... this is what you asked for... thank Santa!




    Yes the information I have on this boat registration number: WS3949DP is a 37 foot Chris Craft Roamer Riviera last registered to Kelly Henrickson, W239N7762 Majestic Pl, Sussex, WI 53089 and it looks like the registration expired on March 31, 2007.

    Thank you and have a nice day,

    JEM
