Swift 141 meter frigate converted into a superyacht?

Discussion in 'General Yachting Discussion' started by davidwb, Jan 29, 2008.

  1. davidwb

    davidwb Senior Member

    Joined:
    May 17, 2006
    Messages:
    237
    Location:
    Holland.

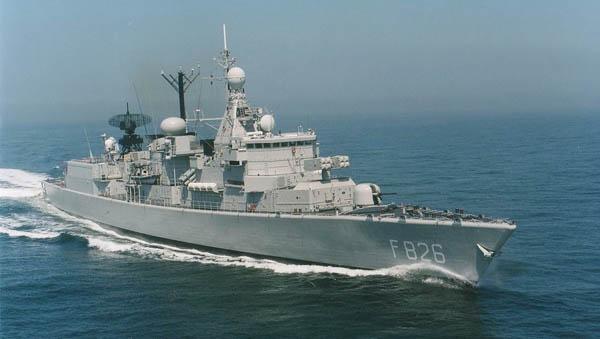

    Hello everyone, I noticed a press release from Dutch technical services company Imtech yesterday, which states that a former Dutch frigate measuring 130 metres will be rebuild/converted and stretched into a 141 metre megayacht.

    Probably a faster way of getting a yacht with such capabilities than building a new one, but if a "normal" wealthy person owns such a ship, I guess all the weapon systems have to be removed prior to the sale?
    But since this frigate is part of the UAE navy, perhaps a ruler is the owner, so some weaponry will stay in place?

    If I'm correct these "Standaard-fregatten" (Standard class frigates) are gasturbine powered, have a top speed of 32 knots, and a draught of over 6 metres (20 ft).

    http://www.imtech.nl/eCache/DEF/6/490.bGFuZz1FTg.html

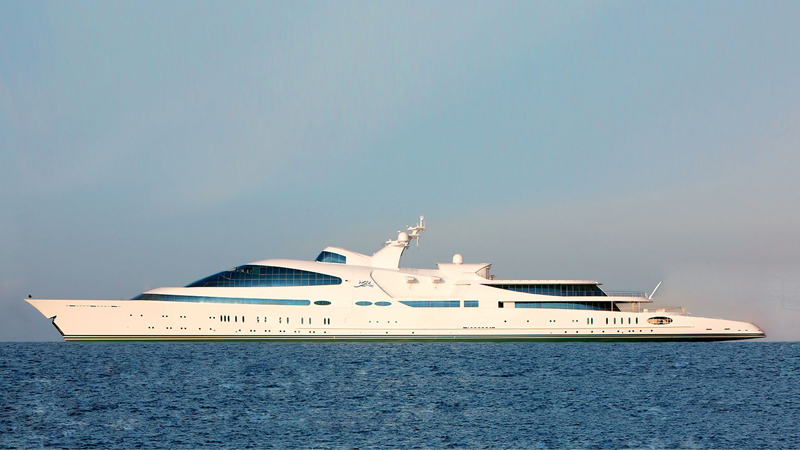

    (Admin Edit: This thread updated with current post-conversion pic)

    Attached Files:

  2. Seafarer

    Seafarer Senior Member

    Joined:
    Sep 3, 2007
    Messages:
    717
    Location:
    Hudson River
    One can only hope that this yacht turns out as well as another noted military frigate did - Christina.
  3. discokachina

    discokachina Senior Member

    Joined:
    Mar 21, 2010
    Messages:
    1,271
    Location:
    Ft. Lauderdale
    Here is the mother of all yacht conversions Yas based on the hull of a former navy frigate!

  4. Yacht News

    Yacht News YF News Associate

    Joined:
    Mar 29, 2006
    Messages:
    16,308
    Location:
    Caribbean
    I watched that same video up to last night.
  5. K1W1

    K1W1 Senior Member

    Joined:
    Sep 30, 2005
    Messages:
    7,392
    Location:
    My Office
    As the old saying goes. Never judge a book by its cover.
  6. Chuckybas

    Chuckybas Member

    Joined:
    Nov 21, 2007
    Messages:
    44
    Location:
    Great Lakes
    Care to expand on that as far as you feel comfortable doing?
  7. K1W1

    K1W1 Senior Member

    Joined:
    Sep 30, 2005
    Messages:
    7,392
    Location:
    My Office
  8. Chuckybas

    Chuckybas Member

    Joined:
    Nov 21, 2007
    Messages:
    44
    Location:
    Great Lakes
  9. HTMO9

    HTMO9 Senior Member

    Joined:
    Jan 13, 2009
    Messages:
    1,280
    Location:
    Europe
    YAS is based on the hull of an 1978 built Dutch Navy Ship, the HNLMS Piet Hein, a Kortenaer-class frigate of the Royal Netherlands Navy. This ship was sold in 2003 to the UAE and originally equipped with 4 Rolls Royce gas turbines (COGOG propulsion). During the conversion, the gas turbines were replaced with 2 MTU 20V 8000 diesel engines with app. 7.800 KW each. With 141 meter in length and only 15 meters in beam, a very sleek boat. The German Navy used to have several almost identical frigates, the Bremen-class. Our sailors had had a saying about that hull design, "it starts rolling already on a wet lawn". GRP for the superstructure on the yacht conversion was taken for obvious reasons. My oldest son served during his conscript time on one of this frigates. He discribes his state of health at his time of military duty as either seasick or homesick :).

    The conversion (which was more than complex) caused many problems (and a lot of money), not only because the base was a more than 30 year old beaten and abused military ship. Some of the problems were yard and subcontractor related. The drums in the industry are telling, they still have engine problems due to the high raw water inlet temperature in her home waters (Thats why the Navy likes Gas Turbines). Especially the MTU 8000 class engines do not like to be run outside their pretty narrow spec. (Mr. L. Allison could tell a lot about that subject).

    IMHO this yacht had the wrong base to be converted from, the wrong yard for that conversion and some, lets say, less than optimum subcontractors and project management. Filler, paint and fairing allone will not turn a duck into a swan.

    Just my 2 (Euro) cents
  10. Chuckybas

    Chuckybas Member

    Joined:
    Nov 21, 2007
    Messages:
    44
    Location:
    Great Lakes
    Awesome reply. Thank you. I knew it was a conversion from an old Navy ship, but I had no idea of the engines, sea-handling traits, and the rest. Sounds like a less than optimal situation. Silk purse/Sow's ear and all that.
  11. HTMO9

    HTMO9 Senior Member

    Joined:
    Jan 13, 2009
    Messages:
    1,280
    Location:
    Europe
    Personal comfort of VIP guests during voyage or on the hook is definately not part of the spec of a military combat vessel :D. Yachts do not have to outturn torpedos or bombs and have to circle around her convoys in order to protect them from subs. Even with the stabilizers added during the conversion, YAS will not be very comfortable, when on anchor in less than calm sea. And I feel very sorry for her deckies, which have to clean her forward superstructure. Not an easy care boat.
  12. Yacht News

    Yacht News YF News Associate

    Joined:
    Mar 29, 2006
    Messages:
    16,308
    Location:
    Caribbean
    Since we never had an official thread for the "YAS" then here is one. This is one strange vessel that has an interesting history and even more interesting period being converted from a Naval vessel (frigate) that served the Royal Netherlands Navy as well as the Abu Dhabi Navy to a one of a kind bespoke superyacht for a daring owner. For the first time we can watch a fairly in depth video regarding some of the work done and challenges encountered in making this build a reality. Pierrejean Design Studio uploaded this video a few months ago.

    https://www.youtube.com/watch?time_continue=559&v=T81BrMGuI9w

    Attached Files:

  13. Gage Rowden7

    Gage Rowden7 Senior Member

    Joined:
    Feb 19, 2016
    Messages:
    323
    Location:
    Boca Raton Fl
    This is definitely a strange vessel. Either love it or hate it. The video was well done!
  14. Yacht News

    Yacht News YF News Associate

    Joined:
    Mar 29, 2006
    Messages:
    16,308
    Location:
    Caribbean
    I like the documentary and while I had seen certain parts of "YAS" before, this video showed alot more of the interior that was never seen before.
  15. YachtForums

    YachtForums Publisher/Admin

    Joined:
    Dec 22, 2002
    Messages:
    19,172
    Location:
    South Florida
    I just merged an existing discussion from 2008 with the latest thread on YAS. Love it or hate it, you can't forget it. (no matter how hard you try!)
  16. captholli

    captholli Senior Member

    Joined:
    Jan 4, 2010
    Messages:
    769
    Location:
    In The Bilge
    Great shot of 24,000 H.P. / 17,996 kw at the 9:30 mark of the video. Hopefully the 17cm diameter raw water pump inlets will do the trick and keep these beasts properly cooled. I'd love to see pics of the finished machinery space but unfortunately the interior finishes get all the press and rarely do the public get to see the "rubber band room" in all of its glory.
  17. Chuckybas

    Chuckybas Member

    Joined:
    Nov 21, 2007
    Messages:
    44
    Location:
    Great Lakes
    Video is taken down for me in the U.S., maybe everywhere. Does anybody know of an alternate location? I'd love to see it, as would many others, I'm sure.
  18. Yacht News

    Yacht News YF News Associate

    Joined:
    Mar 29, 2006
    Messages:
    16,308
    Location:
    Caribbean
    Yes it seems that the designer was shot a message ... perhaps from the owner. Thing is, that video was up for about half of this year . I guess the exposure on YF brought it to the attention of alot of people.
  19. Chuckybas

    Chuckybas Member

    Joined:
    Nov 21, 2007
    Messages:
    44
    Location:
    Great Lakes
    I'm sure it did. YF is a great place and popular for good reason. It was bound to happen.
  20. Capt Ralph

    Capt Ralph Senior Member

    Joined:
    Sep 8, 2004
    Messages:
    6,141
    Location:
    Jax FL
    I too luv pictures of machinery spaces. If there is any influence here on reviews, please include more E R and bilge pictures. That's where the quality is..
