Stop Solenoid

Discussion in 'Ocean Yacht' started by Boomer, Aug 9, 2020.

You need to be registered and signed in to view this content.
  1. Boomer

    Boomer Senior Member

    Joined:
    Oct 14, 2017
    Messages:
    627
    Location:
    Seminole
    Where is the stop solenoid on the motor? Turned off the key today and hit the stop button and stbd. Motor wouldnt shut down...had to shut fuel off to kill the motor...ideas?
  2. gr8trn

    gr8trn Senior Member

    Joined:
    Dec 3, 2012
    Messages:
    280
    Location:
    Portland, OR
    The fuel shut off stop solenoid should be near the fuel lines before the injectors, I will have to look on my Cummins qsb 5.9 but I think the plug in solenoid is around the fuel lines somewhere? I know it's easy to spot, a little solenoid plugged right in wired back to the helm.

    What engines?
  3. Pascal

    Pascal Senior Member

    Joined:
    Feb 29, 2008
    Messages:
    5,463
    Location:
    Miami, FL
    Lol... indeed what engines!!! You don’t have manual for your engines on board??? A must have.

    In an emergency you can also cut off the air supply but putting a plastic bag over the air filter.
  4. Capt J

    Capt J Senior Member

    Joined:
    Jul 11, 2005
    Messages:
    12,741
    Location:
    Fort Lauderdale
    Have someone press the stop on the other engine a bunch of times when you're in front of it. On detroits it's generally right on top of the motor.
  5. Boomer

    Boomer Senior Member

    Joined:
    Oct 14, 2017
    Messages:
    627
    Location:
    Seminole
    Detroit 671 ti 2 strokes...sorry for the lack of info
  6. MBevins

    MBevins Senior Member

    Joined:
    May 23, 2008
    Messages:
    577
    Location:
    Windsor On. Canada
    Should be top inboard about The middle.
    Solenoid is about 3in in diameter.
    At least on the J&T variant
  7. cleanslate

    cleanslate Senior Member

    Joined:
    May 29, 2018
    Messages:
    875
    Location:
    Cherry Hill, NJ
    It's right near / next to the governor. It's a round thing the size of a small fist with linkage coming out of it going to the shut down arm thing..LOL. and What Mbevins said...
    Or you can always pull the run a way engine cable to shut it down. You should test those every so often anyway. The cable is connected to the spring loaded damper plate on the blower. It's easy to reset at the blower/end of cable.
  8. boatpoor

    boatpoor Member

    Joined:
    May 4, 2016
    Messages:
    80
    Location:
    32407
    The stop lever on a 671 is on the governor. On mine if you kill the ignition first the fuel shutdown solonoid won't get power when you push the stop button. You can always turn the the lever manually in the engine room if you have a power failure or bad solonoid. Isn't it great to be running engines that don't need an outside source of power to keep running?
  9. Oscarvan

    Oscarvan Senior Member

    Joined:
    Nov 10, 2015
    Messages:
    735
    Location:
    Chesapeake Bay
    Until they get a mind of their own.......:D
  10. rtrafford

    rtrafford Senior Member

    Joined:
    Jul 13, 2019
    Messages:
    695
    Location:
    Ft Lauderdale

    I will forever be a huge fan of the old, reliable, mechanical diesels. So incredible the damage done to my C-15 Cats from a non-direct-impact lightening strike that hit several hundred feet away. Bad outcome made worse by Pantropic.
  11. chesapeake46

    chesapeake46 Senior Member

    Joined:
    Jul 26, 2009
    Messages:
    1,479
    Location:
    Chesapeake Bay, Delaware Bay & S.Jersey

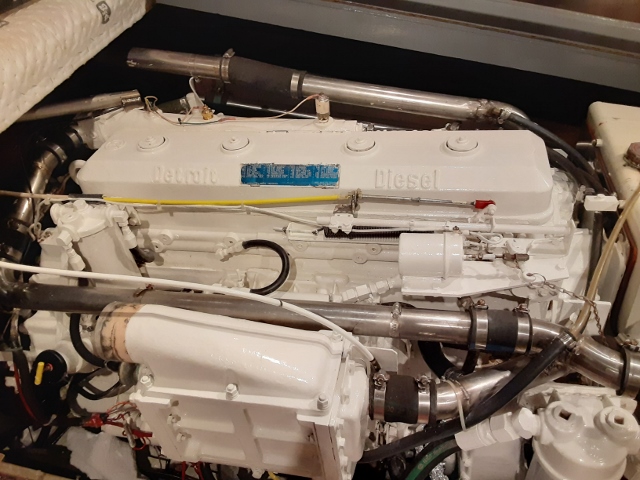

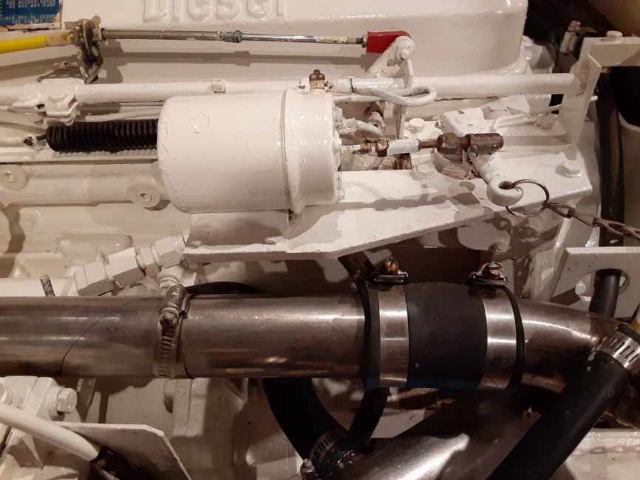

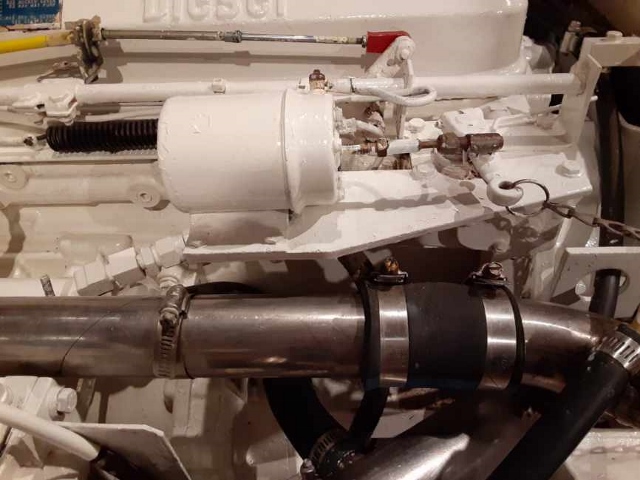

    Resized_20200810_163625 (640x480).jpg Resized_20200810_163620 (640x480).jpg

    6-71 DD stop solenoid
  12. cleanslate

    cleanslate Senior Member

    Joined:
    May 29, 2018
    Messages:
    875
    Location:
    Cherry Hill, NJ
  13. cleanslate

    cleanslate Senior Member

    Joined:
    May 29, 2018
    Messages:
    875
    Location:
    Cherry Hill, NJ
    Where did you get the S/S tubing? That's nice.
  14. MBevins

    MBevins Senior Member

    Joined:
    May 23, 2008
    Messages:
    577
    Location:
    Windsor On. Canada
    I did notice that too ! :)
  15. Boomer

    Boomer Senior Member

    Joined:
    Oct 14, 2017
    Messages:
    627
    Location:
    Seminole
    Ok..figured it out thanks to you all...the arm that comes out of the solenoid has a rod with a ball on the end that goes into a socket attached to the arm...the socket attachment wore out and the ball fell out...what is that ball and socket contraption called? Temp fixed but want to do it right!
  16. Boomer

    Boomer Senior Member

    Joined:
    Oct 14, 2017
    Messages:
    627
    Location:
    Seminole
    And yes, where did you get those ss pipes? Sharp looking!!
  17. chesapeake46

    chesapeake46 Senior Member

    Joined:
    Jul 26, 2009
    Messages:
    1,479
    Location:
    Chesapeake Bay, Delaware Bay & S.Jersey
    Just finished painting them for the second time in 25 yrs !!! I made the tubes from process pipe and used the old ones as patterns, also about 20 yrs ago .
  18. Boomer

    Boomer Senior Member

    Joined:
    Oct 14, 2017
    Messages:
    627
    Location:
    Seminole
    Nice effort! Looks great!
  19. cleanslate

    cleanslate Senior Member

    Joined:
    May 29, 2018
    Messages:
    875
    Location:
    Cherry Hill, NJ
    J & T should have them.
    Or Diesel Pro on line.
  20. Boomer

    Boomer Senior Member

    Joined:
    Oct 14, 2017
    Messages:
    627
    Location:
    Seminole
    Great! What is it called? The ball and socket thingy? Lol
