Rudder post seal

Discussion in 'Props, Shafts & Seals' started by Beau, Oct 10, 2020.

You need to be registered and signed in to view this content.
  1. Beau

    Beau Senior Member

    Joined:
    Jan 15, 2010
    Messages:
    2,205
    Location:
    Cold Spring Harbor, NY
    Hey folks

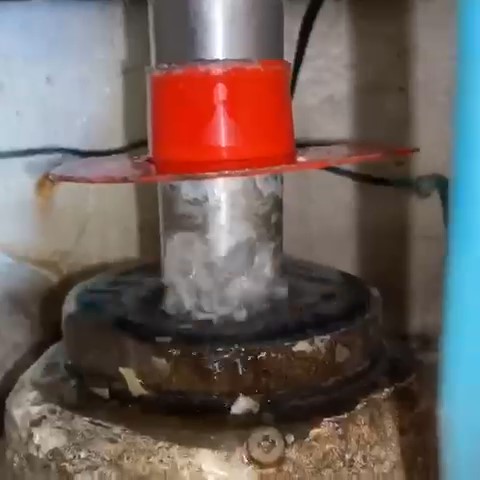

    Does anyone recognize this type of rudder shaft seal on a 1998 Post

    Attached Files:

  2. Weldcrane

    Weldcrane Member

    Joined:
    Aug 24, 2017
    Messages:
    41
    Location:
    Ri
    that is tides marine the red piece you are looking at is to help with the install of the new seal that model is called STRONG SEAL you can get the replacement seals from tides marine in Fla
  3. Beau

    Beau Senior Member

    Joined:
    Jan 15, 2010
    Messages:
    2,205
    Location:
    Cold Spring Harbor, NY
    Excellent, Thank you. Can they be changed while the vessel is in the water?
  4. Weldcrane

    Weldcrane Member

    Joined:
    Aug 24, 2017
    Messages:
    41
    Location:
    Ri
    i wouldn't do it once you remove the rudder arm from the shaft to remove the seal you have to remove a spiral clip that holds the seal in then the seal water will be coming in
  5. Capt Ralph

    Capt Ralph Senior Member

    Joined:
    Sep 8, 2004
    Messages:
    8,974
    Location:
    Satsuma, FL
    I think that red seal guide is facing the wrong way.
    Also, the post looks like corrosion or barnacle fouling??

    Did somebody push the rudder up?
  6. Beau

    Beau Senior Member

    Joined:
    Jan 15, 2010
    Messages:
    2,205
    Location:
    Cold Spring Harbor, NY
    You know Capt, I thought of that. I had the boat backed in for the 2000 hour MAN overhaul at a facility with skinny water as you got closer to the bulkhead. I actually tied up about 15-20' off the bulkhead. Another factor - both shaft are leaking. That red, whatever it is, was down on the seal, I pulled it up.
  7. Beau

    Beau Senior Member

    Joined:
    Jan 15, 2010
    Messages:
    2,205
    Location:
    Cold Spring Harbor, NY
    Also, that's bubbling water at the seal and shaft joint. It's just in poor focus
  8. Capt Ralph

    Capt Ralph Senior Member

    Joined:
    Sep 8, 2004
    Messages:
    8,974
    Location:
    Satsuma, FL
    That red thingie may be a way to keep junk off of the seam from the inside.
    It is a pressed in seal like the ole Strong seal system. I'm not a big fan.

    Yep, Lets do this job on the hill.
    Please keep us updated. :)
