    Athena - First Light gives way to first Breath

    When years become months and months become weeks the reality of what is happening at Royal Huisman Shipyard literally takes ones breath away. In November 1999 the contract for the Athena project was signed and after a year of development and design construction started in January 2001. What was not so long ago a mass of metal, wood and equipment has been transformed into the long awaited 3 mast schooner, Athena. At some 90m she represents by all accounts the largest privately commissioned sailing yacht to have been built; and certainly the largest one to be built in aluminum.

    Regardless of firsts, Athena emerged into the light of day on June 4, piggy backed from her temporary home on pairs of remote controlled hydraulic wheel sets. She continued her short journey as she was driven onto a 100m transportation pontoon that is locked to the quay side in front of the yard by a special docking station. After passing several bridges the floating parade will continue across Holland’s inland sea, the IJsselmeer for a dry dock launching in Amsterdam.

    With many onboard systems including engines and generators already tested, she will before her departure receive a 225 ton molten injection of lead ballast, critically placed in her keel according to the real weight obtained prior to her transportation. Besides easing the load on the wheel sets this final weight calculation will precisely locate the centre of gravity whereby meeting Naval Architect, Gerard Dijkstra’s ballast and trim requirements.

    Following her launch Athena will berth in Amsterdam and weather permitting, her three 60m Rondal masts with associated rigging will be immediately stepped. Fitted with in mast furling topsails and gaff rigged roll-away booms the rigging stage will be an exciting moment, bringing a sense of proportion to complete the visual profile of the yacht.

    Athena’s construction has tested and honed the management skills of the Huisman organization. Working for the first time with a team of outside industry specialists, the usual ‘under the one roof approach’ at the yard was extended to include teaming up with the likes of Heinen and Hopman, Vuyk engineering, Imtech, Akerboom and Cleton to increase capacity without increasing overhead.

    With her interior virtually complete the Pieter Beeldsnijder styling can at last be fully appreciated as protective covering gives way to paintings, tables and soft furnishings. And as carpets, lights and even music continue to fill the intimate spaces on board; Athena’s first light will soon become her first breath.

    It is hard to believe that whilst handover is planned for September following extensive sea trials that she is nearing completion. She represents the culmination of many hours of hard work by a dedicated team of craftsmen that should have pride as their middle names. Indeed Athena represents not only the efforts of the Huisman team but she is reflective of the skills and work ethic that keeps Holland on the map, being recognized as a leader in custom yachts.

    Time schedule

    Transport to yard quay onto barge.................June 2004
    Transport to Amsterdam and launching..........July / August 2004
    Testing, commissioning and sail trials.............August 2004
    Delivery...........................................................September2004

    Athena Specifications...

    Three masted Schooner Yacht designed by:
    Naval Architects Pieter Beeldsnijder Design (PBD)
    Gerard Dijkstra & Partners (GD&P)
    Interior Styling Pieter Beeldsnijder Design (PBD)

    Built by Royal Huisman Shipyard

    L.o.a. spars 90.00 mtr. (295.28 ft.)
    L.o.a. hull 79.25 mtr. (260.01 ft.)
    L.o.d. 77.04 mtr. (252.76 ft.)
    L.c.w.l. 60.52 mtr. (198.56 ft.)
    Beam max. (incl. rubrail) 12.20 mtr. ( 40.03 ft.)
    Draft (incl. keel) 5.50 mtr. ( 18.04 ft.)
    Mast height 60.00 mtr. (196,85 ft.)
    Bowsprit length 13.97 mtr. ( 45.83 ft.)
    Displ. c.w.l. ± 1.068 tons (2,354,497 lbs)
    Ballast ± 221.5 tons (488.316 lbs)
    Hull speed 18.9 knots

    Steering system Hydraulic power steering system
    1x SR662 FCP Tenfjord/Rolls Royce rudder motor

    Main engine 2x Caterpillar 3516B, 1492 kW (2000 HP) @ 1600 rpm
    Gearbox ZF 7540 NR CEW – Reduction 3,429:1

    Propeller installation 2x Wärtsilä Propulsion (former Lips) automatic variable
    pitch propeller, diam. 1600 mm, four blades with high skew

    Bow / stern thruster Bow Holland Roer Propeller 300-60 tunnel thruster,
    275 HP Stern Holland Roer Propeller 300 tunnel *retractable* thruster, 275 HP

    Tank capacities:

    fuel +/- 105.648 ltr.
    water +/- 29.215 ltr.
    grey/black +/- 5.530 ltr.

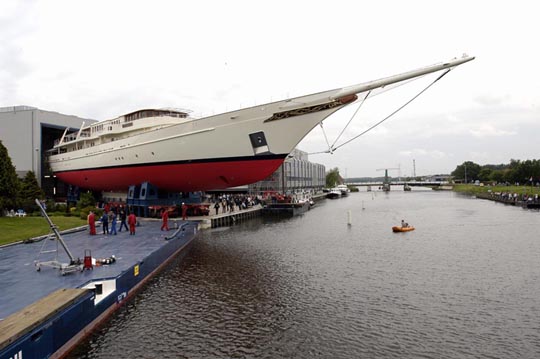

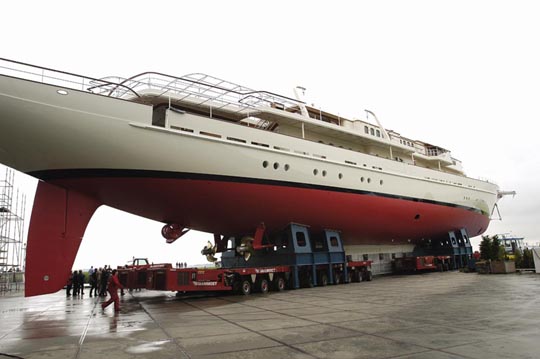

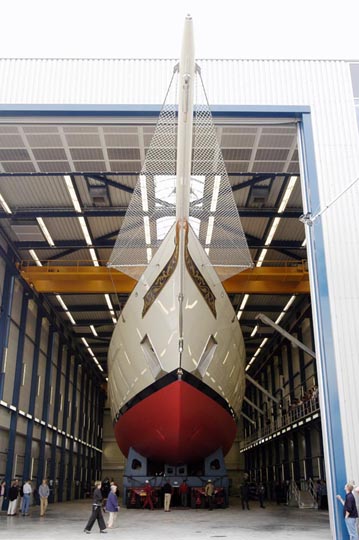

    The first picture is Athena leaving her place of "berth". ;)

    Attached Files:

  2. YachtForums

    YachtForums Administrator

    Joined:
    Dec 22, 2002
    Messages:
    20,621
    Location:
    South Florida
    Navigating her first turn, the pivot to swing her transom out of the shipyard building...

    Attached Files:

  3. YachtForums

    YachtForums Administrator

    Joined:
    Dec 22, 2002
    Messages:
    20,621
    Location:
    South Florida

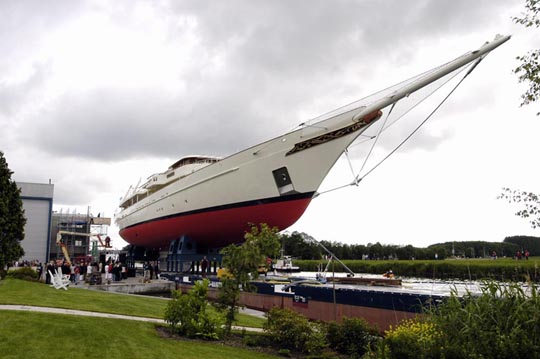

    The pointy end is the bow, right? :p

    Attached Files:

  4. YachtForums

    YachtForums Administrator

    Joined:
    Dec 22, 2002
    Messages:
    20,621
    Location:
    South Florida
    How often do you see a twin engine sailboat?

    Attached Files:

  5. YachtForums

    YachtForums Administrator

    Joined:
    Dec 22, 2002
    Messages:
    20,621
    Location:
    South Florida

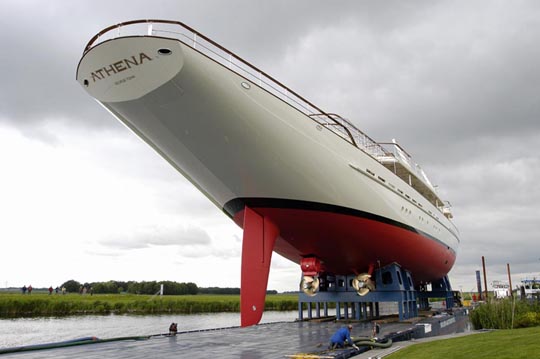

    Look just behind the props... a deployable stern thruster.

    Attached Files:

  6. YachtForums

    YachtForums Administrator

    Joined:
    Dec 22, 2002
    Messages:
    20,621
    Location:
    South Florida

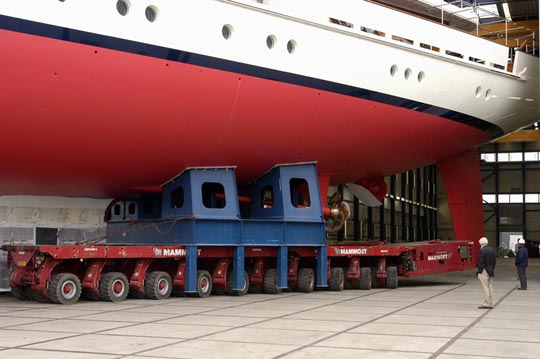

    In this picture, you can clearly see the deployable stern thruster forward of the rudder.

    Attached Files:

  7. YachtForums

    YachtForums Administrator

    Joined:
    Dec 22, 2002
    Messages:
    20,621
    Location:
    South Florida

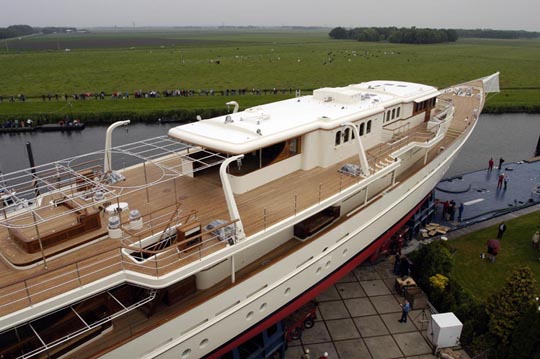

    Given the size of Athena, the aerial view was probable provided by a helicopter. ;) Notice the number people lining the banks of the river (opposite side)

    Attached Files:

  8. YachtForums

    YachtForums Administrator

    Joined:
    Dec 22, 2002
    Messages:
    20,621
    Location:
    South Florida

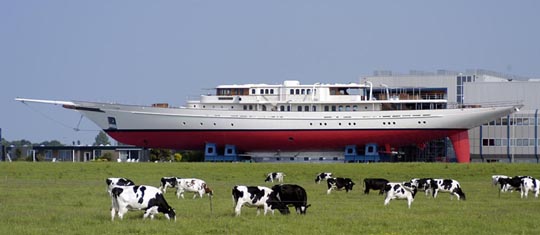

    And like every newborn... it needs lots of milk! :D

    Congratulations to Royal Huisman for resurrecting a wonderful era and giving life to a classic new yacht that will be the benchmark that others are measured by for decades to come.

    We'll look forward to the final photogaphy... if they get Athena *and* her masts to fit into a picture! :)

    Attached Files:

  9. CTdave

    CTdave Senior Member

    Joined:
    Mar 21, 2004
    Messages:
    876
    Location:
    Greenwich CT/ Stuart FL
    Simply amazing!!
  10. foundrycourt

    foundrycourt New Member

    Joined:
    Apr 25, 2005
    Messages:
    80
    Location:
    At my desk
    These ATHENA threads just keep getting better and better.

    Many Thanks
  11. catmando

    catmando Senior Member

    Joined:
    Mar 3, 2005
    Messages:
    471
    Location:
    Arlington Tx
    MAGNIFICENT!!!
  12. KCook

    KCook Senior Member

    Joined:
    Jun 24, 2005
    Messages:
    1,160
    Location:
    Phoenix
    That is one thumping big rudder!

    Kelly Cook
  13. Norgale

    Norgale New Member

    Joined:
    Feb 25, 2008
    Messages:
    12
    Location:
    Bonita SPrings,Florida
    Athena call sign

    Anybody know the call sign for the Athena? It would be interesting to try and track her on line but the sign is needed to find her. Pete
  14. SigSplash

    SigSplash New Member

    Joined:
    Jul 8, 2008
    Messages:
    9
    Location:
    Gulfport, MS
    Interesting. She looks like a Dual bow with twin Pilot Houses in that Port side Picture. I like the deployable Stern Thruster. I'm not so sure about the twin prop, single rudder configuration though.
  15. Norgale

    Norgale New Member

    Joined:
    Feb 25, 2008
    Messages:
    12
    Location:
    Bonita SPrings,Florida
    I'd say the rudder is for sailing. The twin screws are for cruising in places where sailing wouldn't be practicle or may be dangerous. Variable pitch props and the thruster would give the captain super control over moving the ship under any circumstances. Maybe some of that is redundant but with that much ship and that much money why take a chance on less? Pete
  16. SigSplash

    SigSplash New Member

    Joined:
    Jul 8, 2008
    Messages:
    9
    Location:
    Gulfport, MS

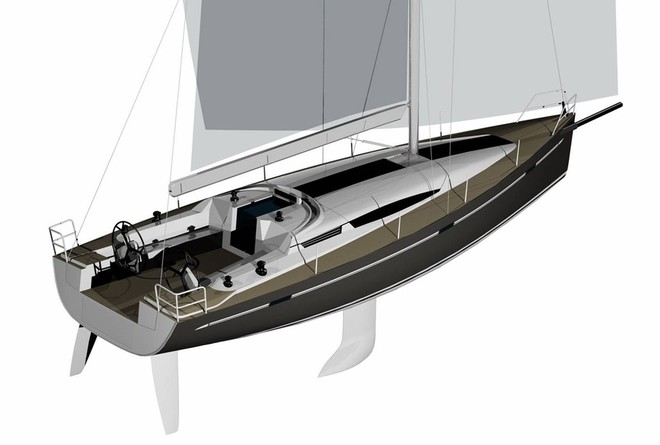

    I more or less understand the practicality of having that much control via the props and thruster. I merely don't know how effective the single rudder will be with the twin props. It seems like they would have done something like the Elan 450.

    Attached Files:

  17. PropBet

    PropBet Senior Member

    Joined:
    Apr 21, 2007
    Messages:
    1,216
    Location:
    Is Everything!
    Any updates / images of her under sail, or complete with her rigging up?

    Truly a spectacular boat.
  18. AMG

    AMG YF Moderator

    Joined:
    Jul 26, 2004
    Messages:
    5,380
    Location:
    Sweden
    Yes, here she is: http://www.yachtforums.com/forums/royal-huisman-yacht/3738-review-royal-huismans-athena.html

    And SigSplash, I doubt Athena will need two rudders, they are for fast boats that can have a broach when the rudder is lifted out of the water. Under engine she wouldn´t need a rudder at all... but it is good for the autopilot.
  19. Norgale

    Norgale New Member

    Joined:
    Feb 25, 2008
    Messages:
    12
    Location:
    Bonita SPrings,Florida
    A twin screw yacht would have two small rudders behind each prop for proper steerage but the Athena is so big she needs that much rudder under sail. When using the props there would be no problem steering her as the water would be thrust along each side of the rudder giving her plenty of steerage even at very slow speeds. However as stated above with twin screws she wouldn't even need a rudder as the steering can be acomplished by vectoring the speed of each prop or backing one while the other goes forward for a sharper turn. The variable pitch props could help with this too although that's probably more for efficiency and speed than steering. Pete
  20. SigSplash

    SigSplash New Member

    Joined:
    Jul 8, 2008
    Messages:
    9
    Location:
    Gulfport, MS
    Good explanation, thanks.
