Remodelling Job

Discussion in 'Yacht Renderings & Plans' started by steveinjeddah, Oct 22, 2009.

You need to be registered and signed in to view this content.
  1. steveinjeddah

    steveinjeddah New Member

    Joined:
    Mar 10, 2009
    Messages:
    4
    Location:
    The world's largest sandpit

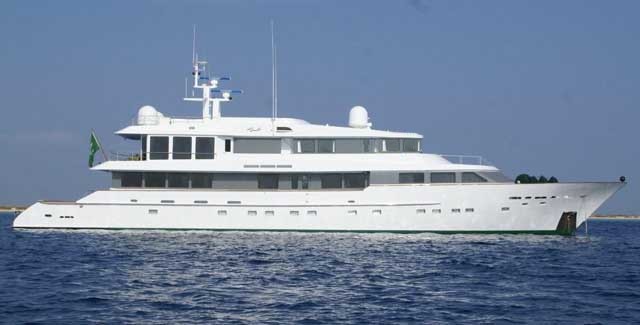

    I'm the Captain of a 38m motor yacht built in 1996. I'm trying to get the owners interested in remodelling the front of the wheelhouse. Removing the heavily-raked windows and replacing them with vertical windows (or near-vertical). The problem is trying to visualise what it will look like.

    I'm looking for someone to modify the attached image to bring the windows vertical and to carry the wheelhouse roof forward accordingly.

    Any takers?

    Attached Files:

    Last edited: Oct 22, 2009
  2. YachtForums

    YachtForums Administrator

    Joined:
    Dec 22, 2002
    Messages:
    19,753
    Location:
    South Florida
    Well Steve, I just remodeled the picture for you. I reduced it from 2400 pixels to 640 pixels in width, as per our guidelines. Please read our rules before posting again. I will not reduce the next one. I'll remove it.
  3. steveinjeddah

    steveinjeddah New Member

    Joined:
    Mar 10, 2009
    Messages:
    4
    Location:
    The world's largest sandpit
    Duly noted. Sorry about that. Thanks for your help.
  4. Mov-it!

    Mov-it! New Member

    Joined:
    Nov 8, 2005
    Messages:
    194
    Location:
    Katwijk Netherlands
    A pair of line drawings or a bigger file would be practical
  5. SeaEric

    SeaEric YF Historian

    Joined:
    Jan 28, 2007
    Messages:
    1,316
    Location:
    Easton, Md./Ft. Lauderdale
    Do you mean like this:?

    Attached Files:

  6. SeaEric

    SeaEric YF Historian

    Joined:
    Jan 28, 2007
    Messages:
    1,316
    Location:
    Easton, Md./Ft. Lauderdale
    While you're at it, extending the aft shearline and deck canopy would be nice too. Don't you just love photo editing software? Even an idiot yacht broker like me can make yacht design modifications!

    Attached Files:

  7. steveinjeddah

    steveinjeddah New Member

    Joined:
    Mar 10, 2009
    Messages:
    4
    Location:
    The world's largest sandpit
    Thanks

    Great job SeaEric. Exactly what I was looking for. Now I've got something to kickstart the conversation.
    :)
  8. Apache2k

    Apache2k Member

    Joined:
    May 22, 2009
    Messages:
    29
    Location:
    Rovaniemi
    I could make u a 3d model of this if you dont have the original, but I would need more images :)
  9. Mr. Steve.

    Does this boat has a brazilian flag? It seems.
  10. AMG

    AMG YF Moderator

    Joined:
    Jul 26, 2004
    Messages:
    5,265
    Location:
    Sweden
    They are both green, but my guess is Saudi Arabia...;)

    Attached Files:

  11. For me is strange also, because even having some yachts in brazil and also producers exporting to USA, seemed a too good european styled line one for there. This made me curious about my ignorance, because i know how are brazilian yachts and they are different. It is strange of beeing Saudi Arabia, because the point of the gold lozang in middle of it. This point has not in Saudi Arabia flag. Strange really, but the lower of white 'marks' says really beeing Saudi Arabia, even for the facts of the style, which i hardly doubt of in brazilian market.
  12. AMG

    AMG YF Moderator

    Joined:
    Jul 26, 2004
    Messages:
    5,265
    Location:
    Sweden
    I just assumed that "steveinjeddah" was in Jeddah, Saudi Arabia.

    Here are some more details on this yacht;

    FADLALLAH, Built By: Sensation Yachts New Zealand - Launched in: 1995 - Refitted in: 2007 - Length Overall: 38 metres / 124.7 feet - Waterline Length: 34.8 (114.2 ft) Yacht Beam: 8.5m/27.9ft. Draught: 2.2m/7.2ft.

    Naval Architecture: Sharp Design, Interior Designers: Sharp Design - Gross Tonnes: 345 - Nett Tonnes: 108 - Displacement: 245 - Hull / Superstructure Construction Material: steel / aluminium

    The Country the Yacht is Flagged in: Saudi Arabia - The official registry port is Jeddah and her home port is Jeddah, Saudi Arabia.

    Class society used: ABS (American Bureau of Shipping) - Completed survey under Maritime & Coastguard Agency (MCA) Number of Crew Members: 11, Main Engine(s) is two 1014 Horse Power / 746 Kilowatts Caterpillar. The Model type is 3412TA m.g.o.. - Total engine power output 2028 HP /1492 KW. - Cruising at a speed of 10 knots. - Her top Speed is around 14 knots. - Range: 4000 at a speed of 10 knots. - Fuel Capacity: 44000 L. - Water: 17200.00. - Power generation: Northern Lights 2 times 80 kilowatts. - Stabilizers: Naiad. A/C: Cruisair.
  13. many thanks for elucidating my curiosity. Now is 101% Saudi Arabian.
    Unfortunatly my hope to beloging or beeing in Brazil made me sad. :eek:

    I really had not seen the 'in jeddah' in his name... My lapse... :D but could have been 0.01% a brazilian one in those waters.... which i don't believe really some day had. ;)
  14. FullaFlava

    FullaFlava New Member

    Joined:
    Dec 4, 2009
    Messages:
    50
    Location:
    Fort Lauderdale
    I think if you're going to tinker with the lines of the upper bridge windows you'll need to bring the lower windows (saloon or master?) to to match.

    I'll have a nose around and see if I can find what I mean to illustrate.
  15. FullaFlava

    FullaFlava New Member

    Joined:
    Dec 4, 2009
    Messages:
    50
    Location:
    Fort Lauderdale

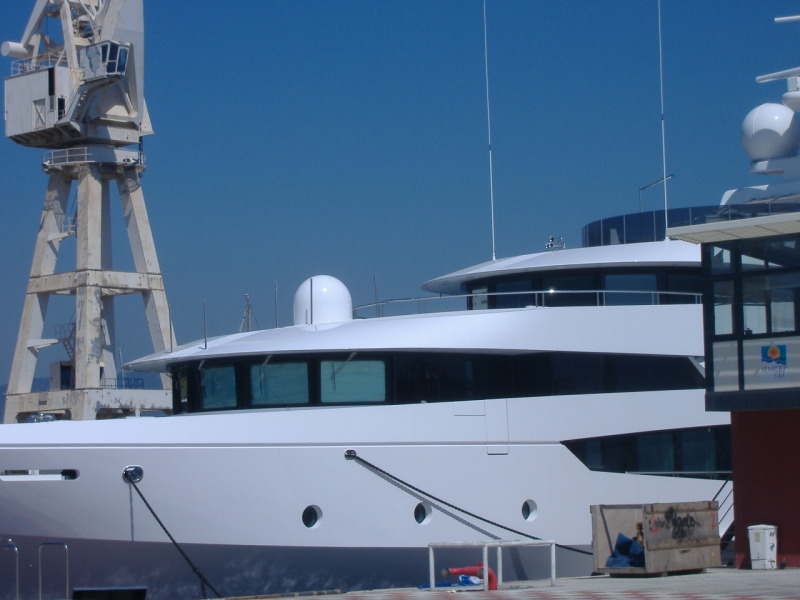

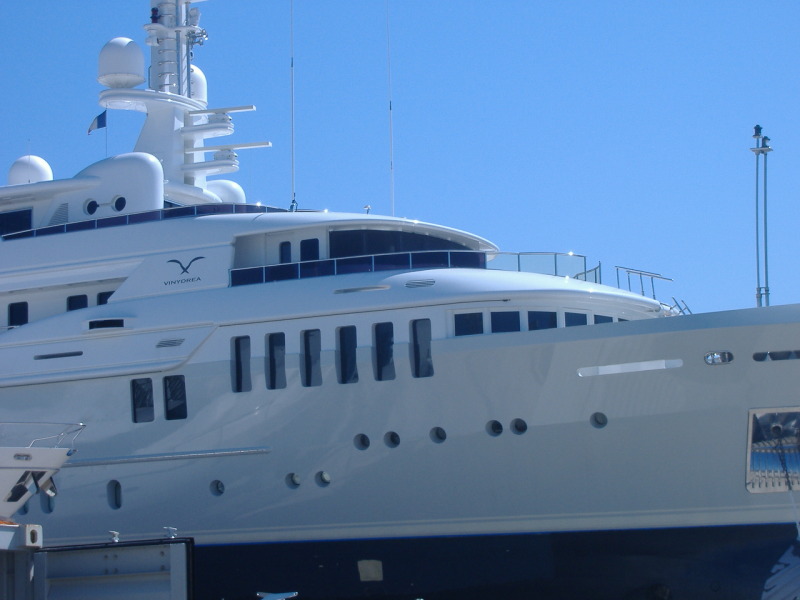

    I wandererd around the yard here and every vessel with a vertical upper set of windows had the same below:

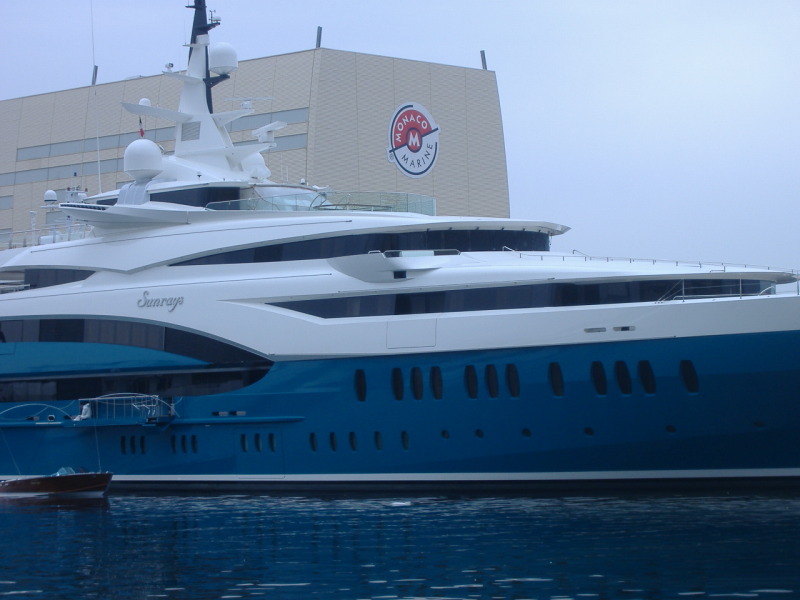

    Granted Sunrays and Lady Christina are both from the same stable, but I think if you do one without the other it will look rather odd.
  16. SeaEric

    SeaEric YF Historian

    Joined:
    Jan 28, 2007
    Messages:
    1,316
    Location:
    Easton, Md./Ft. Lauderdale
    Perhaps something like this would complete the concept.

    Attached Files:

  17. atomare

    atomare New Member

    Joined:
    Jul 25, 2008
    Messages:
    58
    Location:
    Duisburg, Germany

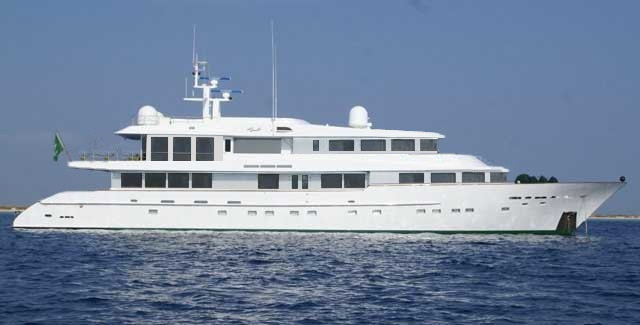

    I agree with FullaFlava ... and since you are in the process of changing her already, how about bringing the whole bridge a bit more to the front, ... extend the dodger of the maindeck as well a bit and repaint the window section in a slight off white? ... :D

    Attached Files:

  18. Seafarer

    Seafarer Senior Member

    Joined:
    Sep 3, 2007
    Messages:
    717
    Location:
    Hudson River
    Probably nothing to be done about it, but those aft upper deck windows give the look of a Florida Room, almost a tacky afterthought. Too bad, otherwise the vertical window design looks pretty good.
  19. atomare

    atomare New Member

    Joined:
    Jul 25, 2008
    Messages:
    58
    Location:
    Duisburg, Germany

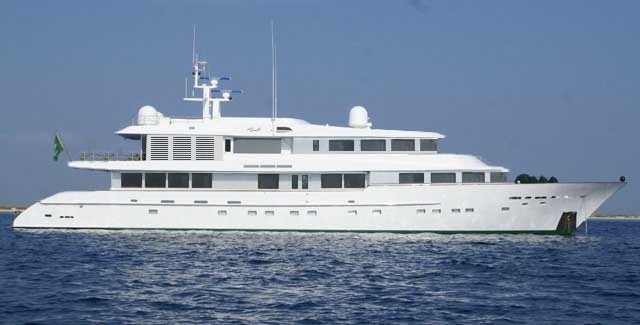

    That is also what is bothering me about the profile. It would look better with some sunscreening in front of the windows, to blend them more into the superstructure. If you make the screen movable, its still possible to have an undistracted view if needed. Still a bit boxy at the back though.

    Attached Files:

  20. wonderful suggestions for an upgrade Atomare. :) The brise-soleils behind could be a little bit wider for more sunbath inside. Actually this was a very strange point in the previous actual design that made me odd also for a harmony in the profile.

    I would suggest a complementation to put a reflective chrome insufilm in all windows. It would be great. I personally do not like black windows in white ones.
