Recommendations for pex in Marine use.

Discussion in 'Technical Discussion' started by Eddieclemons, Apr 18, 2021.

  1. Eddieclemons, Apr 18, 2021
    #1
    Eddieclemons

    Eddieclemons Member

    Joined:
    Jul 22, 2019
    Messages:
    48
    Location:
    Nashville, Tn
    I have some places in my fresh water system that drip/leak and are nest of connections. I plan to replace them with pex. There are a few questions I am researching.

    1. I was told that stainless crimp clamps are considered to have more corrosion resistance than the brass compression rings?

    2. Brass vs plastic fittings? Not all fittings are even found in plastic.

    3. If the brass fitting barb allows room for a double crimp clamp, shall I double up? There is a minimum clearance for the clamp to fitting down the pex
  2. Capt J, Apr 18, 2021
    #2
    Capt J

    Capt J Senior Member

    Joined:
    Jul 11, 2005
    Messages:
    14,611
    Location:
    Fort Lauderdale
    Nobody really crimps them on yachts, the vibration and expansion causes them to pop the crimps or for it to cut into the hose. Generally they use push lock connectors......stick to one system and order extra fittings........seatech (now Aqualock) is popular, whale is popular. The Home Depot stuff isn't exactly the same size and doesn't always work in place of marine brands.

    SeaTech Is Now AquaLock™ (watts.com)

    Pipework (whalepumps.com)
    Eddieclemons likes this.
  3. Eddieclemons, Apr 18, 2021
    #3
    Eddieclemons

    Eddieclemons Member

    Joined:
    Jul 22, 2019
    Messages:
    48
    Location:
    Nashville, Tn
    Thanks, I would have thought the crimped stainless on pex with brass fittings would have been a pretty solid system, I guess not. The aqua lock looks good, but that's alot of rings to fail, but it would be easily replaced.
  4. Capt Ralph, Apr 18, 2021
    #4
    Capt Ralph

    Capt Ralph Senior Member

    Joined:
    Sep 8, 2004
    Messages:
    13,651
    Location:
    Satsuma, FL
    I think your talking about Polybutylene and clamps.
    Now outlawed in most codes and in your home, may not be insurable.
    Pex and it's slip in fittings (Polybuty replacement) are another evolution in plumbing head aches.

    https://www.polybutylene.com/poly.html
  5. Capt J, Apr 18, 2021
    #5
    Capt J

    Capt J Senior Member

    Joined:
    Jul 11, 2005
    Messages:
    14,611
    Location:
    Fort Lauderdale
    No, they've been crimping PEX in houses these days.
  6. Norseman, Apr 18, 2021
    #6
    Norseman

    Norseman Senior Member

    Joined:
    Feb 24, 2005
    Messages:
    3,201
    Location:
    Ft. Lauderdale
    Have PEX in my boat, 20 year old system: Seems to work good,
  7. Eddieclemons, Apr 18, 2021
    #7
    Eddieclemons

    Eddieclemons Member

    Joined:
    Jul 22, 2019
    Messages:
    48
    Location:
    Nashville, Tn
    I meant O rings to fail with the Aqua lock, sorry for the typo.
  8. Eddieclemons, Apr 18, 2021
    #8
    Eddieclemons

    Eddieclemons Member

    Joined:
    Jul 22, 2019
    Messages:
    48
    Location:
    Nashville, Tn
    Connections are ???
  9. Eddieclemons, Apr 18, 2021
    #9
    Eddieclemons

    Eddieclemons Member

    Joined:
    Jul 22, 2019
    Messages:
    48
    Location:
    Nashville, Tn

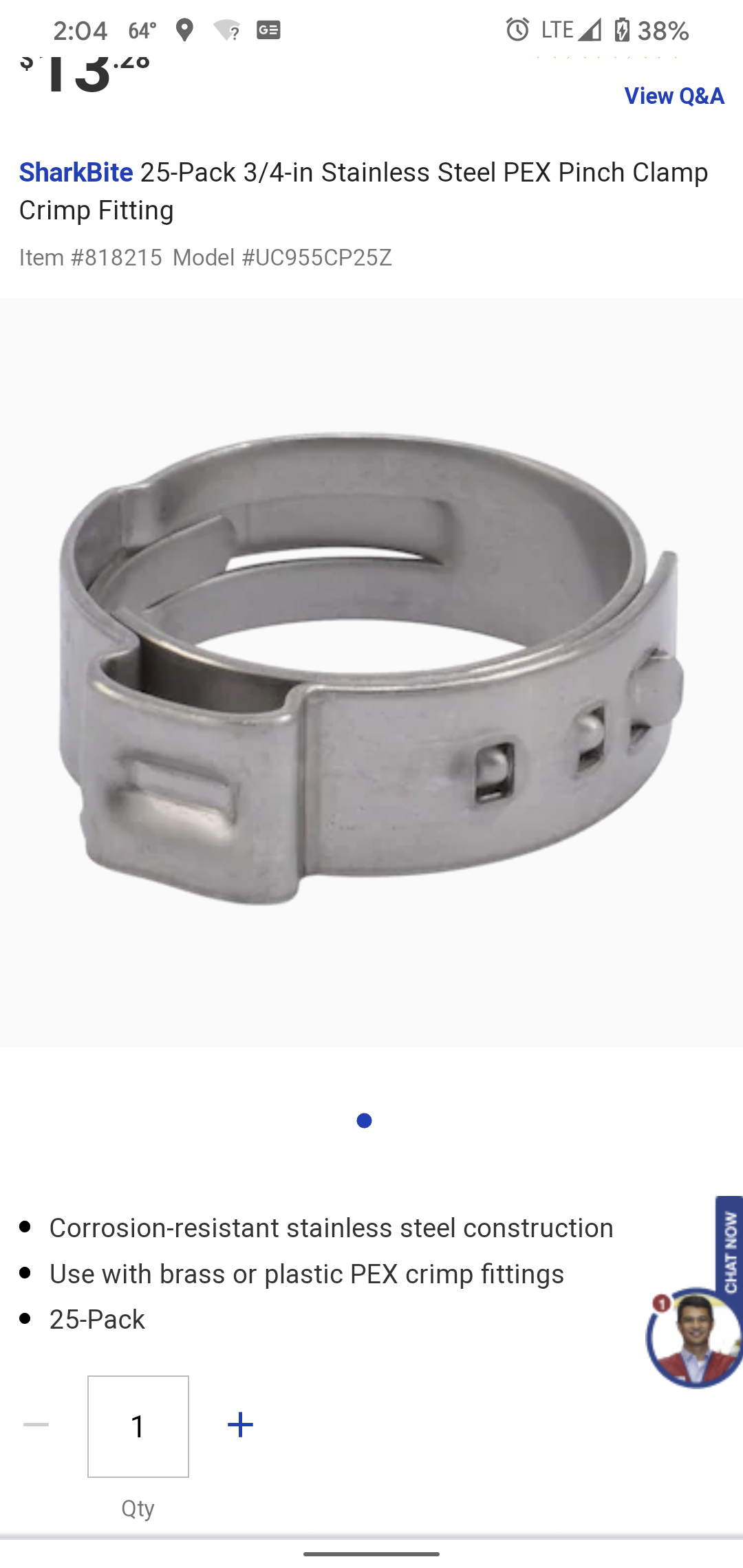

    I was looking at these crimped on brass vs Aqua lock. Plenty of room to double clamp. Screenshot_20210418-140436.png Screenshot_20210418-140436.png
  10. rtrafford, Apr 18, 2021
    #10
    rtrafford

    rtrafford Senior Member

    Joined:
    Jul 13, 2019
    Messages:
    1,802
    Location:
    Vero Beach
    Perhaps not mentioned here, try to avoid using brass on a boat. If you use stainless clamps, use the quality ones usually not found at Home Depot or Lowes.
  11. Capt Ralph, Apr 18, 2021
    #11
    Capt Ralph

    Capt Ralph Senior Member

    Joined:
    Sep 8, 2004
    Messages:
    13,651
    Location:
    Satsuma, FL
    I hope not, When using Polybutylene and clamp, the clamps, eithey alloy or monel were a failure topis.
  12. Capt Ralph, Apr 18, 2021
    #12
    Capt Ralph

    Capt Ralph Senior Member

    Joined:
    Sep 8, 2004
    Messages:
    13,651
    Location:
    Satsuma, FL
    Once O rings set, they are pretty much a lost thought. No worries here.
  13. Capt Ralph, Apr 18, 2021
    #13
    Capt Ralph

    Capt Ralph Senior Member

    Joined:
    Sep 8, 2004
    Messages:
    13,651
    Location:
    Satsuma, FL
    Only returned to a real (not hospital) land bed in a real house (not hotel) this last week.
    Now modern plumbing with mixed metal fitting examples??
    I'm going back to my 43 year old boat where it's safe, All copper.
  14. Eddieclemons, Apr 18, 2021
    #14
    Eddieclemons

    Eddieclemons Member

    Joined:
    Jul 22, 2019
    Messages:
    48
    Location:
    Nashville, Tn
    I am going to clean a few areas with Aqua Lock and Pex. Thanks for all the comments. Now to see who has an good selection and price.
  15. Norseman, Apr 18, 2021
    #15
    Norseman

    Norseman Senior Member

    Joined:
    Feb 24, 2005
    Messages:
    3,201
    Location:
    Ft. Lauderdale
    Looks like push-in plastic connectors.
    Have not really paid attention as there has been no leaks and no need for maintenance.
    The water system holds pressure for looong time after I turn the breaker off, probably overnight, I am impressed.
  16. Eddieclemons, Apr 18, 2021
    #16
    Eddieclemons

    Eddieclemons Member

    Joined:
    Jul 22, 2019
    Messages:
    48
    Location:
    Nashville, Tn
    I placed a order for Watts Aqualock from Freshwatersystems. I will let y'all know how it goes.
  17. Capt J, Apr 18, 2021
    #17
    Capt J

    Capt J Senior Member

    Joined:
    Jul 11, 2005
    Messages:
    14,611
    Location:
    Fort Lauderdale
    You DO NOT want to crimp the connections. They pex expands and contracts with temperature changes and with vibration from running the boat. It is a major failure point. Either the crimps cut through the hose, rot and fall off, or expand. Use the plastic push lock connectors like every yacht builder under 100' and be done with it. The o-rings don't fail and the connectors generally last 20 years.
