Rebuild of classic 1961 62ft FEADSHIP "Alto Volante"

Discussion in 'Feadship Yacht' started by david_japp, Sep 19, 2012.

You need to be registered and signed in to view this content.
  1. david_japp

    david_japp Senior Member

    Joined:
    Feb 7, 2005
    Messages:
    369
    Location:
    london
    Alto Volante - Vintage Feaship - restoration - exhaust

    Hi, and thanks..
    In fact, at some point since that photo was taken (in the early 1980s), clam shell covers were subsequently fitted over the outlets, which I think will help reduce staining. Also, I unfortunatley had to replace the orig beautiful MAN V8 engines which were in a very poor state through lack of maintenance and totally worn out, which make them smoke dreadfully (in addition, one Renk gearbox was seized and the other was in very poor condition) ....with engine & g/b parts impossible to find, a rebuild was uneconomic so we've fitted totally rebuilt Gardner 6LXB engines g/bs and new exhausts with water seperators, so hopefully all that will reduce staining.

    Best
    David
  2. david_japp

    david_japp Senior Member

    Joined:
    Feb 7, 2005
    Messages:
    369
    Location:
    london
    Exhaust staining

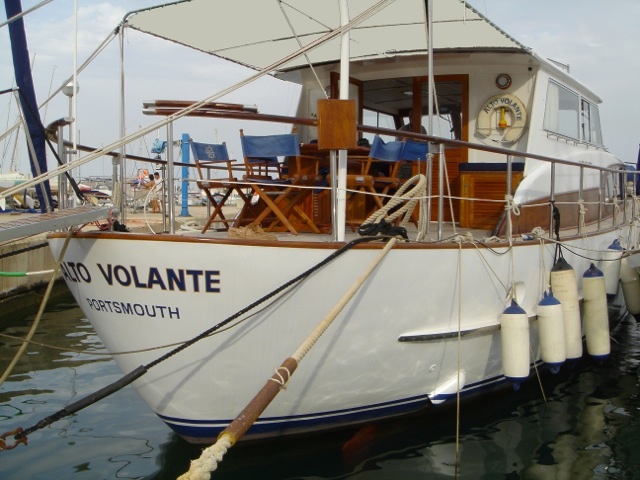

    Here is a pic taken showing the hull and exhaust covers as she was when I bought Alto...no staining

    Attached Files:

  3. david_japp

    david_japp Senior Member

    Joined:
    Feb 7, 2005
    Messages:
    369
    Location:
    london
    vintage feadship Alto shaft misaligmnet

    Alto's hull has been filled /faired and just had her first coat of white applied and is at last starting to look like a boat again after 4 years of her hull looking like the surface of mars…I’ll post some pics when I can get a decent distance away from the hull as currently she’s in the corner of the shed surrounded by other boats

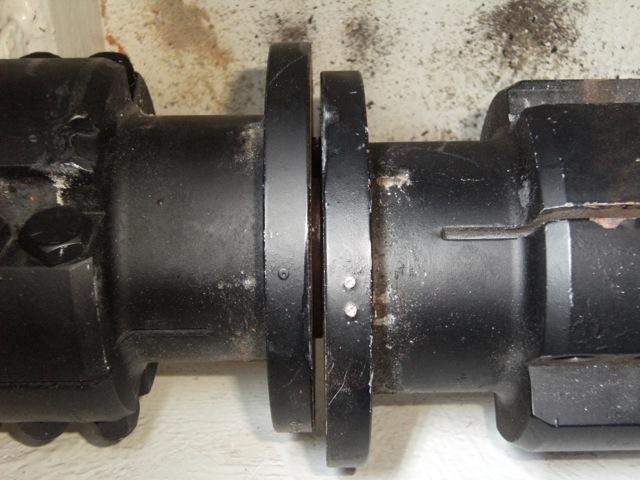

    When we undid the half-shaft couplings to draw the shafts , we discovered both shafts were seriously misaligned - the PS by approx 12mm. The cause /origin of this is still a real mystery (see attached pic of PS coupling when undone) as is the monumental cost of remedying the problem, which has involved major surgery to both the A brackets, having new steel bearings made up for aft ends of tubes (as the PS bearing was cracked, possibly as result of the misalignment) , new bronze sleeves fitted on the stern gland where there was also considerable wear, and then adjusting the Python bearers, moving the engines and altering the exhausts.

    We had new shafts fitted in Spain and they must have used jacks and chains to get the half shafts to line up.. In any event, hopefully everything is now all lined up and correct.


    The good news is that my letter to Motor Boat & Yachting magazine about Alto won the “letter of the month” prize - a bottle of Pusser's rum, no less! I think they just felt sorry for me...

    Ive always felt the name Alto Volante was a bit of a mouthful and redolent of fast powerboats rather than a sedate old lady (albeit one that's had a facelift). In fact, one of her previous owners, Lord Shaun Normanton, used to race a famous off-shore race boat in the 1970s called Alto Volante (either a Don Shead or Sonny Levi design TBC??? ) and he changed her name from Lenten Rose to Alto Volante. We considered going back to her original name, Tiky, but my family didn't like that name and because for the past 4 years she's appeared on many, many invoices as Alto V, that's what she's going to be renamed as.

    Attached Files:

    Last edited: Dec 14, 2012
  4. Fishtigua

    Fishtigua Senior Member

    Joined:
    Jul 20, 2007
    Messages:
    2,672
    Location:
    Guernsey/Antigua
    Lord Normanton's rather ageing yacht was near us, stern-to, at the Monaco Grande Prix back in 1992. The skipper was an ex-crewmate called Roger Mills. He was struggling with a cracked exhaust elbow on one Gardner. During the race we were in the engineroom trying to weld/braze the crack while everyone else was watching the race from the boatdeck. He managed to limp back to Antibes at low revs.

    That boat must have been Alto's successor, I think it was a classic Benetti.
  5. david_japp

    david_japp Senior Member

    Joined:
    Feb 7, 2005
    Messages:
    369
    Location:
    london
    Alto V

    Very Interesting... I have been in contact with Shaun Normanton bout Alto and i need to do so again so I'll ask him what his boat was at the Grand Prix.
    Meantime , here is a pic showing Alto with her grey undercoat prior to first coat of white

    Attached Files:

  6. Capt Ralph

    Capt Ralph Senior Member

    Joined:
    Sep 8, 2004
    Messages:
    8,418
    Location:
    Satsuma, FL
    WOW!!!
    I'm drooling on my desk waiting for more pictures.
  7. ombreetsoleil

    ombreetsoleil Senior Member

    Joined:
    Aug 19, 2011
    Messages:
    838
    Location:
    The Netherlands
    How is "Alto Volante"?

    Anymore developments or nice pictures?
  8. david_japp

    david_japp Senior Member

    Joined:
    Feb 7, 2005
    Messages:
    369
    Location:
    london
    RESTORATION VINTAGE FEADSHIP TIKY ( ex ALTO VOLANTE)

    [QUOTEMeantime , here is a pic showing Alto with her grey undercoat prior to first coat of white[/QUOTE]

    Awlgrip topcoats now complete. In fact there some small runs which the the yard decided were not acceptable and had to be rubbed down again. The yard did the rubbing down on a friday afternoon and couldn't respray till monday which was too late for overcoating so the entire hull that to be rubbed down again and resprayed, she had an extra topcoat which cant hurt! She is now basically finished but there are till a lot of bits and pieces to complete before we do sea trials. Here she is with her anchor plate fitted.

    She is now being inspected for CAT 2 MCA. One issue that has already come up is the handrail height which the MCA require to be 1mt (ie 39.5cm) whereas the current handrail is only 30" high. Raising the s/s stanchions and teak handrail isn't practical and would look ridiculous at 1 mt. One solution is to fit a sign restricting guest access to the deck and making crew wear lifelines but that isn't going to be adhered to so some I'm hoping for a dispensation on account of her being an existing classic yacht.

    Attached Files:

  9. david_japp

    david_japp Senior Member

    Joined:
    Feb 7, 2005
    Messages:
    369
    Location:
    london
    REBUILD OF 1961 62 ft FEADSHIP TIKY

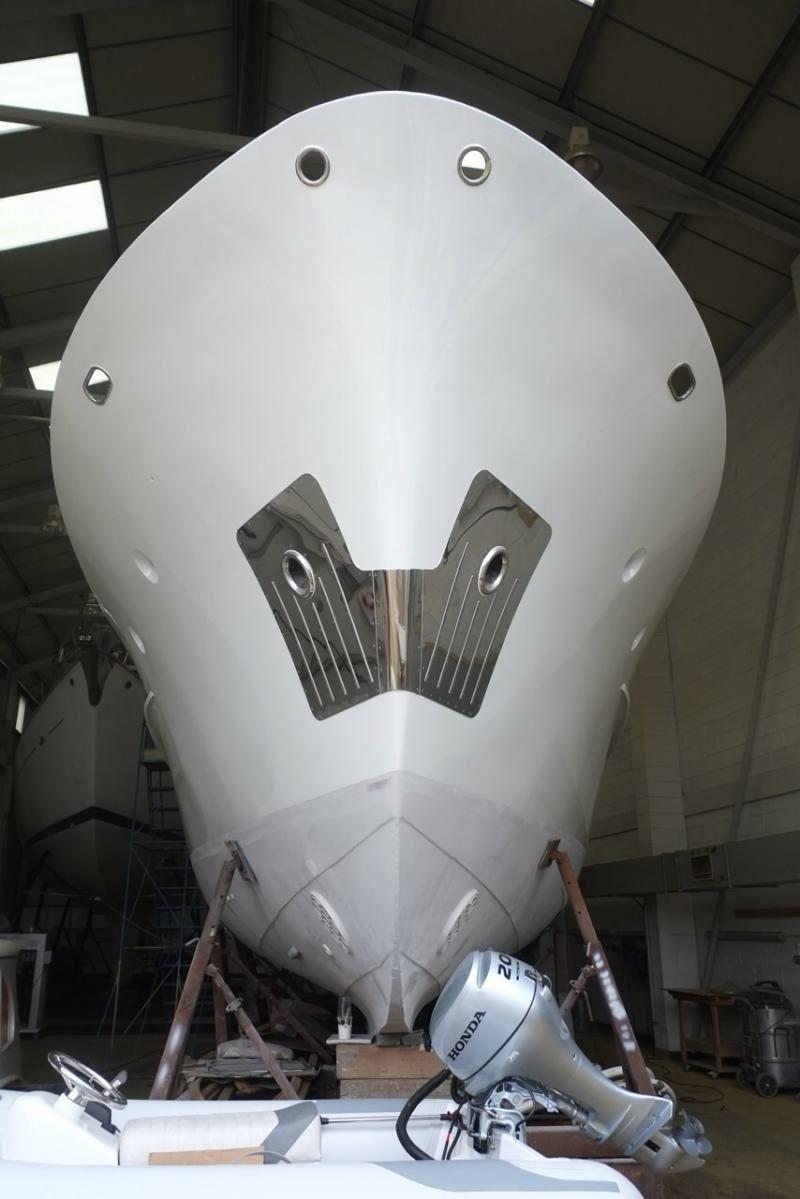

    We've finish the coatings and the finish in Awlgrip "Off White" is superb. We're now starting to put her back together . Here she is with her new shiny anchor plates ..I don't know how long they'll stay looking like that!! Polished s/s rub rails next followed by the teak cappings and stanchions and handrails. Although we've used Ephiphanes on the teak superstructure, we're using Coelan Gloss on the hand rails and cappings. The finish looks as good as Ephiphanes but according to many magazine tests lasts at least 5 years in mediterranean summers, and maybe more. I used it on my mahogany 1938 Chris-Craft, which Ive left out over 2 English winters and summers and so far it still looks great. The down side of Coelan is that it can be difficult to apply on vertical surfaces and it is extremely expensive ...with the primers etc it works out approx £70 per Msq.

    Attached Files:

  10. david_japp

    david_japp Senior Member

    Joined:
    Feb 7, 2005
    Messages:
    369
    Location:
    london
    REBUILD OF VINTAGE FEADSHIP TIKY - ex Alto Volante

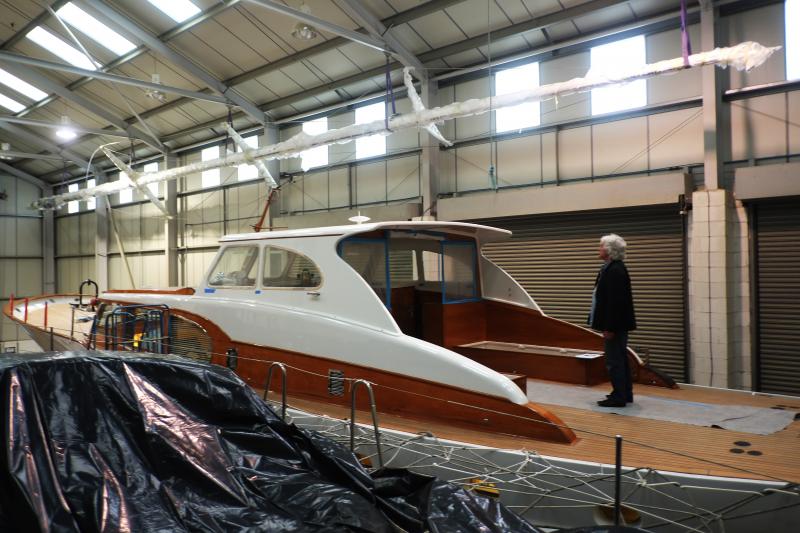

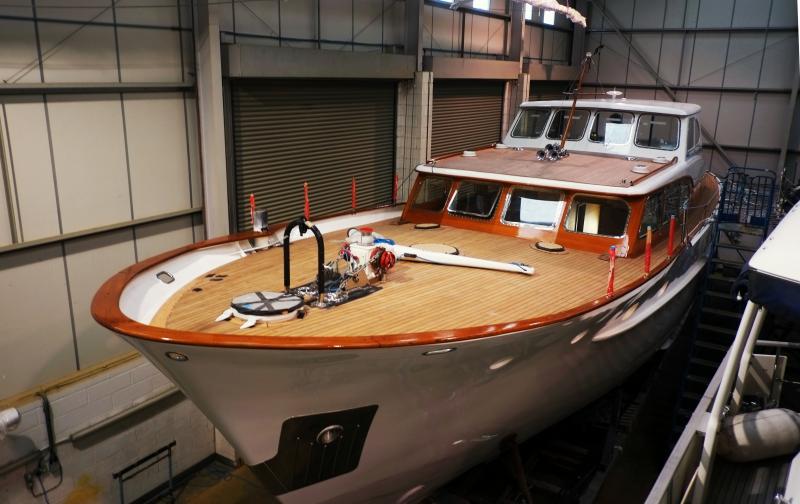

    here she is with new PH fitted - still loads to do!

    Attached Files:

  11. SeaEric

    SeaEric YF Historian

    Joined:
    Jan 28, 2007
    Messages:
    1,311
    Location:
    Easton, Md./Ft. Lauderdale
    She is absolutely stunning! Bravo.
  12. Capt Ralph

    Capt Ralph Senior Member

    Joined:
    Sep 8, 2004
    Messages:
    8,418
    Location:
    Satsuma, FL
    Wwwoooooooowwwww!!
    That's beautiful!!

    That is the correct PH. Great design and work.
  13. david_japp

    david_japp Senior Member

    Joined:
    Feb 7, 2005
    Messages:
    369
    Location:
    london
    Tiky ex Alto Volante vintage 62ft Feadship restoration

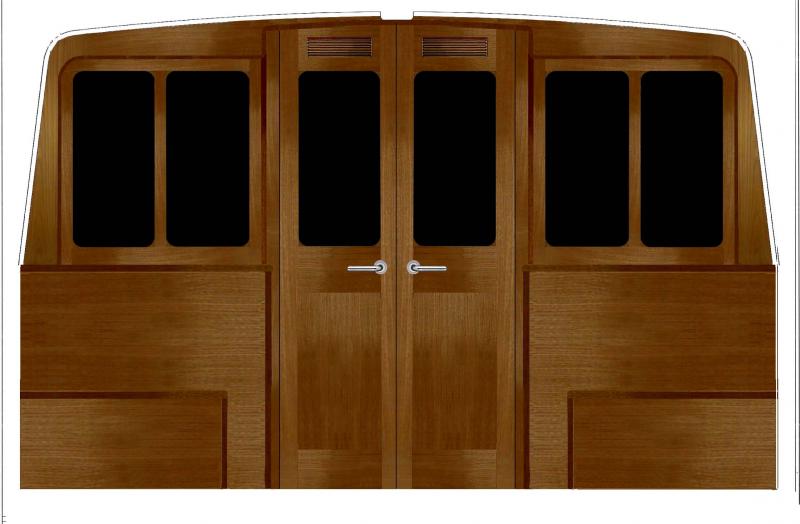

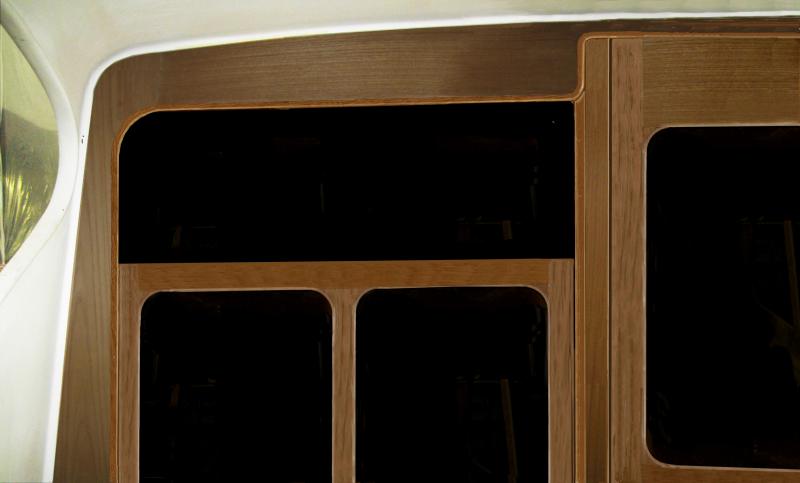

    thank you for your kind words. The aft screen is interesting, I think. In order to provide versatility the PH can either be completely closed up or be made completely open plan to aft deck. To achieve this the aft windows rise/fall electrically via a slot in the top of the aft island lockers and when down completely disappear into the lockers (the top of the widow frame is in fact the section of the locker top that was cut out to provide the slot for the window, so when when window is down the top fills the slot and the grain matches). The 2 doors can be easily and quickly removed and stowed in the aft seats. .(the attached pics are renders I produced with photoshop but everything has been made and is ready to fit)

    Attached Files:

  14. Capt J

    Capt J Senior Member

    Joined:
    Jul 11, 2005
    Messages:
    12,319
    Location:
    Fort Lauderdale
    She is coming out beautiful. You're doing an amazing job on her.

    How are you going to keep the varnish on the house nice, with having to clean the teak with cleaners on a regular basis?
  15. Capt J

    Capt J Senior Member

    Joined:
    Jul 11, 2005
    Messages:
    12,319
    Location:
    Fort Lauderdale
    She is coming out beautiful. You're doing an amazing job on her.

    How are you going to keep the varnish on the house nice, with having to clean the teak with cleaners on a regular basis?
  16. david_japp

    david_japp Senior Member

    Joined:
    Feb 7, 2005
    Messages:
    369
    Location:
    london
    Tiky - vintage feadship

    thank you for your kind words..your feedback is very encouraging!

    re teak maintenance ...in a word "dunno"!
    we plan to fit covers over all brightwork when boat not in use and recoat varnish at once least at start and end of season....time will tell
  17. david_japp

    david_japp Senior Member

    Joined:
    Feb 7, 2005
    Messages:
    369
    Location:
    london
    TIKY vintage Feadship restoration - brightwork (varnished teak) maintenance

    BTW - although we have used Epiphanes traditional oil based varnish on most of the brightwork, on the approx 250ft of handrails and cappings we have used Coelan - a (very expensive) polyurethane one pack coating that has had marvellous test results in hot, high UV Mediterranean conditions - it has a great deep gloss finish on teak and is supposed to last over 5 years without maintenance. We shall see..
  18. david_japp

    david_japp Senior Member

    Joined:
    Feb 7, 2005
    Messages:
    369
    Location:
    london
    TIKY restoration of a vintage 62ft FEADSHIP

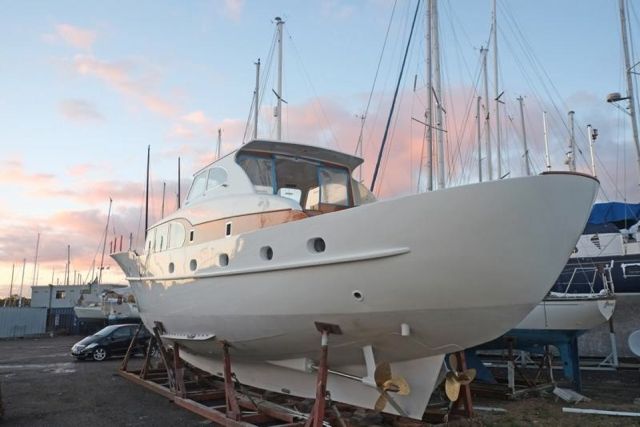

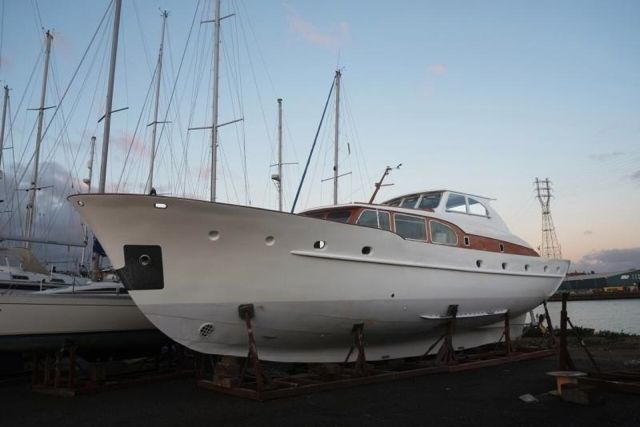

    Here are some photos of Tiky, painted and now on the hard at Foxs. Still a way to go before she goes south to the Med.

    Attached Files:

  19. david_japp

    david_japp Senior Member

    Joined:
    Feb 7, 2005
    Messages:
    369
    Location:
    london
    Tiky - feadship

    And another view

    Attached Files:

  20. weto

    weto Senior Member

    Joined:
    Jan 1, 2012
    Messages:
    164
    Location:
    NOR CAL
    WOW ! She is gorgeous. Great job.
