Rebuild of classic 1961 62ft FEADSHIP "Alto Volante"

Discussion in 'Feadship Yacht' started by david_japp, Sep 19, 2012.

You need to be registered and signed in to view this content.
  1. david_japp

    david_japp Senior Member

    Joined:
    Feb 7, 2005
    Messages:
    369
    Location:
    london
    REBUILD OF PILOT HOUSE ON VINTAGE FEADSHIP ALTO VOLANTE pka TIKY

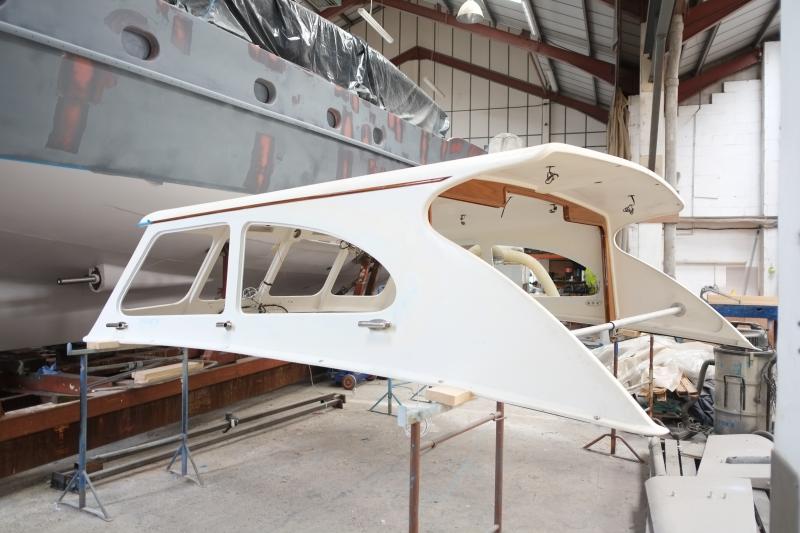

    The new PH being built.

    Attached Files:

  2. david_japp

    david_japp Senior Member

    Joined:
    Feb 7, 2005
    Messages:
    369
    Location:
    london
    Rebuild of pilot house on vintage feadship alto volante

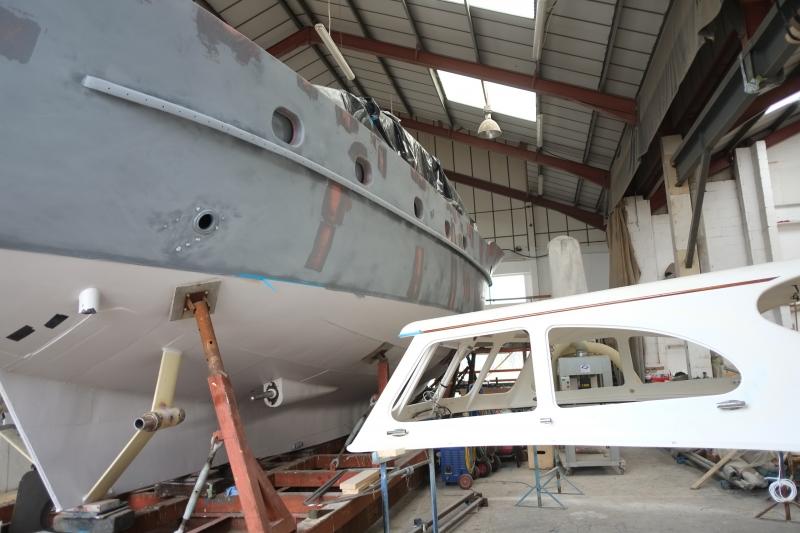

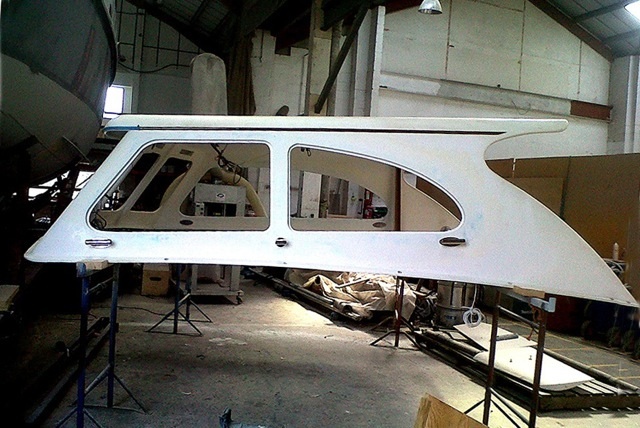

    Another view of the PH being built along side of Alto's hull in process of being filled& faired.

    Attached Files:

  3. david_japp

    david_japp Senior Member

    Joined:
    Feb 7, 2005
    Messages:
    369
    Location:
    london
    Total rebuild of alto volante feadship

    A view of the PH while being built. The flat sides were built of marine ply...the radius corners were strip planked and the roof is balsa core. The whole structure was then encapsulated in cloth and epoxy . The window frames are s/s.

    Attached Files:

    Last edited: Sep 23, 2012
  4. david_japp

    david_japp Senior Member

    Joined:
    Feb 7, 2005
    Messages:
    369
    Location:
    london
    Total rebuild of vintage feadship pilot house

    Another view

    Attached Files:

  5. david_japp

    david_japp Senior Member

    Joined:
    Feb 7, 2005
    Messages:
    369
    Location:
    london
    Rebuild of Pilothouse

    Pic of PH structure encapsulated in epoxy

    Attached Files:

  6. david_japp

    david_japp Senior Member

    Joined:
    Feb 7, 2005
    Messages:
    369
    Location:
    london
    TOTAL REBUILD OF FEADSHIP ALTO VOLANTE pka TIKY

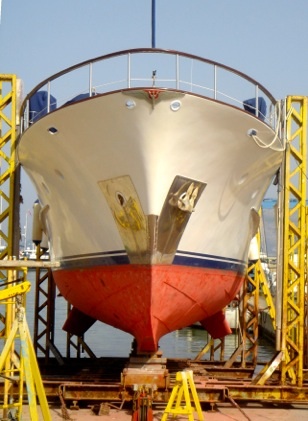

    A view of the hull showing the flare at the bow - this together with the cruiser stern is what originally attracted me to Alto....plus the fact that at 62 ft she is a substantial yacht whilst still being managable as a family run yacht , but with room for a crew should the need arise

    Attached Files:

  7. david_japp

    david_japp Senior Member

    Joined:
    Feb 7, 2005
    Messages:
    369
    Location:
    london
    Total rebuild of vintage Feadship Alto Volante

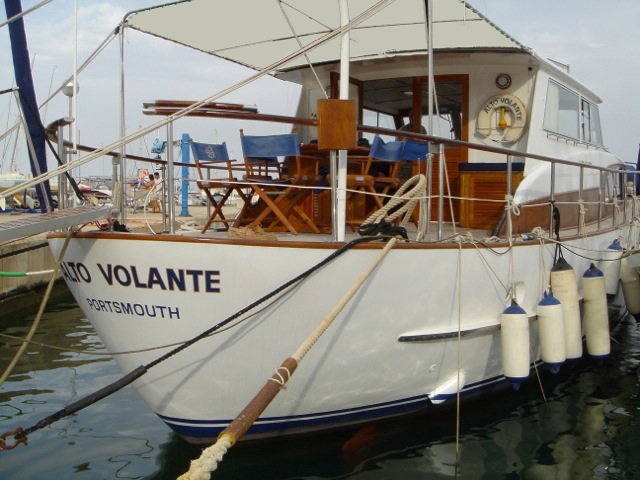

    A photo of the cruiser stern - even with the ugly Pilot house she had a certain style....

    Attached Files:

  8. david_japp

    david_japp Senior Member

    Joined:
    Feb 7, 2005
    Messages:
    369
    Location:
    london
    .
    Another pic of Alto as I found her in Majorca

    Attached Files:

  9. david_japp

    david_japp Senior Member

    Joined:
    Feb 7, 2005
    Messages:
    369
    Location:
    london
    Total rebuild of vintage feadship p

    Alto with old pilot house on passage

    Attached Files:

  10. ombreetsoleil

    ombreetsoleil Senior Member

    Joined:
    Aug 19, 2011
    Messages:
    838
    Location:
    The Netherlands
    Are you going to place a little tender?
  11. david_japp

    david_japp Senior Member

    Joined:
    Feb 7, 2005
    Messages:
    369
    Location:
    london
    REBUILD OF VINTAGE FEADSHIP ALTO VOLANTE pka TIKY - General arrangements drawings

    Alto with old pilot house on passage

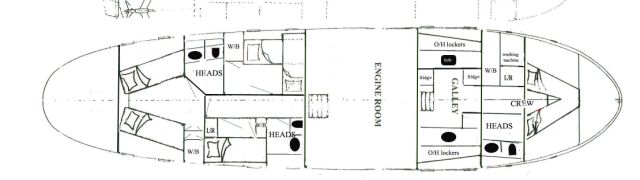

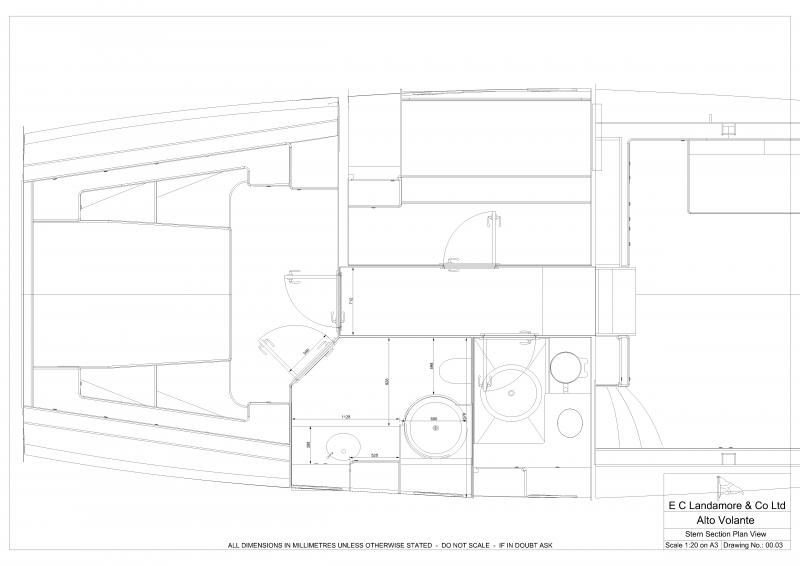

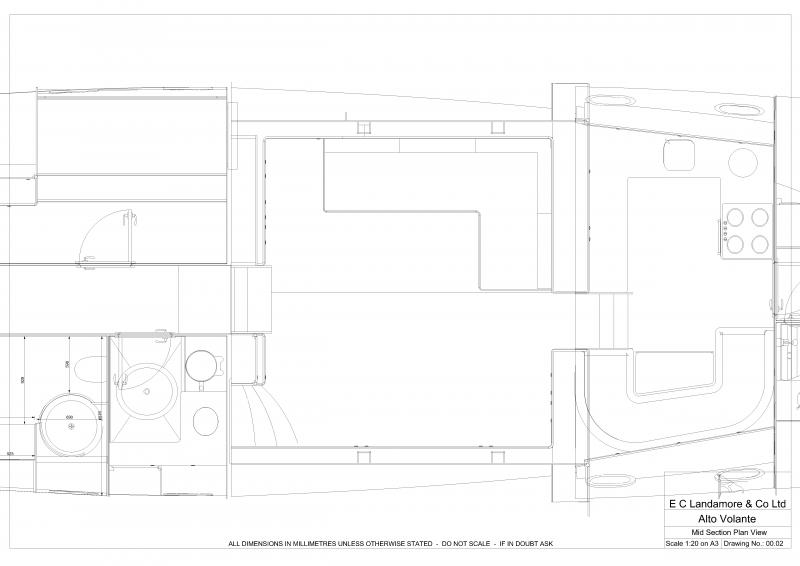

    here are the drawings showing the revised layout compared to the original one. The main difference is that we sacrificed a tiny single-berth aft cabin on stbd in order to enlarge the owners cabin so as to be big enough to have a central double bed (instead of narrow V berths) and a decent sized owner's ensuite head with a separate shower stall. It also meant the guest cabin could be enlarged slightly so as to have 2 full length fore/aft bunk beds (both 32" wide) with the lower one extendable by a few inches to form a cosy double. We also put a fitted L shaped settee in the salon (which extends to form a full sized double) and removed the partition between the saloon and the galley (making the galley much brighter and physically as well visually linked to the saloon) and we put a small dinette seating area in the galley. the fwd cabin has its own heads and has been fitted out to the same standard as the rest of the boat making it suitable for guests or crew. As mentioned in a previous thread, the seat in the PH extends to form a full length berth 30" wide) - this "pilot berth" can be used by a guest, or by a crew thus freeing up the fwd cabin for 2 guests. The boat is intended for the private use of me and my family and/or guests - ie 6 guests plus crew (up to a max of three crew), ie she can sleep a total of 9 (max 10 if 3 people occupy the guest cabin)

    Attached Files:

  12. david_japp

    david_japp Senior Member

    Joined:
    Feb 7, 2005
    Messages:
    369
    Location:
    london
    rebuild of feadship Alto Volante

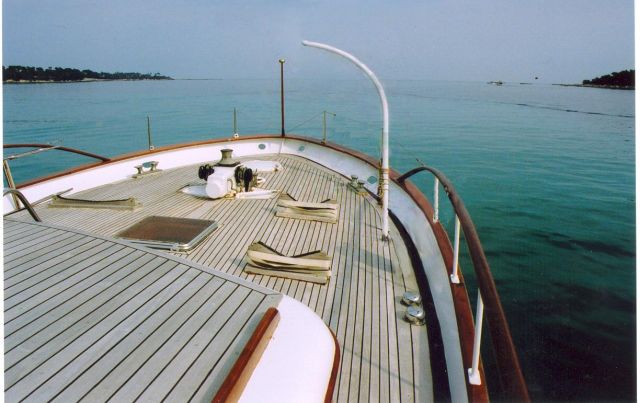

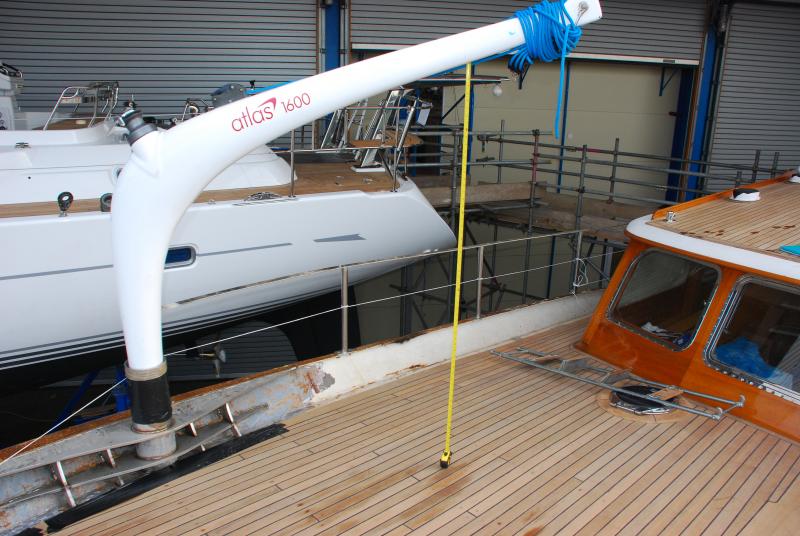

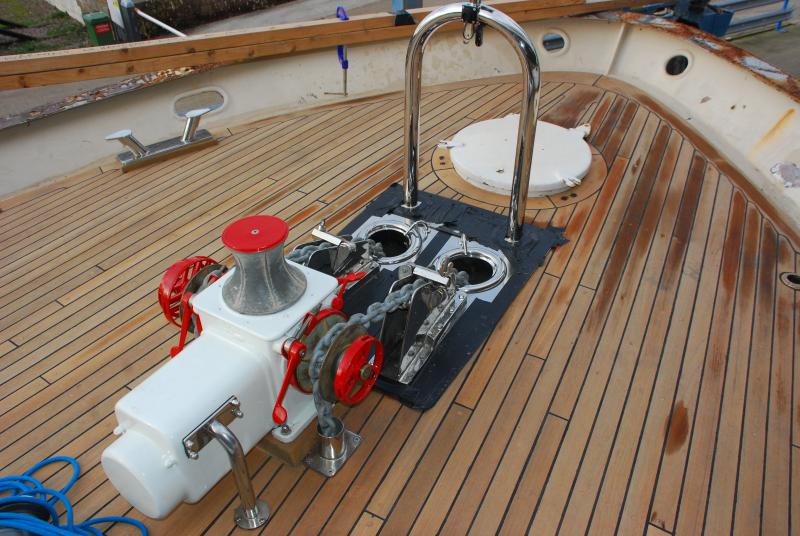

    yes...we are going to ship a 12ft RIB on the foredeck. We've bought a lightweight Atlas 1600 carbon fibre davit that can lift up to 500kgs but is light enough for one man to easily ship /unship in the new s/s deck fitting we built on to the stbd gunwhale (ie in place of the old cast iron davit which weve reatin on the aft deck) . When on passge the carbon fibre davit will be stowed flat in the tender. The tender can be lifted using the manual winch on the davit or we can run the lifting rope to the windlass

    Attached Files:

  13. ombreetsoleil

    ombreetsoleil Senior Member

    Joined:
    Aug 19, 2011
    Messages:
    838
    Location:
    The Netherlands
    Nice article in the MBY dec 2012.

    Any more pictures of the proceedings?
  14. david_japp

    david_japp Senior Member

    Joined:
    Feb 7, 2005
    Messages:
    369
    Location:
    london
    FEADSHIP Alto Volante.

    Hi
    No new pics yet as hull is still being faired before painting.

    Do you mean nice article in the UK magazine Motorboat and Yachting? if so which month as Dec 2012 hasn't appeared yet. What's the article about?
    Regards
    David
  15. Liberty

    Liberty Senior Member

    Joined:
    Sep 13, 2011
    Messages:
    145
    Location:
    Brisbane, Australia
    Wow. Seriously wow. You should be very proud. Can't wait to see her finished.

    Having a removable davit is great way to maintain her lovely lines.

    What a wonderful project. Congratulations!
  16. ombreetsoleil

    ombreetsoleil Senior Member

    Joined:
    Aug 19, 2011
    Messages:
    838
    Location:
    The Netherlands
    Its the motor boat and yachting from the uk dec 2012 edition.

    I have a subscription that also includes the online version.
    The online version always appears at the beginning of each month.

    Yesterday I had the magazine through the mail.

    You have won a bottle of rum!!! They say you have won a bottle of rum for best letter!!!!
  17. david_japp

    david_japp Senior Member

    Joined:
    Feb 7, 2005
    Messages:
    369
    Location:
    london
    Alto volante - bottle of rum for star letter in motorboat & Yachting magazine

    ...just gone out and bought a copy... I had no idea...that bottle of rum is going to come in handy for cold night watches on the long passage south across Biscay to the Med
    Thx
    David
  18. kkreicker1

    kkreicker1 Senior Member

    Joined:
    Nov 4, 2011
    Messages:
    132
    Location:
    Naples, FL or Saugatuck, MI
    I can't wait to see the finished product! Keep up the good work!

    Keith
  19. david_japp

    david_japp Senior Member

    Joined:
    Feb 7, 2005
    Messages:
    369
    Location:
    london
    Alto volante FEADSHIP

    ..me too!..thanks
    Best
    david
  20. Kafue

    Kafue Senior Member

    Joined:
    Nov 29, 2006
    Messages:
    1,150
    Location:
    Gold Coast Australia
    Exhaust stain

    Hi David,
    Like all on this thread I admire your efforts and "SAND" in taking on such a big project. Always look forward to more photos.
    Question: with all the detail you have gone to, have you come up with a solution to minimise the exhaust stain on the aft port side that is seen in the pre-new pilothouse photo?
    Cheers
