Pocket Transducer on 45 Express?

Discussion in 'Cabo Yacht' started by MC02020, Jan 3, 2020.

You need to be registered and signed in to view this content.
  1. MC02020

    MC02020 New Member

    Joined:
    Sep 11, 2019
    Messages:
    22
    Location:
    Brant Rock, MA
    I am in the process of updating the electronics package on my new to me 2000 45 Express. There are two existing trandsducers in the hull. The forward one is roughly 8" square, and the current chirp models are appox 14 x 8.

    Does anyone have any thoughts or tips on modifying the pocket to fit the new one?

    thanks for the help!
    Mike
  2. Capt J

    Capt J Senior Member

    Joined:
    Jul 11, 2005
    Messages:
    13,936
    Location:
    Fort Lauderdale
    What do you mean pocket transducer? The 45's didn't have a pocket in the hull. Electronics compnies had a tear drop wedge generally that was mounted onto the hull by whatever electronics company installed the transducer.
  3. CaboFly

    CaboFly Member

    Joined:
    Aug 24, 2018
    Messages:
    139
    Location:
    Seattle
    From inside the hull do you see a yellow, black, or bronze material?
  4. MC02020

    MC02020 New Member

    Joined:
    Sep 11, 2019
    Messages:
    22
    Location:
    Brant Rock, MA
    I took photos of the forward transducer after removing the frame and seal, but not sure if there is a way to upload them here? ( sorry I'm new ) The after transducer is smaller an not disturbed. I had thought it was done at the factory, but maybe was done after the fact. I don't have any experience with them. I guess I can talk to a fiberglass guy to see if feasible to modify to fit the new one, or seal it back in and abandon it in place and use a traditional thru hull version. Any help or comments are appreciated! thanks
  5. MC02020

    MC02020 New Member

    Joined:
    Sep 11, 2019
    Messages:
    22
    Location:
    Brant Rock, MA
    In the inside of the hull, just a "conventional" looking bronze thru hull with nut, and the cable coming through it.
  6. MC02020

    MC02020 New Member

    Joined:
    Sep 11, 2019
    Messages:
    22
    Location:
    Brant Rock, MA

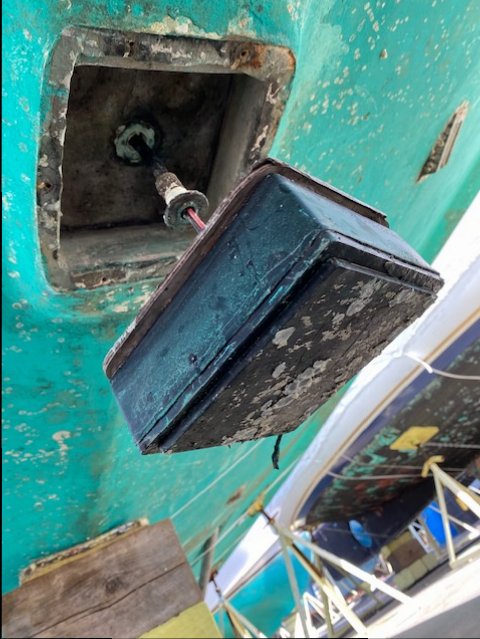

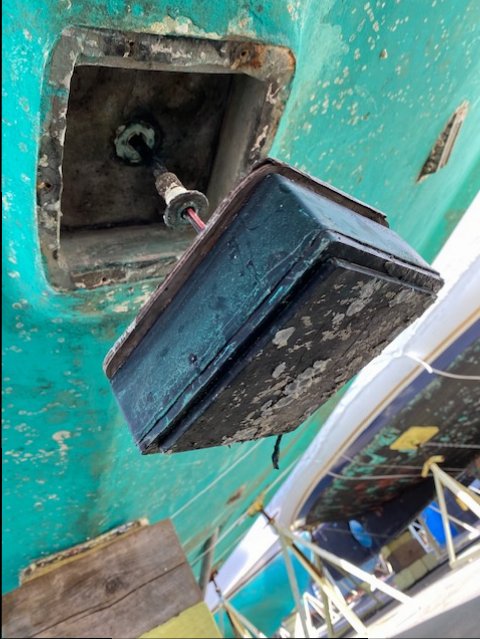

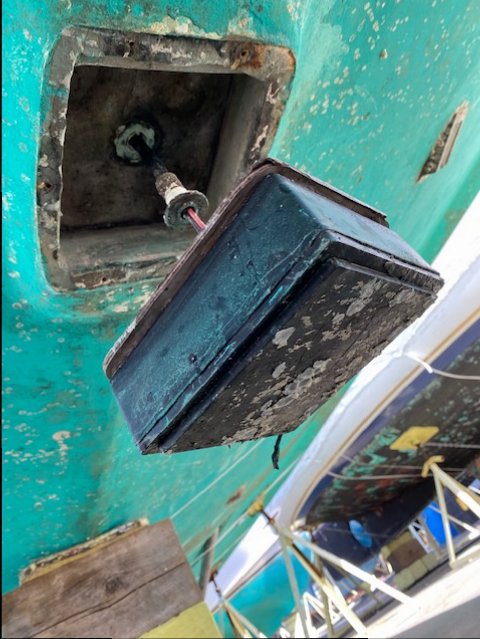

    this is a photo, hopefully i am
    uploading it correctly!
  7. MC02020

    MC02020 New Member

    Joined:
    Sep 11, 2019
    Messages:
    22
    Location:
    Brant Rock, MA
    I am leaning towards abandoning this one in place and installing a new Airmar CM 509 LHW with fairing block. Does anyone have any thoughts or suggestions on the best place to mount? thank you!
  8. Capt J

    Capt J Senior Member

    Joined:
    Jul 11, 2005
    Messages:
    13,936
    Location:
    Fort Lauderdale
    Talk to Hi-Seas electronics in Fort Lauderdale, they did A LOT of transducers on 45' cabo's. I would guess they did at least 50% of the electronics packages on Cabo's during that time period. I believe they usually mounted the fairing block ones just in front of the starboard motor, but verify. I ran 2005 with an inside hull one they did that worked pretty well and the box/transducer was in the lazarette and worked pretty well. I'm sure with the new transducers and chirp technology even better.
  9. PacBlue

    PacBlue Senior Member

    Joined:
    Jan 9, 2009
    Messages:
    1,997
    Location:
    Dana Point, Ca
    Cabo, and many others, originally located a plug for the transducer in the Hull Mold and laminated "around" it.

    If the old transducer is 8" long x 8" wide and the new one is 14" long x 8" long, I would have the yard enlarge the flush opening to fit the new transducer. Once the opening is cut, they can make a plug and laminate the 6" longer section to much the current bottom laminate, the install will look OEM and the risk is minimal.
  10. Capt Ralph

    Capt Ralph Senior Member

    Joined:
    Sep 8, 2004
    Messages:
    9,825
    Location:
    Satsuma, FL
    Hey Now, I like that idea. Shame you could not re-use that transducer.
