Part 1: Northern Marine 90' Yacht Capsizes Upon Launch...!

Discussion in 'Northern Marine Yacht' started by olderboater, May 19, 2014.

You need to be registered and signed in to view this content.
Thread Status:
Not open for further replies.
  1. Boatbuilder

    Boatbuilder New Member

    Joined:
    Jun 27, 2011
    Messages:
    25
    Location:
    Anacortes WA
    Stability Test

    I'm surprised no mention has been made of the stability test the USCG required before the boat could be moved.

    The stability test was done Tuesday morning I believe, and as the crane lowered the tension on their slings the boat went right over to port and at 15 degrees list the crane still had quite a load and the test was stopped.

    The crane is the only thing keeping the boat upright after she was pumped out.

    They have just moved the boat a mile to the north still attached to the crane and barge, where there is a barge dock, and I believe a very large crane will put the vessel on land.
  2. Capt Ralph

    Capt Ralph Senior Member

    Joined:
    Sep 8, 2004
    Messages:
    8,605
    Location:
    Satsuma, FL
    O K, you're teasing me. Naw, still wont board. I'd rather get rolled by a mature boater (female) than on that unstable rig.
    Cash, politics, taxes,,,, I'd never win and so it's not a point. Maybe after 2016....
  3. Capt Ralph

    Capt Ralph Senior Member

    Joined:
    Sep 8, 2004
    Messages:
    8,605
    Location:
    Satsuma, FL
    Funny thing about that crane when it lifted the hulk. One strap on the after / port side (on the only video I have seen). Is the hulk still supported by one strap???

    And, BAck on land? Who's land?
  4. Capt Ralph

    Capt Ralph Senior Member

    Joined:
    Sep 8, 2004
    Messages:
    8,605
    Location:
    Satsuma, FL
    Is this for real? Can you quote the source? Report or go into any more details?
    ,rc
  5. wdrzal

    wdrzal Senior Member

    Joined:
    Feb 6, 2006
    Messages:
    402
    Location:
    Baltimore
    The National Transportation Safety Board (NTSB) is an independent U.S. government investigative agency responsible for civil transportation accident investigation. In this role, the NTSB investigates and reports on aviation accidents and incidents, certain types of highway crashes, ship and marine accidents, pipeline incidents and railroad accidents. When requested, the NTSB will assist the military and foreign governments with accident investigation.

    --------------------------------------------------------------------------------------
    Will the NTSB Investigate this type of accident ??? My opinion is they probably should, before someone does die. Any thoughts ???

    Walt
  6. Boatbuilder

    Boatbuilder New Member

    Joined:
    Jun 27, 2011
    Messages:
    25
    Location:
    Anacortes WA
    Stability

    The crane and barge are both entirely too small to lift the deadweight of the boat, but it could easily control it after the water was pumped out, and it was able to manuver the sunken hull when it was not aground. There is one strap under the hull about 20 feet or so aft of mid ships.

    The USCG required both the stability test and a written transport plan for the vessel to be moved out of the launch area. By the way, there were about 15 or so yachts trapped in their slips because of the sunken vessel and the barge and tug, and the launch ramp that several dry land yards use was closed as well, right before the Holiday weekend.

    Right now, 6:05 Pacific Daylight Time, the convoy is approximately half way between Fidalgo Marina where th launch ramp is located, and the barge dock on the North end of Anacortes Marina, it looks to be stopped now I assume waiting for high tide which is at 1:34 AM Saturday morning.
  7. sunchaserv

    sunchaserv Member

    Joined:
    Dec 16, 2011
    Messages:
    140
    Location:
    Carefree, AZ
    As does Olderboater/BB about the "business end" of yacht design and construction. Some find a paragraph or two are necessary sustitutes for a few well chosen words.
  8. Capt Ralph

    Capt Ralph Senior Member

    Joined:
    Sep 8, 2004
    Messages:
    8,605
    Location:
    Satsuma, FL
    Another question;
    After she rolled on her side. Comments were made she was aground or on the bottom. But drifted to the catwalk that then had to be lashed to.
    So, question; was she on the bottom or buoyant on her side.

    Follow up questions;

    Still one lifting strap on the port side (as the only pic I have seen) or an all around strap / sling completely under / around her hull now?
    If she is pumped out, Would she float per design less any bad launching problems: flat tires, stern door open, bow held up by mobil jack, striking bottom? Or would she roll back over if the sling(s?) were removed?

    Can still use an conformation on her failing the USCG stability test before launching.

    Inquiring mind things ya know...
  9. Boatbuilder

    Boatbuilder New Member

    Joined:
    Jun 27, 2011
    Messages:
    25
    Location:
    Anacortes WA
    Clarification

    I might not have described it clearly enough...there is one strap under the after portion of the hull the ends of which are attached too two halyard cables so that tension could be added to either the port or starboard ends of the strap to help roll the boat upright. The crane provided righting moment while the pumps provided buoyancy. At higher tides the crane and tug could manuver the hull around, and as she was de-watered the crane had enough lift to roll her upright. At lower state of tide the hull must have been partially aground.

    There was early speculation that the port list had snagged the port stabilizer and perhaps damaged the hull, but apparently underwater integrity is still intact, so the water must have come through the transom door, the air intakes and the salon door.

    The lurching or tilting of Northwrn Marine hulls on this launch ramp was common as the poured concrete ramp only went so far past Mean Low Water, and beyond that, precast concrete slabs were placed to be able to get carriage wheels deeper in the water. The slabs have not stayed as level as the poured and re-in forced concrete portion.

    The after launch stability test showed that the vessel could not stay upright in perfectly calm water and wind with the bilge pumped without the support of the crane on the barge. I have no knowledge of any pre-launch stability data or tests.

    The barge dock is located at 47.30.336 N x 122.36.343 W, on private land. The site was originally built for the Alaska Pipeline Construction. This is only about 1/2 mile north of the launch ramp, and the only other facilty that could possibly take this job is Dakota Creek Shipyard, which is about 1 mile further North on Guemes Channel.

    I do not know for certain that the barge dock is where a large enough crane will be set up to lift the vessel, but it is the closest, and the upland yard is presently not used.

    I do not know any more details on the stability test results beyond what I posted earlier, that is that the barge mounted crane and it's sling is what is keeping this vessel upright, if they slacked off the cables far enough, the vessel would probably lay on her side again.
  10. Boatbuilder

    Boatbuilder New Member

    Joined:
    Jun 27, 2011
    Messages:
    25
    Location:
    Anacortes WA

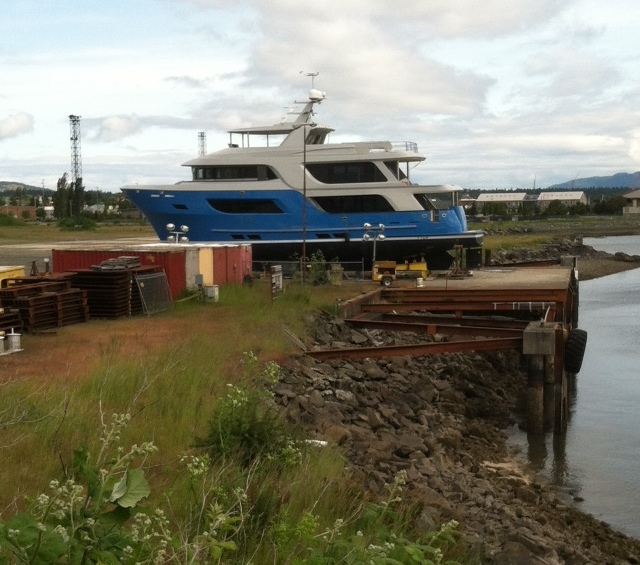

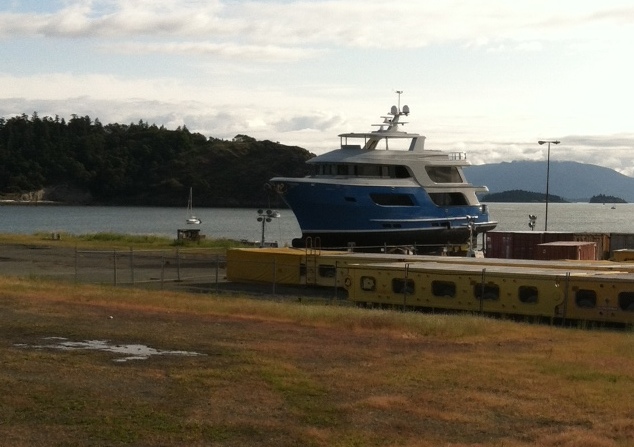

    The vessel is now on land, see a couple of cell phone pictures taken from perimeter fence.

    This is the barge dock just north od Anacortes Marine, location:

    48.30.334 North
    122.36.434 West

    Attached Files:

  11. olderboater

    olderboater Senior Member

    Joined:
    Sep 2, 2013
    Messages:
    5,827
    Location:
    Fort Lauderdale
    Well, it's good to know the boat has made it there. I'm sure Fidalgo is glad to have their marina back to normal and many are relieved the boat is just back on land. From here is anybody's guess.
  12. Capt Ralph

    Capt Ralph Senior Member

    Joined:
    Sep 8, 2004
    Messages:
    8,605
    Location:
    Satsuma, FL
    Other than a couple of APUs with lights, Is anybody onboard trying to save the engines, generators and other equipment?

    Or is it all going to the shredder.

    Meatheads, what a waste.
  13. olderboater

    olderboater Senior Member

    Joined:
    Sep 2, 2013
    Messages:
    5,827
    Location:
    Fort Lauderdale
    Several days already and no effort I'm aware of. No one really in position to do so. Northern is closed. So the most logical people to be working on it are gone from the picture entirely. Don't know the insurer's position. Buyer is in catch 22 of probably wanting nothing to do with it, but at the same time the boat is probably the only thing he can get for his money. But in that regard the more loss, potentially the better for him. Problem is whether he has right to or will ever see any insurance money. Then we don't even know what level of insurance coverage there is.

    Basically you have a boat no one wants anything to do with at the moment. Pretty much just happiness that it's out of the water without more problems.

    You're right that there at least could have been some salvage. But among the many issues, you didn't have a stable platform to even work on until now. Now you have the platform, but no one to do it, plus you are now 6 1/2 days out from sinking and 5 or so from removal of water.

    It will be interesting to see what happens from now. Will it just sit where it is? How long? Be moved somewhere else? Where? I would doubt any resolution coming anytime soon.
  14. Capt Ralph

    Capt Ralph Senior Member

    Joined:
    Sep 8, 2004
    Messages:
    8,605
    Location:
    Satsuma, FL
    Here in south Georgia, we would just paint a new water line on her, say about 2 feet higher, and try another launch... :)
  15. SomeTexan

    SomeTexan Member

    Joined:
    Jun 20, 2013
    Messages:
    190
    Location:
    Texas, landlocked for a bit longer...
    I wonder how well the underwater windows will work? Or will they be filled in with bondo?
  16. olderboater

    olderboater Senior Member

    Joined:
    Sep 2, 2013
    Messages:
    5,827
    Location:
    Fort Lauderdale
    One added small piece of information which may be somewhat relevant to the boat as it sits. A UCC filing was recorded on 1/31/13 granting The Lauridsen Group, Ankeny, Iowa, a lien on all parts and materials of hull number 8501, the boat in question. I do not know if they are related to the buyer or have some other role.
  17. Capt Ralph

    Capt Ralph Senior Member

    Joined:
    Sep 8, 2004
    Messages:
    8,605
    Location:
    Satsuma, FL
    Underwater viewing/shot gun ports. If you close the window real fast after shooting that BigUm katfish, not to much water should come in.

    And, we like Bondo. Only thing left holding Bubba's truck together.
  18. SomeTexan

    SomeTexan Member

    Joined:
    Jun 20, 2013
    Messages:
    190
    Location:
    Texas, landlocked for a bit longer...
    Lmao, sounds good to me.
  19. Boatbuilder

    Boatbuilder New Member

    Joined:
    Jun 27, 2011
    Messages:
    25
    Location:
    Anacortes WA
    There was zero visible activity Saturday when I took the pictures, I think the Lights were there for the night crane activity getting her out of the water, and I doubt there is any in ground power there that could provide anything. I doubt you would want any of the ship's circuits energized after the submersion.

    She is sitting out in the weeds...who would ever buy it?
  20. Norseman

    Norseman Senior Member

    Joined:
    Feb 24, 2005
    Messages:
    2,315
    Location:
    Ft. Lauderdale
    Even if the owner's insurance dose not kick in inntil after launch and commission, the yard's insurance should kick in, even if they are out of business but if the bills were paid on time...?
