Oceanco Y701 - Construction Story

Discussion in 'Oceanco Yacht' started by YachtForums, Jul 27, 2005.

You need to be registered and signed in to view this content.
Thread Status:
Not open for further replies.
  1. YachtForums

    YachtForums Publisher/Admin

    Joined:
    Dec 22, 2002
    Messages:
    19,654
    Location:
    South Florida

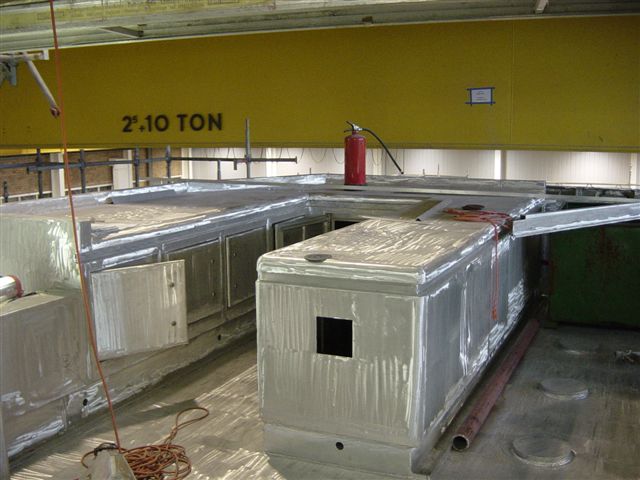

    The build out and integration of sub components starts with cutting the metal to shape, welding, grinding and then fitting doors or hardware to check for tolerance, fit and function. In this picture, the aft deck wetbar (shown earlier in it's primer stage), gives an example of what the entire boat looked like prior to priming.

    Attached Files:

  2. YachtForums

    YachtForums Publisher/Admin

    Joined:
    Dec 22, 2002
    Messages:
    19,654
    Location:
    South Florida

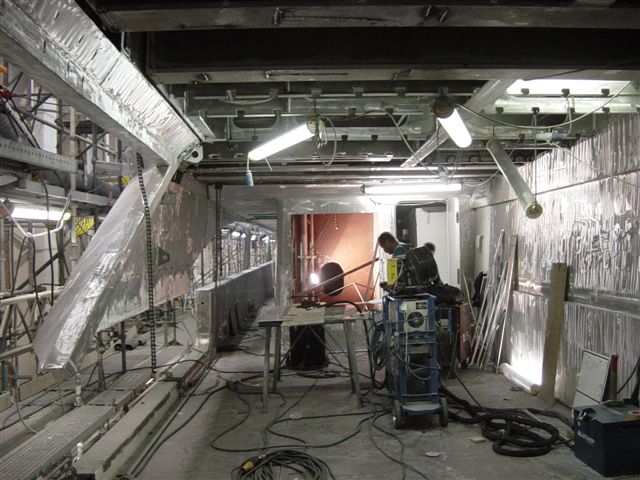

    Again, this picture was taken prior to priming, but it shows much of the metal work leading up to the priming stage. It also shows some remarkable engineering... because this is the port side tender garage. You might ask how the tender will clear the structural support to the left? It's hinged!

    Attached Files:

  3. YachtForums

    YachtForums Publisher/Admin

    Joined:
    Dec 22, 2002
    Messages:
    19,654
    Location:
    South Florida

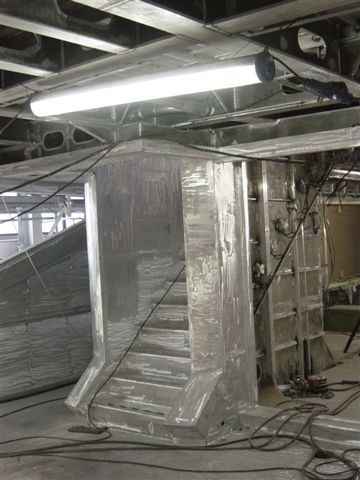

    More examples of metal... molded by torch and hand. This will be one of the two staircases leading from the skylounge deck to the sundeck...

    Attached Files:

  4. YachtForums

    YachtForums Publisher/Admin

    Joined:
    Dec 22, 2002
    Messages:
    19,654
    Location:
    South Florida

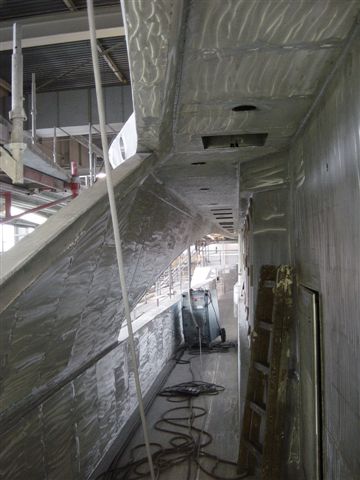

    A close-up of a port side walkway gives an indication of the labor involved in marrying so many pieces of metal. This is just one small area. Do the math on the whole boat! :eek:

    Attached Files:

  5. YachtForums

    YachtForums Publisher/Admin

    Joined:
    Dec 22, 2002
    Messages:
    19,654
    Location:
    South Florida

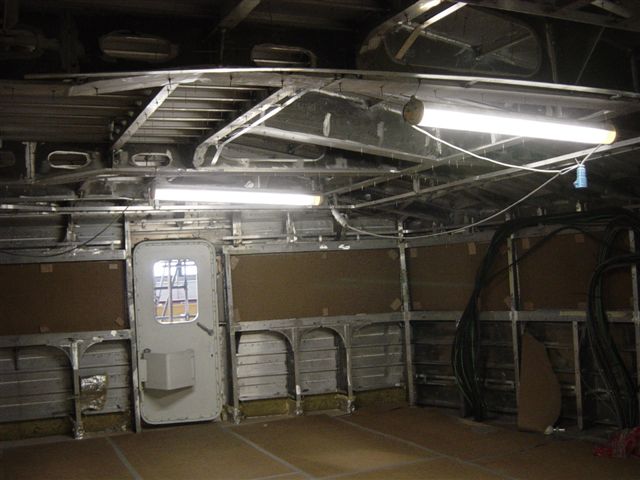

    This is the port side of the pilothouse, with massive wiring on the right side of the picture that will feed the helm. In the coming months, we hope to bring you images of pilothouse during the build-out of the instrument panel and subsequent integration of electronics.

    Attached Files:

  6. YachtForums

    YachtForums Publisher/Admin

    Joined:
    Dec 22, 2002
    Messages:
    19,654
    Location:
    South Florida
    YachtForums would like to thank Oceanco's marketing director Michele Flandin for her continuing work in supplying photos of Y701's progress, as well as the many craftsmen and engineers at Oceanco who have made this journey possible. More images will follow in the coming months and we look forward with great enthusiasm. :)

    There is a thread discussing the build process located here...

    http://www.yachtforums.com/forums/g...3-oceancos-y701-build-process-discussion.html
