News: Kaiserwerft launches 40.5m "Catwalk"

Discussion in 'Kaiserwerft Yacht' started by YachtForums, Apr 25, 2006.

You need to be registered and signed in to view this content.
Thread Status:
Not open for further replies.

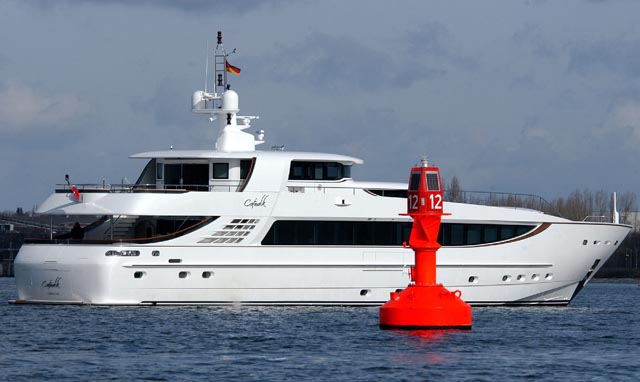

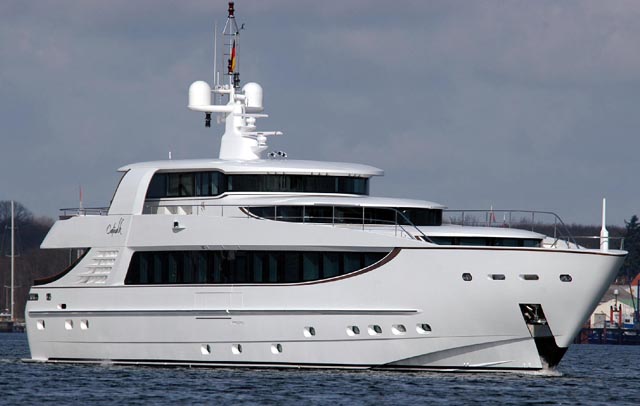

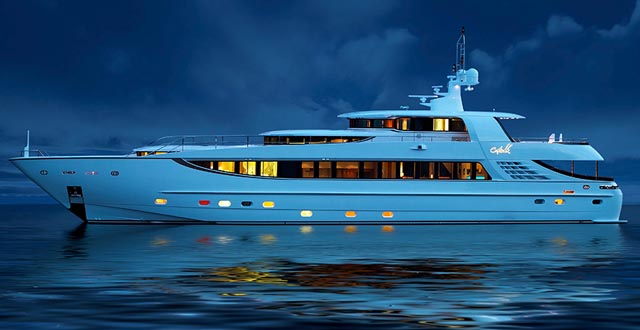

  1. In January 2006, Kaiserwerft launched Catwalk, a very unique semi-displacement 40.5-meter yacht that extends to 42 meters by way of a swim platform. The name Catwalk is based on its interior design concept, stucco walls and fabrics in harmony with Oak and African zebrawood, having both a polished and satin finish, grace the yacht. She was built entirely in-house by KaiserWerft of Bavaria in GRP. The yacht benefits from unusually high ceilings especially in the entrance lobby, which also incorporates a lounging area with 3-meter ceilings.
  2. In continuity with previously built yachts, large windows in the Observation lounge compliment the Salon, a few steps away. Exclusive staircases to the lower deck for both the VIP and Guests are an unusual feature. The large Master suite on the main deck incorporates a Nautilus, an unusual and unique seat at 2 different levels in the bow area. A Penthouse in the Sky-lounge is equipped as a discotheque. Its floor has oak paneling certified to be over 150 years old and 3 glass-frames hold oak certified to be over 3,000 years old.
  3. In contrast to most yachts, Catwalk has a full walk-around on the main-deck, which results in the walk-around being at a higher level. Access to the bow is via a set of srairs. Sun-space can be experienced on the bow area by way of a dining table which levels with the seating to become sun-pads. There is also a sunning area on the superstructure which incorporates a sunbrella and substantial seating, as well as an aft top-deck which incorporates a Jacuzzi and sun-beds.
  4. Builder: KaiserWerft GmbH Germany
    Naval Architects: Christian Bolinger, Clemens Dransfeld - Switzerland
    Interior Designer: Schnaase Interior Design, Germany
    Exterior Stylist: Grischa Schmidt, Switzerland

    Specifications:

    LOA: 40.50 metres extendable to 42.05 metres (133’ and 138’)
    Beam: 8.13 metres (26’7’’)
    Draft: 2.05 metres (6’7’’)
    Displacement: 195 metric tons (full load)
    Hull materials: GRP / Teak decks / Hand-painted Awlgrip
    Year built: January 2006

    Performance:

    Speed Max: about 19,5 kn,
    Cruising speed: 16 kn
    Range @ max. speed: about 700 nm
    @ cruising speed: about 1300 nm
    @ slow speed about: 2100 nm

    Equipment:

    Main engines: 2 x MTU 16V 2000 M91 (Electronic governed Marine Diesel Engines 2000bhp (1492 kW) @ 2350 RPM)
    Generators: 2 x HFL with Perkin engines, each 80 kW/100 kVA
    Stabilisers: WESMAR of USA, GRP fins
    Thrusters: Bow - WESMAR, 74KW / 100hp; Stern - WESMAR, 56KW / 75 hp
    Air-conditioning 420,000 BTU
    Fuel capacity: 28.700 liters, 7582 USG
    Fresh Water: 3.300 liters, 871 USG
    Black / Grey Water: 1.400 liters, 370 USG
    Navionics Magnetic Compass, Elect. Compass, Auto Pilot, Depth Sounder, Radar, GPS, Chartplotter, Wind Inst., Navtex – all by SIMRAD

    Accomodations:

    12 Guests in 6 suites and 7 Crew in 4 cabins

    For more information, contact:

    Kaiser Werft Yachts (Baron)
    Hafenstrasse 34,
    D-93342 Saal, Germany
    www.kaiserwerft.de
