New Zealand Yachts Wavepiercer Series

Discussion in 'New Zealand Yacht' started by stevenkun, Mar 2, 2009.

You need to be registered and signed in to view this content.
  1. stevenkun

    stevenkun New Member

    Jul 23, 2007

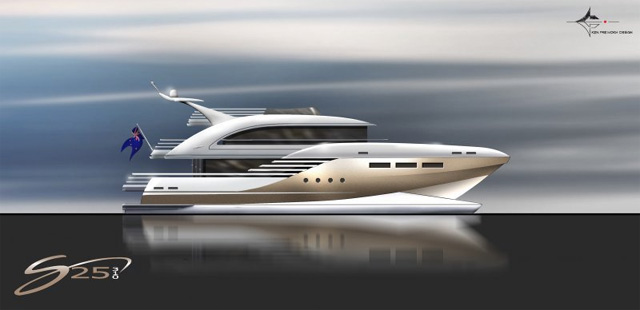

    The S25.310 is the perfect high speed offshore yacht designed especially for extended luxury vacations with family and friends. Whilst she is the smallest in the series she is still built to class and has all the performance and safety traits of her larger family.

    Technical Sheet

    Internal Guest Area 164 square meters (1640 sq ft)
    External Guest Area 146 square meters (1460 sq ft)
    Total All Guest Areas 310 square meters (3,100 sq ft)
    Total All Areas 366 square meters (3,660 sq ft)
    Guest Accommodation 8 guests in 4 staterooms
    Crew Accommodation 3 crew plus captains cabin
    Length Overall 25 meters (82 ft)
    Beam 8 meters (26.2 ft)
    Draft 1.5 meters (4.9 ft)
    Displacement 70 tonnes half load
    Engines 2 X MTU12V2000M93. 1340 bkW 1790 HP each
    Speed Max 32 knots half load
    Speed Cruise 26 knots
    Range 2500 nautical miles
    Fuel 25,000 litres ( 6,600 US gallons )
    Classification ABS Maltese Cross A1 MCA compliant
    Construction Resin infused composite
    Design Ken Freivokh New Zealand Yachts
    Generators 1 x 50 KW 50 Hz Northern lights. 1 emergencey
    Shorepower 75 kVA Vectek
    Bow Thrusters 2 x Lewmar retractable

    Attached Files:

  2. Kevin

    Kevin YF Moderator

    Nov 25, 2004
    Montreal, Qc, Canada
    In the future please post images no wider than 640 pixels.
  3. SVDesign

    SVDesign New Member

    Jul 4, 2008
    Cherbourg - France
    I imagine propulsion is ensured with hydrojet ?
