New Zealand Yachts - Spirit 33m Wavepiercer

Discussion in 'New Zealand Yacht' started by YachtForums, Nov 29, 2004.

You need to be registered and signed in to view this content.
  1. YachtForums

    YachtForums Administrator

    Joined:
    Dec 22, 2002
    Messages:
    19,685
    Location:
    South Florida
    A recipient of the International Superyacht Design Award for 2004, in the "Best Power 32m to 43m" category, "Spirit" was built by New Zealand Yachts and designed by Ken Freivokh.

    Here's some specs...


    Length: 33.5m (110 ft)
    Beam: 10.8m (35 ft)
    Draft: 2.2m (7 ft)
    Max Speed: 24 knots
    Range: 2,400 nm at 12 knots
    Construction Materials: Composite
    Fuel Capacity: 17,850L (4,700 US gal)
    Water Capacity: 7,200L (1,900 US gal)
    Displacement: 167 @1/2l tons
    Naval Architecture: Bakewell-White Yacht Design
    Interior / Exterior Styling: Ken Freivokh
    Certification: ABS Maltese Cross A1 E AMS & MCA Code Compliance
    Engines: 2 x Caterpillar 3412E, 1400 bhp @ 2300 rpm
    Generators: 2 x Northern Lights 65 KW
    Shore Power: VECTEK
    Air Conditioning: Marine Air / Wormald, 273,000 BTU
    Watermaker: HEM 30, 2100 gpd
    Bow Thrusters: 2 x Lewmar 50 hp
    Tenders: 2 x 4.5m RIB's

    Attached Files:

  2. YachtForums

    YachtForums Administrator

    Joined:
    Dec 22, 2002
    Messages:
    19,685
    Location:
    South Florida

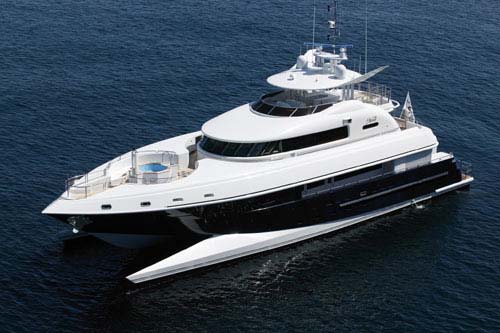

    Spirit Forward Quarter...

    Attached Files:

  3. YachtForums

    YachtForums Administrator

    Joined:
    Dec 22, 2002
    Messages:
    19,685
    Location:
    South Florida

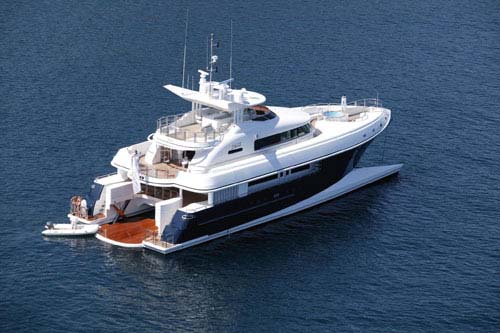

    Spirit Aft Quarter...

    Attached Files:

  4. YachtForums

    YachtForums Administrator

    Joined:
    Dec 22, 2002
    Messages:
    19,685
    Location:
    South Florida
    Spirit Running Shot

    Attached Files:

  5. YachtForums

    YachtForums Administrator

    Joined:
    Dec 22, 2002
    Messages:
    19,685
    Location:
    South Florida

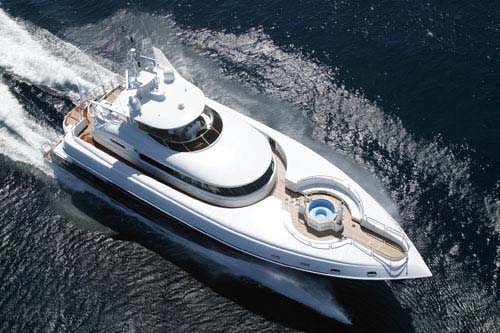

    Spirit overhead running shot...

    Attached Files:

  6. YachtForums

    YachtForums Administrator

    Joined:
    Dec 22, 2002
    Messages:
    19,685
    Location:
    South Florida

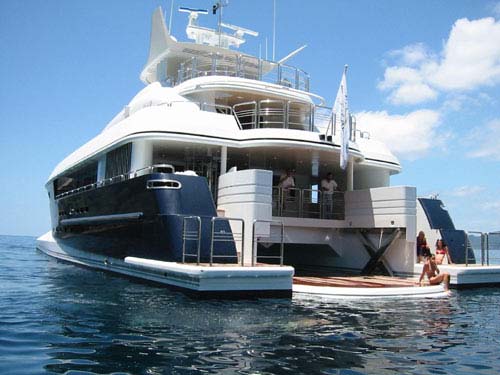

    Spirit Stern...

    Attached Files:

  7. YachtForums

    YachtForums Administrator

    Joined:
    Dec 22, 2002
    Messages:
    19,685
    Location:
    South Florida

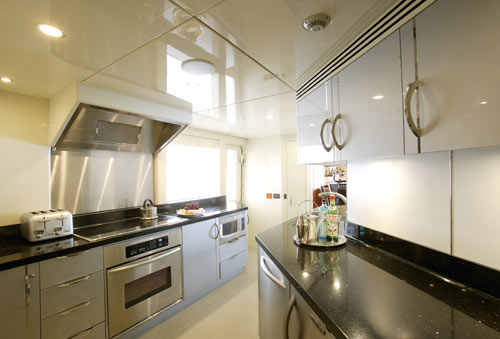

    Spirit Galley...

    Attached Files:

  8. YachtForums

    YachtForums Administrator

    Joined:
    Dec 22, 2002
    Messages:
    19,685
    Location:
    South Florida

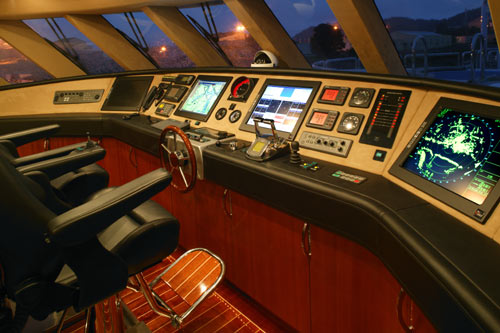

    Spirit Bridge...

    Attached Files:

  9. YachtForums

    YachtForums Administrator

    Joined:
    Dec 22, 2002
    Messages:
    19,685
    Location:
    South Florida
    Spirit Dining Area...

    Attached Files:

  10. YachtForums

    YachtForums Administrator

    Joined:
    Dec 22, 2002
    Messages:
    19,685
    Location:
    South Florida
    Spirit Bar (where the spirits are located!)

    Attached Files:

  11. YachtForums

    YachtForums Administrator

    Joined:
    Dec 22, 2002
    Messages:
    19,685
    Location:
    South Florida
    Spirit Stairwell..

    Attached Files:

  12. YachtForums

    YachtForums Administrator

    Joined:
    Dec 22, 2002
    Messages:
    19,685
    Location:
    South Florida

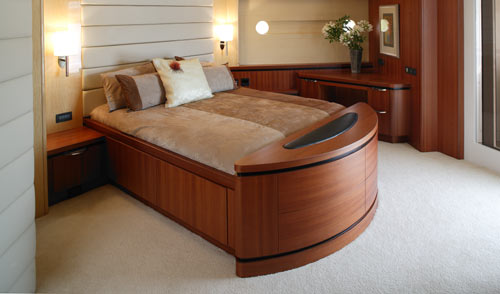

    Spirit Master...

    Attached Files:

  13. YachtForums

    YachtForums Administrator

    Joined:
    Dec 22, 2002
    Messages:
    19,685
    Location:
    South Florida
    Master from another angle...

    Attached Files:

  14. YachtForums

    YachtForums Administrator

    Joined:
    Dec 22, 2002
    Messages:
    19,685
    Location:
    South Florida
    Spirit Lounge...

    Attached Files:

  15. YachtForums

    YachtForums Administrator

    Joined:
    Dec 22, 2002
    Messages:
    19,685
    Location:
    South Florida
    VIP stateroom...

    Attached Files:

  16. YachtForums

    YachtForums Administrator

    Joined:
    Dec 22, 2002
    Messages:
    19,685
    Location:
    South Florida
    Guest Head...

    Attached Files:

  17. YachtForums

    YachtForums Administrator

    Joined:
    Dec 22, 2002
    Messages:
    19,685
    Location:
    South Florida

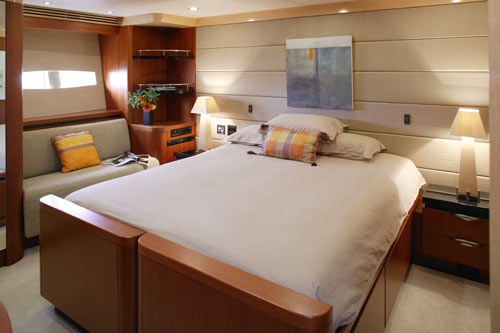

    Guest double bunk...

    Attached Files:

  18. EnigmaNZ

    EnigmaNZ Member

    Joined:
    May 8, 2006
    Messages:
    37
    Location:
    New Zealand
    Haven't seen this design for years, wondered if it was built. Like a expedition version of the Craig Loomes designs. Were being offered by the Whangerei shipyards which built modules for the Anzac frigates and is currently envolved in some of the RNZN Project Protector contruction. Nice.
    Proud Kiwi lol.

    http://www.newzealandyachts.com/
