New Project 79 Chris Craft 22' CC Dory

Discussion in 'Chris Craft Connies, Commanders & Catalinas' started by Trapshot, Apr 30, 2013.

You need to be registered and signed in to view this content.
  1. Ironman

    Ironman Member

    Joined:
    May 19, 2013
    Messages:
    57
    Location:
    New Jersey

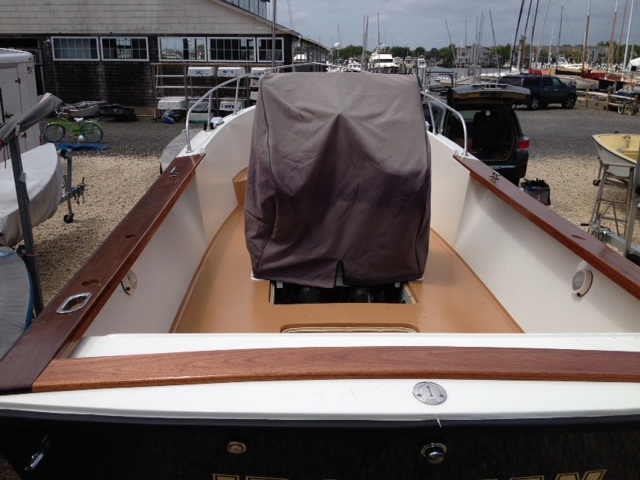

    This is the topside/deck

    Attached Files:

  2. Ironman

    Ironman Member

    Joined:
    May 19, 2013
    Messages:
    57
    Location:
    New Jersey
    I did launch today. She ran great and I was able to take my family for a short run down the bay.

    It was an incredible feeling of accomplishment for me, I look forward to hearing of your future launches so you feel the way I did today

    Ironman = Charlie

    Attached Files:

  3. Trapshot

    Trapshot Member

    Joined:
    Apr 29, 2013
    Messages:
    52
    Location:
    PA
    launch day

    A Big CONGRATS, The smile on your face show everything Ironman. It is quite an accomplishment, The boat looks fantastic, I"m sure you'll enjoy it more because of all your effort and hard work.

    Best of Luck
    Trapshot...Ed

    PS I hope my Launch day will be around this time next year:(:
  4. Capt J

    Capt J Senior Member

    Joined:
    Jul 11, 2005
    Messages:
    13,977
    Location:
    Fort Lauderdale
    Fighting lady yellow really stands out with the darkish teal green bottom paint and boot stripe and looks a lot better than black. But that's just my opinion. I've always liked fighting lady yellow when it's the right shade of yellow.
  5. Trapshot

    Trapshot Member

    Joined:
    Apr 29, 2013
    Messages:
    52
    Location:
    PA
    Capt. J

    I do like the Teal bottom also, but wife hates teal it's going to take some convincing on my part!! you know women,if you get my drift lol

    Thanks
    Ed
  6. CC Insanity

    CC Insanity New Member

    Joined:
    Jun 16, 2013
    Messages:
    19
    Location:
    Fort Lauderdale

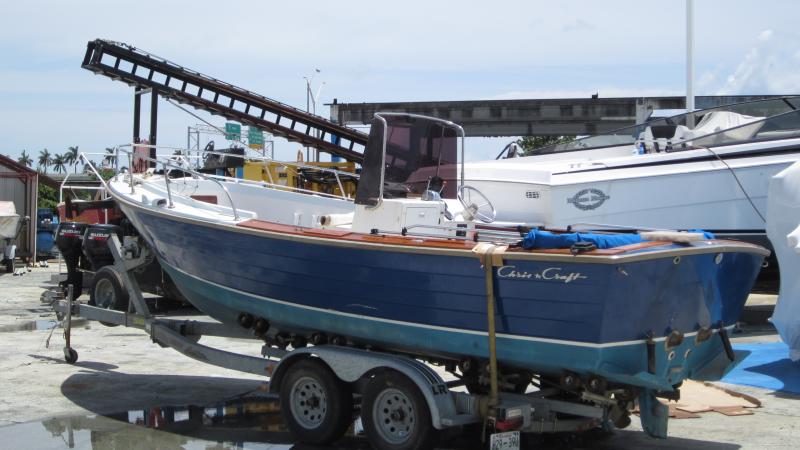

    My insanity has arrived!!!

    Congrats on your great looking rig, Ironman Charlie!!! It looks like we might give birth to "twins"...

    Noon today my new toy rolled into Fort Lauderdale... and so far on an hour's quick inspection I'm pleased. It looks like cockpit sole and hatch repairs done by the prior owner were done correctly, and I have a minimal amount of "undoing" to do before making forward progress. I've not yet fired it up, but based on the survey that says it "runs fine" I am thinking I might just keep the low-time Chrysler 318/200 HP motor with 1:1 Velvet Drive that's in it and worry about getting a 350 repower in my next life. Does anybody have a good guess what prop size should run on this thing? The current prop is a "13 x 11 full cup" which, according to prior owner, was installed to allow slow, slow fresh-water trolling.

    I also note the stainless tube windscreen frame doesn't look quite right... about a foot up from the console top it has a through-bolted slip joint and the bottom tubes either side of the console have open cut ends facing forward. Anybody have some clues as to the "OEM" design in this area? I'm also still scrounging for original dash panel layout details if anybody has one or a detailed pics of one...

    I'm sure I'll be posting many more questions/pics as I get into the guts of this project - and I'm greatly inspired by y'all.

    CCI - Michael

    Attached Files:

  7. CC Insanity

    CC Insanity New Member

    Joined:
    Jun 16, 2013
    Messages:
    19
    Location:
    Fort Lauderdale
    and yet another question....

    Chrome/SS Air Vent source?????
  8. Ironman

    Ironman Member

    Joined:
    May 19, 2013
    Messages:
    57
    Location:
    New Jersey

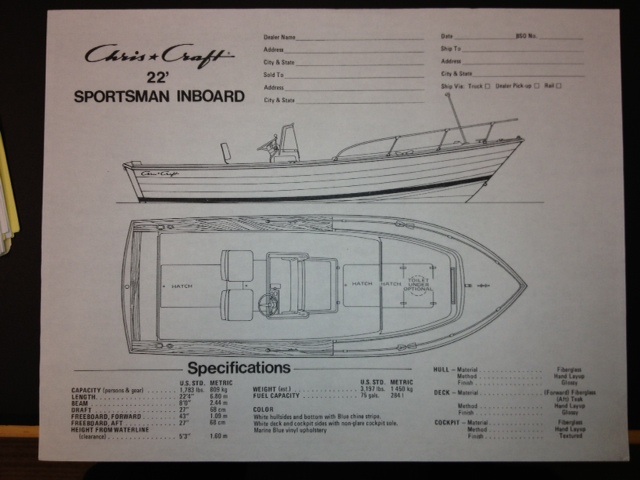

    I was thinking about our projects, and remembered that I found this on line a while back. I have the actual PDF if you are interested.

    Attached Files:

  9. Ironman

    Ironman Member

    Joined:
    May 19, 2013
    Messages:
    57
    Location:
    New Jersey
    Michael - I replicated the gauge panel that came with my console last year - only added a fuel gauge. I always assumed that it was original, but I could be wrong about that. I will sends pic after I am over there tomorrow.
  10. Ironman

    Ironman Member

    Joined:
    May 19, 2013
    Messages:
    57
    Location:
    New Jersey
    I picked up my SS vents from West Marine - originally sourced from Perko. I have found that almost all original hardware (hinges, nav lights etc) were all from Perko.
  11. CC Insanity

    CC Insanity New Member

    Joined:
    Jun 16, 2013
    Messages:
    19
    Location:
    Fort Lauderdale
    Good Morning, Mr. Ironman...

    Any and all information/pictures/literature for these boats will be greatly appreciated as I tackle this project. This morning finds me looking for detailed cabinet door design pictures as the ones in the boat are not original and leave a lot to be desired...

    Predictably, little mysteries arise by the minute, the latest being difficulty in tilting the console forward - which was discovered to be caused by the steering cable being too short to all the console to travel forward. I am told (perhaps erroneously) by the prior owner that it has always been that way, requiring that the steering cable either be disconnected or the steering hub dropped from the dash to allow full opening. Do I scrounge up a hydraulic unit and convert? Perhaps "engineer" a mechanical cable crank/relay with a second cable to the helm? Cobble together a "hybrid" system?

    Ahhhhh - the mysteries of life....

    CCI/M
  12. Alanglois

    Alanglois Member

    Joined:
    Dec 1, 2004
    Messages:
    61
    Location:
    Mentor Harbor Yachting Club
    CCI,

    I have a completed version of your boat and I am here in Naples. Feel free to swing by and take a look at what we did as seeing things in person is worth a thousand pictures. There are some pics of our project further back on this thread. I would be happy to host a fellow member of the asylum!

    Al
  13. Alanglois

    Alanglois Member

    Joined:
    Dec 1, 2004
    Messages:
    61
    Location:
    Mentor Harbor Yachting Club
    CCI,
    I have the original stainless steel window frame or windscreen frame here at the house so I could either measure it up or somehow find a way to convey that information. We didn't use it as our boat has a tower on it now so there's no need to have structural protection for the windscreen.

    Al
  14. CC Insanity

    CC Insanity New Member

    Joined:
    Jun 16, 2013
    Messages:
    19
    Location:
    Fort Lauderdale
    windscreen frame, etc...

    Alanglois,

    Thank you for your kind offers of assistance and hospitality, to boot... I may just brave the drive across Alligator Alley to take you up on that soon! Your boat is gorgeous and I'm sure I could learn a lot from eyeballing it closely.

    It would be great if you could snap me a picture of your original windscreen frame... if it looks like mine up to the point it seems to have been butchered I would love to negotiate perhaps borrowing it for a tube-bender to pattern a new one for me.

    If you are in a picture-taken mood, I'd also love to have a couple of pictures of your dashboard - is that the original, refinished or did you replace? From a distance in your picture it looks like what I assume is "OEM" layout. I am also trying to get a handle on what the original wood compartment doors/frames looked like if those are still in your retired parts pile or your boat is sporting reproductions.

    RUBRAIL: This is probably "old news" to the crowd here, but I was quite pleased today to discover what seems to be the "mother lode" for replacement rubrail extrusion... "Wefco"... who will make it in gray, white or black to order. It's presently $7/ft for gray or white and $5/ft for black. I'm thinking white would be sharp (if not totally OEM) to complement a dark blue hull with white deck. Any votes from the peanut gallery?
  15. SeaEric

    SeaEric YF Historian

    Joined:
    Jan 28, 2007
    Messages:
    1,351
    Location:
    Easton, Md./Ft. Lauderdale

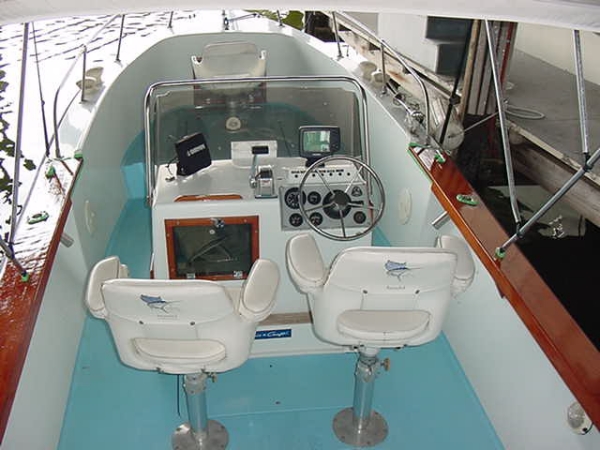

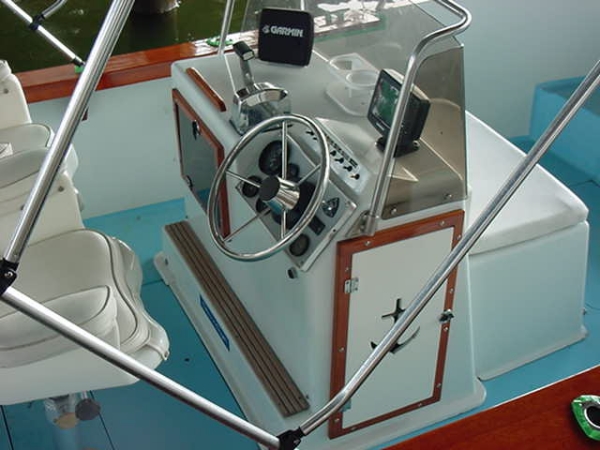

    I believe that my windshield was original. Here are a few pics from my 1977 model.

    Attached Files:

  16. Alanglois

    Alanglois Member

    Joined:
    Dec 1, 2004
    Messages:
    61
    Location:
    Mentor Harbor Yachting Club
    CCI,

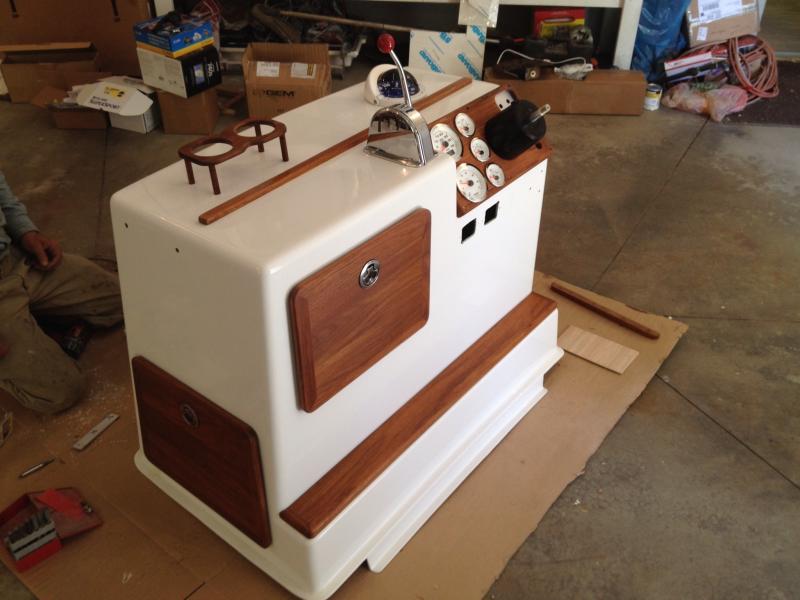

    The pics just posted are indicative of the original windscreen frame and look identical to the one I have. Also, our instrument cluster is new but made to the exact specs of the OEM configuration. The attached pic is from during the restoration. Also, we remade all the hatches and doors but tried to mimic the OEM look and function.

    Attached Files:

  17. CC Insanity

    CC Insanity New Member

    Joined:
    Jun 16, 2013
    Messages:
    19
    Location:
    Fort Lauderdale
    Thanks for the info and pictures!!!

    Alanglois and SeaEric -

    Thank you both so much for your info/edumacation - this is helping me piece together my restoration quickly.

    Alanglois - that dash looks great! Do I see that yours has been converted to hydraulic steering? If I beg and plead might I see some of your cabinetry pics as well?

    SeaEric - good to meet you... and thanks for the frame (and other) pictures. I appears your console has been nicely modified with the addition of a faired-in switch panel and equal size-shape doors either side (unlike the original design I have).

    I will try to grab a picture or two of my modified windscreen frame tomorrow so y'all can see the source and details of my angst.

    CCI/Michael
  18. Alanglois

    Alanglois Member

    Joined:
    Dec 1, 2004
    Messages:
    61
    Location:
    Mentor Harbor Yachting Club
    CCI

    The power steering unit was on the boat when I acquired it so we stayed with that system. Also, we attempted to recreate the OEM hatches and doors albeit with solid teak, and maintained original functionality.

    Attached Files:

  19. Ironman

    Ironman Member

    Joined:
    May 19, 2013
    Messages:
    57
    Location:
    New Jersey
    Windscreen

    That chrome tube looks like what I have - I am certain I have an original windscreen. It is cracked in a few places, I would love a replacement. I did search a bit (tailor-made?) an was not able to locate a stock replacement piece.
  20. Ironman

    Ironman Member

    Joined:
    May 19, 2013
    Messages:
    57
    Location:
    New Jersey
    Gauge panel

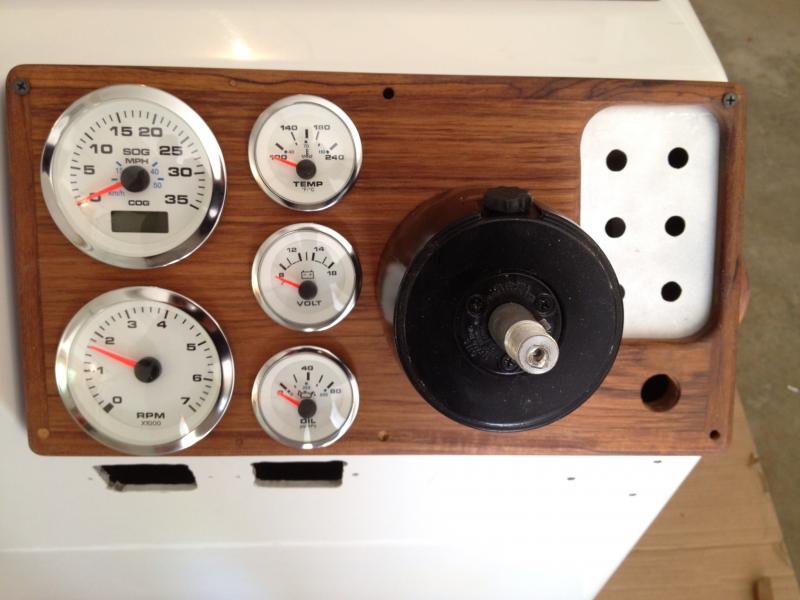

    A little hard to see... I did tach, oil, volts,temp and fuel on one side. The rocker switches are bilge, blower, accessories, navigation lights, instrument lights and anchor lights

    Attached Files:
