New Launch: Symbol 88' Motor Yacht

Discussion in 'Symbol Yacht' started by YachtForums, Oct 5, 2004.

You need to be registered and signed in to view this content.
  1. YachtForums

    YachtForums Administrator

    Joined:
    Dec 22, 2002
    Messages:
    19,926
    Location:
    South Florida
    Builder: Symbol Yacht Co., Ltd.

    Designer: Hull design by Jack Sarin, N.A.

    Construction/Type: Construction: FRP composite using E-glass mat & biaxial roving, framed with molded FRP stiffeners with a polyester resin system. Hull bottom is solid laminate. Hull topside is cored with linear PVC foam, decks & superstructure are cored with cross-linked PVC foam.

    Type: Semi-displacement moderate-V hull with keel, hard chine, transom stern and shallow tunnels (pockets) for propellers.

    Specifications:

    LOA – 88’
    Beam – 21’
    Draft – 6’6”
    Fuel – 2500 US gallons
    Water – 350 US gallons
    Power:Twin Caterpillar 3412E 1400Hp diesel engines

    Layout: Four staterooms / four heads with full captain & mate quarters

    Notable Features: Twin 33kW Northern Lights generators, Wesmar hydraulics package (bow thruster, stabilizers & windlass), 1200GPD water maker, 42” salon plasma TV (drops down from ceiling), Flexiteek (synthetic teak) decking, captain & mate quarters, fully custom deck plans, Furuno electronics package, custom décor, transom boat lift, concealed passarelle, bow sundeck with spa, granite & marble countertops.

    Description: Signature-style flush deck motoryacht, custom designed for upscale family entertainment. Many features including two “al fresco” dining tables (aft deck & flybridge), two wet bars, “game room” (poker table which converts to sleeper) with private head & 30” TV, full beam master stateroom with steam room & walk-in closet, and more. Expanded accommodations allows sleeping quarters for 12 to 15 people easily!

    Competitively Priced – mid 3’s (~$3.5M)!

    Attached Files:

  2. YachtForums

    YachtForums Administrator

    Joined:
    Dec 22, 2002
    Messages:
    19,926
    Location:
    South Florida

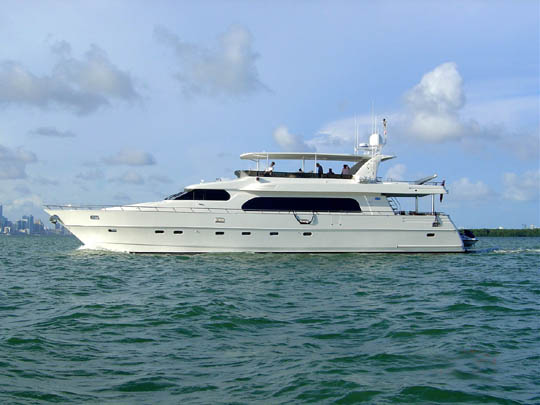

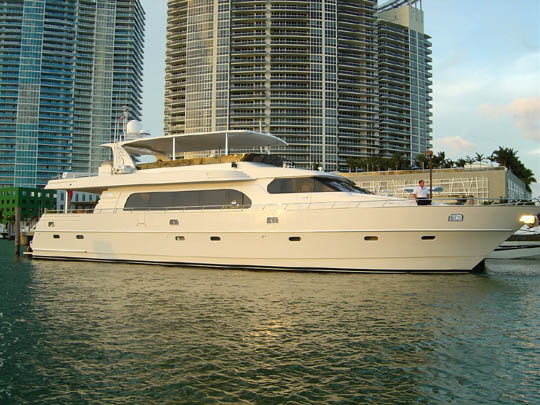

    Symbol 88' MotorYacht...

    For more information, contact:

    Symbol Yacht Co., Ltd.
    No. 8 Ta Yu 1st Street,
    Ta Fa Industrial District
    Kaohsiung Hsien, Taiwan 831
    Tel: 886.7.787.3157
    www.symbolyachts.com
