New Build: 205' Shadow "Allure"

Discussion in 'Yacht Escort Ships & Shadows' started by YachtForums, Feb 5, 2006.

Thread Status:
Not open for further replies.
  1. Never resting on their laurels, Stan Antrim and the Shadow Marine crew are preparing to build a venerable City at Sea... the new 205' Shadow "Allure". Highlights include 4 guest staterooms, an aft-facing all glass “Ready Room Lounge” on the helo deck, and a forward facing Sky Lounge on top of the pilot house. It will be finished to the same quality and finish as the Paladin Shadow with all of the below deck spaces finished out to produce the “ultimate” Shadow. It should be... (ahem)... Alluring.

    General Specs:

    Length Overall...............205 feet
    Beam……………40 feet
    Draft Max……………...12 feet
    Draft Min…………8 feet
    Displacement Max…….1500 tons
    Helo Landing Area…….70 X 38 feet
    Fresh Water…………….12,500 gallons
    Fuel Oil…………..150,000 gallons
    Lube Oil………………..2300 gallons
    Jet A Avgas…………….2000 gallons
    Gasoline (petrol)…..2000 gallons

    Side View of 205' Shadow "Allure"...
  2. Machinery Specs:

    Main Engines………….2 X Cat D 399 TA 2250 HP
    Generators……………2 X 75 kW DD 6 -71
    Bow Thruster………….DD 8V-71 300 HP
    Transmission…….…2 X Reintjes 4:1
    Water Maker…………..Village 4000 GPD
    Oily Water..............Village
    MSD……………..........FAST II
    FLUME Roll Stability/Bilge Keels

    Performance:

    Speed Max..........13 knots/105 gph
    Range at 10 knots…25,204 NM

    Fly & Heli Decks...
  3. Accomodations:

    Upper Deck...

    Captain Cabin w/ Head and Single Berth
    Engineer Cabin & 4 Berth Crew Cabin
    2 X Guest Cabins w/ Head and 2 Single Berths
    2 X Guest Cabins w/ Head and 1 King Berth

    Lower Deck...

    Full Gymnasium
    Massage Room with Sauna & Sal
    Temperature Controlled Wine Ce
    Machine Shop and Storage Room

    Main Deck...

    Crew Cabin with 4 Berth
    Crew Cabin with 2 Berth
    Crew Cabin with 4 Berth
    Head
    Galley
    Laundry
    Central Air Conditioning

    For more information, contact:

    Shadow Marine
    1535 S. E. 17th Street
    Suite B201
    Ft. Lauderdale, FL 33316
    954-779-7062
    www.shadowmarine.com

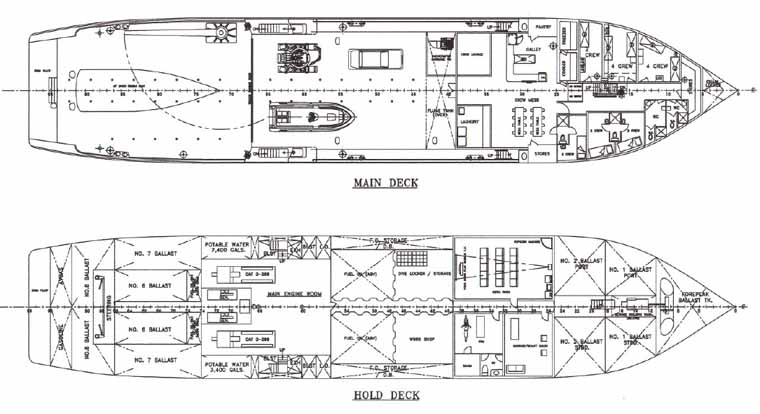

    Garage & Lower Decks...
