New Broward design by Lars Modin...

Discussion in 'Broward Yacht' started by AMG, Apr 9, 2005.

You need to be registered and signed in to view this content.
  1. AMG

    AMG YF Moderator

    Joined:
    Jul 26, 2004
    Messages:
    5,265
    Location:
    Sweden
    So, what about the design to come? Will it be traditional as Burger, more curvy as the new Hatteras or a style of their own?

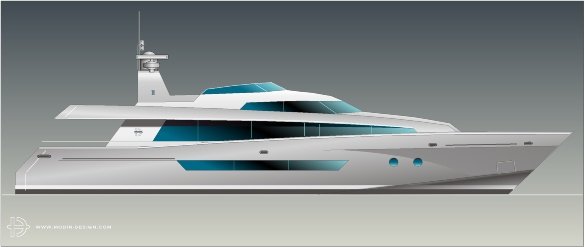

    Personally I like the style of 112´Britannia built by Broward in 1990, but just for fun I have adjusted one of my designs from last year as another, more avant-garde style.

    What do the Broward fans think and wish about the future design? Feel free to share ideas and opinions here... :)

    Attached Files:

  2. YachtForums

    YachtForums Administrator

    Joined:
    Dec 22, 2002
    Messages:
    19,755
    Location:
    South Florida
    THAT... should be the new Broward! :)

    I'm impressed... this design has subtle hints at Broward's lineage, while offering a completely modern and updated look. The full length hull windows could create an instant "signature" for them as well.

    If you have GA's... I would be happy to forward them. ;)
  3. AMG

    AMG YF Moderator

    Joined:
    Jul 26, 2004
    Messages:
    5,265
    Location:
    Sweden
    THIS... was the fastest reply I have ever seen... :)

    Thanks Carl, I have a GA on a 105´in "my" thread, but this could fit with most of the Broward GA:s with a raised wheelhouse. The windows are glued to the structure, same as with cars today and with a slight mirror effect you will not realize that there are partitions behind.
    Last edited: Apr 9, 2005
  4. YachtForums

    YachtForums Administrator

    Joined:
    Dec 22, 2002
    Messages:
    19,755
    Location:
    South Florida
    Lars,

    What are your thoughts on sweeping the radar arch forward and integrating a hardtop?
  5. AMG

    AMG YF Moderator

    Joined:
    Jul 26, 2004
    Messages:
    5,265
    Location:
    Sweden
  6. YachtForums

    YachtForums Administrator

    Joined:
    Dec 22, 2002
    Messages:
    19,755
    Location:
    South Florida
    Whoops... you're right. That's exactly what the original design looked like. Your newest design for the Broward looks better.

    Broward's have historically used Bimini tops. Maybe this tradition should be continued... :)
  7. brian eiland

    brian eiland Senior Member

    Joined:
    Jul 28, 2004
    Messages:
    2,857
    Location:
    St Augustine, Fl and Thailand
    Lars, I like your newer version as well
  8. yachtbroker007

    yachtbroker007 New Member

    Joined:
    Sep 24, 2005
    Messages:
    20
    Location:
    Florida
    ...

    i think the new browards should look classic...most new boats today dont even look like boats, they look like spaceships
  9. Garry Hartshorn

    Garry Hartshorn Senior Member

    Joined:
    Jun 14, 2005
    Messages:
    504
    Location:
    Directly above the center of the earth
    Hi Lars

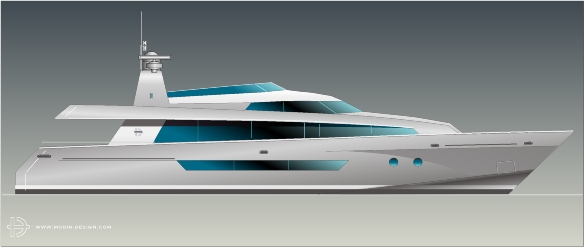

    Just made one small adjustment. There was a clash with the lines in the windows to my eye.

    Attached Files:

    Last edited: Sep 24, 2005
  10. AMG

    AMG YF Moderator

    Joined:
    Jul 26, 2004
    Messages:
    5,265
    Location:
    Sweden
    Yes Garry,

    There are many clashes in this patchwork.. ;)

    Actually the classic sheerline doesn´t fit very well with all the straight lines. Here is another attempt with a more straight sheerline and the flybridge following...

    Attached Files:

  11. YachtForums

    YachtForums Administrator

    Joined:
    Dec 22, 2002
    Messages:
    19,755
    Location:
    South Florida
    Lars,

    I just forwarded this thread to David Wiest at Broward. :)

    Carl
  12. Garry Hartshorn

    Garry Hartshorn Senior Member

    Joined:
    Jun 14, 2005
    Messages:
    504
    Location:
    Directly above the center of the earth
    Hi Lars

    You have drawn a powderhorn sheer which on the right boat is stunning but maybe a true classic sheer would work well. Personally I do not like straight sheers. It is after all the most proment curve on a yacht, which should not resemble a shoe box. I will have another look tomorrow after I have gotten over my hang over. ( my team made it to the grand final tonight )
  13. Garry Hartshorn

    Garry Hartshorn Senior Member

    Joined:
    Jun 14, 2005
    Messages:
    504
    Location:
    Directly above the center of the earth
    I am working in M.S. Paint to do this so it's a bit rough but you get the idea.

    Attached Files:

    Last edited: Sep 27, 2005
  14. KCook

    KCook Senior Member

    Joined:
    Jun 24, 2005
    Messages:
    1,161
    Location:
    Phoenix
    Sorry Garry, my vote goes to Lar's sheer :cool:
  15. Garry Hartshorn

    Garry Hartshorn Senior Member

    Joined:
    Jun 14, 2005
    Messages:
    504
    Location:
    Directly above the center of the earth
    Yes well the bow came out a little higher than intended, but I was thinking of a couple of inches of curvature with the maximum curve about the same point as the original.
  16. orion

    orion Senior Member

    Joined:
    Feb 19, 2005
    Messages:
    403
    Location:
    Newport Beach, CA, USA
    The original "Lars design" is a masterpiece.
    Fresh lines and color but at the same time it looks like a "Broward". :cool:
    Last edited: Sep 27, 2005
  17. yachtbroker007

    yachtbroker007 New Member

    Joined:
    Sep 24, 2005
    Messages:
    20
    Location:
    Florida
    help

    i'd like to design a yacht is there a special program i can download to design one ?
  18. KCook

    KCook Senior Member

    Joined:
    Jun 24, 2005
    Messages:
    1,161
    Location:
    Phoenix
    Most any vector graphic program can be used for styling a yacht. Much more specialized programs (some very expensive) exist for handling the technical aspects of the hull design.

    Here is a good thread on the basic approach -

    http://www.yachtforums.com/forums/showthread.php?t=2034

    And a whole forum devoted to this topic -

    http://www.yachtforums.com/forums/forumdisplay.php?s=&daysprune=&f=215

    Kelly Cook
