New Aetna LED Tachometers

Discussion in 'Post Yacht' started by John Dangelo, Apr 21, 2020.

You need to be registered and signed in to view this content.
  1. John Dangelo

    John Dangelo New Member

    Joined:
    Dec 4, 2019
    Messages:
    13
    Location:
    Amityville NY
    8AF4B1D9-CE26-4BD7-87E8-8F28488EA31D.jpeg -New Aetna LED Tachometers
    Last edited: Apr 21, 2020
  2. chesapeake46

    chesapeake46 Senior Member

    Joined:
    Jul 26, 2009
    Messages:
    1,776
    Location:
    Chesapeake Bay, Delaware Bay & S.Jersey
    nice
  3. mapism

    mapism Senior Member

    Joined:
    Aug 9, 2008
    Messages:
    2,111
    Location:
    Sardinia
    +1.
    How are they interfaced to diesels?
  4. Capt Ralph

    Capt Ralph Senior Member

    Joined:
    Sep 8, 2004
    Messages:
    12,649
    Location:
    Satsuma, FL
    I have the same on our Bertrams fly-bridge. Sun will not eat these up like LCDs (that Aetna makes also).
    Ours come off the same pulse generator that Detroit uses. Mini electric PTO at one of the cam or blower shaft ends.
    Dip switches on the back of the display for pulses per rpm.
  5. Capt Ralph

    Capt Ralph Senior Member

    Joined:
    Sep 8, 2004
    Messages:
    12,649
    Location:
    Satsuma, FL
    Now, the next question; Your showing them off or trying to sell them?
    Not much text in your only post.
  6. mapism

    mapism Senior Member

    Joined:
    Aug 9, 2008
    Messages:
    2,111
    Location:
    Sardinia
    Aha, I see.
    Do you possibly know if they are specifically designed for that setup, or they can work also with the alternator input?
  7. mapism

    mapism Senior Member

    Joined:
    Aug 9, 2008
    Messages:
    2,111
    Location:
    Sardinia
    Maybe the OP noticed the fire alarm only after posting the photo, and is now busy dealing with it... o_O
  8. Capt Ralph

    Capt Ralph Senior Member

    Joined:
    Sep 8, 2004
    Messages:
    12,649
    Location:
    Satsuma, FL
    I remember you could drive them from an alternator.
    I don't care for that my self. A tach signal can be had better other ways.
  9. mapism

    mapism Senior Member

    Joined:
    Aug 9, 2008
    Messages:
    2,111
    Location:
    Sardinia
    Other ways, like what?
    I do have a handheld laser tach onboard, whose accuracy is beyond belief, but can only be used in the e/room...
    If you are aware of something similar that can be remotely fitted in the dashboard, I'm all ears.
  10. Capt Ralph

    Capt Ralph Senior Member

    Joined:
    Sep 8, 2004
    Messages:
    12,649
    Location:
    Satsuma, FL
    Aetna offered a magnet and pick up kit. Four lil magnets glued inside the crank pulley. A mag pick up mounted from a support arm to pick up the pulses. 4 clicks per revolution. I have installed these for gas to Cummins conversions long ago using the same gas tachs with dip switch changes.

    Most later fly wheel housings offer a threaded hole for a pick up detecting the teeth on the fly wheel. Common on Cats.
    Other mfg like MANs have a tool hole over the flywheel teeth. This same opening can be used for a tooth pick up.

    Any clutch or older engines offer a PTO shaft. Tach adapter and pick up from there.

    All are reliable points for tach signals that will drive common dash tachs.

    Alternator stator pick ups are noisey, not accurate and mostly don't work worth a dam at idle.
  11. Capt Ralph

    Capt Ralph Senior Member

    Joined:
    Sep 8, 2004
    Messages:
    12,649
    Location:
    Satsuma, FL
    John, Did not mean to high jack your thread. Your not responding.
  12. John Dangelo

    John Dangelo New Member

    Joined:
    Dec 4, 2019
    Messages:
    13
    Location:
    Amityville NY
    I bought a project. I’ve been fixing it up. I put new batteries, new bilge pumps and I just installed these tachometers. I have some rewiring to do behind the dash but she only has 1350 hours on the boat and engines. It’s a 1988 Post 46’. Thanks for sharing your info!
  13. Capt Ralph

    Capt Ralph Senior Member

    Joined:
    Sep 8, 2004
    Messages:
    12,649
    Location:
    Satsuma, FL
    Out standing.

    And Welcome to Yacht Forums. Home of the greatest Post owners and fans world wide.
    Post kids are cool.
    71s Rule.

    mapism; Lets open a new thread or PM me if needed.
  14. MountainGuy

    MountainGuy Member

    Joined:
    Mar 5, 2009
    Messages:
    138
    Location:
    Austria

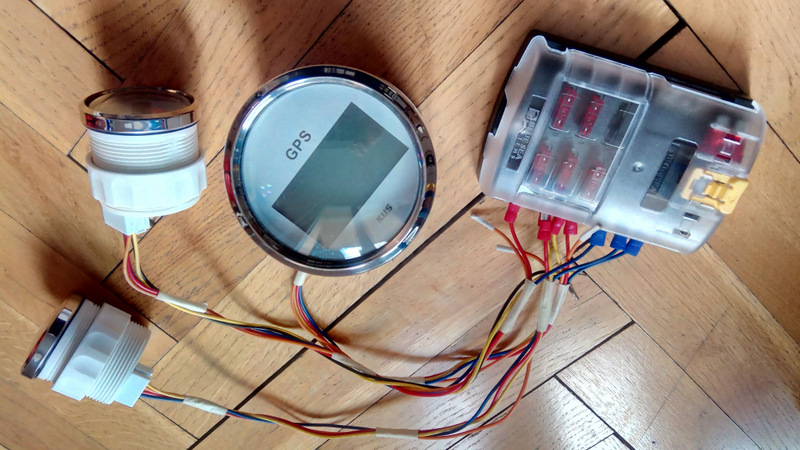

    I got a nice KUS GPS tachometer which will be used in a small project I'm working on. Pictures will be ready in a few days (hopefully). The other instruments are clock and voltmeter.

  15. mapism

    mapism Senior Member

    Joined:
    Aug 9, 2008
    Messages:
    2,111
    Location:
    Sardinia
    No need, your post #10 was more than clear enough, many thanks.
  16. mapism

    mapism Senior Member

    Joined:
    Aug 9, 2008
    Messages:
    2,111
    Location:
    Sardinia
    Now, THAT is something making me wonder how it could work. :D
    You surely meant speedometer rather than tachometer, didn't you?
  17. Capt Ralph

    Capt Ralph Senior Member

    Joined:
    Sep 8, 2004
    Messages:
    12,649
    Location:
    Satsuma, FL
    One last thought
    I awoke last night realizing that I forgot about our friends at Glendinning. They can custom make tach solutions also.
  18. John Dangelo

    John Dangelo New Member

    Joined:
    Dec 4, 2019
    Messages:
    13
    Location:
    Amityville NY
    I bought a project boat 1988 46’ Post and have to go over all the wiring under the dash. The engines run mint. I’m not sure why the fire alarm light comes on. It’s 37 degrees here. The light may have come on due to the smoke on start up
    Last edited: Apr 22, 2020
  19. Capt Ralph

    Capt Ralph Senior Member

    Joined:
    Sep 8, 2004
    Messages:
    12,649
    Location:
    Satsuma, FL
    John
    Lets get lots more pics of your ship on line and do some bragging on your projects.
    You will figure it out; we share in projects and like to watch each others work like noisy brothers.
  20. chesapeake46

    chesapeake46 Senior Member

    Joined:
    Jul 26, 2009
    Messages:
    1,776
    Location:
    Chesapeake Bay, Delaware Bay & S.Jersey
    Congrats on the 46. Best of luck with it. What hp engines do you have ?
