Need wiring tips for replacement transformer.

Discussion in 'Technical Discussion' started by Danvilletim, Aug 27, 2018.

You need to be registered and signed in to view this content.
  1. Danvilletim, Aug 27, 2018
    #1
    Danvilletim

    Danvilletim Senior Member

    Joined:
    Oct 30, 2011
    Messages:
    794
    Location:
    isleton, ca
    Ok guys I could use some help. The watermarked stopped working and the transformer was smoking. So I am flying in tomorrow with a new transformer and I hope that works. Otherwise we can buy water at a new $0.40 a gallon!!!!

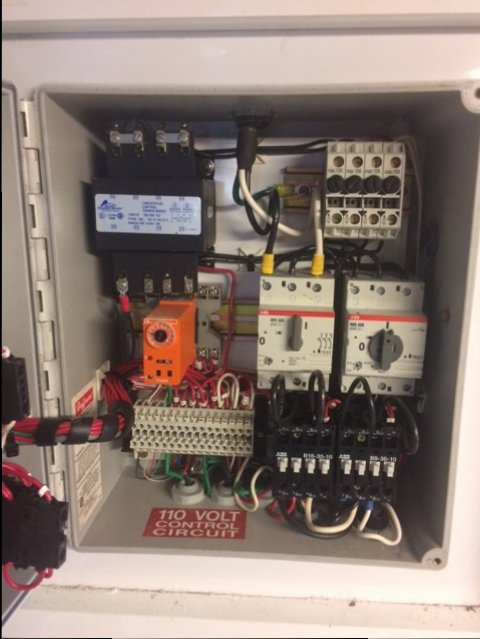

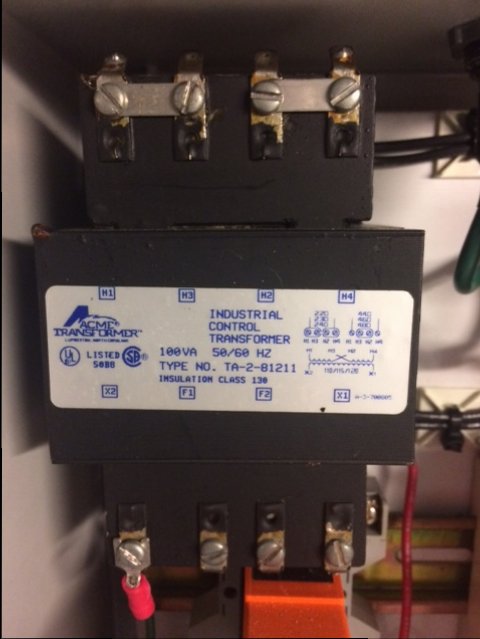

    The existing transformer usese input and out labels of h1, h2, h3, h4 and output of x1 and x2. See pics. The new one is just voltage levels. I figure I got one shot at not frying something so I could use input.

    Attached Files:

  2. Danvilletim, Aug 27, 2018
    #2
    Danvilletim

    Danvilletim Senior Member

    Joined:
    Oct 30, 2011
    Messages:
    794
    Location:
    isleton, ca
    Here is the new transformer.

    Attached Files:

  3. MBevins, Aug 27, 2018
    #3
    MBevins

    MBevins Senior Member

    Joined:
    May 23, 2008
    Messages:
    1,172
    Location:
    Windsor On. Canada
    Old one is configured for 230vac primary.
  4. Trak, Aug 27, 2018
    #4
    Trak

    Trak Member

    Joined:
    Mar 15, 2014
    Messages:
    50
    Location:
    Lighthouse Point, FL
    The two wires that are connected to the “H” or primary side of the old transformer get connected to the 0 and 230 terminals of the new transformer. The wires connected to x1 and x2 get connected to 0 and 115 on the new transformer. Polarity does not matter.
  5. dennismc, Aug 27, 2018
    #5
    dennismc

    dennismc Senior Member

    Joined:
    Jan 29, 2009
    Messages:
    1,175
    Location:
    Vancouver BC
    Neutral ?
  6. Danvilletim, Aug 27, 2018
    #6
    Danvilletim

    Danvilletim Senior Member

    Joined:
    Oct 30, 2011
    Messages:
    794
    Location:
    isleton, ca
    Thanks so much guys!
  7. Trak, Aug 27, 2018
    #7
    Trak

    Trak Member

    Joined:
    Mar 15, 2014
    Messages:
    50
    Location:
    Lighthouse Point, FL
    Neutral is not needed for a control circuit. If it is, they just ground one side of the 115v side of the transformer.
  8. chesapeake46, Aug 28, 2018
    #8
    chesapeake46

    chesapeake46 Senior Member

    Joined:
    Jul 26, 2009
    Messages:
    1,783
    Location:
    Chesapeake Bay, Delaware Bay & S.Jersey
    It would be good to know why the first one smoked in the first place .
    Are they fuses in the upper right hand corner ? any of them pop ?
  9. wdrzal, Aug 28, 2018
    #9
    wdrzal

    wdrzal Senior Member

    Joined:
    Feb 6, 2006
    Messages:
    413
    Location:
    Allegheny Mountains of Western Pa
    If you ground either side ,its not a isolation transformer anymore, further more if you have a meltdown again and the short is too ground all the chassis and frame grounds on the entire boat can become hot.
    Last edited: Aug 28, 2018
  10. Trak, Aug 28, 2018
    #10
    Trak

    Trak Member

    Joined:
    Mar 15, 2014
    Messages:
    50
    Location:
    Lighthouse Point, FL
    I was not speculating as to weather one side was grounded or not. This application is not an isolation transformer. It is a control transformer that is stepping voltage from 230 to 115.
