Need a swim platform

Discussion in 'Ocean Yacht' started by Boomer, May 26, 2020.

You need to be registered and signed in to view this content.
  1. dewald

    dewald Member

    Joined:
    Jun 27, 2017
    Messages:
    66
    Location:
    Treasure Island, Florida
    Boomer, if you want come by the house and take a look at my platform, let me know.
  2. Boomer

    Boomer Senior Member

    Joined:
    Oct 14, 2017
    Messages:
    671
    Location:
    Seminole
    Thank you sir...I just need the arc from the center of the stern
  3. rtrafford

    rtrafford Senior Member

    Joined:
    Jul 13, 2019
    Messages:
    989
    Location:
    Vero Beach
    I'm pretty sure the plywood was intended to make a pattern. Can use plywood, or I typically use trim wood and screw together sticks that are sitting perpendicular to the transom on one foot increments. Less cutting and fussing. None of this intended to be a final product....juts templating.
  4. Capt Ralph

    Capt Ralph Senior Member

    Joined:
    Sep 8, 2004
    Messages:
    9,819
    Location:
    Satsuma, FL
    No, I meant plywood.
    Hard to get anything over 8 feet long these days.
    I make a rough pattern off of the whole beam of the transom in cardboard or construction (heavy) paper.
    Say a 12' beam. will need three sheets of 1/2 or 3/4 exterior sheathing, smooth one side. One sheet cut in half for two 4'x4' sheets.
    Laminate with mat, epoxy & lil bonding filler, the four sheets together with the 4' seems away from each other. use cheap screws to compress the sandwiches together. This is a messy job but you want that mat wet and the bonding epoxy to squeeze out of the sandwich nicely. Now you have a 1 or 1.5' thick laminated deck 12 x 4 feet long. Let cure a few days.
    Now cut your transom curve on both long sides. Cut your taper to match the taper of your hull shape. remove all the screws. Thin some epoxy and start soaking it into the plywood edges. squirt some epoxy into the screw holes. This is important to seal these cut edges. Fair down the 4' seam screw holes & edges. Lay cloth all over one side of the platform and epoxy it down. Keep adding epoxy to the edges if it can still soak in.
    2 days later flip the platform, fair the 4' seam, this will be the top. Fill in any last screw holes. Lay down woven roven and epoxy down. This is the start of of the deck surface you will stand on so lay it down pretty and neat. 2 days later sand down the edges. Here is your rough & sealed platform.
    10 hours hands on, 3 sheets of plywood, box of cheap screws, half gallon of epoxy, pint of exciter, half tube of bonding filler, 8-5" sanding 80-100 grit pads, glass cloth, mat and roven, sharpie pen and heavy paper. $500.00 or less in materials. Not to bad for a 12 x >3 back porch.

    Metal fab guy makes adjustable stainless brackets for another $400.00 (Max). Another $350 for finishing color paint and bronze mounting bolts.
    You can ad non-skid to the top paint but if anybody is in dive suits or lounging on the back porch, I'd advise against any heavy application.

    You can route out some wave slots close to the transom and seal them as needed.

    I have made a few of these bomb proof back porches.
    My diving back deck on my Trophy 2860 was 5' front to rear, full beam and held 3 full dressed offshore divers.
    I have added to the factory platform on our Bertram another 2 1/2 feet (10 years ago). A lil weathered but still solid as ever.
    Last edited: Jun 9, 2020
  5. Capt Ralph

    Capt Ralph Senior Member

    Joined:
    Sep 8, 2004
    Messages:
    9,819
    Location:
    Satsuma, FL
    For the DIYer, Coosa is only available to 8' lengths.
    Custom cut orders are available for a whole one piece platform up to 12'.
    No idea of the cost but if you want to avoid plywood on a budget, it's worth a call.
  6. Boomer

    Boomer Senior Member

    Joined:
    Oct 14, 2017
    Messages:
    671
    Location:
    Seminole
    Butler marine...new one with ss brackets...10ft x 24 inches is $2652 with shipping..sold!!
  7. jet55

    jet55 New Member

    Joined:
    Mar 3, 2016
    Messages:
    16
    Location:
    Chicago

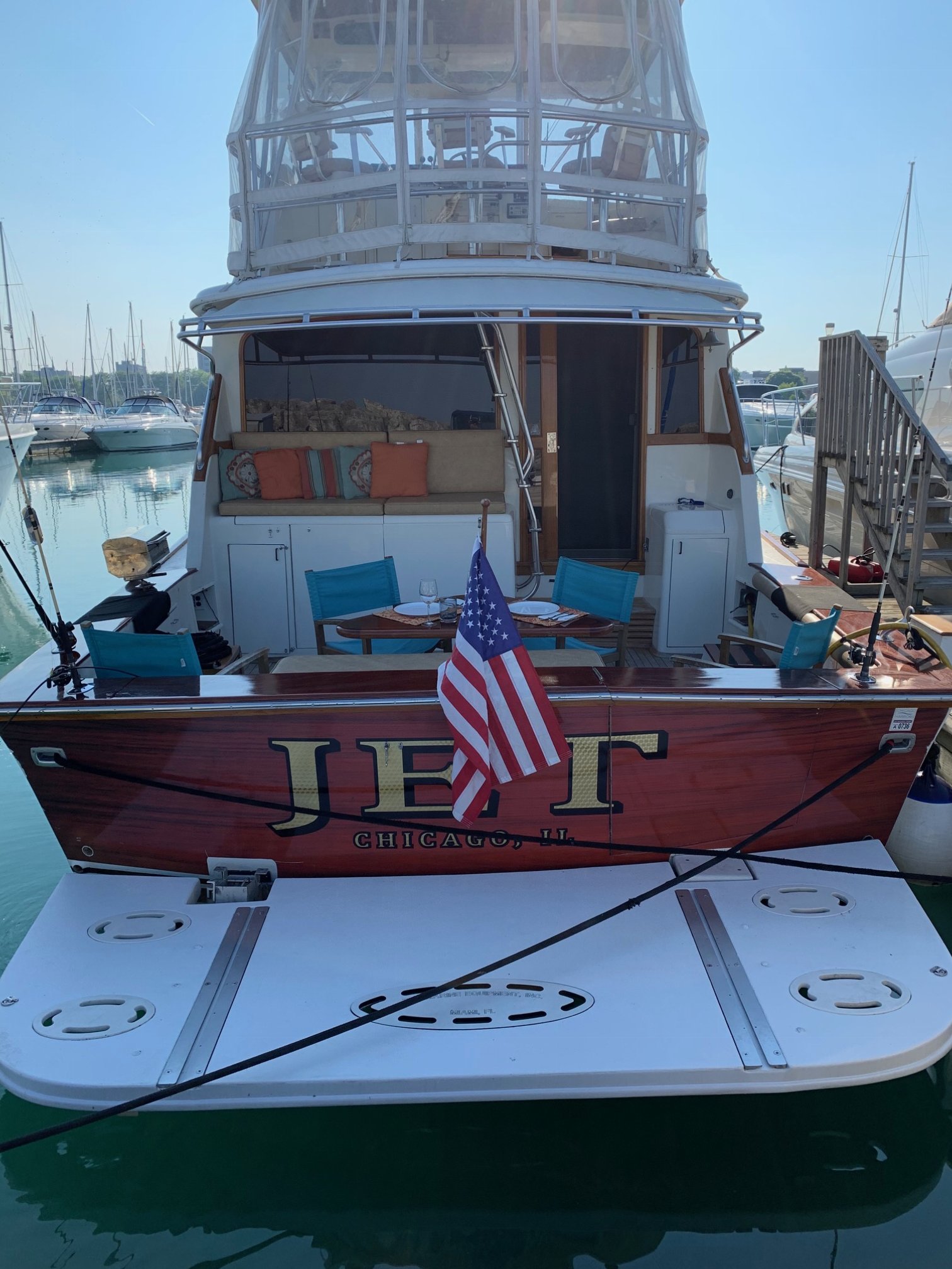

    My TNT. I never put a lot of weight on it, paddle board and lily pad. The dink lives on the bow. IMG_0225.jpg
  8. Capt Ralph

    Capt Ralph Senior Member

    Joined:
    Sep 8, 2004
    Messages:
    9,819
    Location:
    Satsuma, FL
    Say, That's a real nice AFT..
    I like big classy AFTs.
  9. NYCAP123

    NYCAP123 Senior Member

    Joined:
    Mar 14, 2008
    Messages:
    11,218
    Location:
    Long Island, NY
    Everything is a matter of taste, and if it works for you that's all that matters, but to me that just doesn't go with all that beautiful woodwork and classic styling. No insult intended. If anything I'd add some color, maybe that artificial wood to bring it together with the boat. Maybe even just change out the inserts for wood. I'm also at a loss why you'd get a hydraulic platform and not use it for the dink if not a waverunner.
  10. jet55

    jet55 New Member

    Joined:
    Mar 3, 2016
    Messages:
    16
    Location:
    Chicago
    This swim platform is the bane of my existence. The transom on an Ocean is THIN. The smallest little mishap can cause serious damage. I know this very well. If you do install a platform, I recommend glassing in some serious backing plates. If I had a light dinghy I would keep it on the lift.
  11. Boomer

    Boomer Senior Member

    Joined:
    Oct 14, 2017
    Messages:
    671
    Location:
    Seminole
    That thing is huge!!
  12. jet55

    jet55 New Member

    Joined:
    Mar 3, 2016
    Messages:
    16
    Location:
    Chicago
    I have a 38 Fountain named, "Thats what she said"
  13. cleanslate

    cleanslate Senior Member

    Joined:
    May 29, 2018
    Messages:
    1,228
    Location:
    Cherry Hill, NJ
    Nice ! should work out real well!
  14. tbaxl

    tbaxl Member

    Joined:
    Jun 18, 2020
    Messages:
    34
    Location:
    Gulf Coast
    If you have not yet found one, I am about to pull the one on my 48, it is in great shape even has the slide out ladder. Reason for removing is it gets in the way of the fish. PM me if you want more info, and we can get together to discuss if it will fit.
    Tim

    Disregard, missed the part where you bought a Butler Marine.
