Navigation Lights

Discussion in 'Cabo Yacht' started by Breckster, Nov 23, 2019.

You need to be registered and signed in to view this content.
  1. Breckster

    Breckster Member

    Joined:
    Aug 22, 2013
    Messages:
    46
    Location:
    Bay City

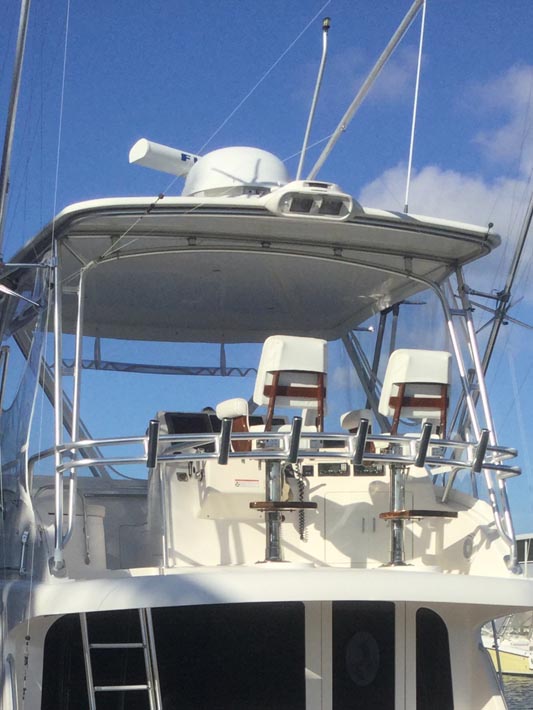

    was wondering where to find a replacement White Navigation Light (LED? or normal filament bulb) above the spreader lights? I'm 1400 miles away from boat so.. unable to go check personally.

    Attached Files:

    Last edited by a moderator: Nov 23, 2019
  2. Capt Ralph

    Capt Ralph Senior Member

    Joined:
    Sep 8, 2004
    Messages:
    9,848
    Location:
    Satsuma, FL
    That looks like a Festoon lamp. 12 or 24Vdc. Replacement lamps do come in LED.
    There are 2 maybe 3 different lengths. You will know for sure when the yard (risk their neck) grabs the bulb.
  3. Breckster

    Breckster Member

    Joined:
    Aug 22, 2013
    Messages:
    46
    Location:
    Bay City
    it looks like a "normal" Perko anchor light with a festoon bulb but the spreader/nav light looks like a ??? and that is the one (nav light) that is inop.. i believe that tower from pipe welders in fll?
  4. Capt Ralph

    Capt Ralph Senior Member

    Joined:
    Sep 8, 2004
    Messages:
    9,848
    Location:
    Satsuma, FL
    Is the ole pole just an anchor light?I noticed the built in lights. Figured the slot was a vent. I couldn't figure a nice built in light with an ole stick over it all.
    Where is your steaming light? In that stick or builtin the top?

    Someone will know for sure with the old lamp in their hand.
  5. Capt J

    Capt J Senior Member

    Joined:
    Jul 11, 2005
    Messages:
    13,937
    Location:
    Fort Lauderdale
    The masthead/anchor light looks normal Perko.

    The stern light directly above the spreader lights is a special piece. Looks like you have a 35' or 40' Cabo. Check with Pipewelders in Fort Lauderdale to see who they sourced the light from as it looks to be one of their hardtops.
  6. Breckster

    Breckster Member

    Joined:
    Aug 22, 2013
    Messages:
    46
    Location:
    Bay City
    thanks Capt J.. :)
  7. Breckster

    Breckster Member

    Joined:
    Aug 22, 2013
    Messages:
    46
    Location:
    Bay City
    Another Question Capt J.. where does the cooling (raw) water go from the generator after going through the heat exchanger? i noticed the gen exhaust is drying exiting port side amidship? I'm told it exits underwater so as to create a "vacuum" while underway.. ?
  8. mapism

    mapism Senior Member

    Joined:
    Aug 9, 2008
    Messages:
    1,414
    Location:
    Sardinia
    I see in your profile that you have a Bertram 37.
    I can't be positive about your particular model, but as I recall Bertram (as well as many other builders) use water/gas separators for the genset exhaust.
    After that, fumes are routed above and raw water below the waterline.
    So, most of the exhaust pipe is actually wet, and only the last bit of pipe after the separator is dry.
    That is meant to get rid of the dripping water noise while anchored, without introducing a backpressure that would be unavoidable with a completely submerged exhaust.
    If you look in the area near your fumes outlet, you should see another thru-hull under the waterline, which spits the raw water when the genset is running.

    Just for the records, there are indeed u/w exhausts designed to reduce not only noise, but also backpressure, creating a scavenging effect when the boat is on the plane.
    But as far as I know they are only used for main engines, and they also require a secondary bypass above the w/l, to let the engine breathe also when the boat is not going fast enough to de-pressurize the main u/w exhaust.
  9. Capt J

    Capt J Senior Member

    Joined:
    Jul 11, 2005
    Messages:
    13,937
    Location:
    Fort Lauderdale
    You should see a round muffler and from there should be a thru hull and part of it exits underwater, I believe midship, starboard side, not far below the exhaust on the hull side.
  10. Breckster

    Breckster Member

    Joined:
    Aug 22, 2013
    Messages:
    46
    Location:
    Bay City
    upload_2020-1-19_7-50-12.jpeg upload_2020-1-19_7-50-12.jpeg

    sent an email.. awaiting reply. possible any other options? upload_2020-1-19_7-50-12.jpeg upload_2020-1-19_7-50-12.jpeg
  11. d_meister

    d_meister Senior Member

    Joined:
    Mar 4, 2010
    Messages:
    427
    Location:
    San Diego, CA.
    It would be interesting to see the guts to that, but it's probably potted with epoxy or silicone. I can think of at least four ways to make that, if it had to be done. None are cost-effective:(
    Has that completely failed? If Pipewelders doesn't have it, any longer, you might be able to use one of THESE or something like it. Flexible with self adhesive, and maybe be able to stack two or more in there for more light.
  12. Breckster

    Breckster Member

    Joined:
    Aug 22, 2013
    Messages:
    46
    Location:
    Bay City
    i wrote them Friday evening.. so i will have to wait :) hopefully they are working Monday and i can call?
  13. Breckster

    Breckster Member

    Joined:
    Aug 22, 2013
    Messages:
    46
    Location:
    Bay City
    good news for those that need a replacement for Pipewelders LED navigation lights:

    Red Port side: 1485826
    Green Stbd side: 1485825
    White Stern light: 1485827

    $85 dollars ea.
  14. CaboJack

    CaboJack New Member

    Joined:
    Oct 6, 2016
    Messages:
    1
    Location:
    New jersey
    Thanks Brek!
