MTU Series 60 Won't Rev Over 1500 RPM

Discussion in 'Ocean Yacht' started by alvareza, Aug 10, 2019.

You need to be registered and signed in to view this content.
  1. Capt Ralph

    Capt Ralph Senior Member

    Joined:
    Sep 8, 2004
    Messages:
    8,418
    Location:
    Satsuma, FL
    Excellent work PB.
  2. alvareza

    alvareza Member

    Joined:
    Aug 20, 2010
    Messages:
    60
    Location:
    Boston MA
    Now that’s a checklist! I will look at what I can and use it with when I can get the MTU tech down to the boat. Thank you
  3. Capt J

    Capt J Senior Member

    Joined:
    Jul 11, 2005
    Messages:
    12,319
    Location:
    Fort Lauderdale
    I had a 2 year old pair of S60 825HP that one engine developed a leaking aftercooler (made by Garrett), boat was a 2006, they replaced both aftercoolers under warranty. Not sure if this could be a cause, hopefully not.
  4. Beau

    Beau Senior Member

    Joined:
    Jan 15, 2010
    Messages:
    2,092
    Location:
    Cold Spring Harbor, NY
    I think we should all wait for the computer reading. It will tell us what sensor derated the engine, then we can suggest why?? just me
  5. alvareza

    alvareza Member

    Joined:
    Aug 20, 2010
    Messages:
    60
    Location:
    Boston MA
    MTU tech is coming Monday
  6. Capt Ralph

    Capt Ralph Senior Member

    Joined:
    Sep 8, 2004
    Messages:
    8,418
    Location:
    Satsuma, FL
    Monday,, Monday,,
    Que old song music..
  7. alvareza

    alvareza Member

    Joined:
    Aug 20, 2010
    Messages:
    60
    Location:
    Boston MA
    The issue seems to be the paper gasket between the charge air cooler and the intake manifold is leaking air. The lack of boost puts the engine into smoke mode restricting fuel.

    Interestingly the starboard engine has a small leak in the same place. It explains some soot I was wondering about near the front of the intake on that engine.

    Waiting on the quote and schedule to remove, clean the CAC and replace the the gaskets with metal ones now standard. Need to do both engines.

    Might have the valves checked at the same time.

    While there is room to work on both sides of the engine moving the large parts around won’t be easy. Planning to help the tech move the parts. There seem to be cutouts in the engine room ceiling. Wondering if anyone knows whether these are ‘cut here’ lines or screwed down access. The carpet is being replaced in the fall, never the same after we pulled it up to install the seakeeper, so not worried about that. Hope making access easier will save time/money on the repair.
  8. onyx

    onyx New Member

    Joined:
    Jul 10, 2012
    Messages:
    18
    Location:
    Mystic, CT
    Sounds like it could be the TURBO BOOST SENSORS
  9. onyx

    onyx New Member

    Joined:
    Jul 10, 2012
    Messages:
    18
    Location:
    Mystic, CT
    I had a similar issue last year and it was a the Turbo Boost Sensor. It was about $100 and can be replaced yourself. My Std engine would not go above 1300 rpm
  10. Capt Ralph

    Capt Ralph Senior Member

    Joined:
    Sep 8, 2004
    Messages:
    8,418
    Location:
    Satsuma, FL
    Have the techs check all MTU/S60 bulletins.
    I remember alternator mounts and exhaust manifold issues during the early S60/MTU marine conversions.
    The S60 is super solid. The marine hang on sh** (stuff) is where the issues are.
  11. Beau

    Beau Senior Member

    Joined:
    Jan 15, 2010
    Messages:
    2,092
    Location:
    Cold Spring Harbor, NY
    What am I missing? Didn't the OP just tell us what the tech found....no more speculating?
  12. Capt Ralph

    Capt Ralph Senior Member

    Joined:
    Sep 8, 2004
    Messages:
    8,418
    Location:
    Satsuma, FL
    I was adding to, while the MTU techs were on board fixing the low air issue. S60 did have some teething issues.
    Gad I do love them.
  13. Capt J

    Capt J Senior Member

    Joined:
    Jul 11, 2005
    Messages:
    12,319
    Location:
    Fort Lauderdale
    on ALL of the MTU's.....starters.....alternators......coolant pumps......etc.....etc....
  14. alvareza

    alvareza Member

    Joined:
    Aug 20, 2010
    Messages:
    60
    Location:
    Boston MA
    I will have them check bulletins. It was comforting that was a likely cause on PacBlue’s list.

    Interesting you mention starters.... Heard the Stbd starter grind when starting. I don’t normally have the engine hatch open when starting. Installing a reman starter while access is easy with the CAC box out.
  15. rtrafford

    rtrafford Senior Member

    Joined:
    Jul 13, 2019
    Messages:
    539
    Location:
    Ft Lauderdale
    Now trying to find and remedy the Tech.
  16. Capt Ralph

    Capt Ralph Senior Member

    Joined:
    Sep 8, 2004
    Messages:
    8,418
    Location:
    Satsuma, FL
    Please fill us in (in another thread) about your SeaKeeper upgrade, or did I miss it.
  17. Capt Ralph

    Capt Ralph Senior Member

    Joined:
    Sep 8, 2004
    Messages:
    8,418
    Location:
    Satsuma, FL
    Send in lots of pics on your CAC work here.
    We like to watch and learn.
    Work area under your decks. Pints of blood spilled. Short cuts for the next service (steel gaskets are a great example).
    You will be the hard knock master next time this comes up with less post..;);)
  18. alvareza

    alvareza Member

    Joined:
    Aug 20, 2010
    Messages:
    60
    Location:
    Boston MA
    Boat is running well now. Both engines turning up just below 2350 rpm at 98-99% load with nearly full fuel, full water, all our stuff and a lot of tools. It was an eye opener to see the size wrenches the tech used. What was done:

    1. Charge air cooler to intake gasket replaced
    2. CAC matrix cleaned
    3. Valves adjusted
    4. Valve cover gaskets replaced (2 per engine)
    5. Port exhaust gasket replaced and turbo cleaned
    6. Starboard starter replaced
    7. CAC bolts replaced with longer bolts and an extension sleeve to increase clamping pressure on the CAC gaskets between the cover and the basket.

    The really careful cleaning of all gasket mating surfaces was something else I did not expect. He practically polished the intake gasket surfaces before applying silicone to the metal gaskets replacing the old paper ones.

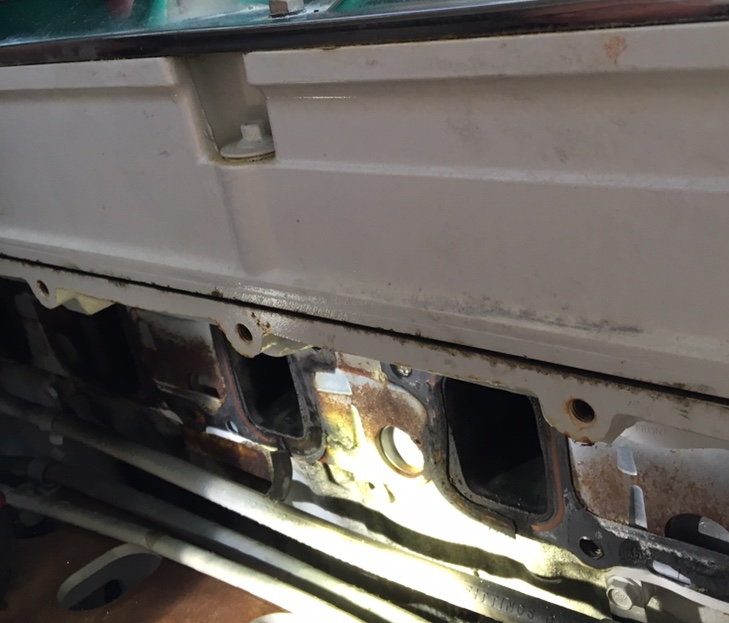

    Picture of the bad intake gasket on the port engine.

  19. Beau

    Beau Senior Member

    Joined:
    Jan 15, 2010
    Messages:
    2,092
    Location:
    Cold Spring Harbor, NY
    Congrats and good boating!
  20. PacBlue

    PacBlue Senior Member

    Joined:
    Jan 9, 2009
    Messages:
    1,904
    Location:
    Dana Point, Ca
    Sounds like you are good to go, glad it all worked out for you!
