moving my 35' 1958 roamer myself

Discussion in 'Chris Craft Roamer Yacht' started by wrenches74, Nov 1, 2009.

  1. wrenches74

    wrenches74 New Member

    Joined:
    Nov 1, 2009
    Messages:
    51
    Location:
    Upstate Lakes, SC

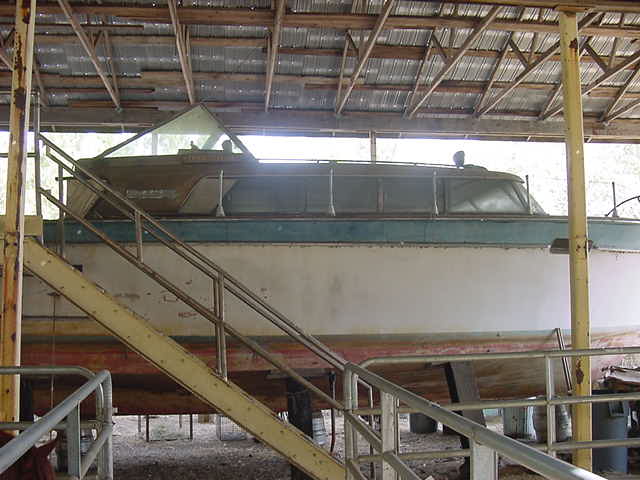

    Hello, all...i'm new to the forum and have just recently gotten a 1958 Roamer 35 :D .....been sitting in a barn for YEARS!!!....i am going to move this boat myself, roughly about 300 miles, as i have a 53' flatbed lowboy trailer...there is no chance of crane service as this boat is sitting in a barn perched on 6 R/R ties driven 3' into the ground......weight has been spread out well and the hull checks out fine...my question is how do i go about supporting it on the trailer ?...i have thought about some dock foam cut to fit tightly around the boat as i have seen this done many times...there are no engines, ect in the boat currently and i have gotten all the oversize permits i need...any help would be great!!! thanks...Tim:D
  2. SeaEric

    SeaEric YF Historian

    Joined:
    Jan 28, 2007
    Messages:
    1,360
    Location:
    out on the dock
    This sounds like it may be an interesting transport. I'm curious to know how you intend to move the boat from it's current "perch" to the trailer?
  3. Capt J

    Capt J Senior Member

    Joined:
    Jul 11, 2005
    Messages:
    14,432
    Location:
    Fort Lauderdale
    Getting it onto the trailer is going to be the toughest part. If you get plenty of round poles laid flat on the trailer for it to roll on. Remember to get it balanced on the trailer so you have a little tongue weight. I would support the hull with stands like they would at a boat yard when they store the boat out of the water and it should be fine. Not having the engines in it, works out much better because there is less weight in the hull.
  4. artwork

    artwork Member

    Joined:
    Feb 19, 2006
    Messages:
    55
    Location:
    Underway
    Don't do that !!

    I highly recommend that you NOT roll it onto the trailer. A couple tons of steel riding precariously on its keel or it's keel and one chine sounds like leaving a lot to chance. I owned a marina a while back and did a lot of boat moving in and out of buildings without the aid of our travel-lift.

    The styrofoam idea will work for short distances and is pretty safe if you make each block out on one piece. If you have to stack blocks, the vibration of travel and wind may jar some of it loose. The boatstand idea will work but you have to fix them to the trailer so they won't move.

    IMHO 300 miles is quite a haul, so you need a decent cradle. You can make one out of 6x6's. First place at least two crosswise under the boat - they should be at least a couple feet wider than the trailer, then cut uprights just like the posts in the barn. Nail a 12"x 12" pad (cut a 2x12) flat on top of each upright before positioning the upright. Now cut plywood gussets to secure the uprights to the crossmembers. Lastly, connect diagonal braces from the bottom of the crossmember to the top of the next upright. If you plan on keeping the boat on the cradle, be sure one of the 'cribs' is under the engine mounts.

    If the trailer fits between the RR tie pilars, you've got half the project solved. If not, you still have the problem of raising the boat, if you've got that figured out, stop here - and go for it. If you would like a suggestion on raising the boat- read on. . .

    If you have a 53' flat bed, you probably have some hydraulic jacks - build at least 4 wood columns (stacked wood or concrete blocks) place hyd jack on top of the column and the cradle on top of the jack (I didn't say this was easy, did I) Now raise the cradle under the boat, then raise the boat to a few inches above the trailer height. This may take several 'lifts' - meaning raise it the limit of the jack then build another column next to the jack; lower to the 'axilary column', put another block in the jacking column, repeat. If this were a boat hauling trailer, that would only be 14 inches off the ground (maybe two 'lifts'). If the boat is in really good condition and there are no engines in it, it should handle this for a short time (without jacking at the keel). If you have to raise it a number of feet, support the cradle under the keel during this process (or if you leave the project overnight, support the keel). When you have it high enough, remove the forward keel suport and start backing the trailer under it, removing the other keel blocks as you go. When you have it in position, lower it onto the trailer.

    If you have some other questions, email me direct.
  5. wrenches74

    wrenches74 New Member

    Joined:
    Nov 1, 2009
    Messages:
    51
    Location:
    Upstate Lakes, SC
    thanks for all the good info as it sits, the trailer is about 8.5' wide and as you all know the rear is about 10' wide (total beam measures 11'9")..the "perches are wide enough to allow the trailer to go right under the boat....i am going to make some "Perches" out of 8x8 box steel with plates on either end...weld them to the trailer and strap the whole thing down...i will fab this stuff at the load point (not at home) so we're going to take a bandsaw, welder, steel, wood cribbing and 4 "I" beam posts i made to put the bottle jacks on (About 30" high)...i will try to post some pics of how the boat is currently stting on 6 R/R ties (think...drove 2' into the ground 3 on each side)...what are the opinions on my plan?:confused: :eek: :D Tim
  6. artwork

    artwork Member

    Joined:
    Feb 19, 2006
    Messages:
    55
    Location:
    Underway
    you got it, dude

    Sounds like you have a plan. I assume you have the steel lying around. If you're going out to buy it, 8 x 8 is a bit over kill. But with you welding it to the trailer it will be good and sturdy. How are you going to block it at home?

    Looking forward to the pictures.
  7. wrenches74

    wrenches74 New Member

    Joined:
    Nov 1, 2009
    Messages:
    51
    Location:
    Upstate Lakes, SC

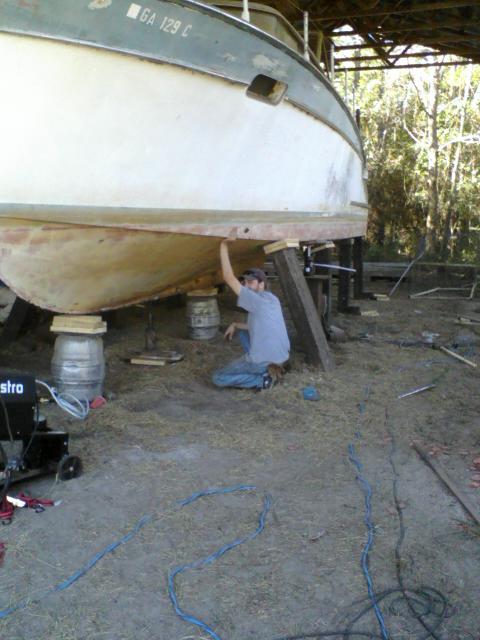

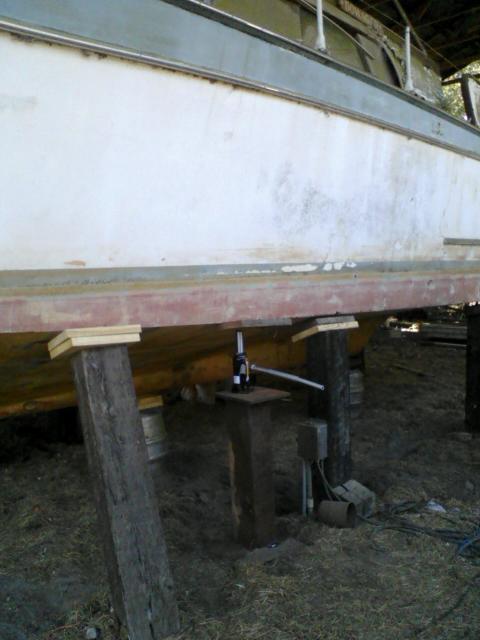

    well, i didn't have it laying around, but i did get 2 10' sticks of it for free.......i'm just hoping the DOT doesn't decide to give me a whole lot of grief........aside from that, i plan on blocking it up at the house in a similar fashon, although, i'd like to have some weight on the keel.....i almost got sick when i saw this boat sitting on just 6 R/R ties with just a few beer kegs under the keel loosely..... BTW...a few pics that i had promised....

    Attached Files:

  8. wrenches74

    wrenches74 New Member

    Joined:
    Nov 1, 2009
    Messages:
    51
    Location:
    Upstate Lakes, SC
    Well, Moving day is this Friday, the 13th!!!!...after my day-long go around with the Ga. DOT, and them telling me i had to register as a federal motor carrier, they made me get a USDOT # :mad: , fax all sorts of insurance info, thank God i have a Commercial driver's license...the last time i pooped...lol...ect....i finally got my oversize permit......:eek: my advice to anyone thinking of doing this type of thing themselves....DON'T DO IT!!!!!...if i wasn't on such a time constraint to get the boat moved from where it is at (it has to be out of there this weekend ... I called several boat movers and no luck on such short notice)..i would hire someone to do it.....in hindsight, i wish i had hired a boat mover.......but, i didn't so now i'm forced to do this myself....Wish me luck........Tim:D
  9. NYCAP123

    NYCAP123 Senior Member

    Joined:
    Mar 14, 2008
    Messages:
    11,205
    Location:
    Long Island, NY
    I questioned a guy on another thread who was planning something similar a while back whether it seemed wise. DK if we ever heard from him after he did it. Hopefully your words resonate. Good luck Tim. Let us know how it turns out. This is educational. BTW: Friday the 13th:confused: :eek: ;)
    You Roamer guys are an inspiration. The words 'It's too much work' have no place in your vocabulary.
  10. Henning

    Henning Senior Member

    Joined:
    Sep 22, 2009
    Messages:
    940
    Location:
    Ft Lauderdale FL
    No kidding huh? Someone would have to pay me $30k to get it out of there and take over the liability.
  11. NYCAP123

    NYCAP123 Senior Member

    Joined:
    Mar 14, 2008
    Messages:
    11,205
    Location:
    Long Island, NY
    Don't forget to have somebody following with a video camera. At the very least you might make some money from AFW or one of those shows and at worse it might be easier to just show a video that explain what happened.;)
  12. wrenches74

    wrenches74 New Member

    Joined:
    Nov 1, 2009
    Messages:
    51
    Location:
    Upstate Lakes, SC
    no vid camera but will have digital camera.....my blood pressure is through the roof.....but, at least my Roamer will be home safe by Sat. night.....why anyone would want to give this beautiful vessel away is beyond me, but at least i'm the one getting it......to quote a very wise man...." If God had intended us to have fiberglass boats he would have made fiberglass trees and fiberglass ore"......Tim;)
  13. wrenches74

    wrenches74 New Member

    Joined:
    Nov 1, 2009
    Messages:
    51
    Location:
    Upstate Lakes, SC
    AFW???? i was thinking "Destroyed in seconds" or "1000 ways to die".....LOL
    Tim:eek:
  14. wrenches74

    wrenches74 New Member

    Joined:
    Nov 1, 2009
    Messages:
    51
    Location:
    Upstate Lakes, SC
    ok, Y'all wish me luck.......
  15. NYCAP123

    NYCAP123 Senior Member

    Joined:
    Mar 14, 2008
    Messages:
    11,205
    Location:
    Long Island, NY
    Looks like the weather will be mostly north of you. I suspect the move will be entertaining. Hopefully successful. Then the real work can begin. Stay safe and Good luck. Don't forget to take pics.
  16. hat4349

    hat4349 Senior Member

    Joined:
    Mar 25, 2005
    Messages:
    249
    Location:
    Tampa, Florida
    Good luck and post the pictures.
  17. wrenches74

    wrenches74 New Member

    Joined:
    Nov 1, 2009
    Messages:
    51
    Location:
    Upstate Lakes, SC
    Home Safe

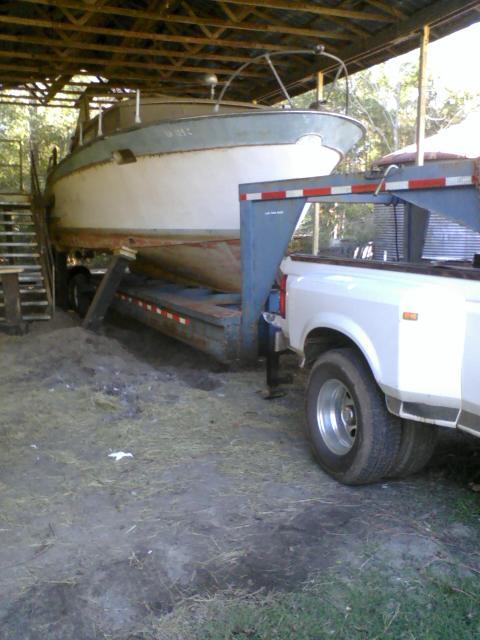

    Ok, well managed to get home to South Carolina safe, and ticket-free...by the Grace Of God, the weigh stations were closed....how?...don't ask me!...here are some pics.....

    Attached Files:

  18. wrenches74

    wrenches74 New Member

    Joined:
    Nov 1, 2009
    Messages:
    51
    Location:
    Upstate Lakes, SC

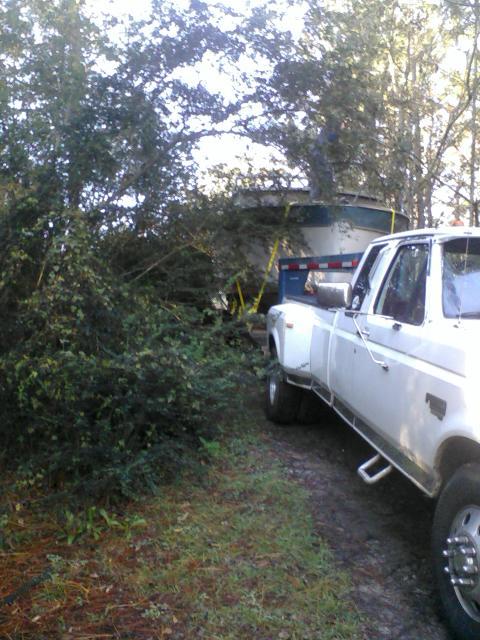

    We had to chainsaw the overgrowth since the boat had been put in the barn years ago.... I took this pic as soon as i got home and out of the truck....BTW...i must have passed 11 state troopers in Ga. and not ONE gave me a second look....i bet if i'd not had the permit, i would have gotten pulled over.....my luck....LOL...now the cleanup of chicken poop (yes there are eggs in the sink in the head), feathers and spiders starts.....BTTW...the Previous owner gave me ALL the orig paperwork for the boat...including the orig order, build sheet, and a photo from (i think) 1958 from a yachting magazine in which the orig owner did a photo shoot...the boat, at that time , was named "Christie II"....really neat stuff....flyers from CC for all the Roamer models.......

    Attached Files:

  19. SeaEric

    SeaEric YF Historian

    Joined:
    Jan 28, 2007
    Messages:
    1,360
    Location:
    out on the dock
    GOOD WORK! Congrats!
  20. wrenches74

    wrenches74 New Member

    Joined:
    Nov 1, 2009
    Messages:
    51
    Location:
    Upstate Lakes, SC
    some pics of the orig owner when "Dowager" was the "Christie II"....Thank you, Eric...i will try to have the hull # for you in a few days....i'm going to have Pizza and a beer!

    Attached Files:
