Mike Kajan Yacht Designs

Discussion in 'Yacht Renderings & Plans' started by Kajan, Nov 28, 2009.

You need to be registered and signed in to view this content.
Thread Status:
Not open for further replies.
  1. Kevin

    Kevin YF Moderator

    Joined:
    Nov 25, 2004
    Messages:
    2,662
    Location:
    Montreal, Qc, Canada
    The only thing missing in your '90s design is the quintessential teardrop windows. ;)
  2. Kajan

    Kajan Senior Member

    Joined:
    Nov 28, 2009
    Messages:
    292
    Location:
    Stockholm
    50m concepts

    I’m going to stay in the 50m range for a while and making it easy on my part by shrinking some of the 72m designs, for starters...

    Attached Files:

  3. Kajan

    Kajan Senior Member

    Joined:
    Nov 28, 2009
    Messages:
    292
    Location:
    Stockholm
    Dutch job?

    By using the fly bridge and windows section of the 72m sailboat concept in combination with a slightly altered “C-pillar” and hull opening, the previous 48m design, could perhaps be one of those Dutch jobs?

    Attached Files:

  4. atomare

    atomare New Member

    Joined:
    Jul 25, 2008
    Messages:
    58
    Location:
    Duisburg, Germany
    Hi Kajan,
    I really like your style. ... And I honestly believe you missed your vocation not working as a designer, since I see a lot of professionals turning out less appealing lines .... however as Henning stated before, you should really take the one or other concept a step further and develop e.g. the general arrangements (not necessarily to the plumbing though ;D) .... I really like your 50m concept above, but my favorite by far is the "Black Knight" from post #25 ...........thanks for sharing.
  5. Kajan

    Kajan Senior Member

    Joined:
    Nov 28, 2009
    Messages:
    292
    Location:
    Stockholm
    Thanks atomare, you're too kind!
    For some of my favorite concepts, I do have G.A’s, or parts of. The problem is that, some of the great new solutions end up in the G.A. design and the not so new and great doesn’t, making the G.A. half complete and not interesting enough to end up in this forum.

    It takes me a lot longer to make the G.A. compared to a new exterior design, and since no one comments regarding the G.A. for a particular design, it’s an easy choice to move on to a new design rather than the G.A.

    Maybe I should start to describe some of the solutions I have in mind for the concepts in the absence of a complete G.A. or posting the interesting details and graying the rest out… that's a thought.
  6. atomare

    atomare New Member

    Joined:
    Jul 25, 2008
    Messages:
    58
    Location:
    Duisburg, Germany
    I totally understand, after all designing should be fun and moving walls in a GA isn´t always ... lol ... It is more, that I think you could develop the designs even further, since you have the profiles down by now.... Some top views would do the trick as well, then you can focus on the exterior lines, but present your yacht concepts more complete .... A good example is your cat design, form the side it could as well be an oddly shaped single hull yacht... a top view would clarify that on a glance and give some more information on the actual 3d shapes. ? .... Just some thoughts.
  7. Kajan

    Kajan Senior Member

    Joined:
    Nov 28, 2009
    Messages:
    292
    Location:
    Stockholm
    Atomare, I think you’re absolutely right about the top view making the design feel more complete. I guess I’ve been thinking a top view wouldn’t do unless the complete GA followed.
  8. Kajan

    Kajan Senior Member

    Joined:
    Nov 28, 2009
    Messages:
    292
    Location:
    Stockholm

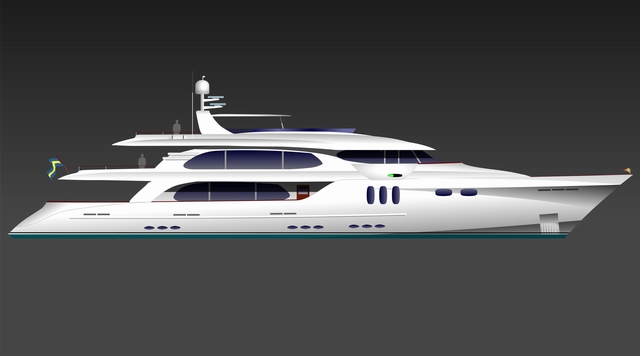

    ...another Dutch job?

    48m. No top view yet though. ;)

    Attached Files:

    Last edited: Mar 26, 2010
  9. Kajan

    Kajan Senior Member

    Joined:
    Nov 28, 2009
    Messages:
    292
    Location:
    Stockholm
    Yes, it's been done before

    ...but still interesting, I think.

    Attached Files:

  10. Kajan

    Kajan Senior Member

    Joined:
    Nov 28, 2009
    Messages:
    292
    Location:
    Stockholm
    48m

    …with some classical touch.

    Attached Files:

  11. Kajan

    Kajan Senior Member

    Joined:
    Nov 28, 2009
    Messages:
    292
    Location:
    Stockholm

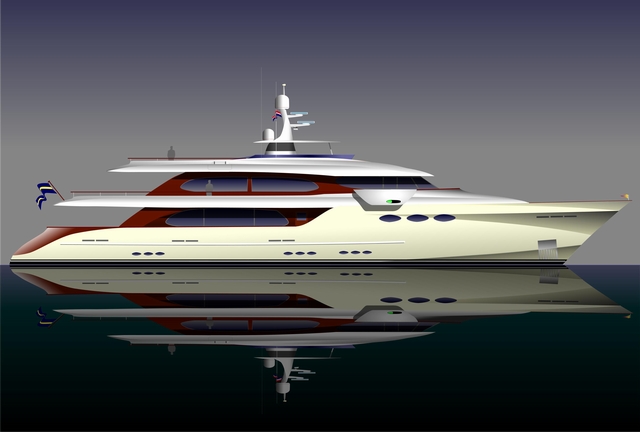

    'Woody'

    ...with some minor modifications.

    Attached Files:

  12. Yacht News

    Yacht News YF News Editor

    Joined:
    Mar 29, 2006
    Messages:
    18,434
    Location:
    Caribbean
    Interesting Kajan! I don't like the colours personally but the design is nice!
  13. Kajan

    Kajan Senior Member

    Joined:
    Nov 28, 2009
    Messages:
    292
    Location:
    Stockholm
    ...perhaps in white, stretched 5m?

    Attached Files:

  14. Yacht News

    Yacht News YF News Editor

    Joined:
    Mar 29, 2006
    Messages:
    18,434
    Location:
    Caribbean
    Yep, that is much better!
  15. Kajan

    Kajan Senior Member

    Joined:
    Nov 28, 2009
    Messages:
    292
    Location:
    Stockholm

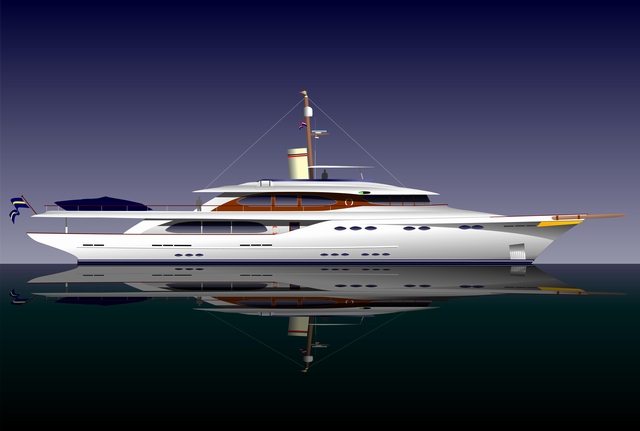

    52m again with some classical touch.

    Most of the lines borrowed from the 53m concept above.

    Attached Files:

  16. Kajan

    Kajan Senior Member

    Joined:
    Nov 28, 2009
    Messages:
    292
    Location:
    Stockholm

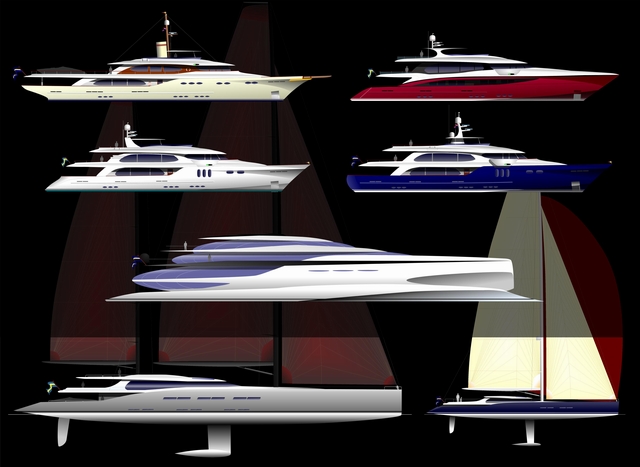

    Some of the latest designs…

    …in size comparison.

    Attached Files:

  17. Kajan

    Kajan Senior Member

    Joined:
    Nov 28, 2009
    Messages:
    292
    Location:
    Stockholm
    53m Explorer.

    I’m planning a series of Explorer yachts in the 50m range starting off with this 53m.
    Again, most of the lines from the previous 53m concepts.

    Attached Files:

  18. SVDesign

    SVDesign New Member

    Joined:
    Jul 4, 2008
    Messages:
    111
    Location:
    Cherbourg - France
    I have a single question : when will you jump to 3D ?
    I'm sure the result would be interesting ;)
  19. Kajan

    Kajan Senior Member

    Joined:
    Nov 28, 2009
    Messages:
    292
    Location:
    Stockholm
    I’m afraid the time needed to learn, really isn’t on my side. I would need a crash course. :)
  20. Kajan

    Kajan Senior Member

    Joined:
    Nov 28, 2009
    Messages:
    292
    Location:
    Stockholm
    53m and 59m

    Aft House Explorer.

    Attached Files:
