Mike Kajan Yacht Designs

Discussion in 'Yacht Renderings & Plans' started by Kajan, Nov 28, 2009.

You need to be registered and signed in to view this content.
Thread Status:
Not open for further replies.
  1. Kajan

    Kajan Senior Member

    Joined:
    Nov 28, 2009
    Messages:
    292
    Location:
    Stockholm
    I understand the advantages with a less raked window in the terms of sea spray, sun glare and cleaning but on this particular design concept I preferred the raked one.

    About Carinthia VII, I stated earlier:
    -"I find Tim Heywood’s design appealing with the slanting aft part of the hull and I guess the blue colour adds to the similarity of “Carinthia VII” and not so much when in white".

    Attached Files:

  2. Kajan

    Kajan Senior Member

    Joined:
    Nov 28, 2009
    Messages:
    292
    Location:
    Stockholm

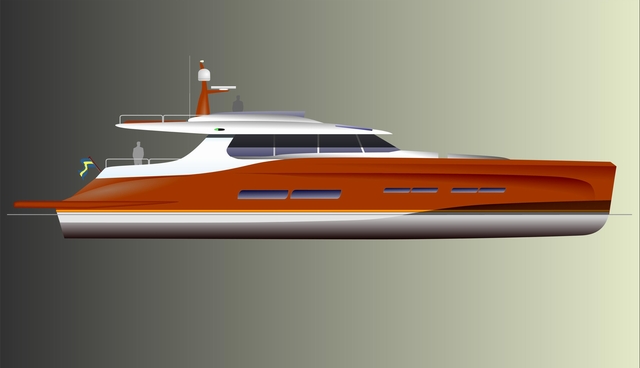

    30m Fly

    The 25m up scaled and bow slightly raked.

    Attached Files:

  3. Kajan

    Kajan Senior Member

    Joined:
    Nov 28, 2009
    Messages:
    292
    Location:
    Stockholm
    46m

    Same concept as the 25m and 30m Fly.

    Attached Files:

  4. Kajan

    Kajan Senior Member

    Joined:
    Nov 28, 2009
    Messages:
    292
    Location:
    Stockholm
    72m 4th edition

    ...with some classical touch.

    Attached Files:

  5. Yacht News

    Yacht News YF News Editor

    Joined:
    Mar 29, 2006
    Messages:
    18,414
    Location:
    Caribbean
    Love this classical touch, a little "Leander G" with some "Jamaica Bay"...
  6. orion

    orion Senior Member

    Joined:
    Feb 19, 2005
    Messages:
    403
    Location:
    Newport Beach, CA, USA
    Beautiful Classic!
  7. Kajan

    Kajan Senior Member

    Joined:
    Nov 28, 2009
    Messages:
    292
    Location:
    Stockholm
    Thank You, YachtNews and Orion!

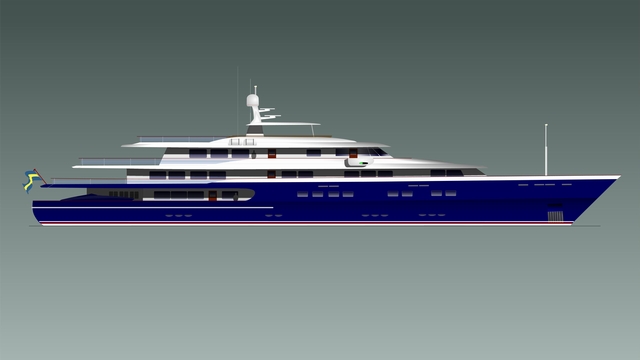

    I'm reposting the 72m Classic due to some colouring problems that I experience. The posted designs appear somewhat pale compared to my original ones so I have to use brighter colours and darken the background some.

    Attached Files:

  8. Kajan

    Kajan Senior Member

    Joined:
    Nov 28, 2009
    Messages:
    292
    Location:
    Stockholm
    72m 5'th edition

    The top design started out as the middle one and then went through some "morphing". ;)

    Attached Files:

  9. Kajan

    Kajan Senior Member

    Joined:
    Nov 28, 2009
    Messages:
    292
    Location:
    Stockholm

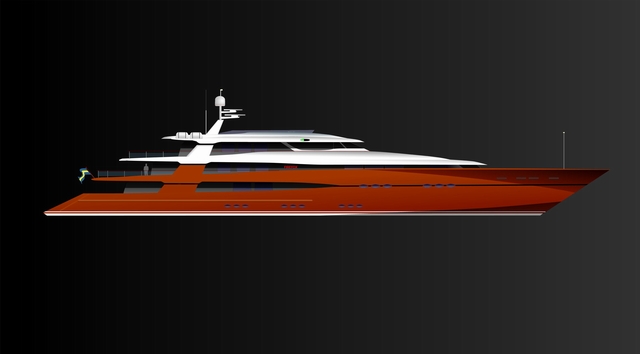

    72m

    "Firefox"

    Attached Files:

  10. Henning

    Henning Senior Member

    Joined:
    Sep 22, 2009
    Messages:
    942
    Location:
    Ft Lauderdale FL
    So, have you laid out the interiors and designed the the mechanical, electrical, plumbing and HVAC systems yet? There's a lot more to designing a yacht than just the exterior lines....
  11. Yacht News

    Yacht News YF News Editor

    Joined:
    Mar 29, 2006
    Messages:
    18,414
    Location:
    Caribbean
    Agreed Henning!
  12. AMG

    AMG YF Moderator

    Joined:
    Jul 26, 2004
    Messages:
    5,243
    Location:
    Sweden

    Tell me a designer of a 72 meter yacht that can do all of this, I´ll hire him.. :)
  13. Kajan

    Kajan Senior Member

    Joined:
    Nov 28, 2009
    Messages:
    292
    Location:
    Stockholm

    Henning, you’re taking my design way to serious. I’m not even sure I can call myself a designer, I’m a banker who loves anything that floats and when time allows, does some scribbling with a fantastic 2D program on the side.

    I would hope there are professionals in each and every one of the fields mentioned.

    I know I would like my yacht to be made by a team of specialists, the best money can buy in each field. I don’t think that level of experience and professional knowledge is to be found in every design house around, yet alone in one single person.

    I’m just a guy, who enjoys boat design. Had it been electrical or plumbing design, I probably would have posted elsewhere. ;)
  14. Kajan

    Kajan Senior Member

    Joined:
    Nov 28, 2009
    Messages:
    292
    Location:
    Stockholm
    Same, same...

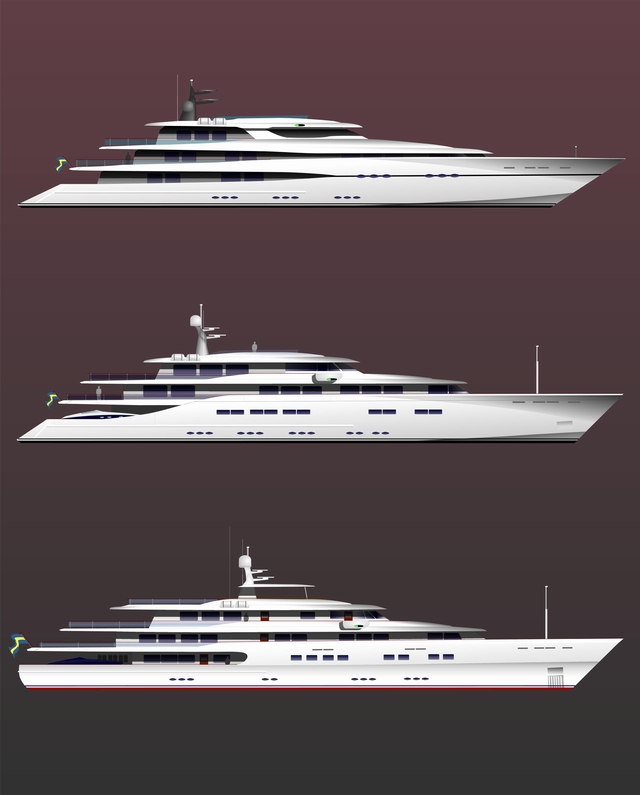

    I feel that some of the previous designs deserve some more attention since a change in colour and minor changes to the window configuration can contribute to the sense of a completely different Yacht, especially the “Golden Nugget”, now in white.

    The Classic has some added “old school” details such as slightly smaller windows, the mast moved forward some more and supporting structures between the decks.

    All 72m designs has almost the same interior volume and some 2,8m (9’3’’) head room before electronics and plumbing are in place (we're getting there Henning ;) ).

    Attached Files:

  15. Kajan

    Kajan Senior Member

    Joined:
    Nov 28, 2009
    Messages:
    292
    Location:
    Stockholm

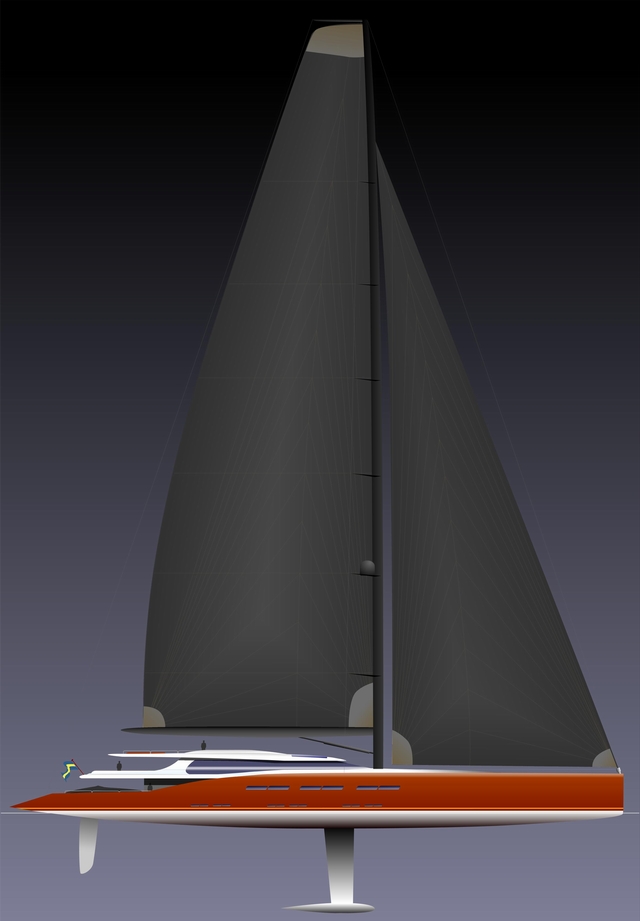

    70m

    My first contribution to the sailing community.

    Attached Files:

  16. 84far

    84far Senior Member

    Joined:
    Dec 15, 2008
    Messages:
    833
    Location:
    Brisbane, AUS
    Kajan, you might have to put the 'Banker' on hold ;). Another great design, keep it up.

    Far
  17. Kajan

    Kajan Senior Member

    Joined:
    Nov 28, 2009
    Messages:
    292
    Location:
    Stockholm
    Thanks, Far! To be honest, I wouldn’t mind a change of scenery.

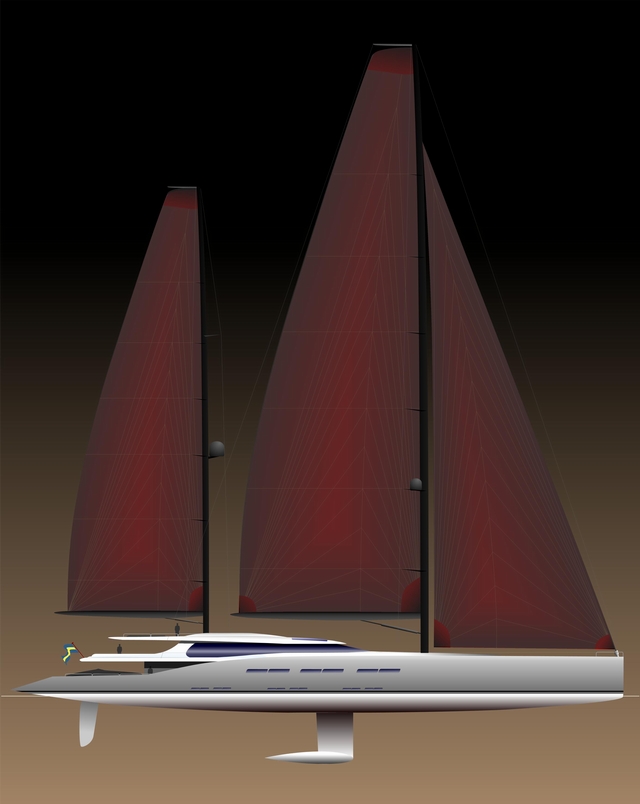

    Same 70m concept but with a ketch rig and a slightly less extreme keel.

    Attached Files:

  18. Yacht News

    Yacht News YF News Editor

    Joined:
    Mar 29, 2006
    Messages:
    18,414
    Location:
    Caribbean
    Interesting, looks futuristic yet contemporary!
  19. Apache2k

    Apache2k Member

    Joined:
    May 22, 2009
    Messages:
    29
    Location:
    Rovaniemi
    @Kajan
    I didnt see this post, and have been away for a while, but i just keep amazing your work progress.

    Answer to your question: Top, side and fron view are all you need to turn 2d to 3d, less is also ok but will make problems (I try to find big images like min. 3mpixels). The blueprints will help alot but mostly you cant get them for mega yachts. Most of them are very small size.
    If you cant get any real blueprints/drawings on top side front view, you can use also pictures.
    When you use pictures for modeling the only important thing is that the picture perspective should be at minimum.
    You will need alot of reference pictures from the real boat. (Depending how accurate you want to be your model)

    Hope this helps and sorry for my language as english is not my native language. (Some users are more interested on correct typing than the subject) :) :)
  20. Designova

    Designova New Member

    Joined:
    Mar 27, 2009
    Messages:
    9
    Location:
    Raleigh, NC
    Fascinating thread guys. Keep it up, and kudos to Mike, the Designer/Banker. Inspiring efforts. I also can see your rendering tricks improving over the course of the thread. :)
