Mike Kajan Yacht Designs IV

Discussion in 'Yacht Renderings & Plans' started by Kajan, Apr 30, 2019.

  1. Kajan

    Kajan Senior Member

    Joined:
    Nov 28, 2009
    Messages:
    329
    Location:
    Stockholm
    Mmm, intriguing perspectives indeed
  2. Kajan

    Kajan Senior Member

    Joined:
    Nov 28, 2009
    Messages:
    329
    Location:
    Stockholm

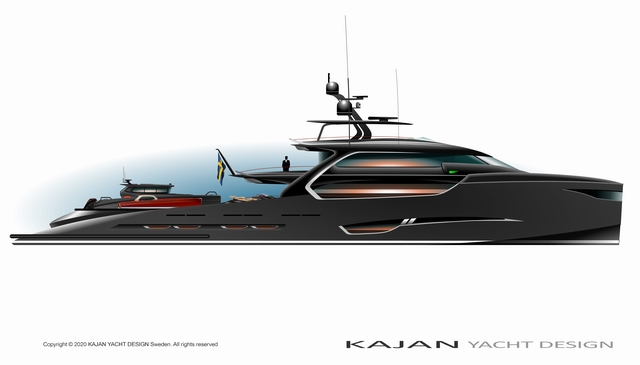

    I couldn’t resist playing with the previous design, now 46 m. and possibly a matching shadow?
    You don’t have to bring my tender and toy concepts, I think the submersible project Neptune (collaboration with Triton and Aston Martin) would work and look great on this platform.

    Think Ford F-350 in a tuxedo.

    46m Shadow 2020-09-09.jpg
    brian eiland likes this.
  3. wwch

    wwch Member

    Joined:
    Apr 21, 2016
    Messages:
    61
    Location:
    Switzerland
    She looks great. My kind of yacht!
  4. Yacht News

    Yacht News YF News Editor

    Joined:
    Mar 29, 2006
    Messages:
    25,481
    Location:
    Caribbean
    @Kajan any new design inspiration lately?
  5. Kajan

    Kajan Senior Member

    Joined:
    Nov 28, 2009
    Messages:
    329
    Location:
    Stockholm

    No not really but I did get an interesting suggestion in coming up with a new design for the Royal Danish yacht – HDMY Dannebrog, for fun.
    I know Mr. Modin had a go at the Royal Yacht HMY Britannia some years ago. Could be interesting, hmm
  6. Kajan

    Kajan Senior Member

    Joined:
    Nov 28, 2009
    Messages:
    329
    Location:
    Stockholm

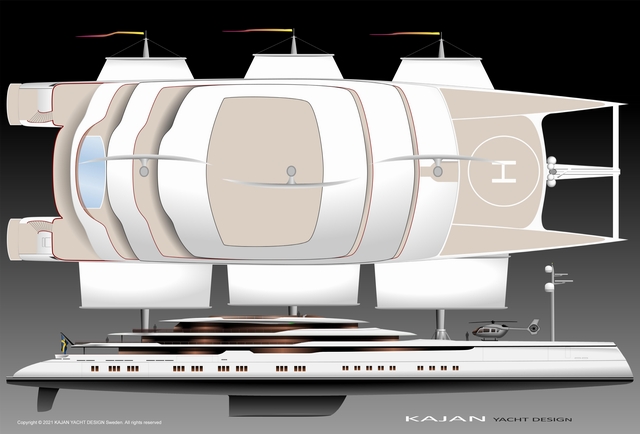

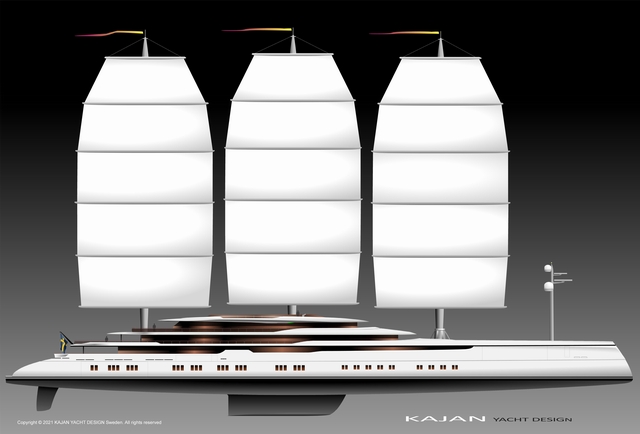

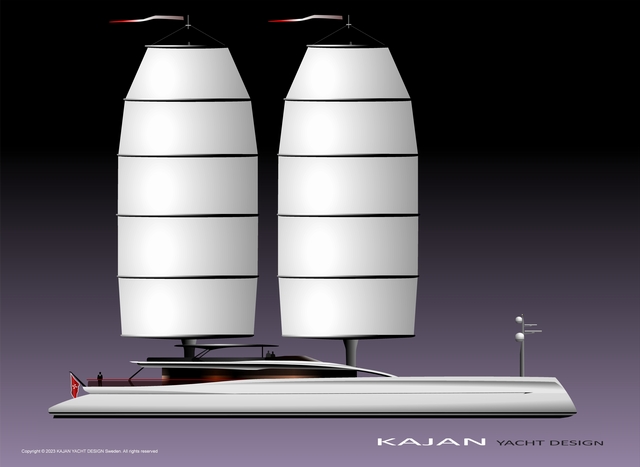

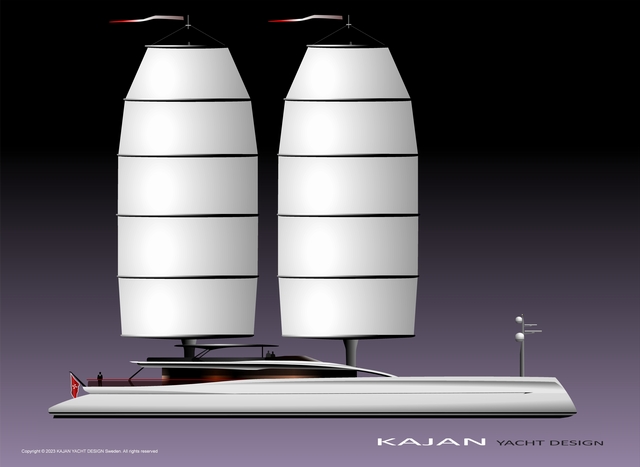

    120 m Catamaran

    120m 210310.jpg
    120m Cat+top.jpg
    Gage Rowden, HTMO9 and YachtForums like this.
  7. Yacht News

    Yacht News YF News Editor

    Joined:
    Mar 29, 2006
    Messages:
    25,481
    Location:
    Caribbean
    Nice... looks very modern. I wish more owners would be willing to build stuff like this. The dyna rig has only been executed twice on yachts so far as you know... "Maltese Falcon" and "Black Pearl".
  8. Kajan

    Kajan Senior Member

    Joined:
    Nov 28, 2009
    Messages:
    329
    Location:
    Stockholm

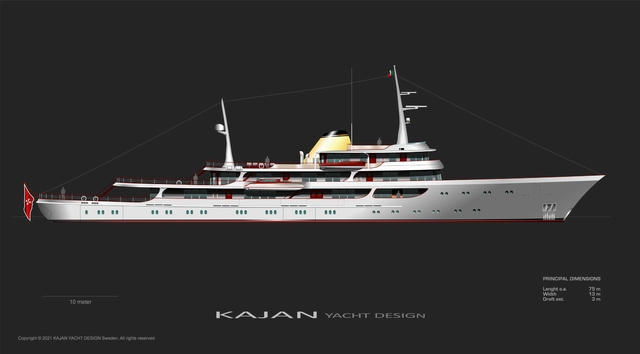

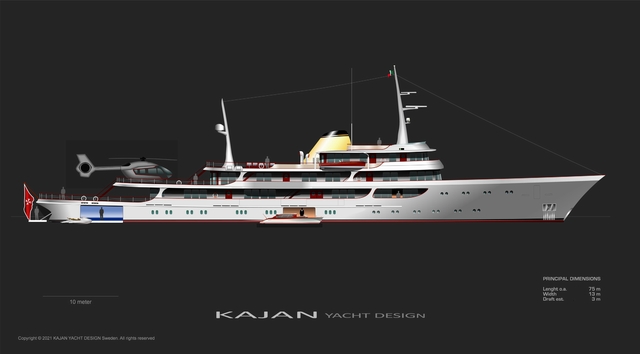

    75 m Classic. I find myself returning to the classic and perhaps timeless designs every now and then.
    This slightly updated concept have two VIP cabins with permanent private balconies.
    The perfect place for some secluded contemplation in port, at anchor or en route.

    Large beach club aft with large folding platforms for water activities or tenders. A touch and go helipad come in handy.


    75 ver 9 210307.jpg
    75 ver 9-1 210307.jpg

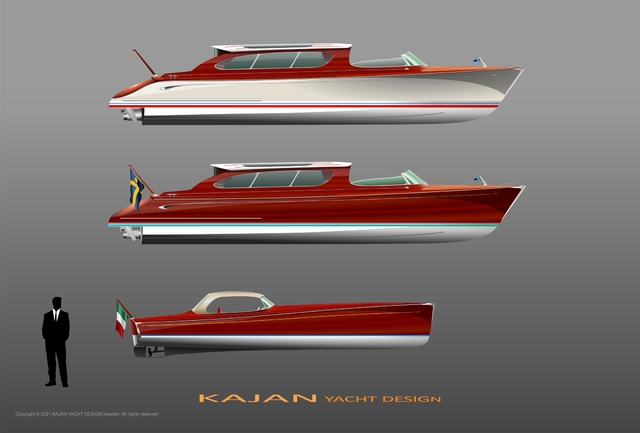

    Tender 201116.jpg
  9. Yacht News

    Yacht News YF News Editor

    Joined:
    Mar 29, 2006
    Messages:
    25,481
    Location:
    Caribbean
    I see that "Christina O" and "Talitha" had a child.
  10. Kajan

    Kajan Senior Member

    Joined:
    Nov 28, 2009
    Messages:
    329
    Location:
    Stockholm
    Over time you have all seen me reusing some of my old design elements or entire designs with some tweaks and since myself and many YF members are into cars, I thought it would be a suitable time to use one of my old designs for a special homage. The BMW CLS and the M-brand turned fifty last year!

    I really like the “Hofmeister Kink” on the C-pillar on the Beamers and it turns out I just might have the right design for the exercise. Long bonnet and shorter tail.

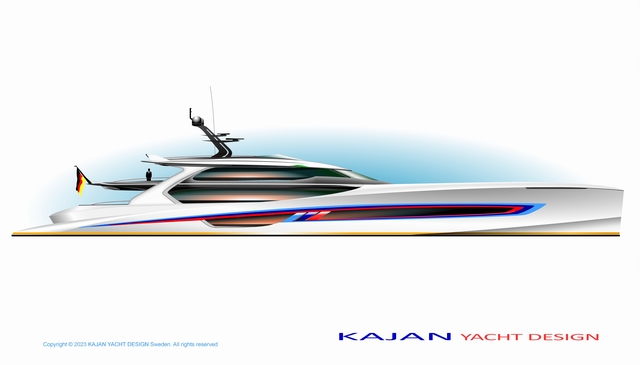

    BMW 50 20230806.jpg
    Littleboatdu, leeky and YachtForums like this.
  11. Kajan

    Kajan Senior Member

    Joined:
    Nov 28, 2009
    Messages:
    329
    Location:
    Stockholm
    If the previous 120 meter catamaran concept doesn’t meet your requirement, perhaps half the size will?

    ...yes, I have a sweet spot for the “BMW Hofmeister kink”... working on it...

    Attached Files:

    brian eiland and Littleboatdu like this.
  12. Kajan

    Kajan Senior Member

    Joined:
    Nov 28, 2009
    Messages:
    329
    Location:
    Stockholm

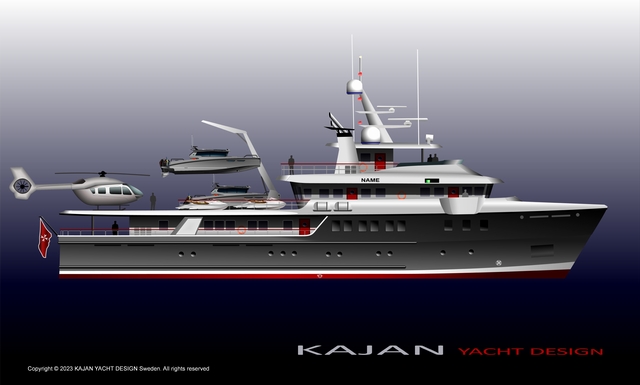

    Let the adventure begin!

    50 m Explorer .jpg

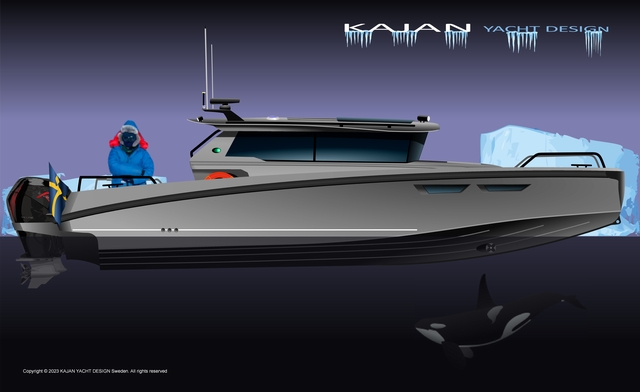

    Adventure 900.jpg
  13. Kajan

    Kajan Senior Member

    Joined:
    Nov 28, 2009
    Messages:
    329
    Location:
    Stockholm

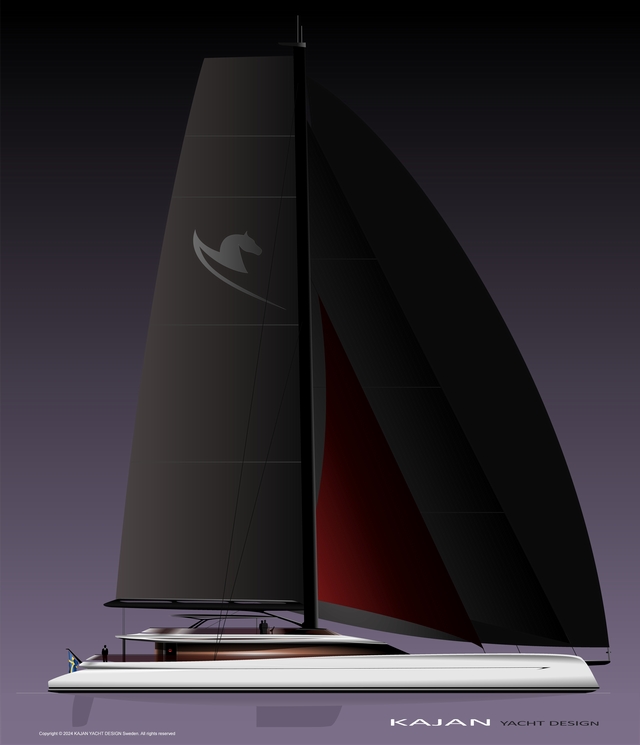

    Same same but slightly different... 50 m Catamaran.

    50 m Catamaran Sloop.jpg
    Gage Rowden and Yacht News like this.
  14. Yacht News

    Yacht News YF News Editor

    Joined:
    Mar 29, 2006
    Messages:
    25,481
    Location:
    Caribbean
    Nice...good to see you behind the screen again.
  15. Gage Rowden

    Gage Rowden Active Member

    Joined:
    Jun 9, 2015
    Messages:
    359
    Location:
    Florida
    The 120m cat design is amazing.
  16. Kajan

    Kajan Senior Member

    Joined:
    Nov 28, 2009
    Messages:
    329
    Location:
    Stockholm
    Thank you guys!
  17. brian eiland

    brian eiland Senior Member

    Joined:
    Jul 28, 2004
    Messages:
    2,955
    Location:
    St Augustine, Fl and Thailand

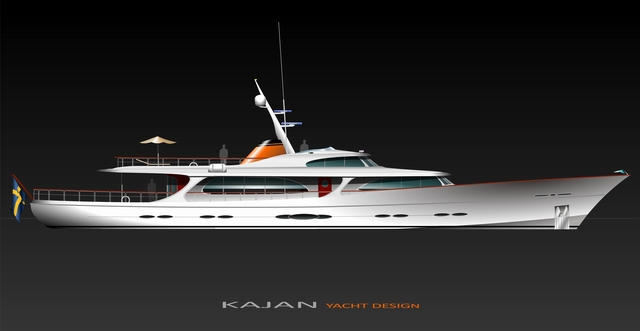

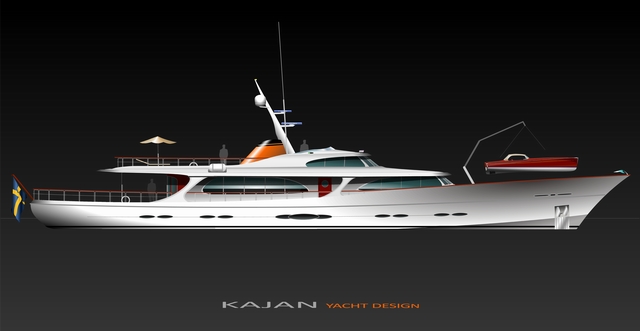

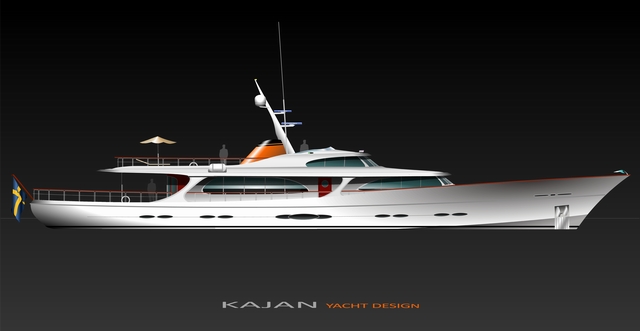

    I really like these two,...classy shear lines.
  18. Kajan

    Kajan Senior Member

    Joined:
    Nov 28, 2009
    Messages:
    329
    Location:
    Stockholm

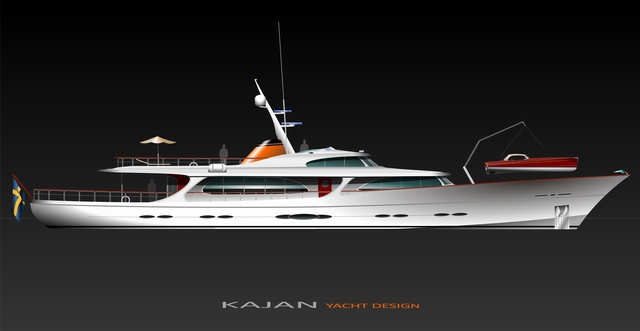

    Yes, the shear line, perhaps it is an age thing. ;)

    I am pushing 60 and I do not even have to try hard in liking the vintage and classic design of boats, yachts and ships.
    Big or small, sail or motor, they all put a big smile on my face.

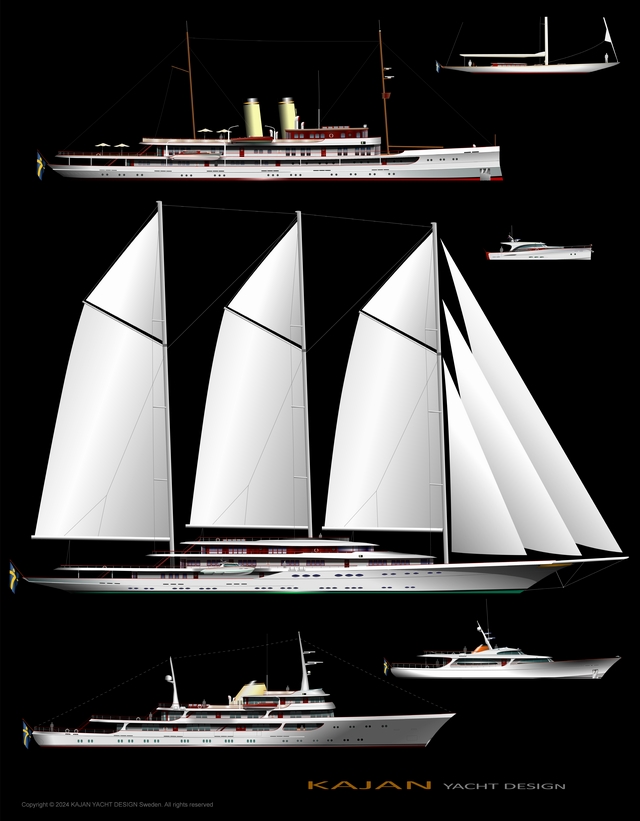

    Retro 240227.jpg
    ZacSc likes this.
  19. Kajan

    Kajan Senior Member

    Joined:
    Nov 28, 2009
    Messages:
    329
    Location:
    Stockholm
    Speaking of smiles. As I was moving my design work to a new hard drive, one old design stood out.

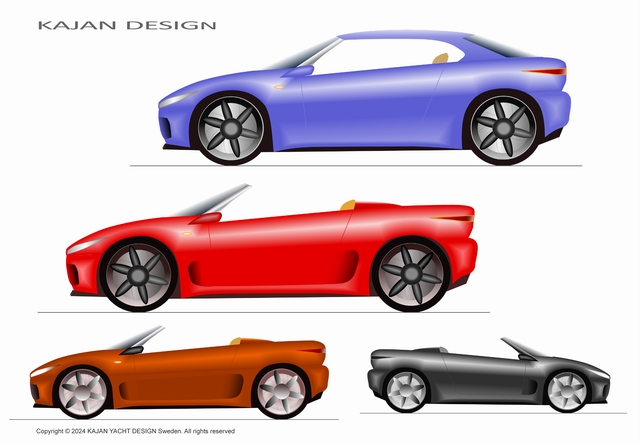

    A while back I was asked to add a small car to the boat rendering and since the car interest occasionally shines through on YF, I thought I would share my take on a small car from back in 2011.

    Not too many details, just a simple sketch.
