    The outboard concept is my old Downeaster/Picnic boat but with triple Seven Marine 627’s.
    This is a 42 ft. Epoxy Mahogany design with a modern stepped hull.

    42 Down Easter 181229.jpg
  2. Kajan

    Kajan Senior Member

    Joined:
    Nov 28, 2009
    Messages:
    297
    Location:
    Stockholm

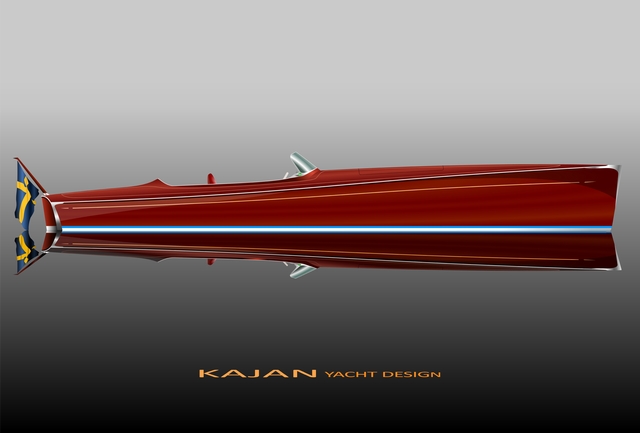

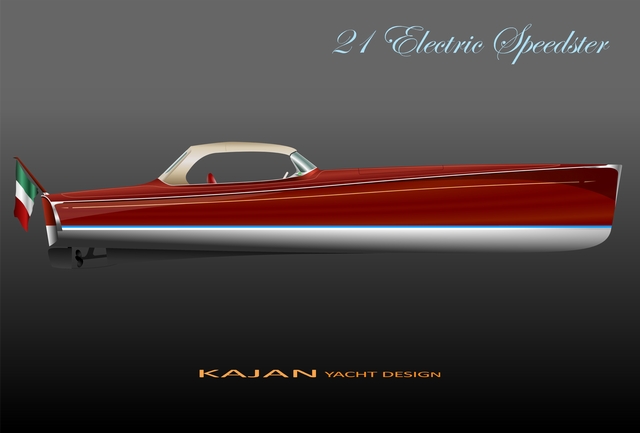

    21 ft. 2-seater Carbon fiber/epoxy mahogany Gentleman’s Runabout with a twist, up front is a 100 kW electrical engine with a 40 kWh battery.
    Top speed 40 knots or up to 100 nautical miles on a single charge.


    Speedster 21 Electrical 190128.jpg Speedster 21 no top Electrical.jpg
  3. chesapeake46

    chesapeake46 Senior Member

    Joined:
    Jul 26, 2009
    Messages:
    1,500
    Location:
    Chesapeake Bay, Delaware Bay & S.Jersey
    That's my favorite so far !
  4. Kajan

    Kajan Senior Member

    Joined:
    Nov 28, 2009
    Messages:
    297
    Location:
    Stockholm
    Thank you! I have to admit, it gives me a special joy designing wooden boats.
  5. Kajan

    Kajan Senior Member

    Joined:
    Nov 28, 2009
    Messages:
    297
    Location:
    Stockholm

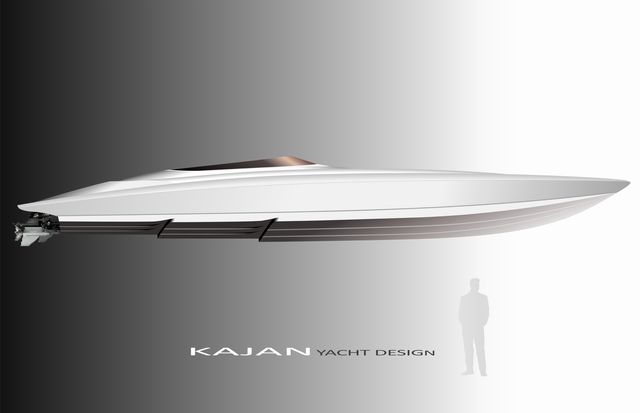

    ’Into the light’ 38 ft. Catamaran with twin Mercruiser 1550’s and M8 drives. Race or pleasure.


    Cat 2 x 1750 Merc 190115.jpg
  6. Kajan

    Kajan Senior Member

    Joined:
    Nov 28, 2009
    Messages:
    297
    Location:
    Stockholm

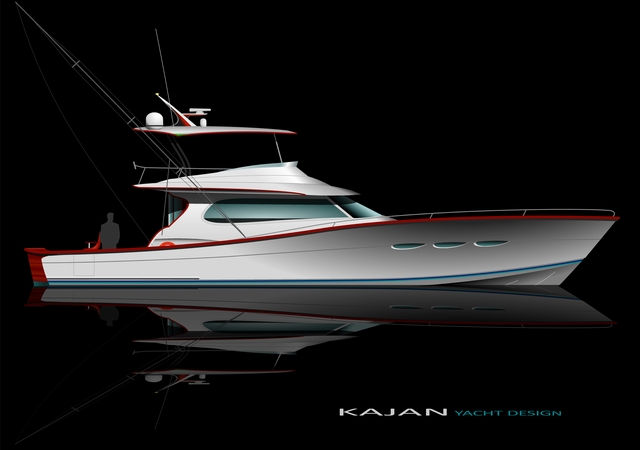

    57 ft. Sportfish with triple IPS 800. Nothing avant-garde just my take on the concept.

    57 Fish 181229.jpg
  7. Kajan

    Kajan Senior Member

    Joined:
    Nov 28, 2009
    Messages:
    297
    Location:
    Stockholm

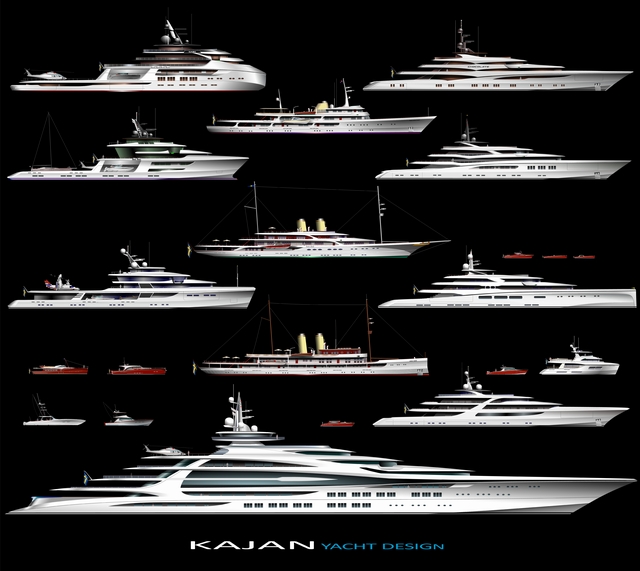

    Whatever floats your boat

    Collage 190530.jpg
  8. YachtForums

    YachtForums Administrator

    Joined:
    Dec 22, 2002
    Messages:
    19,753
    Location:
    South Florida
    Mike,

    The diversity of your designs is unmatched by any stylist I've seen (with the possible exception of Lars Modin). I'm planning to include your latest collection in a member mailer over the summer. I've spent the past 4 months systematically purging bounced email addresses from our database, which spans nearly 17 years now. Of our 55,000+ members, we have approx. 40,000 verified email addresses now. Let's see if we can get you a contract! :)

    Best!

    Carl
  9. Kajan

    Kajan Senior Member

    Joined:
    Nov 28, 2009
    Messages:
    297
    Location:
    Stockholm
    Thank You Carl!
  10. Kajan

    Kajan Senior Member

    Joined:
    Nov 28, 2009
    Messages:
    297
    Location:
    Stockholm

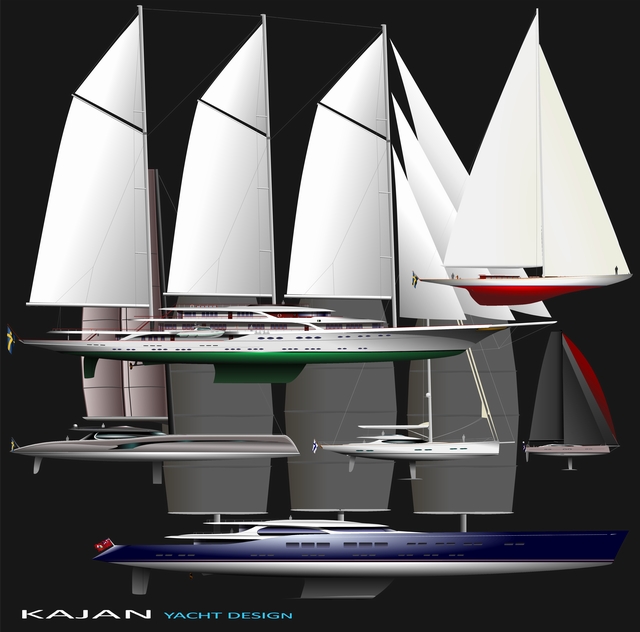

    Smooth sailing.

    Collage Sail 190530.jpg
  11. wwch

    wwch Member

    Joined:
    Apr 21, 2016
    Messages:
    31
    Location:
    Switzerland
    I like the one with the reverse bow on the left hand side. Do you have her on a picture with the whole rig visible?
  12. Kajan

    Kajan Senior Member

    Joined:
    Nov 28, 2009
    Messages:
    297
    Location:
    Stockholm
    The reverse bow design is a 59 m catamaran with a wing sail. More to come.
  13. Capt Ralph

    Capt Ralph Senior Member

    Joined:
    Sep 8, 2004
    Messages:
    8,974
    Location:
    Satsuma, FL
    Don't give all your ideas away..
    Wait till the interviews..
  14. YachtForums

    YachtForums Administrator

    Joined:
    Dec 22, 2002
    Messages:
    19,753
    Location:
    South Florida
    I know of at least two stylists that have earned business from showing their work on YF. Sabdes Yacht Design penned most of the Bering designs. One other notable name earned business here, but renders were removed by the yacht owner's request.

    We included Mike's work in a mailer 7-8 years ago but the economy is very different now. Let's hope he gets the recognition he deserves!
  15. Capt Ralph

    Capt Ralph Senior Member

    Joined:
    Sep 8, 2004
    Messages:
    8,974
    Location:
    Satsuma, FL
    Of course we wish him the best.
    I was just concerned in showing all his hands.
    Best always.
  16. nemier

    nemier New Member

    Joined:
    Sep 13, 2010
    Messages:
    17
    Location:
    North Vancouver
    Hi Kajan,
    Your designs are gorgeous! I particularly like the Explorer designs in post #5. Absolutely Stunning!
  17. Kajan

    Kajan Senior Member

    Joined:
    Nov 28, 2009
    Messages:
    297
    Location:
    Stockholm
    I appreciate your concern. I guess there is a delicate balance in what to show and not and at the same time attract interest.
  18. Kajan

    Kajan Senior Member

    Joined:
    Nov 28, 2009
    Messages:
    297
    Location:
    Stockholm
    Thank you!
    Yes, the Explorer trio has got some attention and the funny thing is that none of the designs did get that much recognition on their own.
  19. nemier

    nemier New Member

    Joined:
    Sep 13, 2010
    Messages:
    17
    Location:
    North Vancouver
    Have any of your Explorer designs gone for build? (Apologies for not knowing)
  20. Kajan

    Kajan Senior Member

    Joined:
    Nov 28, 2009
    Messages:
    297
    Location:
    Stockholm
    Not yet ;)
