Mike Kajan Yacht Designs IV

Discussion in 'Yacht Renderings & Plans' started by Kajan, Apr 30, 2019.

You need to be registered and signed in to view this content.
  1. Kajan

    Kajan Senior Member

    Joined:
    Nov 28, 2009
    Messages:
    289
    Location:
    Stockholm

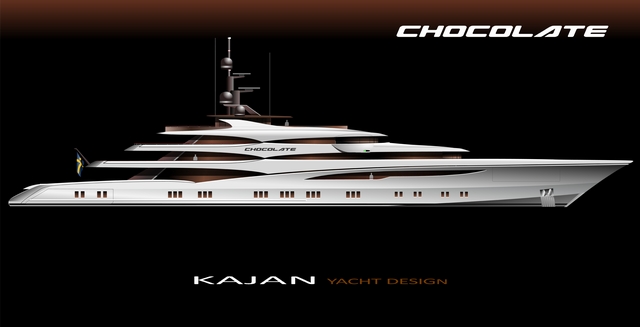

    This is one of my old concepts after a ‘refit’ including a 6 meter stretch and a new color. Allow me to introduce ‘CHOCOLATE’.


    90m ver4.jpg
  2. wwch

    wwch New Member

    Joined:
    Apr 21, 2016
    Messages:
    23
    Location:
    Switzerland
    Your 'refit' makes 'Chocolate' look more balanced and refined and less 'Navy' than the original.
  3. Kajan

    Kajan Senior Member

    Joined:
    Nov 28, 2009
    Messages:
    289
    Location:
    Stockholm
    Yes, I think so.
  4. Kajan

    Kajan Senior Member

    Joined:
    Nov 28, 2009
    Messages:
    289
    Location:
    Stockholm

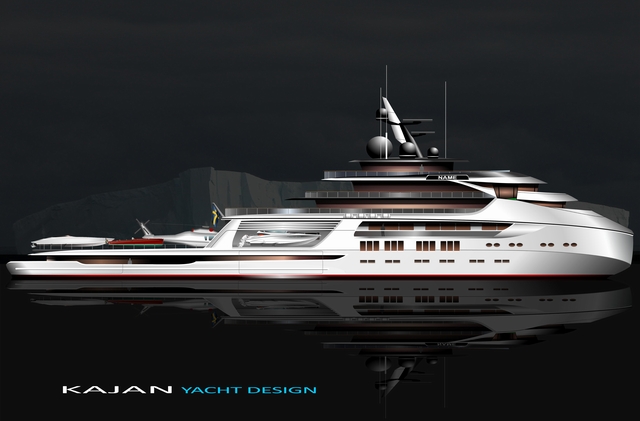

    To boldly go…

    85 m Explorer concept. 8 000+ NM range, Polar Ice class PC2, electric hybrid powered by liquefied natural gas (LNG), power-saving technology ‘Green Pilot’.
    Certified Helicopter operations (CAP 437) and enclosed hangar for two helicopters. Dive center (scuba and sub with tri-mix facilities).
    On the deck below the hangar you will find a large garage for tenders, SUV’s, cars, snowmobiles, electric scooters...

    Aft you have the large beach club area at sea level with open air pool and the possibility to enclose the entire area for the subzero pool parties (under the helipad).
    There is also a large sky lounge with a 360 view. Naturally you have the possibility to bring along scientists for some serious remote exploration and research.

    Explorer 190224.jpg
  5. Kajan

    Kajan Senior Member

    Joined:
    Nov 28, 2009
    Messages:
    289
    Location:
    Stockholm

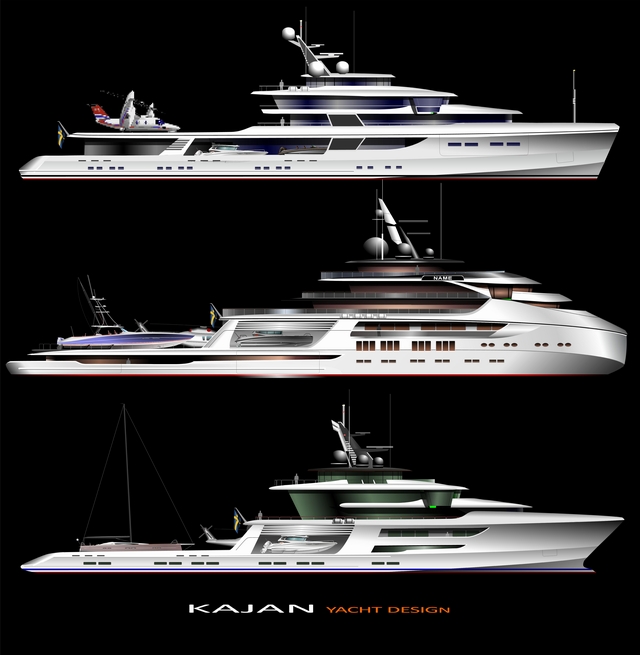

    …and in some good Explorer company.

    80m Explorer x 3.jpg
  6. Yacht News

    Yacht News YF News Associate

    Joined:
    Mar 29, 2006
    Messages:
    17,007
    Location:
    Caribbean

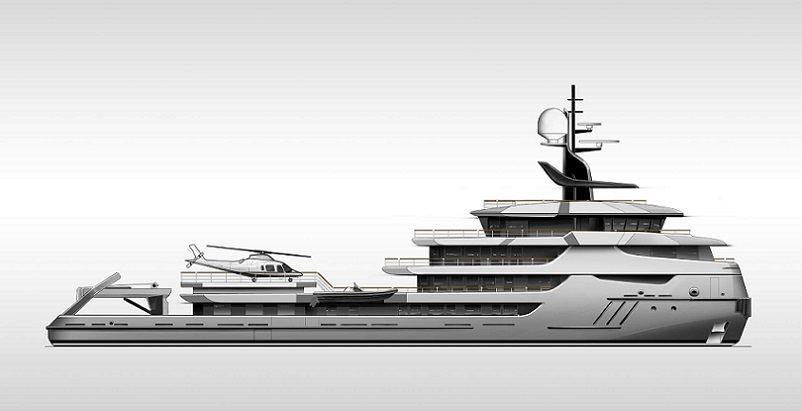

    This quite reminds me of project 'Ragnar' that is currently under conversion at ICON yachts.

    Attached Files:

  7. Kajan

    Kajan Senior Member

    Joined:
    Nov 28, 2009
    Messages:
    289
    Location:
    Stockholm
    Yes, I really like the overall appearance of the offshore supply ships.
    For this particular concept I was inspired by the modern Finnish icebreakers with a touch of the offshore supply ships on the North Sea but the inspiration for the entire front silhouette actually came from my Jet Ski ;)
  8. Kajan

    Kajan Senior Member

    Joined:
    Nov 28, 2009
    Messages:
    289
    Location:
    Stockholm

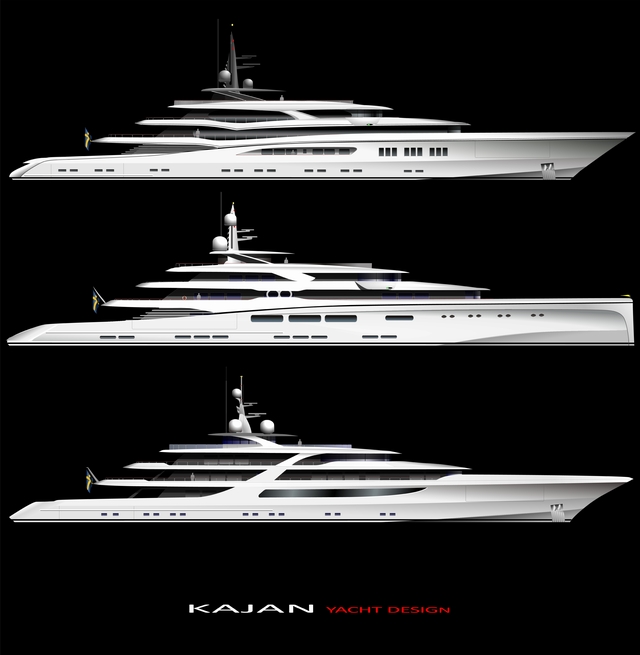

    Here are some of the old concepts after minor updates.

  9. wwch

    wwch New Member

    Joined:
    Apr 21, 2016
    Messages:
    23
    Location:
    Switzerland
    Explorer: to make it look more different from Ragnar you could replace the bow with an Ulstein X-Bow (not the pointy CX version, but something along the lines of an SX121), although Polar Class PC 2 is probably not feasible with an X-Bow. Maybe PC 5?
  10. Kajan

    Kajan Senior Member

    Joined:
    Nov 28, 2009
    Messages:
    289
    Location:
    Stockholm
    Nah, I believe my forward profile is different enough with the backswept superstructure and slanting nose, besides, what’s the point if I change the forward profile and it started to remind you of another existing one? I had not seen the Ragnar project before but if you check the profiles of most new Jet Skis, you will find more resemblance, I’m sticking with it.
  11. Kajan

    Kajan Senior Member

    Joined:
    Nov 28, 2009
    Messages:
    289
    Location:
    Stockholm

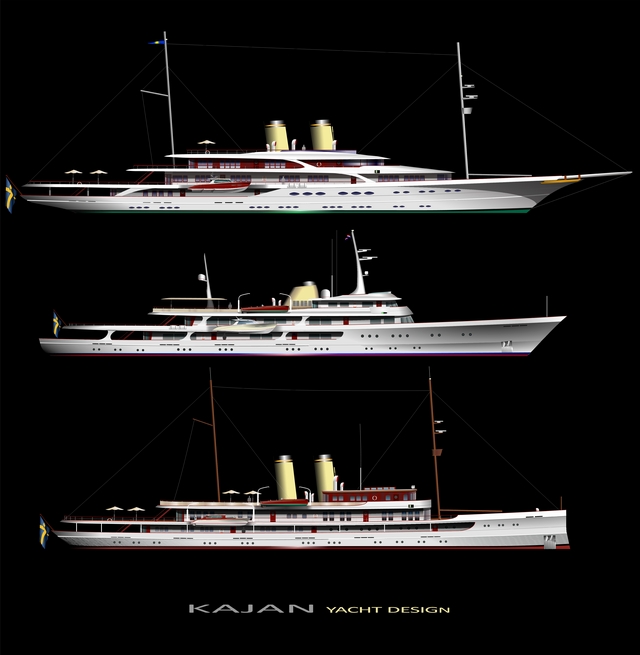

    The top and middle designs have been through updates but the bottom one is new and homage to the 100+ year old ship design.

    80m Vintage x 3.jpg
  12. Kajan

    Kajan Senior Member

    Joined:
    Nov 28, 2009
    Messages:
    289
    Location:
    Stockholm

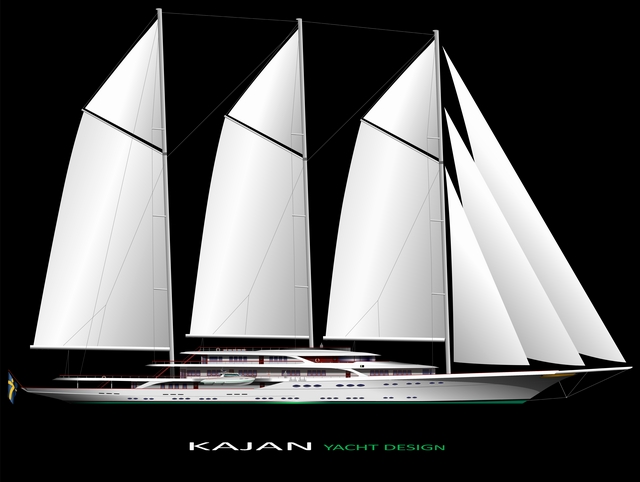

    My neo-classic design might even work with a schooner rig?

    110 Neoclassic sail.jpg

    Disclaimer: I should point out to my antagonists that you might find similar rigging on other existing designs and I’m not changing it on account of that. Oh, and that goes for the choice of color as well ;)
  13. Yacht News

    Yacht News YF News Associate

    Joined:
    Mar 29, 2006
    Messages:
    17,007
    Location:
    Caribbean
    Gorgeous!! That first specimen reminds me of a blend of "Nero" and "Talitha" with a whole lot of modern vibes going on.
  14. wwch

    wwch New Member

    Joined:
    Apr 21, 2016
    Messages:
    23
    Location:
    Switzerland
    I see your point and agree. The many possibilities she offers for cruising in remote areas makes one dream!
  15. Kajan

    Kajan Senior Member

    Joined:
    Nov 28, 2009
    Messages:
    289
    Location:
    Stockholm
    Guys, I like this new humble stance, maybe there is no need for a disclaimer ;-)
  16. Gage Rowden7

    Gage Rowden7 Senior Member

    Joined:
    Feb 19, 2016
    Messages:
    395
    Location:
    Boca Raton Fl
    This design is amazing! I love it. What would the length be for this one? Either way very impressive.

    The modern touch to your classic design yachts are very nice.

    More of your projects should be built!
  17. Kajan

    Kajan Senior Member

    Joined:
    Nov 28, 2009
    Messages:
    289
    Location:
    Stockholm

    Thank you! The length is 110 meter including the bowsprit.
  18. Kajan

    Kajan Senior Member

    Joined:
    Nov 28, 2009
    Messages:
    289
    Location:
    Stockholm

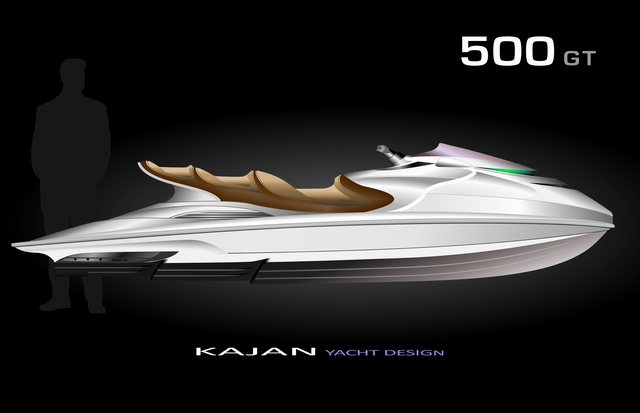

    To better illustrate the origin of the front profile on the Explorer concept, I have made a Jet Ski design.

    In this Jet Ski design I kept the louvres that cover the starboard tender on the Explorer and made a ventilation grid.
    Replace the seat with a helipad and you are back to the Explorer design ;)

    Jet Ski 190505.jpg
  19. Kajan

    Kajan Senior Member

    Joined:
    Nov 28, 2009
    Messages:
    289
    Location:
    Stockholm

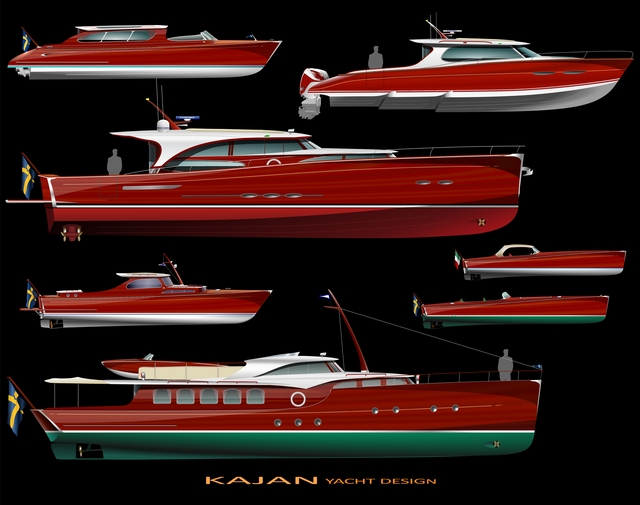

    Here is a Woody sample of some old and new stuff to come.

    Woody Collection.jpg
  20. Yacht News

    Yacht News YF News Associate

    Joined:
    Mar 29, 2006
    Messages:
    17,007
    Location:
    Caribbean
    The outboard version looks quite nice.
