Mike Kajan Yacht Designs III

Discussion in 'Yacht Renderings & Plans' started by Kajan, Dec 4, 2011.

You need to be registered and signed in to view this content.
  1. Gage Rowden7

    Gage Rowden7 Senior Member

    Joined:
    Feb 19, 2016
    Messages:
    333
    Location:
    Boca Raton Fl
    It has been awhile... You wouldn't happen to have any new designs yet would you?
  2. Kajan

    Kajan Senior Member

    Joined:
    Nov 28, 2009
    Messages:
    260
    Location:
    Stockholm

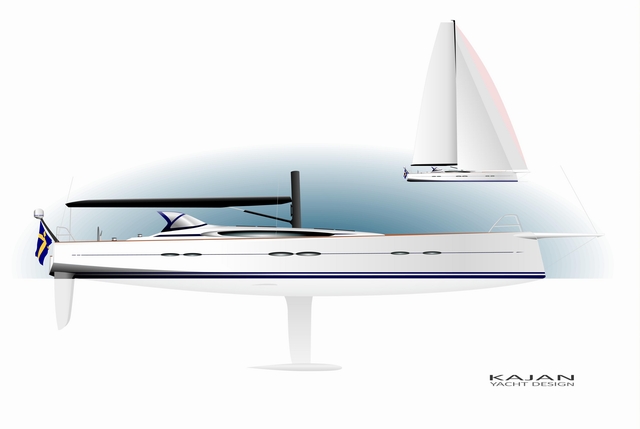

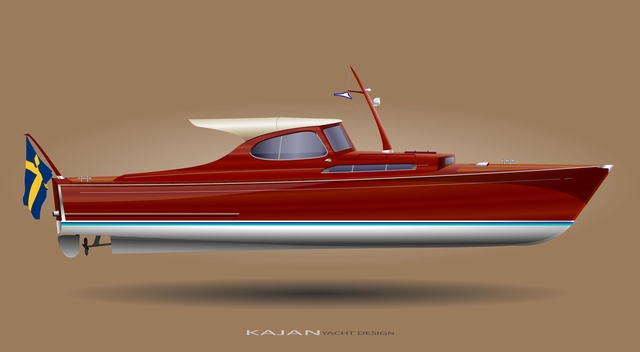

    Nothing in the big boat category at the moment but a 55 ft. sail concept with a retractable hydrofoil and canting keel together with a slight alteration to the previous 28 ft. mahogany concept, this time with a touch of down Easter look.

    Retro 28.jpg
  3. Gage Rowden7

    Gage Rowden7 Senior Member

    Joined:
    Feb 19, 2016
    Messages:
    333
    Location:
    Boca Raton Fl
    Sweet!! I love the 55 ft sailboat concept! Great job on that I look forward to seeing more of your designs.
  4. Kevin

    Kevin YF Moderator

    Joined:
    Nov 25, 2004
    Messages:
    2,551
    Location:
    Montreal, Qc, Canada
    As sleek as that sailboat is, the transom looks a little ill fitting... just my humble opinion.
  5. Kajan

    Kajan Senior Member

    Joined:
    Nov 28, 2009
    Messages:
    260
    Location:
    Stockholm
    I was aiming for a design with some of the hull characteristics of a modern race hull with a very wide stern in combination with a more traditional deck. I guess the transom appears a little cut-off in the side view, perhaps this illustration put things in a different perspective?

    Transom R55.jpg
  6. Kajan

    Kajan Senior Member

    Joined:
    Nov 28, 2009
    Messages:
    260
    Location:
    Stockholm

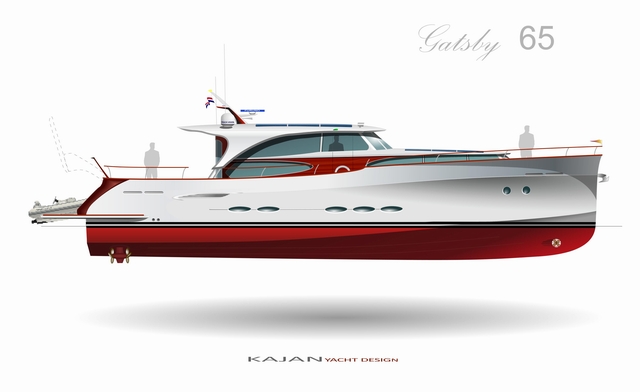

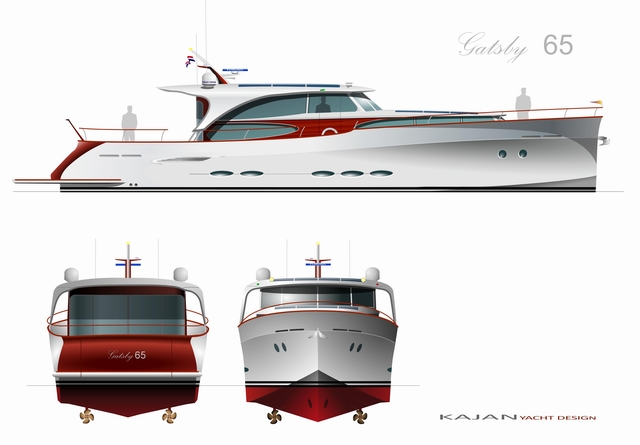

    With a timeless design, the Gatsby 65 is a gentleman yacht of our time.
    10 Kw solar arrays with diesel electric propulsion and azimuth pod drives.

    Gentleman's Yacht concept 65 YF.jpg
    Gentleman's Yacht concept 65 front YF.jpg

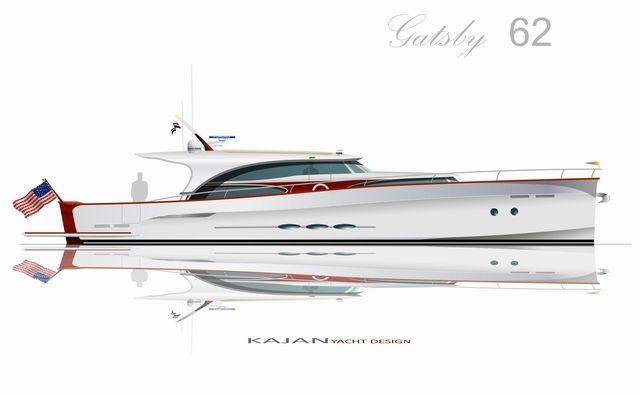

    Gentleman's Yacht concept 62 YF.jpg
  7. YachtForums

    YachtForums Publisher/Admin

    Joined:
    Dec 22, 2002
    Messages:
    19,186
    Location:
    South Florida
    Welcome back Mike! Long time, no post. For our readers who have YF t-shirts, Mike was the artist behind our t-ship...

    Attached Files:

  8. wwch

    wwch New Member

    Joined:
    Apr 21, 2016
    Messages:
    15
    Location:
    Switzerland
    I hope your great inspirations are flowing again and we will see the results on YF!
  9. Kajan

    Kajan Senior Member

    Joined:
    Nov 28, 2009
    Messages:
    260
    Location:
    Stockholm
    Thanks Carl! Yes, long time no post. I have to say, I’m a bit puzzled to the lack of concepts being posted in general?
  10. Kajan

    Kajan Senior Member

    Joined:
    Nov 28, 2009
    Messages:
    260
    Location:
    Stockholm
    Hey wwch! Yes, I might have some concepts in the pipe ;-)
  11. YachtForums

    YachtForums Publisher/Admin

    Joined:
    Dec 22, 2002
    Messages:
    19,186
    Location:
    South Florida
    If I was a designer and had to compete with you or Lars, I doubt I'd post too!
  12. Kajan

    Kajan Senior Member

    Joined:
    Nov 28, 2009
    Messages:
    260
    Location:
    Stockholm

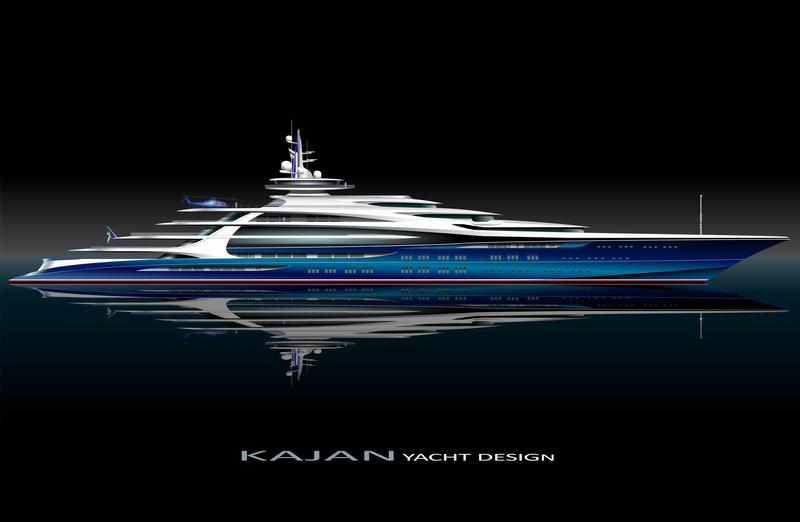

    At 220 meter/722 ft. this concept would be the largest yacht in the world both in length and displacement if ever built.

    With a beam of 28 meter/92 ft. and 9 decks, it’s easy to understand that you will not have any problems in deciding what, tenders, toys, cars, helicopters or friends to leave on the dock – just bring them all! One issue though, should you put your 80 ft. tender in a garage under the foredeck or use a Drive-in tender bay?

    On deck 9 you will find a 200 m2 "crow’s nest" with a 360 degree view and surrounding deck. Perhaps the ultimate owner’s deck or a sky lounge with the best seats in the house? Below the crow’s nest you can land on the LY3/MCA-certified helideck but you can also store your friend’s helicopter next to yours, safely in the enclosed hangar.

    Helicopters are practical but what makes this concept a bit different is the possibility to bring along a turbine powered 10-seater seaplane for some interesting island hopping. The mandatory sub goes without saying and there is even a hot air balloon on the options list. ;)


    Ho Ho Ho Merry Christmas!

    220 blue 181222 jpg test.jpg
  13. YachtForums

    YachtForums Publisher/Admin

    Joined:
    Dec 22, 2002
    Messages:
    19,186
    Location:
    South Florida
    Mike,

    If you can you make a Christmas version of the 220m, it would be a nice post card for the front page. Now, if I can just figure out what thread to connect it to... :)

    Or maybe a Happy New Year version?
    Last edited: Dec 22, 2018
  14. Capt Ralph

    Capt Ralph Senior Member

    Joined:
    Sep 8, 2004
    Messages:
    6,274
    Location:
    Jax FL
    Oh Wow.
    I found the Christmas Card.
    Beautiful.
    Thank you Mike.

    Safe and wonderful Christmas & new year to all

    Ralph & Josie
