Mike Kajan Yacht Designs III

Discussion in 'Yacht Renderings & Plans' started by Kajan, Dec 4, 2011.

You need to be registered and signed in to view this content.
  1. Yacht News

    Yacht News YF News Editor

    Joined:
    Mar 29, 2006
    Messages:
    18,558
    Location:
    Caribbean
    lololol. You guys are funny!
  2. Kajan

    Kajan Senior Member

    Joined:
    Nov 28, 2009
    Messages:
    292
    Location:
    Stockholm

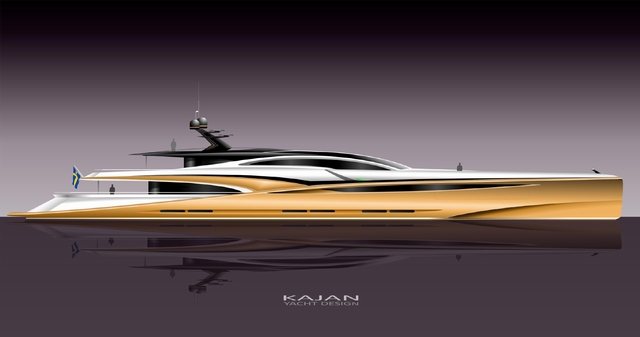

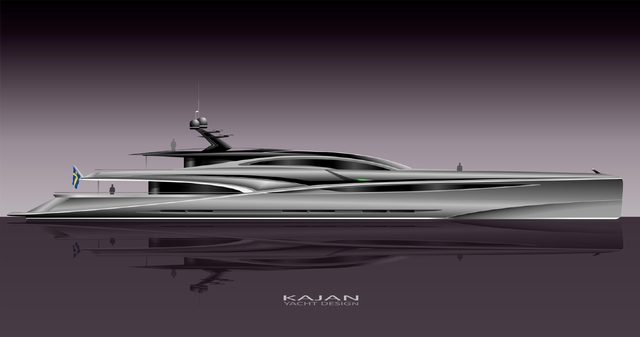

    Super Sport 66m. Precious metals…

    Attached Files:

  3. Kajan

    Kajan Senior Member

    Joined:
    Nov 28, 2009
    Messages:
    292
    Location:
    Stockholm
    …less is more?

    Attached Files:

  4. ombreetsoleil

    ombreetsoleil Senior Member

    Joined:
    Aug 19, 2011
    Messages:
    838
    Location:
    The Netherlands
    A good proposal for a Van Dutch 90ft!!
  5. Kajan

    Kajan Senior Member

    Joined:
    Nov 28, 2009
    Messages:
    292
    Location:
    Stockholm

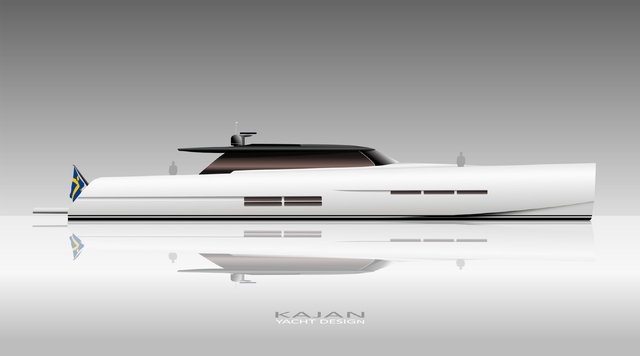

    ...or even a 120. I think my design might be to cluttered though :)
  6. Kajan

    Kajan Senior Member

    Joined:
    Nov 28, 2009
    Messages:
    292
    Location:
    Stockholm

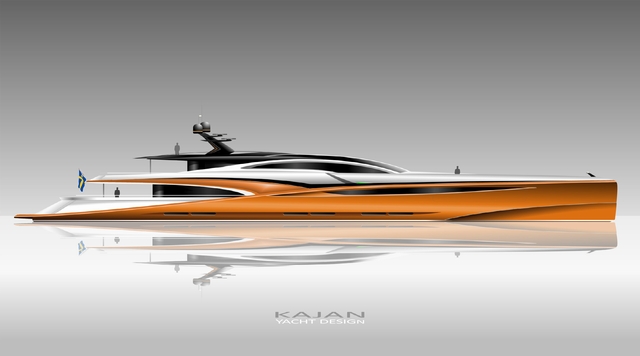

    Gold, Platinum, we need Copper!

    Attached Files:

  7. Kajan

    Kajan Senior Member

    Joined:
    Nov 28, 2009
    Messages:
    292
    Location:
    Stockholm

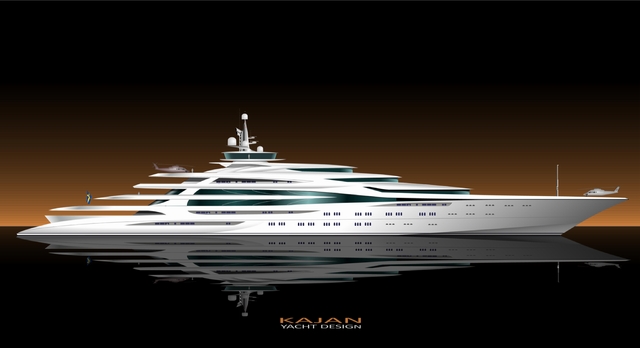

    In the light of recent events, 220m doesn’t seem that unlikely anymore. This is my old 202m New Years Eve (2011/2012) concept with some minor changes and slightly stretched to better harmonize with the overall dimensions.

    Attached Files:

  8. Kajan

    Kajan Senior Member

    Joined:
    Nov 28, 2009
    Messages:
    292
    Location:
    Stockholm

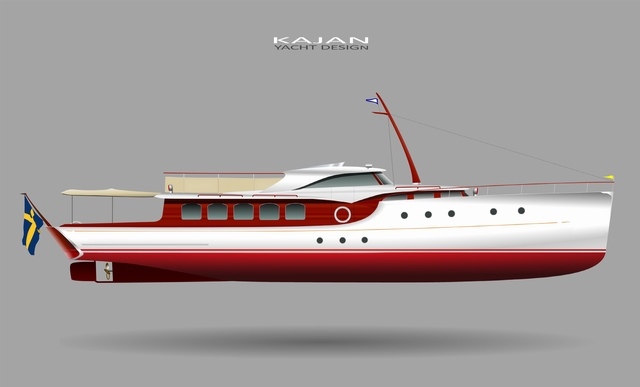

    There are quite a few classic beauties in the Swedish archipelago and after a recent visit onboard an absolute gem, I was inspired to draw my own version.
    I think my own personal classic yacht would look something like this. 64 ft. with accommodations for 8 and a 17 ft. runabout barrelback to top it all off.

    The modern details would be discreetly blended with the wood interior, like in some of the Van Dam built crafts. I’m actually planning a GA for this one :)

    Attached Files:

  9. Kafue

    Kafue Senior Member

    Joined:
    Nov 29, 2006
    Messages:
    1,151
    Location:
    Gold Coast Australia
    Like to see a floor plan on this latest design.
    The lines are very nice, just not in brown.

    The floor plan could show the access from the pilothouse to the side decks, I can't see where this might be. Would make a big difference in the practicality of this design.

    What I really like about your Classic designs is that they are not modernised copies of the old time original, they just take the essence of what made the look "kind to the eye" and then become Kajan.
    No one remembers the guys who made replicas with modern insides.

    When one of your boats, or Lars are seen, someone will say Kajan or Modin!
    They are unique.
    Same as we say Ed Monk Jr. or Fexas or De Fever.
  10. brian eiland

    brian eiland Senior Member

    Joined:
    Jul 28, 2004
    Messages:
    2,854
    Location:
    St Augustine, Fl and Thailand
    I'll second that motion....very interesting rendering, those classics
  11. Kevin

    Kevin YF Moderator

    Joined:
    Nov 25, 2004
    Messages:
    2,665
    Location:
    Montreal, Qc, Canada
    I feel the brown/wooden hull diminishes the lines too much. Seeing a proper, varnished wood hull might be a beautiful sight though. I'm kinda' mixed on this one...
  12. Kajan

    Kajan Senior Member

    Joined:
    Nov 28, 2009
    Messages:
    292
    Location:
    Stockholm
    Gentlemen, I’m thinking sliding doors to allow passage to the side decks.

    Attached Files:

  13. Kajan

    Kajan Senior Member

    Joined:
    Nov 28, 2009
    Messages:
    292
    Location:
    Stockholm

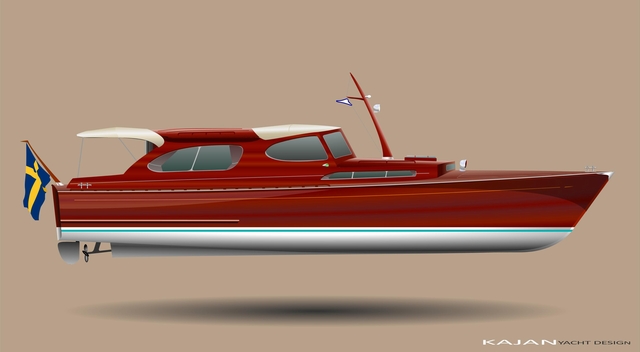

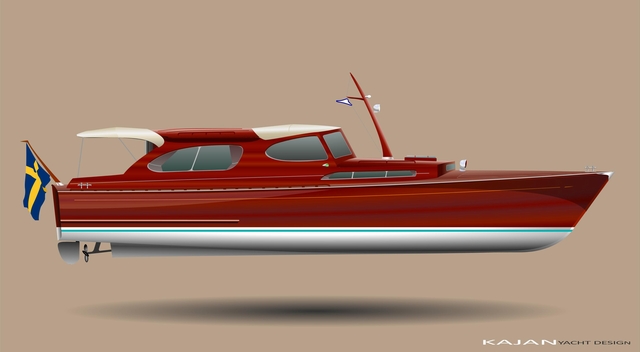

    Did I just doze off? Time really does fly. Lately I’ve been helping a dear friend visualize some ideas for a pocket sized gentleman’s yacht, 30 feet mahogany in this case.
    The idea was to have a double berth in the forward cabin, a galley and head, a saloon with a dinner table for four and a fixed roof with 6 ft. head clearance.
    The owner also wanted an open aft deck with 2 comfortable built in lounge seats, a place to watch the sun set and contemplate.
    The brief also stated the possibility to have some wind in the hair while at the helm.

    Pocket Saloon 150102.jpg
  14. Kajan

    Kajan Senior Member

    Joined:
    Nov 28, 2009
    Messages:
    292
    Location:
    Stockholm

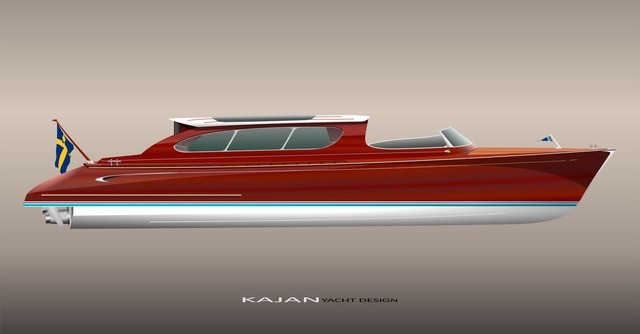

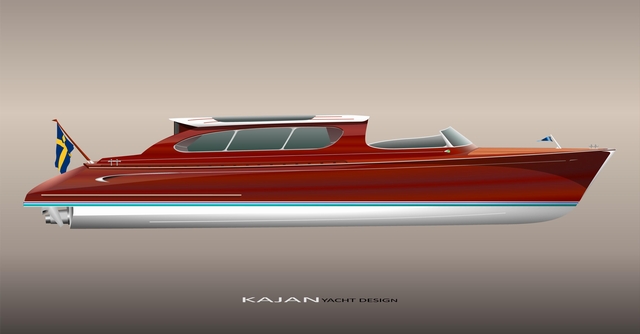

    I believe some of the design cues can be used in a 35 ft. tender design as well, Venetian style.

    Tender 150102.jpg
  15. ombreetsoleil

    ombreetsoleil Senior Member

    Joined:
    Aug 19, 2011
    Messages:
    838
    Location:
    The Netherlands
    Reminds me of the 1929 Swedish Petterson we used to own and used for the Amsterdam canals.

    It was Swedish.
    It was a beauty but a lot of maintenance.
  16. Yacht News

    Yacht News YF News Editor

    Joined:
    Mar 29, 2006
    Messages:
    18,558
    Location:
    Caribbean
    Hey Kajan... nice to see you! :)
  17. Kajan

    Kajan Senior Member

    Joined:
    Nov 28, 2009
    Messages:
    292
    Location:
    Stockholm

    If you Google ”Tärnan 1929”, chances are it’s your family’s old Pettersson boat.
  18. Kajan

    Kajan Senior Member

    Joined:
    Nov 28, 2009
    Messages:
    292
    Location:
    Stockholm
    Thanks Ron! It feels good to be back.
  19. ombreetsoleil

    ombreetsoleil Senior Member

    Joined:
    Aug 19, 2011
    Messages:
    838
    Location:
    The Netherlands
    hahaha Yes it looks almost identical, but it's not our old one.
    I will try to find a picture of her.
  20. bernd1972

    bernd1972 Senior Member

    Joined:
    Mar 1, 2011
    Messages:
    250
    Location:
    Flensburg, Germany
    Haha, concernig the Classic 64, Mr. Mikael Kajanson, very nice! The stern is as swedish a it can get. ;-)
