Mike Kajan Yacht Designs III

Discussion in 'Yacht Renderings & Plans' started by Kajan, Dec 4, 2011.

You need to be registered and signed in to view this content.
  1. Yacht News

    Yacht News YF News Editor

    Joined:
    Mar 29, 2006
    Messages:
    19,090
    Location:
    Caribbean
    Wow, that design has got some style and attitude! Nice work sir!
  2. Kajan

    Kajan Senior Member

    Joined:
    Nov 28, 2009
    Messages:
    297
    Location:
    Stockholm

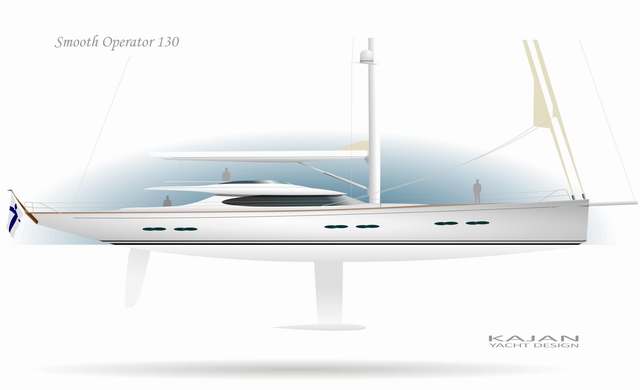

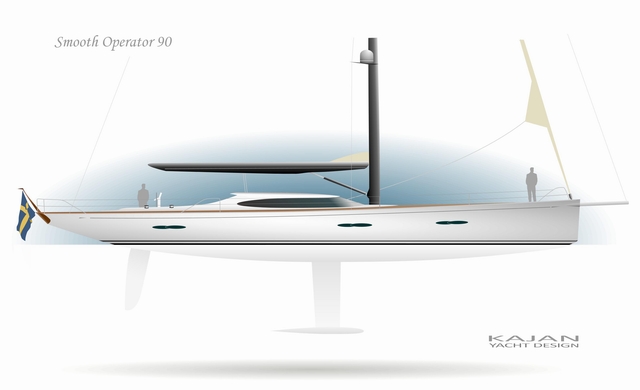

    Here are two modern Pilot Cutter concepts, 90 ft. and 130 ft Fly. This stern might not be the best choice for pure performance but from a design perspective it’s a look I really enjoy playing around with, especially in combination with a modern superstructure and a high performance hull and rig.

    Attached Files:

  3. Glad to see you back since long time. In case you are doing sailing yachts now, How would you imagine from your point of view in a drawing the WHITE PEARL Project from ADM Kiel recent announced could be ? because none design is launched officially until now, we are free to suppose many things. Suggestions !
  4. Kajan

    Kajan Senior Member

    Joined:
    Nov 28, 2009
    Messages:
    297
    Location:
    Stockholm

    MKM,
    Is it the ADM Kiel hull no. 422 75m project you’re referring to?
  5. Yacht News

    Yacht News YF News Editor

    Joined:
    Mar 29, 2006
    Messages:
    19,090
    Location:
    Caribbean
    I like the first of the two! It is a little more classic.
  6. Kajan

    Kajan Senior Member

    Joined:
    Nov 28, 2009
    Messages:
    297
    Location:
    Stockholm

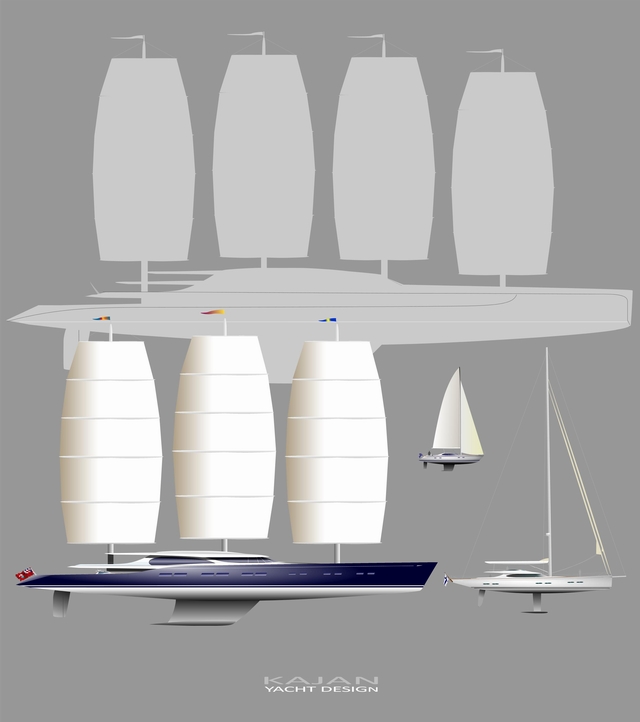

    150m. Putting things into perspective…
    The dinghy in the middle is my old 50ft concept :)

    Attached Files:

  7. ^ Impressive comparision diagrams. I have to mention that the planned ADB HDW Kiel of average 130m is really huge, according you see in the empty design already, compared to your ultimate 130 ft included. What's a difference m/ft this big makes. I am waiting for a wonderful 150m of yours. The sails come technology already from one of yours and seems Maltese Falcon similarities. ;) Because of tide & draft reasons i think they will use stabilizators in the steel hull like cruiseships instead of normal small Sailing yachts concept. The one you drew is too high together with the superstructure, I suppose. See how TallShips are for example.
  8. Kajan

    Kajan Senior Member

    Joined:
    Nov 28, 2009
    Messages:
    297
    Location:
    Stockholm

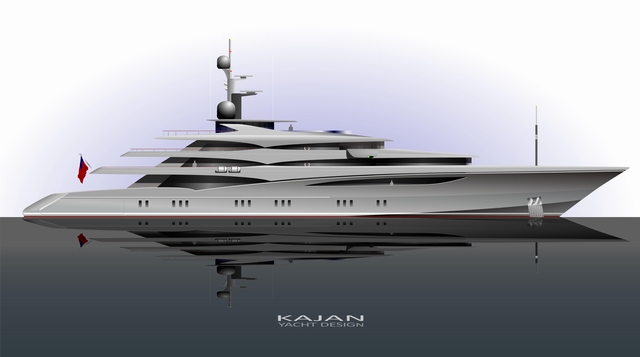

    276ft. Too much Navy?

    Attached Files:

  9. ScotL

    ScotL Senior Member

    Joined:
    Jun 29, 2009
    Messages:
    513
    Location:
    Green Bay/Milwaukee,WI
    I don't think so.

    Another great job, Mike. You never let us down. I always look forward to seeing a new post from you.
  10. Yacht News

    Yacht News YF News Editor

    Joined:
    Mar 29, 2006
    Messages:
    19,090
    Location:
    Caribbean
    It reminds me of a cross between the new "Hampshire II" and "Talisman-C"
  11. Kajan

    Kajan Senior Member

    Joined:
    Nov 28, 2009
    Messages:
    297
    Location:
    Stockholm
    Thanks Scot, you’re too kind.

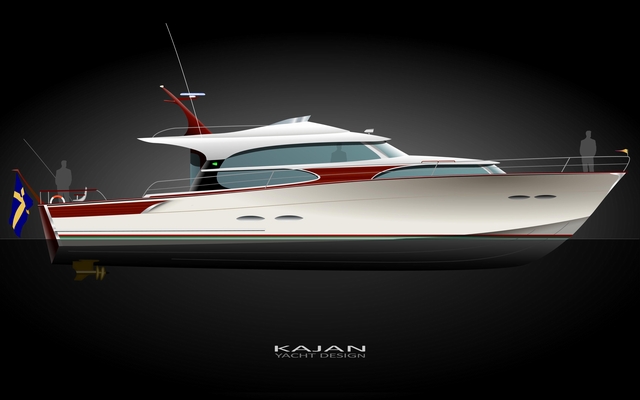

    This is a 70ft. modern retro, consisting of various bits n’ pieces from my old concepts. ´…gone fishin’.

    Attached Files:

  12. Kajan

    Kajan Senior Member

    Joined:
    Nov 28, 2009
    Messages:
    297
    Location:
    Stockholm

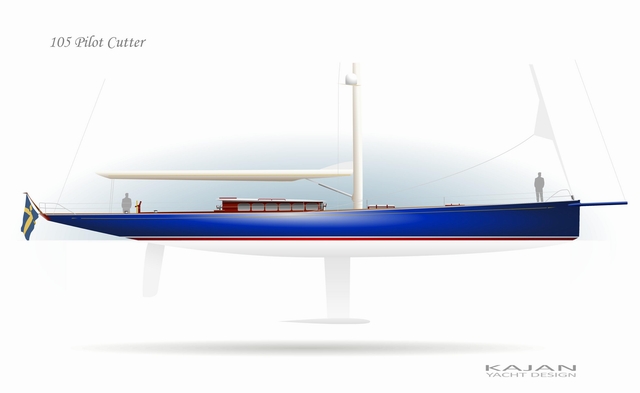

    While in the Semi-Retro mood, 105ft Pilot Cutter with a slightly larger single deckhouse compared to two smaller ones that are rather usual on this size.

    Attached Files:

  13. Kajan

    Kajan Senior Member

    Joined:
    Nov 28, 2009
    Messages:
    297
    Location:
    Stockholm

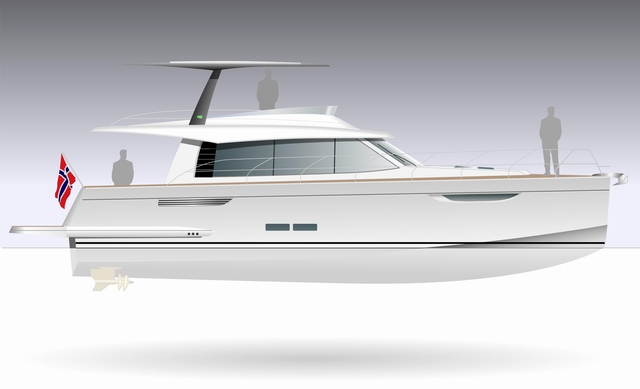

    …had a Scandinavian manufacturer asked me for a 47ft. Fly concept, it might have looked like this…

    Attached Files:

  14. Kajan

    Kajan Senior Member

    Joined:
    Nov 28, 2009
    Messages:
    297
    Location:
    Stockholm

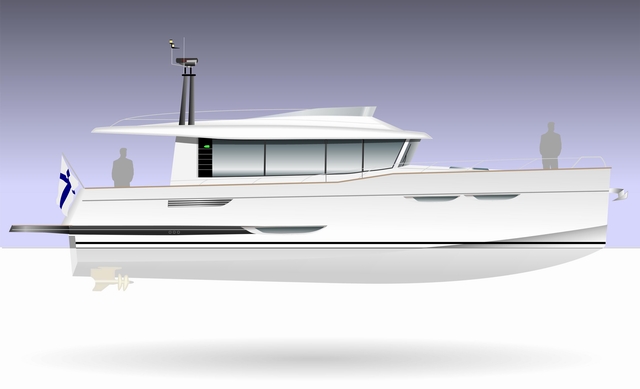

    …or perhaps like this?

    Attached Files:

  15. ombreetsoleil

    ombreetsoleil Senior Member

    Joined:
    Aug 19, 2011
    Messages:
    838
    Location:
    The Netherlands
    It looks a bit like an Azimut magellano 50( a design I like)

    I prefer the first design, but I like them both.

    Keep the designs coming ............In about 10 years I am planning to buy a nice yacht.......So every design is welcome to have my mind crunching about my future yacht.:D
  16. mwagner1

    mwagner1 Senior Member

    Joined:
    Sep 11, 2005
    Messages:
    216
    Location:
    Les Etats Unis
    Any new designs?? It is now mid-September (gad, where has 2012 gone)...how about some new renderings in the 75m - 90m???

    Cheers,
  17. Kajan

    Kajan Senior Member

    Joined:
    Nov 28, 2009
    Messages:
    297
    Location:
    Stockholm
    Hi mwagner1,

    Any particular preferences?
  18. ombreetsoleil

    ombreetsoleil Senior Member

    Joined:
    Aug 19, 2011
    Messages:
    838
    Location:
    The Netherlands
    What about an updated version of the classic moonen 85?
    One of my favourite little yachts.
  19. ombreetsoleil

    ombreetsoleil Senior Member

    Joined:
    Aug 19, 2011
    Messages:
    838
    Location:
    The Netherlands
    For pictures you can look on marinetraffic for Nickeline.
