Mike Kajan Yacht Designs II

Discussion in 'Yacht Renderings & Plans' started by Kajan, Oct 11, 2010.

You need to be registered and signed in to view this content.
Thread Status:
Not open for further replies.
  1. Kajan

    Kajan Senior Member

    Joined:
    Nov 28, 2009
    Messages:
    292
    Location:
    Stockholm
    Concept no. 4 in this little design excursion.

    Attached Files:

  2. Kajan

    Kajan Senior Member

    Joined:
    Nov 28, 2009
    Messages:
    292
    Location:
    Stockholm

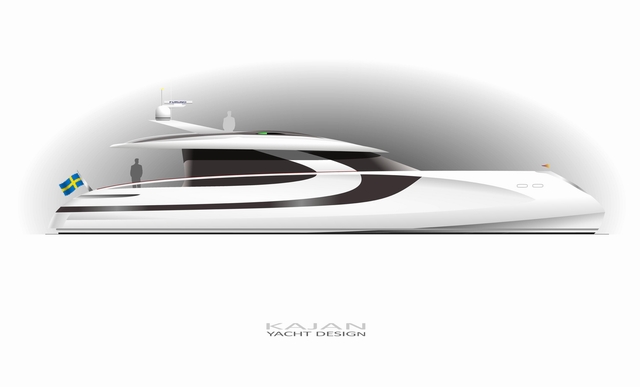

    Concept no. 5 should probably have been something out of a future episode of Star Wars but this time I decided to go old school but still stay with the 85ft. sport fly bridge brief.

    I guess this would be a good time to add some color to do her right.

    Attached Files:

  3. brian eiland

    brian eiland Senior Member

    Joined:
    Jul 28, 2004
    Messages:
    2,853
    Location:
    St Augustine, Fl and Thailand
    Interesting....I'd say it has a slight twinge of Fexas in it
  4. Kajan

    Kajan Senior Member

    Joined:
    Nov 28, 2009
    Messages:
    292
    Location:
    Stockholm

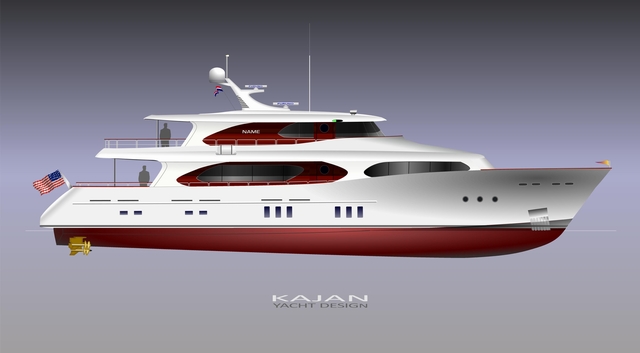

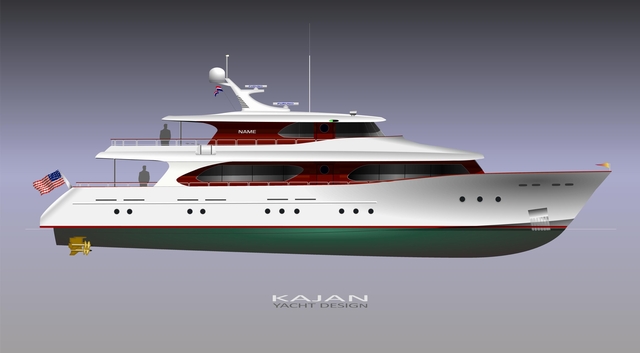

    The following two concepts are suggestions to slightly different superstructures on an existing 100ft. hull.
    I suspect the “brief” I received a while back is connected to the design contest suggested in the Yacht Designers Discussion thread. I probably should have posted there from the start.

    ...Ferrari you say… ;)

    Attached Files:

  5. Kevin

    Kevin YF Moderator

    Joined:
    Nov 25, 2004
    Messages:
    2,654
    Location:
    Montreal, Qc, Canada
    I'd take the first superstructure over the second... I feel there's too many visual obstructions on the second. The less impeding my view, the better.
  6. brian eiland

    brian eiland Senior Member

    Joined:
    Jul 28, 2004
    Messages:
    2,853
    Location:
    St Augustine, Fl and Thailand
    I agree Kevin.

    Boy things are really slow on the boating forums aren't they.

    You do have a great imagination Kajan :cool:
  7. Kevin

    Kevin YF Moderator

    Joined:
    Nov 25, 2004
    Messages:
    2,654
    Location:
    Montreal, Qc, Canada
    Mike,

    The more I look at that first design, the more classic it feels. I'm picturing all the red as polished mahogany, with a softer white hull.... not cream, but not glaring white either. The brightwork would be a bugger to maintain, but it would look real classy.
  8. Kajan

    Kajan Senior Member

    Joined:
    Nov 28, 2009
    Messages:
    292
    Location:
    Stockholm
    Kevin,

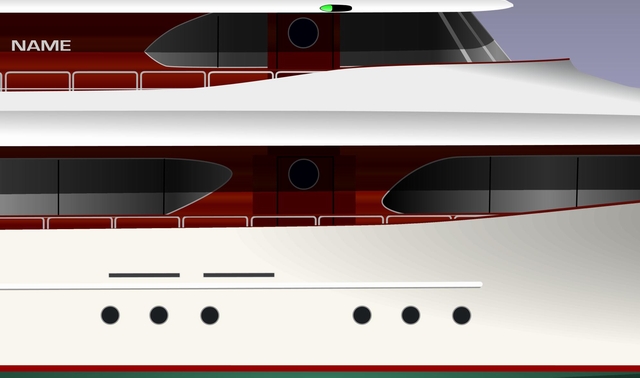

    The 640 resolution doesn’t help in illustrating polished mahogany, perhaps this helps?

    Attached Files:

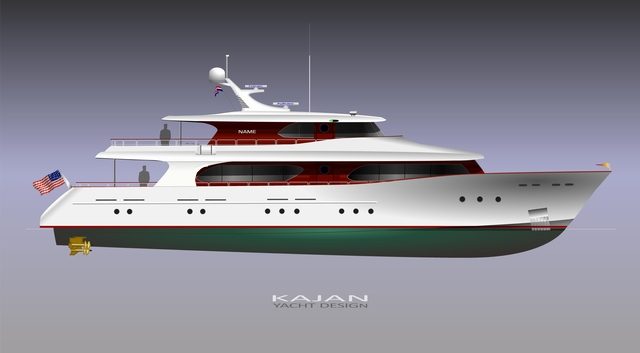

  9. Kajan: I suggest that to first design

    For a perfection, imo. Sorry using your Pic to show what I meant.

    Attached Files:

  10. Kajan

    Kajan Senior Member

    Joined:
    Nov 28, 2009
    Messages:
    292
    Location:
    Stockholm
    …a matter of taste, I guess ;)
  11. Kajan

    Kajan Senior Member

    Joined:
    Nov 28, 2009
    Messages:
    292
    Location:
    Stockholm

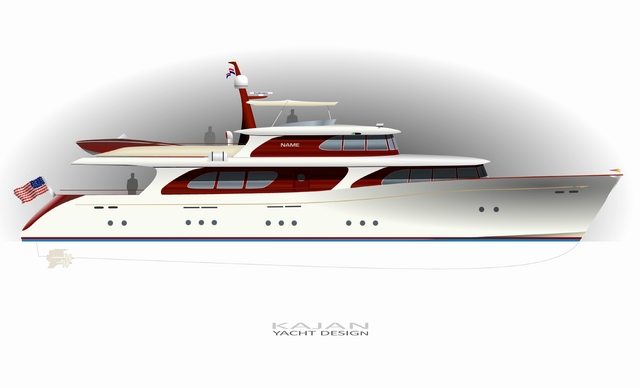

    …or perhaps with a raised pilot house?

    Attached Files:

  12. Kajan

    Kajan Senior Member

    Joined:
    Nov 28, 2009
    Messages:
    292
    Location:
    Stockholm
    By pumping some steroids into the previous 85ft. Sport Fly Bridge concept no. 3, you could get an extreme pocket explorer.

    Attached Files:

  13. Kajan

    Kajan Senior Member

    Joined:
    Nov 28, 2009
    Messages:
    292
    Location:
    Stockholm
    …in a galaxy far, far away.

    I’m thinking a ceramic deck for those hot parties and the possibility to flood the catamaran hulls, lowering the boat a couple of feet, making it possible to use those large glass bottom parts on the center hull. At night with under water lighting, it would feel like you´re in space…

    Concept no. 6 will conclude my little excursion. May the force be with you all.

    Attached Files:

  14. orion

    orion Senior Member

    Joined:
    Feb 19, 2005
    Messages:
    403
    Location:
    Newport Beach, CA, USA
    I like this , could be a very beautiful classic, little like a Cyrus yacht fast much better like this without targa. Love the mahogany tender on top too..;)
  15. Kajan

    Kajan Senior Member

    Joined:
    Nov 28, 2009
    Messages:
    292
    Location:
    Stockholm

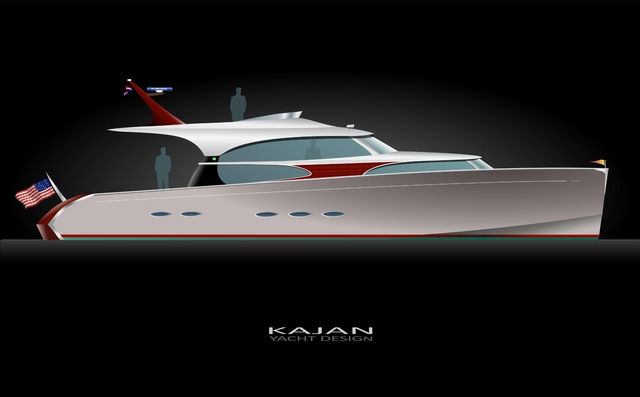

    65ft. with a touch of retro.

    Attached Files:

  16. Kajan

    Kajan Senior Member

    Joined:
    Nov 28, 2009
    Messages:
    292
    Location:
    Stockholm
    Same, same but...

    Attached Files:

  17. Kajan

    Kajan Senior Member

    Joined:
    Nov 28, 2009
    Messages:
    292
    Location:
    Stockholm
    Minor alterations to the previous 100ft. RPH concept.

    Attached Files:

  18. orion

    orion Senior Member

    Joined:
    Feb 19, 2005
    Messages:
    403
    Location:
    Newport Beach, CA, USA
    Perfect!
  19. Kajan

    Kajan Senior Member

    Joined:
    Nov 28, 2009
    Messages:
    292
    Location:
    Stockholm
    Thanks Orion.
    This is the 85ft. concept no 2 from a while back in color with her slightly larger (100ft.) RPH sister.

    Attached Files:

  20. Kajan

    Kajan Senior Member

    Joined:
    Nov 28, 2009
    Messages:
    292
    Location:
    Stockholm

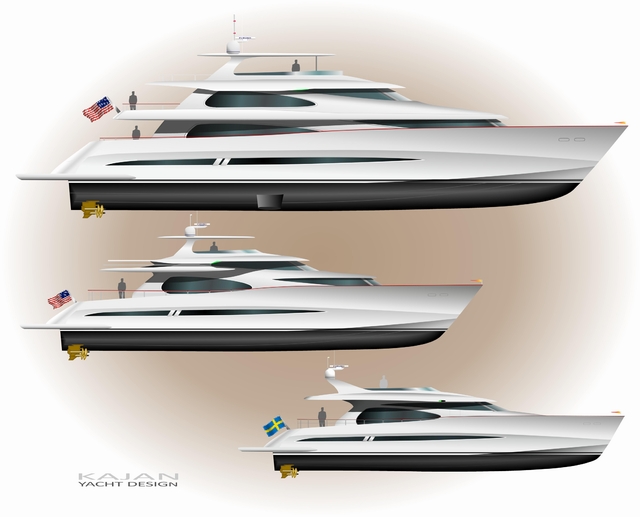

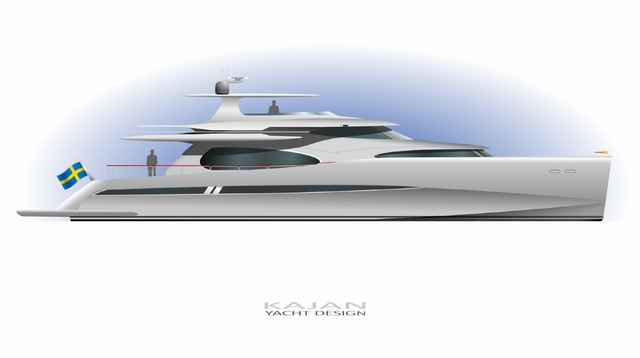

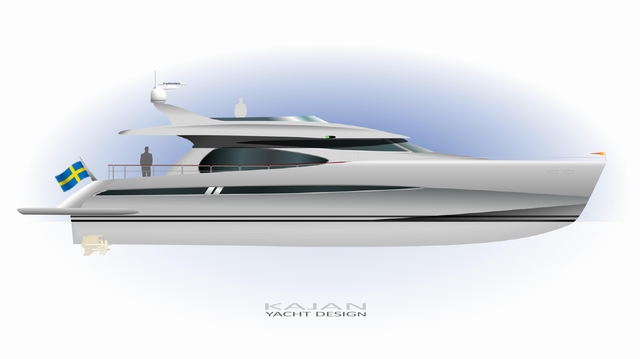

    Runs in the family. The previous, slightly updated 25 meter Sports Fly, 31 meter RPH and the new 40 meter version.

    Attached Files:
