Madsummer graces the docks of Ft. Lauderdale

Discussion in 'Boat Shows & Yacht Watching' started by CapLady, May 17, 2009.

You need to be registered and signed in to view this content.
  1. moondragon

    moondragon New Member

    Joined:
    Dec 27, 2009
    Messages:
    18
    Location:
    new england
    Are those nav lights below the smaller domes?

    For size comparision, how big is that center dome?
  2. ScotL

    ScotL Senior Member

    Joined:
    Jun 29, 2009
    Messages:
    511
    Location:
    Green Bay/Milwaukee,WI
    Depends on what you mean by "below the smaller domes?".


    Which part are you referring to, as I believe both are there?
  3. moondragon

    moondragon New Member

    Joined:
    Dec 27, 2009
    Messages:
    18
    Location:
    new england
    i was refering to the black cylindrical object on the next level down from the smaller domes but now I also see a small black dome underneath them as well.
  4. ScotL

    ScotL Senior Member

    Joined:
    Jun 29, 2009
    Messages:
    511
    Location:
    Green Bay/Milwaukee,WI
    I would have to say nav lights.

    I also just reallized I lost the part of my post that stated, "they appear to be nav lights or security cameras."

    Sorry for the confusion. No idea on the size of the large dome, though I am sure someone will have some info.
  5. Yacht News

    Yacht News YF News Editor

    Joined:
    Mar 29, 2006
    Messages:
    25,384
    Location:
    Caribbean
    No, the small black domes on the underside of the extensions are the security cameras. The two devices on the underside of the lower extentions are her searchlights they look like. Her white running lights are on the very top of the mast, you can see them just above thebig white ball.
  6. moondragon

    moondragon New Member

    Joined:
    Dec 27, 2009
    Messages:
    18
    Location:
    new england
    On both sides - the first short side extension and the one above it on both sides - there are (4) black objects - (1) on each extension - what are they?
  7. moondragon

    moondragon New Member

    Joined:
    Dec 27, 2009
    Messages:
    18
    Location:
    new england

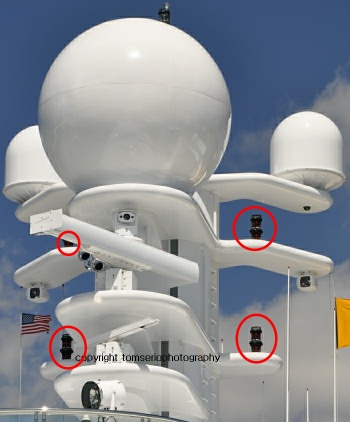

    in the red circles

    Attached Files:

  8. CapLady

    CapLady Senior Member

    Joined:
    Jan 29, 2008
    Messages:
    109
    Location:
    Back in Ft. Lauderdale!
    Those are Collision Regulation lights, or part of the navigation lights. To be used in cases such as vessel not under command, vessel aground, vessel with restricted ability to manoeuver, etc.
  9. bigboatbill

    bigboatbill Senior Member

    Joined:
    Aug 25, 2008
    Messages:
    201
    Location:
    Decatur Alabama
    These close up shots have facilitated a very interesting discussion. I appreciate the questions and answers that have been inspired by the mast photograph. This seems a great way to learn about details. The photograph of the mast is excellent; It shows all the aforementioned lights and cameras clearly and the composition of the photo, with flag in background, is excellent.
  10. K1W1

    K1W1 Senior Member

    Joined:
    Sep 30, 2005
    Messages:
    7,388
    Location:
    My Office
  11. CaptTom

    CaptTom Senior Member

    Joined:
    Jan 26, 2006
    Messages:
    1,949
    Location:
    Palm Beach to Ft Lauderdale

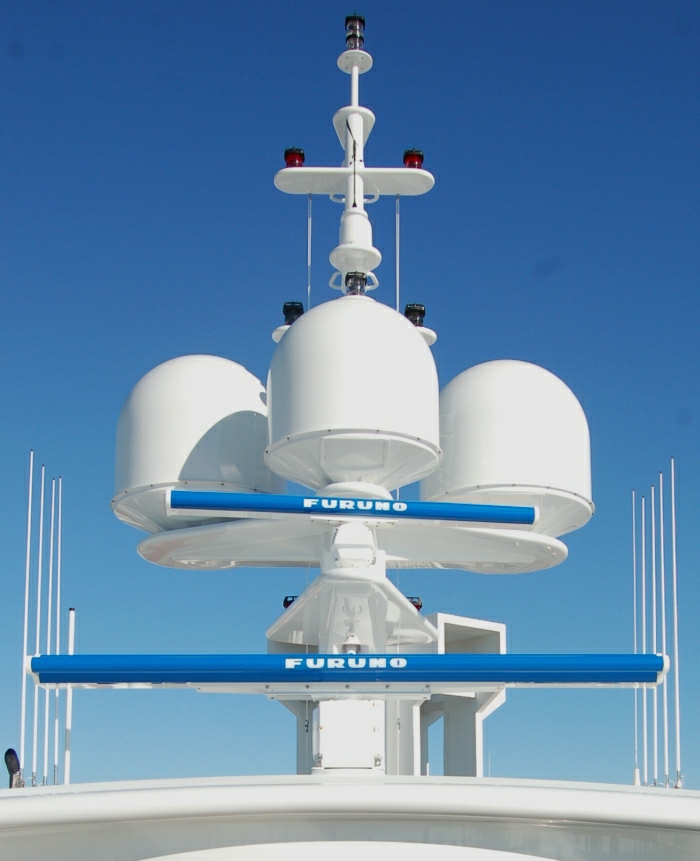

    To compare, here is the mast from the Trinty yacht Bacarella, complete with nav lights, comm antennas, radar and more.
    Question: If you have a helo on deck are there other light configurations that need to be displayed? (Note to self - find mast on Evviva).

    Attached Files:

  12. CaptTom

    CaptTom Senior Member

    Joined:
    Jan 26, 2006
    Messages:
    1,949
    Location:
    Palm Beach to Ft Lauderdale

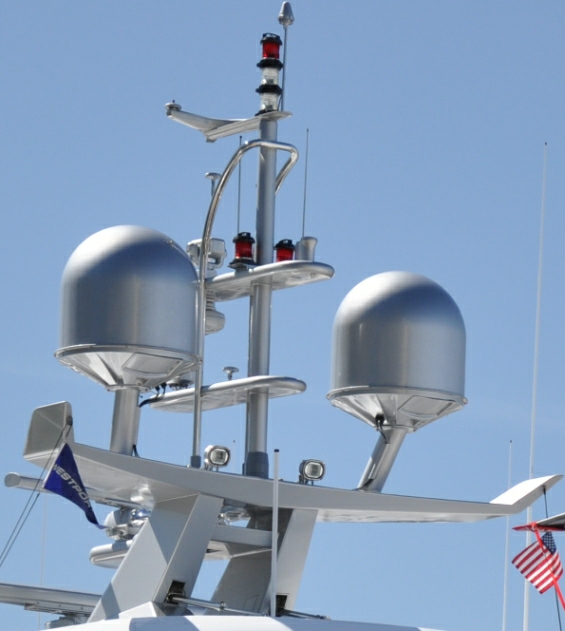

    Here's the Westport-built Evviva's mast. Don't see any special lights for having a bird on deck. Maybe handheld lights for landing at night, like they use at the airports.

    Attached Files:

  13. K1W1

    K1W1 Senior Member

    Joined:
    Sep 30, 2005
    Messages:
    7,388
    Location:
    My Office
    Hi,

    The yachts I have been on that were Helo equipped only had lights in the pad around the circumference. I only ever recall one movement in the dark and that was a take off not a landing.

    There is a light that can be used for the pilot coming into land to see if he is high enough to get on the pad. From what I understand it is a bit like a traffic light red your out of alignment and green you are good to proceed.
  14. Yacht News

    Yacht News YF News Editor

    Joined:
    Mar 29, 2006
    Messages:
    25,384
    Location:
    Caribbean
    As K!W! said, the normal thing you see is the low location lights embedded into the heli pad.

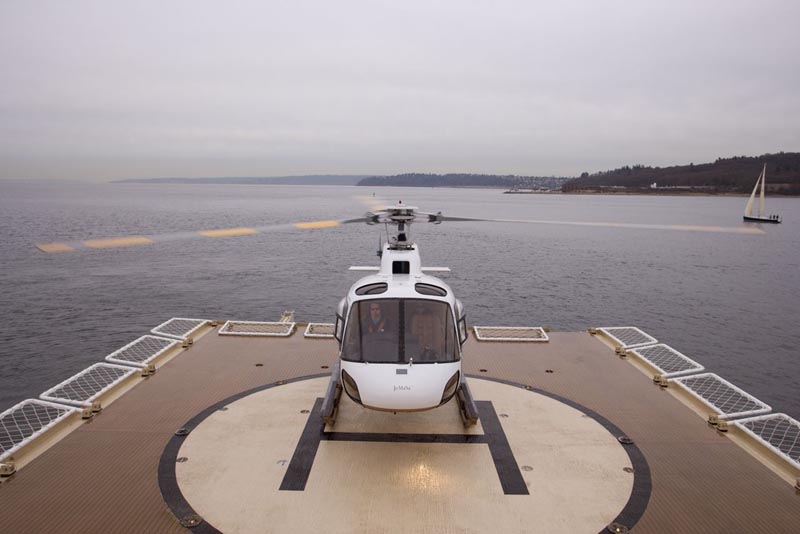

    Here on the "SuRi" you can see this picture from our review of her...

  15. Yacht News

    Yacht News YF News Editor

    Joined:
    Mar 29, 2006
    Messages:
    25,384
    Location:
    Caribbean
    Yes I believe this explanation is correct. I personally call them avoidance/danger lights-off course that isn't the official name-. Don't forget at night, one row of those lights on generally means the vessel is transfering dangerous stuff such as bunkering.

    For the above explanation by CapLady, for bigger ships they carry more lights on the mast though. Not like smaller yachts that usually carry 2 red rows. The bigger yachts like "A" and "Al Mirqab" I see carry 3 rows much like cruiseships.The regulations must be a little different for them because of their size.
  16. ancora 1

    ancora 1 New Member

    Joined:
    Jun 20, 2009
    Messages:
    67
    Location:
    Monaco (MC)
    Mine is :
    1. Zeus (mangusta 165)
    2. Madsummer (the very light blue of the hull is beautiful indeed)
    3. Carinthia VII (seen from the back, she is really impressive)
    4. Sai Ram
    5. Independance (sail)

    It's nice to give a tribute to Madsummer. She deserves it !
    Recently Yachts Magazine made a report about her (issue 128 September 2009).
  17. CapLady

    CapLady Senior Member

    Joined:
    Jan 29, 2008
    Messages:
    109
    Location:
    Back in Ft. Lauderdale!

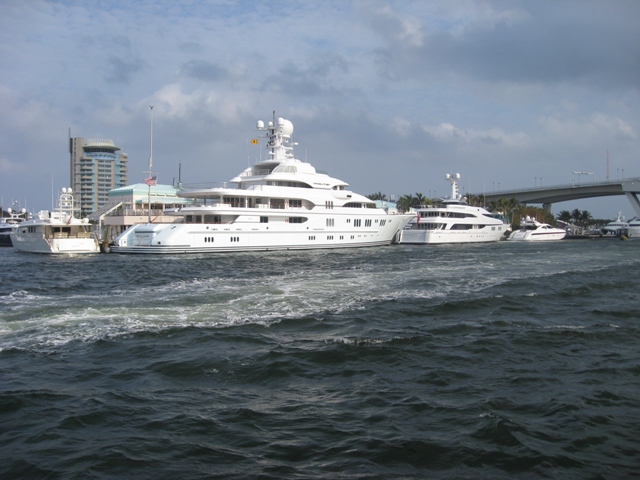

    Here is another shot of Madsummer and Ultima III, the yacht all the way on the right is a 130' Mangusta. Seems funny that a 130 footer looks like a little boat!

    Attached Files:

    Last edited: Mar 22, 2010
  18. bigboatbill

    bigboatbill Senior Member

    Joined:
    Aug 25, 2008
    Messages:
    201
    Location:
    Decatur Alabama
    Thanks for another great photo Captain Lady! You really get a sence of scale! I love these type photos.
  19. Yacht News

    Yacht News YF News Editor

    Joined:
    Mar 29, 2006
    Messages:
    25,384
    Location:
    Caribbean
    Classic situation of 'big', 'bigger', 'biggest'.
  20. bigboatbill

    bigboatbill Senior Member

    Joined:
    Aug 25, 2008
    Messages:
    201
    Location:
    Decatur Alabama
    Papa, Mama and Baby Bear!
