    Lars,

    How can you show us such a beauty, and not show us the GA? :eek: Have you created one for her? Cats really seem to be catching a lot of attention these days. Some serious consideration should be put into them for many reasons. I'd love to compare the GA of your Cat with a much larger mono-hull GA and see how they compare. Much more space in a smaller LOA, not to mention a smoother, more efficient ride.

    JRM
  2. AMG

    AMG YF Moderator

    Joined:
    Jul 26, 2004
    Messages:
    5,243
    Location:
    Sweden
    Sorry but there is no GA made yet. This design started in another thread that was later splitted and we lost track or interest, I don´t know. But in one post I wrote the following;

    "The 50 m as above will have a beam of about 17 m / 55´.
    The inside space on the main deck will be 400 sqm and the deck above 260 sqm and the upper deck 144 sqm. The hulls will have liveable space of 80 sqm each (plus engine rooms) totalling 960 sqm indoor living space! (I guess you add a zero to have it as approximate squarefeet?)
    Add to this the extensive deck areas and I think a big power-cat is more than justified when it comes to available space. But you will have to pay extra for the beam in many ports..."

    When it comes to how a cat behaves at sea, there are different opinions and some like Swath hulls, other Wave Piercers, many prefer twin Symmetrical hulls and I have best experience with Asymmetrical, but only from higher speeds in offshore powerboat racing...

    The yacht above should have a cruising speed between 15 and 20 knots I think and this can be achieved with any of the hulls mentioned and Diesel-Electric propulsion.

    And finally, I don´t think it is useful to compare the space on a cat with that of a monohull, since there are so many other things that are more important. Probably the price per sqm is about the same in the end anyway?
  3. AMG

    AMG YF Moderator

    Joined:
    Jul 26, 2004
    Messages:
    5,243
    Location:
    Sweden

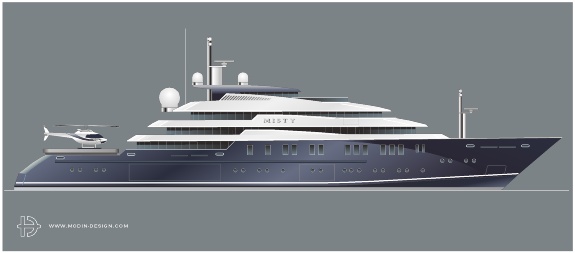

    M I S T Y , 75 m / 245´

    On "request" from our fellow member René GER, who wanted to see a yacht in the 60-80 m range, I have made a smaller version of the 85 m Modesty. She is 75 m and is then called Misty. All of my designs with these straight decks can be made both longer and shorter without losing too much of it´s original character.

    Attached Files:

    Last edited: Jan 29, 2005
  4. capitan_buzo

    capitan_buzo New Member

    Joined:
    Jul 21, 2004
    Messages:
    56
    Location:
    ca
    can you use that design and make me a 210m?
  5. YachtForums

    YachtForums Publisher/Admin

    Joined:
    Dec 22, 2002
    Messages:
    19,633
    Location:
    South Florida
    Hello MISTY! (good-bye Broward) ;) Another stunner Lars!!
  6. AMG

    AMG YF Moderator

    Joined:
    Jul 26, 2004
    Messages:
    5,243
    Location:
    Sweden
    Sure, I can extend the helideck to an airstrip if you like. ;)
    Otherwise, certainly not triple the length, more like 20 percent each way...

    And Carl, thank you but it is not the same class as a Classic Broward :)
  7. Rene GER

    Rene GER Senior Member

    Joined:
    Sep 4, 2004
    Messages:
    744
    Location:
    Northern Germany, West Coast
    Hi Lars,

    I thank you so much for the "Misty".

    Do you can tell me, what is the better heli deck:

    - A heli deck like that on the "Misty", "Ilona", "Octopus"...

    Or

    - A heli deck that higher is. "Lady Chistine", "Skat", "Lady Moura"...

    Helicopter's on yachts are very interesting for me.

    From the view of the space on a yacht... I think a higher heli deck is better. For the design too (my opinion).
    Last edited: Jan 29, 2005
  8. AMG

    AMG YF Moderator

    Joined:
    Jul 26, 2004
    Messages:
    5,243
    Location:
    Sweden
    If you think of it from the Heli-pilots view, it is better with a deck that is lower down and in the stern so that you can make an approach with the yacht as a reference of altitude in front of you and a low deck is moving less sideways as well. As Misty and Ilona with a garage under the pad, it is also better to have it low in the stern, or on foredeck, but there instead you will have a problem to land if the yacht is underway.

    However on Gigayachts with wide beams you can land pretty safe even on higher decks as the margins are larger and the boat is less swinging.

    You can also make a helideck on top deck more or less invisible and if you are not carrying your own helicopter this is probably the best for the look of the yacht.
  9. hufloas

    hufloas New Member

    Joined:
    Dec 1, 2004
    Messages:
    48
    Location:
    Gandia (Spain)
    But, what happens if you want to combine a large tender storage or marina (a la Octopus) with a helicopter lift?
  10. AMG

    AMG YF Moderator

    Joined:
    Jul 26, 2004
    Messages:
    5,243
    Location:
    Sweden
    You need a good designer, that is all :)

    But seriously, if you look at Misty you will see the tender garage in front of the heli-lift. All yachts have their solutions and in the size we are playing with now, there will probably not be guest accommodations below maindeck, so the crew have all this space for themselves and the gadgets...
  11. BarryClay

    BarryClay New Member

    Joined:
    Dec 23, 2004
    Messages:
    25
    Location:
    Chesapeake
    Is there still an issue with A/B ratio or does this become a mute point given that draft no longer becomes an issue because so many ports are out of the question anyway, and therefor the "B" part of the equation goes to wahtever is necessary? :confused: ?
  12. AMG

    AMG YF Moderator

    Joined:
    Jul 26, 2004
    Messages:
    5,243
    Location:
    Sweden
    As I am a designer and not a naval architect, I will not go into any details on your question. My understanding is that a yacht of 75 m loa can have a beam of 14 m and a draft of less than 4 meters. This limits the access to some areas in the Carribean but generally not to ports where the length is accepted.

    A yacht of 75 to 85 m is the biggest you should consider if you like to use it as a yacht, bigger than this you are more like a cruiseship when it comes to port access and anchoring.
  13. AMG

    AMG YF Moderator

    Joined:
    Jul 26, 2004
    Messages:
    5,243
    Location:
    Sweden

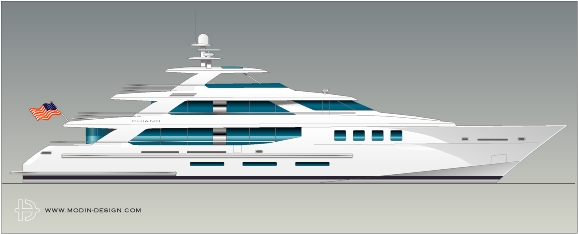

    Chianti II, at 50 m/164´the most popular size?

    The 50 m size is probably the epitome of a Superyacht, big enough to go anywhere and still not bigger than you are welcome in most ports. This particular yacht is presented with all deck plans in another thread on the YachtForums http://www.YachtForums.com/forums/showthread.php?t=1627 but I have given her a more (modern?) edgy profile now.

    In the book The Superyachts 2005, I found that there are no less than 78 Superyachts between the 49 m Oceanco-built Netanya and the Feadship Rio Rita at 51.99 m LOA.

    Attached Files:

    Last edited: Feb 5, 2005
  14. hufloas

    hufloas New Member

    Joined:
    Dec 1, 2004
    Messages:
    48
    Location:
    Gandia (Spain)
    Amazing! "Electric blue" windows beautifully contrast with white hull and superstructure "a la Feadship" :cool:

    Congratulations, Lars! ;)
  15. BarryClay

    BarryClay New Member

    Joined:
    Dec 23, 2004
    Messages:
    25
    Location:
    Chesapeake
    Changes are very effective, does effect more masculine :)
  16. AMG

    AMG YF Moderator

    Joined:
    Jul 26, 2004
    Messages:
    5,243
    Location:
    Sweden

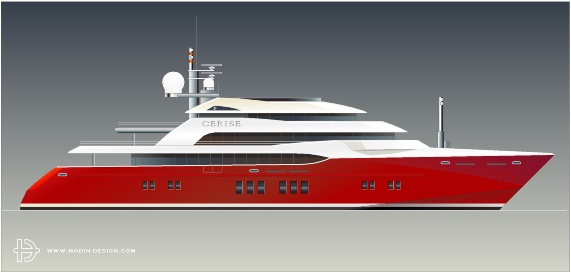

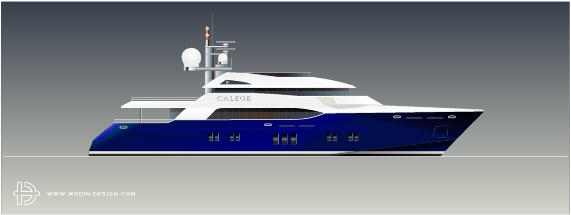

    Meet Cerise and Calege...

    "On demand" the 160´ Cat design has now been remodelled to a 180 feet monohull expedition style yacht and the 120´Cat to a 135 feet yacht. Both will be quite beamy and with the extensions the interior volumes will remain about the same as with the catamarans.

    Attached Files:

  17. brian eiland

    brian eiland Senior Member

    Joined:
    Jul 28, 2004
    Messages:
    2,853
    Location:
    St Augustine, Fl and Thailand
    Praise

    Dear Lars,
    Since joining this forum in the very recent past I had noticed a few of your
    of your renderings, but had not paid a great deal of attention to them as they
    were primarily of large power vessels, and my interest lie elsewhere.
    Yesterday I had the occasion to visit your 'renderings thread'. I was VERY
    impressed to say the least. Your capabilities are outstanding, particularly
    considering the variety of craft you have drawn.

    Your sense of proportion, your sheer and bow lines are all extremely good. I
    have attached a letter I wrote to a Mr Danforth wherein I praised his
    inclusion of the design element of sheer, "and most importantly, you included
    the oft forgotten element, the sheer line. What a terribly important factor!
    Romantically stated, but oh so true, "it is simply her sheer … sheer beauty
    that is. She enters the harbor like a beautiful woman entering a room.
    Her sheer is the line we try to get right when we doodle boats
    ." So many of today's boats lack this beauty, and correspondingly, some of the essence of
    yesteryear's yachting."

    I agree with your observations about those 'excessively curvy', 'bubble and tear-drop' looking designs so in vogue these days...hopefully it is only a temporary fad. I look forward to consulting with you in the future.
    Last edited: Mar 21, 2005
  18. AMG

    AMG YF Moderator

    Joined:
    Jul 26, 2004
    Messages:
    5,243
    Location:
    Sweden
    Thank you Brian! Those words coming from a fellow designer is warming... :)

    With regards to bubble-design, I have tried to make something of the kind, but eventhough pretty simplified they have not made it to the computer yet. This was made in a notebook and the bubbliest I have been so far... :D

    /Lars

    Attached Files:

  19. AMG

    AMG YF Moderator

    Joined:
    Jul 26, 2004
    Messages:
    5,243
    Location:
    Sweden
    Hi again!

    I have found the missing yacht through another Forum. She is in Hong Kong under the name of Grand Cru. They say she was finished in Greece in 1996 and has had two other names as well. She is all white and here is a little pic from above. Mystery solved! :)

    Attached Files:

  20. newbee

    newbee New Member

    Joined:
    Dec 6, 2004
    Messages:
    61
    Location:
    West Coast
    Lars,

    I was enjoying a liesurely meander through your designs (yet again) and I just have to tell you again how much I love the classic styling of your 205 m Victoria. I'm not sure I could park that thing though. Do you have it in 100 m size or does it loose it's character?

    Thanks again for sharing your lovely work.
