    P A N D O R A 170m / 555 feet...

    As if 90 meter wasn´t enough, but I wanted to see if it was possible to make a yacht of 170 m without the look of a cruise ship.
    Since there are almost no marinas taking this size of yacht, you have to carry a number of good size tenders and maybe more than one helicopter. So I made two big landing pads and a heli-garage under the aft one. Two Solas approved life boats are stored in a pocket at the transom.
    Well, how long will it take before we see yachts of this magnitude? :cool:

    Attached Files:

    Last edited: Jan 1, 2006
  2. tartanski

    tartanski Member

    Joined:
    Nov 5, 2004
    Messages:
    111
    Location:
    Hamburg, Dunnon, Buzios
    Inspiring

    Hej LArs,

    Thank you for posting so much of your work on this site, that is truely inspiring to me. It appears that i have a similar history of drawing boats , and striving to design vessels that will oneday exsist in their element. I have also many designs and concepts perhaps not as detailed as yours, but have alwys kept them to my self in fear of one day seeing a design of mine floating around with someone elses name on it. However your openess to post your design here, and the quality and in somecases the similarity between your designs and soem of my ideas has inspired me to post some of my designs here too, perhaps one day it could lead to a a real build.

    I can say that I too have developed a proposal for the royal yacht, unfortunately that is one design lost in the archives of some old PC. So ill begin by complimenting you on the comuter design, curently in production, an in a spooky turn of fate here is a design for a 60ft cruiser with a litte similarity.

    Ill have to post this one later after i upload one to a web server.
  3. AMG

    AMG YF Moderator

    Joined:
    Jul 26, 2004
    Messages:
    5,243
    Location:
    Sweden
    Thank you for the kind words!

    I look forward to see more of your designs, just create a thread and upload them. You need to shrink them to fit into the frame you can see on the screen though, to avoid scrolling and to not interfere with the ads.

    I am using Freehand, almost the same as Corel I think? 3D-programs are too limited when it comes to alter the design in process, and time consuming.

    /Lars
  4. AMG

    AMG YF Moderator

    Joined:
    Jul 26, 2004
    Messages:
    5,243
    Location:
    Sweden
    24 M / 80´ Flybridge Cruiser

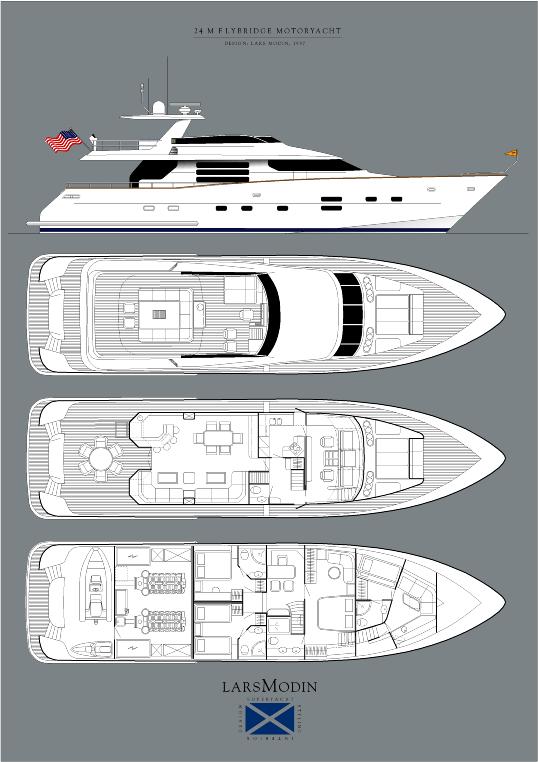

    As a spin-off from the 42 m Yacht-Fish above I once made a smaller yacht to fit in under the magic 24 meters. She can be owner operated and features a small office outside the owners stateroom. Still with nice crew accommodations forward. The wheelhouse can be enclosed as well as the galley. More of a big yacht in a smaller size than a traditional flybridge. Can have shafts and tunnels or waterjets for a cruising speed around 25 knots.

    Attached Files:

    Last edited: Nov 17, 2004
  5. Rene GER

    Rene GER Senior Member

    Joined:
    Sep 4, 2004
    Messages:
    744
    Location:
    Northern Germany, West Coast
    Polara 70m

    Its beautiful. I think, in a size of 50m she will be a good support vessel for a (sailing) yacht (like Lady Lola's shadow (but more beautiful) - submarine, HELICOPTER and some other toys...thats the coolest way for world cruising :cool: ) :) :)

    René
  6. AMG

    AMG YF Moderator

    Joined:
    Jul 26, 2004
    Messages:
    5,243
    Location:
    Sweden
    Tetou, 26 m / 85 feet, an "Absolut Classic" yacht!

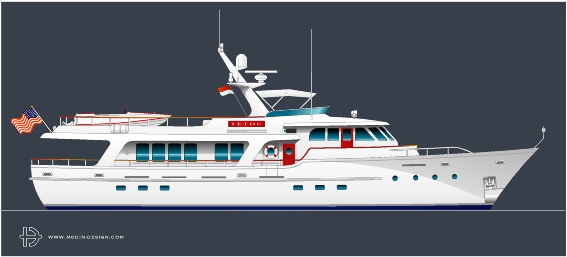

    After looking through all the designs on these pages, both mine and others, I think I have nominated my final Dreamyacht. You can see all of her on the first page in this thread, except I have extended her and raised the wheelhouse a bit. She can now be built by Moonen Shipyards on the DIANA designed hull they used on the classic Moonen 85. Like this, with a lower superstructure she will be more stable at sea and also easier to handle shorthanded in ports.
    The wooden trim and doors should be epoxy treated for minimum maintenance and the classic Donzi 16 would make a nice tender, like most yachts had in the early seventies. :)

    Attached Files:

  7. AMG

    AMG YF Moderator

    Joined:
    Jul 26, 2004
    Messages:
    5,243
    Location:
    Sweden
    120´/ 36 m, A B S T R A C T A

    Which yachts of today will be the future Classics?

    Will it be the "bubble design" with teardrop windows or will it be the "new edge" with minimalistic styling? Or something else?

    Since I have problems with too curvy designs, I am leaning towards more architectural and clean lines and decorations. This 120-footer has some lines similar to Bauhaus or Californian houses and could have an interior with Le Corbusier, Mackintosh, van Der Rohe or why not Starck, all of them modern classics.

    To look back might be a safe way for the style of tomorrow ? ;)

    Attached Files:

    Last edited: Nov 23, 2004
  8. AMG

    AMG YF Moderator

    Joined:
    Jul 26, 2004
    Messages:
    5,243
    Location:
    Sweden
    Modesty, now 280´/ 85m...

    Since most people will never get access to a Harrier VTOL-jet, I have reduced the size of the 300´ yacht I made a couple of weeks ago (above), to 280 feet. She will still have a heli-garage under the landing pad, tenders in pockets in the hull and spacious accommodations over six decks.

    Attached Files:

  9. AMG

    AMG YF Moderator

    Joined:
    Jul 26, 2004
    Messages:
    5,243
    Location:
    Sweden
    E L E C T R A , 360´/ 110 M

    Another Gigayacht along the same design theme as Pandora and Modesty.
    This time in classic white and with a pretty high and wide body. As many new yachts she will most likely have diesel-electric pods for quiet, vibration-free, fuel efficient and clean propulsion.

    Attached Files:

    Last edited: Dec 10, 2004
  10. hufloas

    hufloas New Member

    Joined:
    Dec 1, 2004
    Messages:
    48
    Location:
    Gandia (Spain)
    And what about the 200m design?
  11. AMG

    AMG YF Moderator

    Joined:
    Jul 26, 2004
    Messages:
    5,243
    Location:
    Sweden
    Thank you for asking, but reality came in between so I have not had enough time to get it finished yet. Maybe after the holidays...? :)

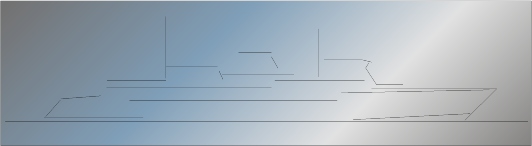

    As a hint on how she will look, I´ll post the very first outlines here;
