Lars Modin Design III

Discussion in 'Yacht Renderings & Plans' started by AMG, Jan 28, 2006.

You need to be registered and signed in to view this content.
Thread Status:
Not open for further replies.
  1. Kevin

    Kevin YF Moderator

    Joined:
    Nov 25, 2004
    Messages:
    2,663
    Location:
    Montreal, Qc, Canada
    I think I like this design better, without having even seen the other. I really like the lines of some of the higher-end Hanse models, and your G38 design seems to be leaning in that direction.
  2. AMG

    AMG YF Moderator

    Joined:
    Jul 26, 2004
    Messages:
    5,243
    Location:
    Sweden
    Yes, it has some lines similar to Hanse who are producing good value for money. This boat however will be in another quality league, like a Swan or better and priced somewhere in between the two...
  3. brunick

    brunick Senior Member

    Joined:
    Jul 15, 2005
    Messages:
    614
    Location:
    flensburg, germany
    wow - realy nice to see, i just read over the date you wrote when it's goning to be launched - it was this year ;) so i was in the wrong year.
    what is this little step in the hull made for?
    i just wonder, the 40 footer has it too...and is it just an image or is a 3d programm on your desktop?

    oh and are you going to build the 100 foot venetian too? (background)
  4. AMG

    AMG YF Moderator

    Joined:
    Jul 26, 2004
    Messages:
    5,243
    Location:
    Sweden
    The stepped hull has two advantages, it reduces pitching for a better comfort, meaning it keeps the bow levelled even when flying between wave tops.
    It is also for lubricating the aft part of the bottom with air. By going straight and high with a small wetted surface, the speed goes up, fuel consumption down and the range is improved.

    The hull rendering is from the 3D-files as seen in a program where I can rotate it to see it from any angle.

    The Venetian is still just a decoration on the wall...
  5. AMG

    AMG YF Moderator

    Joined:
    Jul 26, 2004
    Messages:
    5,243
    Location:
    Sweden

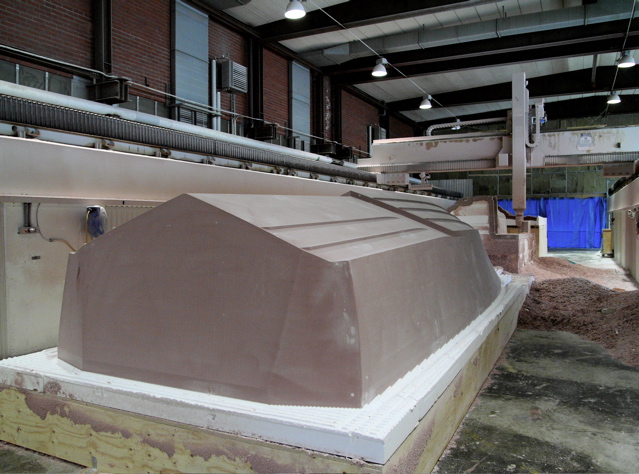

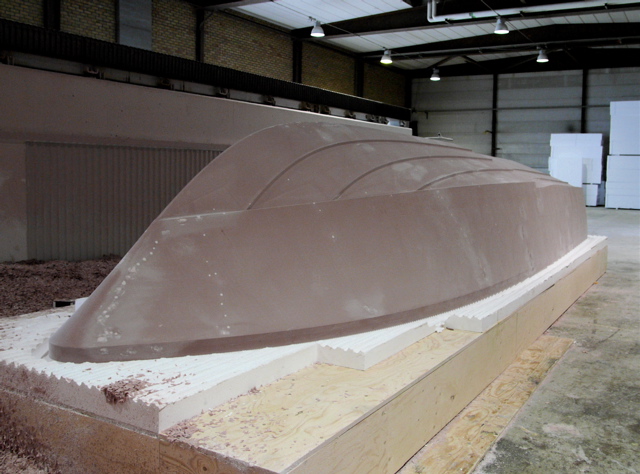

    The plug for the D29 hull is now ready and just need to be sprayed and polished before we can make the mould. Soon the deck plugs will be built the same way, it is amazing to see the design going from your computer to full scale in a couple of weeks...:)

    Attached Files:

  6. AMG

    AMG YF Moderator

    Joined:
    Jul 26, 2004
    Messages:
    5,243
    Location:
    Sweden

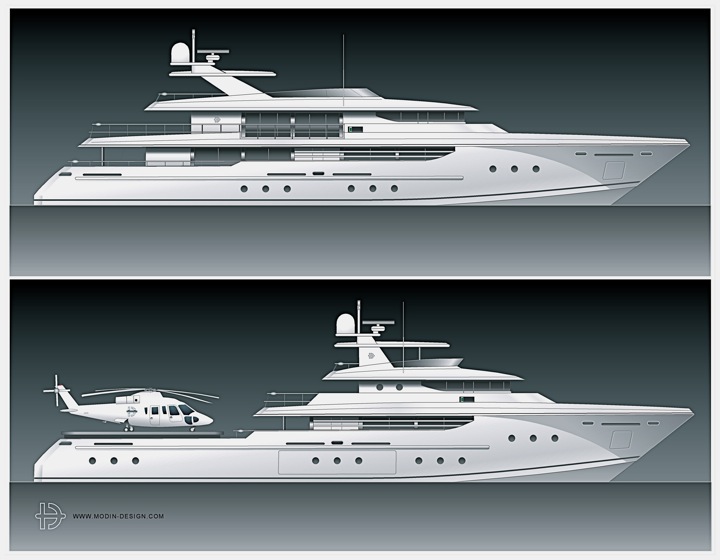

    C H E S S

    The 45 m concept on the previous page has got a more traditional styling and grown to 48 m / 160 feet. Built in Alustar she can reach a cruising speed of above 20 knots. Interior is planned for up to 10 guests and 7 crew. An easy to handle yacht with low maintenance compared to many other recent yachts.

    Attached Files:

  7. KCook

    KCook Senior Member

    Joined:
    Jun 24, 2005
    Messages:
    1,161
    Location:
    Phoenix
    Neat. I get a big kick out of the interplay between the various bulwark/rail themes. In a different class from a lot of today's designs (which are to often a snore).

    Kelly
  8. SINKorSWIM

    SINKorSWIM New Member

    Joined:
    Aug 27, 2007
    Messages:
    18
    Location:
    Amelia Island, Florida
    Wow!! Lars I have been looking at your work and the pictures are just amasing. I am designing a large sailing yacht and I hope it will be atleast close to as good as your designs. They probally wont be anywhere as good because I will probally only be using paint unless I can get some directions on some of tose programs. Oh and did I mention WOW!!!!!!

    Your Friend,
    SINKorSWIM
  9. YachtForums

    YachtForums Publisher/Admin

    Joined:
    Dec 22, 2002
    Messages:
    19,634
    Location:
    South Florida
    Bravo Lars! You've outdone yourself again. Absolutely beautiful.
  10. AMG

    AMG YF Moderator

    Joined:
    Jul 26, 2004
    Messages:
    5,243
    Location:
    Sweden
    Thanks a lot, and here she is again with her shadow-yacht. In contrast to other shadows, this one is built in aluminium and powered as the mothership for cruising 20+ knots. The idea is to have two smaller yachts instead of one big, which allows for access to smaller ports and more shallow waters in Europe and the Caribbean. It also adds safety, security and flexibility, although they will probably use Dockwise for transoceanic crossings...

    Attached Files:

  11. Mets

    Mets New Member

    Joined:
    Sep 4, 2007
    Messages:
    26
    Location:
    Miami Beach, FL
    Just curious - why would the above need to be transported?

    As a person who just started reading this forum, I second that. My favorite is the one with the harrier landing on the back, but the latest one which you said could possibly be a Feadship XL is very attractive. I wouldn't be surprised if somebody has it built. I know I would if I could.
  12. AMG

    AMG YF Moderator

    Joined:
    Jul 26, 2004
    Messages:
    5,243
    Location:
    Sweden
    I can see that you have good (and expensive) taste for yachts..;) Thanks!

    The reason I would transport the twins above is that they are semidisplacement with MTU 4000 high performance engines and I rather save the hours of wear. Also important is that a crew on yachts running two seasons need some vacation, and having this while the yacht is transported is a good solution.
  13. AMG

    AMG YF Moderator

    Joined:
    Jul 26, 2004
    Messages:
    5,243
    Location:
    Sweden
    The D29 is slowly coming together, the mould for the hull is built and the first hull is finished. Deck plug is almost finished and also the roof. We are now starting to build the interior plugs, some with robots and some by hand. The glass wall aft is ordered, as is the windows, so if everything goes to plan, we might be finished in time for the Scandinavian Boatshow in early November...

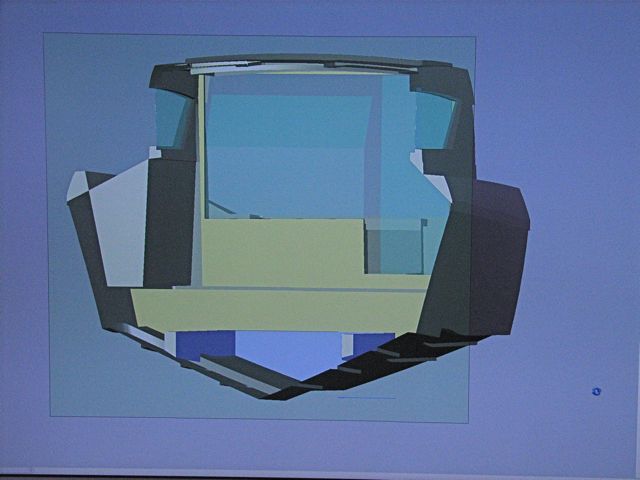

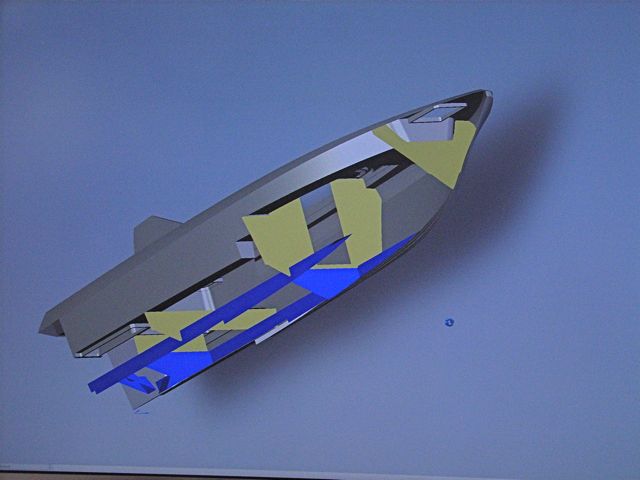

    Here are some pictures from the computer screen on the 3D-model in progress, it is always exciting to see it grow and then being transfered into reality...:)

    Attached Files:

  14. SINKorSWIM

    SINKorSWIM New Member

    Joined:
    Aug 27, 2007
    Messages:
    18
    Location:
    Amelia Island, Florida
    Hi again Lars. Is that going to be the next build? Oh, yeah make shure you keep us updated on it.
  15. AMG

    AMG YF Moderator

    Joined:
    Jul 26, 2004
    Messages:
    5,243
    Location:
    Sweden
    This morning the first D29 left our factory to be at the Scandinavian Boat Show in Stockholm tomorrow night. It has been built in a very tight time-frame but as far as I know, all has worked out well thanks to the accuracy of CNC-made plugs för the moulds. Next is to see if she performs as predicted in the sea trials...

    Attached Files:

  16. brunick

    brunick Senior Member

    Joined:
    Jul 15, 2005
    Messages:
    614
    Location:
    flensburg, germany
    also it is a dry shot it looks very nice and fast - awaiting some sea trail shots ;)
  17. Arniev

    Arniev Senior Member

    Joined:
    Nov 1, 2005
    Messages:
    419
    Location:
    Monterey, CA, USA
    Lars,
    Congrats on the D29 roll-out.
    Wishing you success with the sea trials.
    Arnie
    :)
  18. AMG

    AMG YF Moderator

    Joined:
    Jul 26, 2004
    Messages:
    5,243
    Location:
    Sweden
    Thanks for bringing me luck!

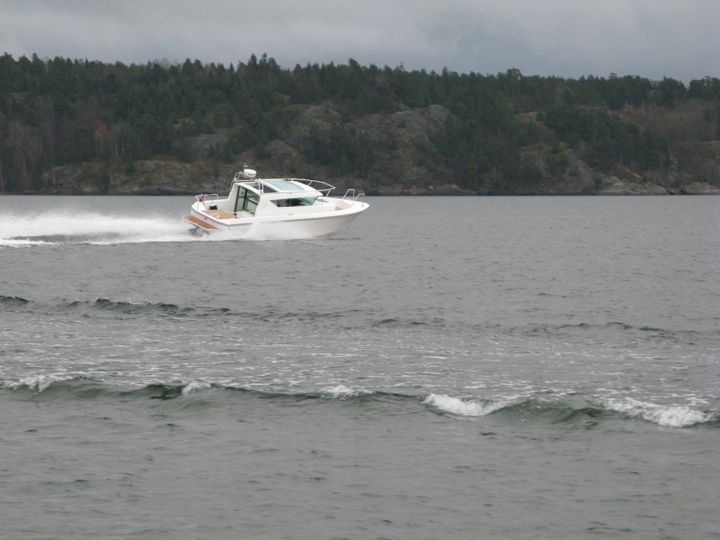

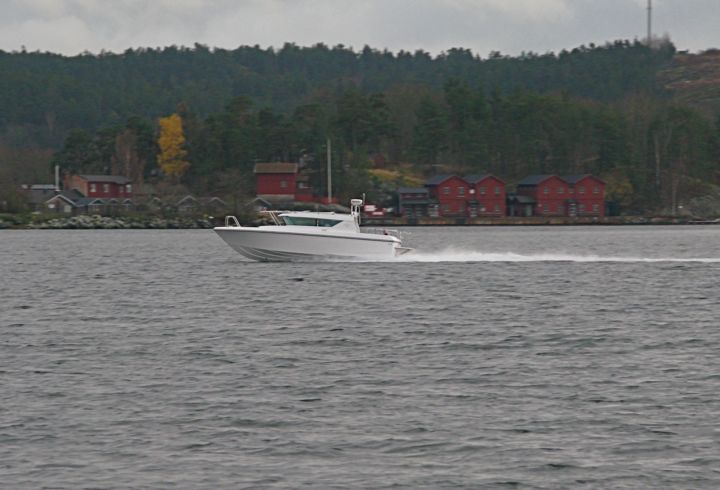

    She performed extremely well, came on plane without efforts and quick up to a top speed of 43 knots! Not bad for a pretty large 29-footer with a single VolvoPenta D4/300 hp diesel.

    She was light on the wheel and light on the sea, very little wake and easy to make sharp turns with full control. Couldn´t have been better...:)

    Now she is in her position at the Scandinavian Boat Show, opening tomorrow!

    Attached Files:

  19. brunick

    brunick Senior Member

    Joined:
    Jul 15, 2005
    Messages:
    614
    Location:
    flensburg, germany
    now this is looking hot! you've your pricing-table ready? get me one with the biggest engines you've got :D

    just joking - can't even pay the bill from my little student job...
  20. AMG

    AMG YF Moderator

    Joined:
    Jul 26, 2004
    Messages:
    5,243
    Location:
    Sweden
    Thanks all, we have had a great success with our powerboats and I look forward to design and launch another in this line the coming year.

    It is now time to finish this thread and to wish you all the best for 2008!

    /Lars

    Attached Files:
