Kohler Generator 6.5 oil leak

Discussion in 'Generators' started by Shari Potts, Aug 5, 2020.

You need to be registered and signed in to view this content.
  1. Shari Potts

    Shari Potts New Member

    Joined:
    Jul 14, 2020
    Messages:
    4
    Location:
    Antigua and Barbuda
    Good day, I have a kohler generator 6.5 that is leaking excessive oil. Am looking for seal part numbers that I should order before I take it apart.

    Any help would be appreciated!

    Shari
  2. Capt J

    Capt J Senior Member

    Joined:
    Jul 11, 2005
    Messages:
    13,051
    Location:
    Fort Lauderdale
    WHERE is it leaking from and what seals do you need? Model and serial number would help. Emailing a Kohler dealer would be your best bet.
  3. Oscarvan

    Oscarvan Senior Member

    Joined:
    Nov 10, 2015
    Messages:
    838
    Location:
    Chesapeake Bay
    There's a lot of gaskets and seals in there......
  4. Capt Ralph

    Capt Ralph Senior Member

    Joined:
    Sep 8, 2004
    Messages:
    8,974
    Location:
    Satsuma, FL
    Would that be a diesel or gas 6.5?
    Sure could use a model number.
  5. Capt Ralph

    Capt Ralph Senior Member

    Joined:
    Sep 8, 2004
    Messages:
    8,974
    Location:
    Satsuma, FL
    Did we chase the OP away that soon?
  6. Shari Potts

    Shari Potts New Member

    Joined:
    Jul 14, 2020
    Messages:
    4
    Location:
    Antigua and Barbuda

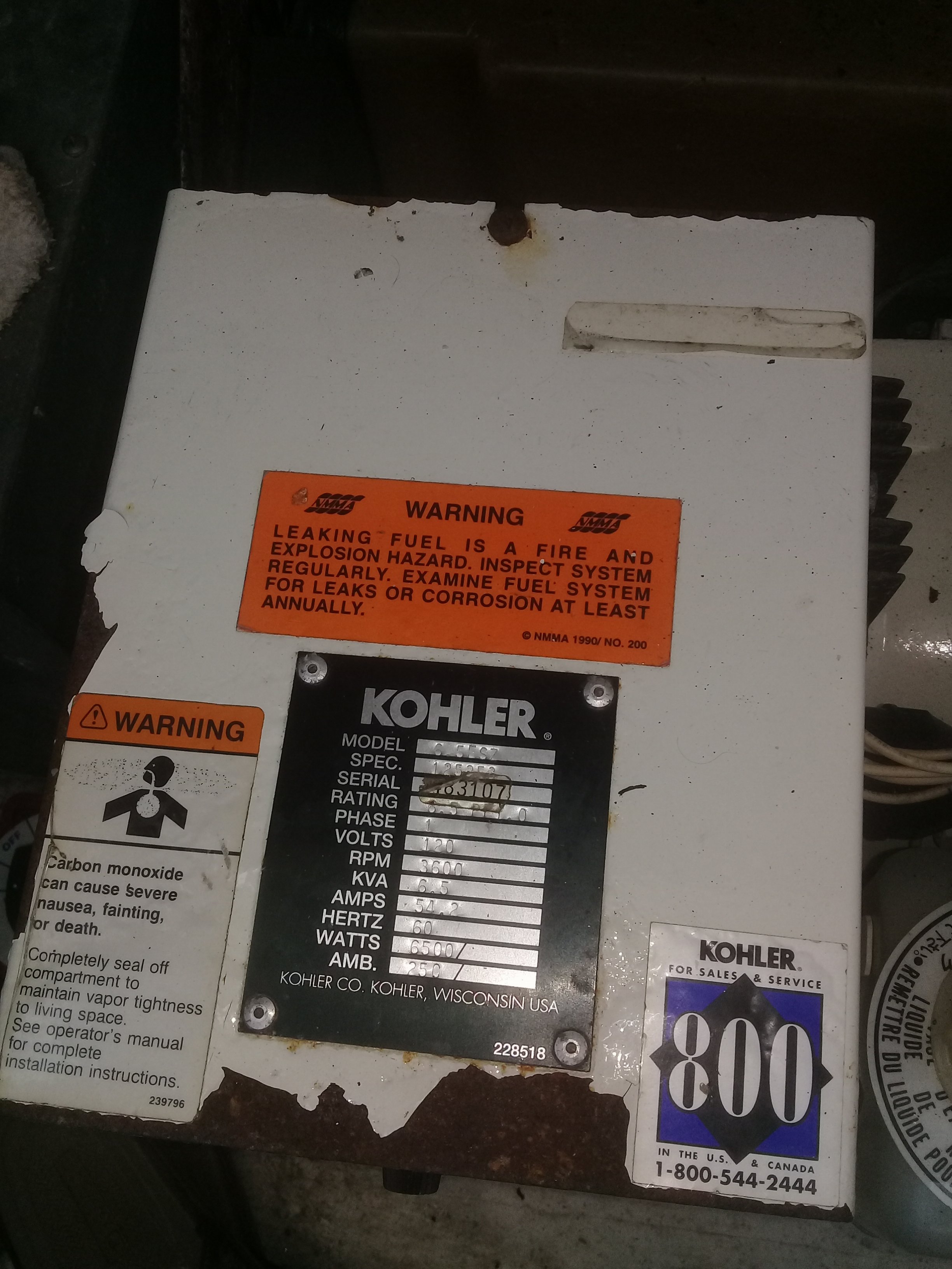

    20200806_164326.jpg Hi thanks for the comments,
    Model # 6.5ESZ
    S/N 483107
    SPEC 125253

    Oil seems to be coming from underneath the oil pump, near the engine/stator flange?
    Has anyone seen this before and is it an easy fix?

    Thanks in advance.
  7. Alzira II

    Alzira II Member

    Joined:
    Jan 22, 2019
    Messages:
    129
    Location:
    Fort Lauderdale
    I rebuilt a could 15kw gas units this winter with the 1.6L vortex engine and only after putting the first together realized it had a leaking seal where shaft enters gen unit. That was a real pain to tear back down.
  8. Capt Ralph

    Capt Ralph Senior Member

    Joined:
    Sep 8, 2004
    Messages:
    8,974
    Location:
    Satsuma, FL
  9. Shari Potts

    Shari Potts New Member

    Joined:
    Jul 14, 2020
    Messages:
    4
    Location:
    Antigua and Barbuda
    Thank you Capt. Ralph! Much appreciated!

    Anybody, is this a job that I can do without special tools?
  10. Capt J

    Capt J Senior Member

    Joined:
    Jul 11, 2005
    Messages:
    13,051
    Location:
    Fort Lauderdale
    Always test run small motors on a bench, before you install them! Saves a lot of hassle later. Should put assembly lube on that area of the crankshaft for lubrication during startup.
  11. Capt Ralph

    Capt Ralph Senior Member

    Joined:
    Sep 8, 2004
    Messages:
    8,974
    Location:
    Satsuma, FL
    I'm not a small gas person. I just happen to be around somebody else's bench.
    Have you checked the oil filter seal/ring or changed oil filters?
    After that, the only external place oil would leak from under pressure would be the oil pump cover with a failed gasket. I'm still leaning towards a bad oil filter seal.
    I do not recall the rear oil seal or the head galleries but knowing Kawasaki, there are not many places for oil to leak from.
  12. Shari Potts

    Shari Potts New Member

    Joined:
    Jul 14, 2020
    Messages:
    4
    Location:
    Antigua and Barbuda
    Good Morning, have ordered the seals and gasket for the oil pump and a new filter, that will be the first thing I try!

    Thanks for everyone's help!
  13. Oscarvan

    Oscarvan Senior Member

    Joined:
    Nov 10, 2015
    Messages:
    838
    Location:
    Chesapeake Bay
    How about looking wiping and seeing where it’s coming from.
  14. MBevins

    MBevins Senior Member

    Joined:
    May 23, 2008
    Messages:
    614
    Location:
    Windsor On. Canada
    Even if he doesn't degrease the outside, I'd put die in the oil, run it for a couple of hours and then look for the dyed oil using a UV light.
    Easy peasy.
    Now you really know what your dealing with.
  15. Pascal

    Pascal Senior Member

    Joined:
    Feb 29, 2008
    Messages:
    5,627
    Location:
    Miami, FL
    Isn’t the oil pump inside the sump? Confused at to how the oil pump could leak outside.
  16. Capt Ralph

    Capt Ralph Senior Member

    Joined:
    Sep 8, 2004
    Messages:
    8,974
    Location:
    Satsuma, FL
    On many Pac-Rim small engines, the oil pump is mounted outside the block.
    Some like the old Mopar blocks, other flush on the cast iron.
    The small engine idea was to keep the engine height down, small sump, oil pump to the side.
    It the case of this engine, they even leaned/slanted the engine over near like a pancake Detroit.
    Plumbing was cast into the block also, reducing extra or repetitive parts.
  17. Pascal

    Pascal Senior Member

    Joined:
    Feb 29, 2008
    Messages:
    5,627
    Location:
    Miami, FL
    Thanks. I learned something.

    although on a generator height is not that critical... except maybe very small units on small
    Boats
  18. ekaske68

    ekaske68 New Member

    Joined:
    Aug 28, 2020
    Messages:
    1
    Location:
    Minnesota
    I might have the same oil leak issue. Did you figure out where the leak was coming from?
