Kohler 10kw generator 2006 fuel filter casement

Discussion in 'Generators' started by Beau, Aug 15, 2017.

You need to be registered and signed in to view this content.
  1. Beau

    Beau Senior Member

    Joined:
    Jan 15, 2010
    Messages:
    2,069
    Location:
    Cold Spring Harbor, NY
    So a dock neighbor had a generator fuel line "pop" out of the center top of the casement (my word?) into which he screws his fuel filter. The exposed end looks like a 1/4" aluminum hose barb that one would put, well, a hose on. This pushes into the top of the casement and stays put with a minor tug, but anything stronger it pops out again. Does anyone know how this barb should be held in place. I can't seem to find a diagram? The casement also has two lines coming into the filter head from either side, and they have the traditional threaded fittings.
  2. 30West

    30West Member

    Joined:
    Nov 14, 2016
    Messages:
    240
    Location:
    Holland, Michigan
    Pictures...?
  3. dennismc

    dennismc Senior Member

    Joined:
    Jan 29, 2009
    Messages:
    1,138
    Location:
    Vancouver BC
    If the casement head is not compatible with aluminum there may be a corrosion issue on the threads of the barb ? Would be odd for kohler to make an error like that.
  4. Capt Ralph

    Capt Ralph Senior Member

    Joined:
    Sep 8, 2004
    Messages:
    8,278
    Location:
    Satsuma, FL
    I'm having a problem putting a picture in my mind a figuring " Casement".
    Can you please offer a model number, and a pic of the hose in question.
  5. Beau

    Beau Senior Member

    Joined:
    Jan 15, 2010
    Messages:
    2,069
    Location:
    Cold Spring Harbor, NY
    The Model is 10EOZD. When I'm able to get aboard I'll take some pictures. Thx
  6. Beau

    Beau Senior Member

    Joined:
    Jan 15, 2010
    Messages:
    2,069
    Location:
    Cold Spring Harbor, NY
    Thats the thing, the barb just seems to get pushed into the opening on the top of the casement head and is held in by the "barbs". No bolts, clips or lock screws that I can observe?
  7. Beau

    Beau Senior Member

    Joined:
    Jan 15, 2010
    Messages:
    2,069
    Location:
    Cold Spring Harbor, NY
    so here are two pictures: barb inserted, barb pulled out. Carl I hope I sized these correctly? When I click on them they seem right.

    Attached Files:

  8. YachtForums

    YachtForums Publisher/Admin

    Joined:
    Dec 22, 2002
    Messages:
    19,598
    Location:
    South Florida
    I resized the pic and removed the duplicate images Beau. There are several image processors available on the web, or even on your phone/camera software.
  9. Beau

    Beau Senior Member

    Joined:
    Jan 15, 2010
    Messages:
    2,069
    Location:
    Cold Spring Harbor, NY
    Thanks Carl I just can't seem to get that right. I'll speak with our IT guy for a tutorial. Thanks again
  10. Dj239

    Dj239 New Member

    Joined:
    Nov 2, 2016
    Messages:
    29
    Location:
    Ft myers
    You need a new fuel filter bracket. Seen this before on similar Kohler unit. These also have a tendency to leak as well
  11. Capt J

    Capt J Senior Member

    Joined:
    Jul 11, 2005
    Messages:
    12,077
    Location:
    Fort Lauderdale
    Yup, the fitting is just press fit into it.
  12. Capt Ralph

    Capt Ralph Senior Member

    Joined:
    Sep 8, 2004
    Messages:
    8,278
    Location:
    Satsuma, FL
    Thank you for the picture.
    Yep, It's broke.
    I would not try any fix'its with it on a fuel system.
    Do it rite and order a new assembly.
  13. Beau

    Beau Senior Member

    Joined:
    Jan 15, 2010
    Messages:
    2,069
    Location:
    Cold Spring Harbor, NY
    Gentlemen

    As usual, thank you for your fine insights. He will be having it repaired professionally!

    Beau, regards
  14. 30West

    30West Member

    Joined:
    Nov 14, 2016
    Messages:
    240
    Location:
    Holland, Michigan

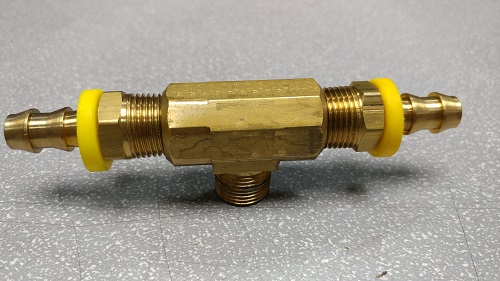

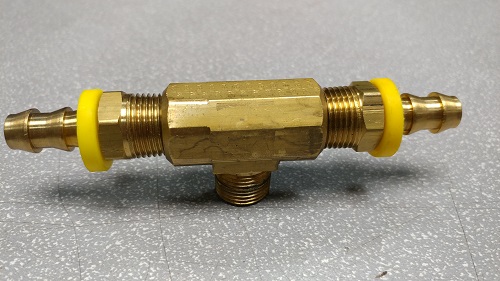

    Easy fix, not that you should do this, but it would be easy and cheap, and better than the original press-fit. Take off the bracket, drill and tap that hole for a threaded brass T-fitting, put two hose nipples on the T-fitting, reinstall. I walked out into the shop and put this together in about a minute, any plumbing shop will have the three fittings you need, and the drill and tap. The drill and tap part would require someone who knows a little about how to do it, pretty routine and quick for any auto/boat/plumbing/machine repair shop, and they should have the drill and tap. Hopefully this pic is small enough...? The hard part will be getting the bracket off, might as well get a new bracket if they are available and not crazy expensive.

    Other options would be to press it back in with Loctite 638 Retaining Compound, or drill and tap the bracket for a couple set-screws and put some sealant on the existing fitting before pressing it in and locking (gently) with set-screws. There are other more ghetto fixes I won't get into, but there are options if the new bracket isn't working out.
    .
    Last edited: Aug 17, 2017
  15. Beau

    Beau Senior Member

    Joined:
    Jan 15, 2010
    Messages:
    2,069
    Location:
    Cold Spring Harbor, NY
    thanks 30West
