Johnson 103'

Discussion in 'Johnson Yacht' started by Yacht News, Jun 20, 2007.

You need to be registered and signed in to view this content.
  1. Yacht News

    Yacht News YF News Editor

    Joined:
    Mar 29, 2006
    Messages:
    17,814
    Location:
    Caribbean
    We have seen the Johnson 75', the 87' and now there is the 103'. The Johnson 103' can be seen to be a direct expansion from the 75 and 87 footers. Some early statistics on this vessel include:

    LOA: 31.21M, 103.02 feet
    BOA: 7.14M, 23.69 feet
    Displacement: abt 105 tonnes
    Interior: Dixon Yacht Designs
    Naval Architecture: Dixon Yacht Designs.

    If anyone has anymore information on these 103's you can add to the thread.
    For more, visit the Johnson website at:

    http://www.johnsonyachts.com/home.html
  2. JeffSheu

    JeffSheu Member

    Joined:
    Apr 30, 2007
    Messages:
    49
    Location:
    Taiwan

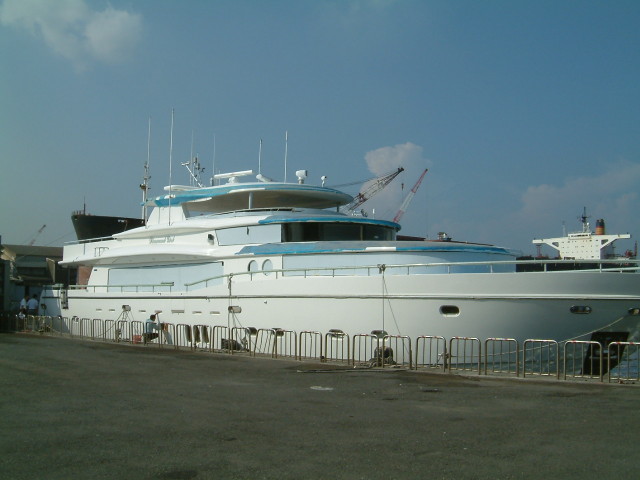

    I have some pictures of Johnson 103'.
    Those photos were taken in it's first sea trial.

    Attached Files:

  3. JeffSheu

    JeffSheu Member

    Joined:
    Apr 30, 2007
    Messages:
    49
    Location:
    Taiwan

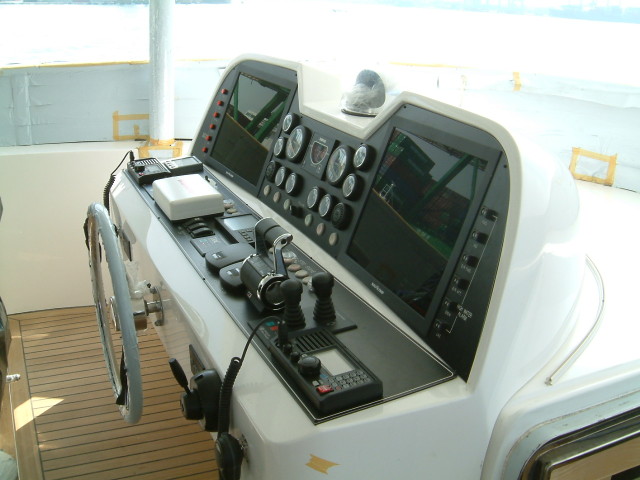

    The navigation bridge on Flybridge Deck

    Attached Files:

  4. JeffSheu

    JeffSheu Member

    Joined:
    Apr 30, 2007
    Messages:
    49
    Location:
    Taiwan
    The navigation bridge inside the wheelhouse

    Attached Files:

  5. JeffSheu

    JeffSheu Member

    Joined:
    Apr 30, 2007
    Messages:
    49
    Location:
    Taiwan

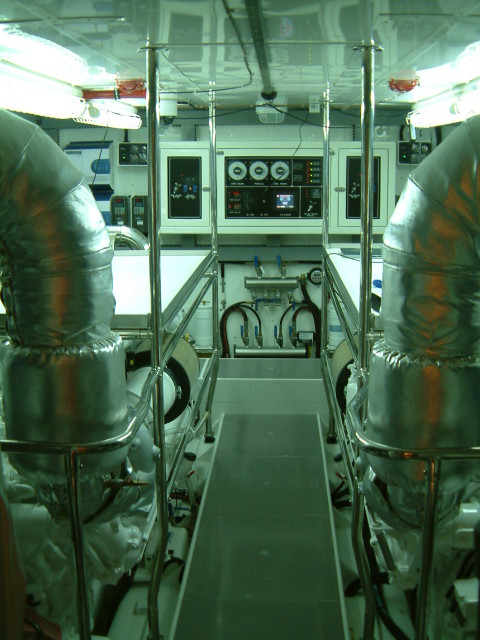

    Engine Room, there are two MTU 16V2000M91 engines.

    Attached Files:

  6. Yacht News

    Yacht News YF News Editor

    Joined:
    Mar 29, 2006
    Messages:
    17,814
    Location:
    Caribbean
    Really nice pics Jeff, thanks for posting those. Out of curiosity? If she had gone on seatrials why isnt she painted......For the most part, yachts that embark on their trials are usually painted already.
  7. JeffSheu

    JeffSheu Member

    Joined:
    Apr 30, 2007
    Messages:
    49
    Location:
    Taiwan
    Oh~

    The outside painting of Johnson 103' is white gelcoat.
    Those blue-colored areas are covered by tapes.
    The blue tapes are used to protect the gelcoat during construction period.
    It's very common for the yacht factories in Taiwan.
    The glass, like windscreen, is also covered by white tapes.

    I think they will remove the tapes before delivery.
  8. Yacht News

    Yacht News YF News Editor

    Joined:
    Mar 29, 2006
    Messages:
    17,814
    Location:
    Caribbean
    Oh okay, I thought the 'blue tape' was blue bondo filler or something..
