Installing remote drains in mufflers...thoughts?

Discussion in 'Technical Discussion' started by 30West, Jan 17, 2018.

You need to be registered and signed in to view this content.
  1. Beau

    Beau Senior Member

    Joined:
    Jan 15, 2010
    Messages:
    2,144
    Location:
    Cold Spring Harbor, NY
    Seems like you are doing this for winter freezing? Why don't you rearrange the angle of the muffler, or just find a simple way to introduce non- toxic. You may be over working the problem?
  2. dennismc

    dennismc Senior Member

    Joined:
    Jan 29, 2009
    Messages:
    1,145
    Location:
    Vancouver BC
    Might be better to gain access to the top of the mufflers and then just add anti freeze for winter..
  3. captholli

    captholli Senior Member

    Joined:
    Jan 4, 2010
    Messages:
    1,040
    Location:
    In The Bilge
    Best suggestion yet!
    Maybe a step further with a 5 gallon pail of diluted antifreeze on the raw water pump suction side. Winterize the entire raw water side of the engine and exhaust! I wonder what problems would pop up with Glycol gasket and impellor wise?? Hummm. I thank my lucky stars that I've never been involved with the winterizing thing.
  4. 30West

    30West Member

    Joined:
    Nov 14, 2016
    Messages:
    240
    Location:
    Holland, Michigan
    Thanks, yes I meant CO detectors. I just put my arm inside as far as I could get it, the muffler is just open inside, air will easily enter from the 6" exhaust exit.

    I have plenty of Garolite and similar materials at the shop I consult at as an engineer. I'd helicoil into Garolite threads if I went that way, or use some kind of thread insert. Garolite is tough, but not like steel for threading. More likely, I'd just make a stainless plate and tap it NPT for the valve.

    I can see the structural advantage of bonding in a larger threaded block. I'm concerned about making a much larger joint area with another block of material, that has to be sealed around, and could trap water. The finished extra structure around the new bung should be solid, with the pipe thread reducer acting as a thread insert, but bonded much more solidly to the glass than an insert tapped and turned in. That should ensure the 1/2" thread reducer distributes the stresses more widely than simply tapping a 1/4"NPT hole for the valve.
  5. captholli

    captholli Senior Member

    Joined:
    Jan 4, 2010
    Messages:
    1,040
    Location:
    In The Bilge
    Thread serts cause more problems than solutions in situations like this as its just another failure point added to the equation. I find G-10's density and strength to be superior to anything other than steel in corrosive environments. Have used it for 30 or more years even when it was known back in the day as "Bakelite" and have never had a failure.
  6. 30West

    30West Member

    Joined:
    Nov 14, 2016
    Messages:
    240
    Location:
    Holland, Michigan
    Right, I could simply pump in anti-freeze from the exhaust. The side-exhaust is only a couple feet long, easy to pump anti-freeze into the mufflers. For winterizing, the raw water will have to be run with anti-freeze anyway, possibly enough to protect these mufflers. It spent 12 winters north of Toronto, and my fiberglass guy seems to think this was a manufacturing error, not cracking from expanding ice. So it survived winters as-is, and my fancy valve mod is probably not as valuable as I thought. But I still prefer being able to drain the mufflers, seems proper. I use heated storage, so this will be for the next owner.

    The existing drain plugs were put in with some kind of adhesive, not threaded in, and survived an unknown number of years. I'm overthinking and overkilling this, but learning a bunch from you guys in the process, thanks.
  7. 30West

    30West Member

    Joined:
    Nov 14, 2016
    Messages:
    240
    Location:
    Holland, Michigan
    Bakelite? Like old phones were made from? I don't remember seeing any fiber in bakelite when I've broken it, just granular surfaces at the break. Didn't know that was the same stuff.
  8. Capt Ralph

    Capt Ralph Senior Member

    Joined:
    Sep 8, 2004
    Messages:
    8,727
    Location:
    Satsuma, FL
    I keep asking myself; Self??? Why is our friend inventing a fix for a very small (non) problem?

    He's up north and I'm sure he winterizes his ship every year.
    WTF, does not winterize his exhaust??
    Our friend has commented himself to squirt some glycol up his exhaust to his mufflers, yet he still wants to ad some contraption to his mufflers, WTF II?

    I'm assuming a gas, Carver.

    Why insert a gizmo and risk any CO issues? Why not keep it simple? Bronze or synthetic plug the mufflers.
    The next buyers surveyor is going to shoot it down anyway.

    Maybe up north the phrase " Keep It Simple S***** (KISS) has a language issue? Ah??
    Last edited: Jan 23, 2018
  9. captholli

    captholli Senior Member

    Joined:
    Jan 4, 2010
    Messages:
    1,040
    Location:
    In The Bilge
    Same stuff but the resins have become a lot more advanced since the Ma Bell telephones. It was used as a insulator by electrical companies and I remember it as Root Beer color in its natural state. Dollar to doughnuts your existing plugs were set in with Plexus. Tiera and S-2 used Plexus for the cap to hull joint and a lot of other places in lieu of epoxy putty. Plexus or methacrylate adhesives make 5200 look like Elmers.
  10. captholli

    captholli Senior Member

    Joined:
    Jan 4, 2010
    Messages:
    1,040
    Location:
    In The Bilge
    After looking it up it seems that I was a bit premature in my response:
    Apparently NOT the same stuff. Bakelite used paper in lieu of fibers for its manufacture. Bakelite and G-10 are bunched together word wise but have different properties. learning all the time as Ralph says...
  11. 30West

    30West Member

    Joined:
    Nov 14, 2016
    Messages:
    240
    Location:
    Holland, Michigan
    "Are you not the most wicked and ungrateful of reptiles? But for me you must either have given up your journey, or have been drowned in that stream, and what is my reward? If it had not been for the armour which God has given me, I should have been stung to death." "Blame me not," said the scorpion, in a supplicatory tone, "it is not my fault; it is that of my nature; it is a constitutional habit I have of stinging."

    I assume a professional chef spends way too much effort making perfect toast, as a habit, like I spend too much effort solving every little engineering challenge. Time and money are part of the equation at work, but at home I get to indulge a bit more. In either case, simple is always the better solution.

    Until talking to the fiberglass guy last night, I assumed there was a serious freezing issue, without a simple solution. Also, I'm uncomfortable with large amounts of water sitting anywhere in my boat while stored if it can be avoided. I drain and blow out everything even in heated storage. And water mufflers simply have to have useable drains, these things hold a lot of water. Pumping anti-freeze into my mufflers with a hose would work but is not simple. Vacuuming the water out with a hose maybe, but hard to know how much water has been vacuumed, and a wet-vac full of anti-freeze is again not simple.

    Hopefully a surveyor would not find fault with a valve instead of a plug. Worst case, he would recommend replacing the valve with a plug, to remove the remote possibility of the stainless valve failing.

    No, not a Carver. An amazingly well preserved Cruisers Yacht, gas. Something simple, my gateway drug back into boating, 30 years after leaving the marina, boat, and charter business. Kind on an experiment on my family, to see if they will truly participate in boating, or get too busy. I'm enjoying the heck out of this little boat, but will sell it and buy a small plane if they don't show some enthusiasm for it. If they love it, I'll look at something bigger. So far, after over a year, there is enthusiasm, but competition with cellphones and social media is fierce. It is a different world than what I grew up boating in. Here we are entering the marina, headed for the slip on a beautiful evening. At least they have confidence in my docking skills.

    Mod edit: Oversize image removed.
    Last edited by a moderator: Jan 26, 2018
  12. justold

    justold Member

    Joined:
    Feb 23, 2009
    Messages:
    48
    Location:
    new jersey , fla
    Don't you pump antifreeze through the system when you winterize ??
  13. 30West

    30West Member

    Joined:
    Nov 14, 2016
    Messages:
    240
    Location:
    Holland, Michigan
    I use heated storage. I still drain the raw water and everything I can, to prevent things getting slimy, zebra mussels, and just in case the building loses heat. I might store it outdoors in the future, save a few thousand $, but I'm still enjoying going out and tinkering on it during the winter.
  14. Beau

    Beau Senior Member

    Joined:
    Jan 15, 2010
    Messages:
    2,144
    Location:
    Cold Spring Harbor, NY
    Did the OP say above that these existing drain holes are open? Where does the exhaust water and CO go??
  15. 30West

    30West Member

    Joined:
    Nov 14, 2016
    Messages:
    240
    Location:
    Holland, Michigan
    They were plugged, each had a different screw held in the holes with sealant, obviously not stock. That is odd, because the rest of the boat is so un-molested and original. The original owner did nothing with the boat but start it, and drive it out to his summer home on an island. He had it professionally winterized and summerized, fluids and filters changed, batteries topped, not much else was touched that I can find. I guess whoever did the winterizing put those plugs in the mufflers? There are no threads in the holes in the mufflers, so I wonder if someone drilled those holes, or if the holes are original and someone lost the original plugs.

    Normally I'd expect the engines would be run with anti-freeze, then drained. Draining the mufflers and any other accumulation of water would be normal. There is faint pink stain under the engine drains, and under the mufflers at these holes. Someone at some time squeezed back there and drained these mufflers after running anti-freeze through them.
  16. Lepke

    Lepke Member

    Joined:
    Dec 26, 2015
    Messages:
    106
    Location:
    US West Coast. Cruise NW Passage to Alaska.
    You can buy ss thread inserts that epoxy into the muffler. The more complicated you make the rest of it, the more trouble you will have in the future.
  17. PacBlue

    PacBlue Senior Member

    Joined:
    Jan 9, 2009
    Messages:
    1,987
    Location:
    Dana Point, Ca
    This sounds like there is a use for some JB Weld somewhere in this application :)
  18. 30West

    30West Member

    Joined:
    Nov 14, 2016
    Messages:
    240
    Location:
    Holland, Michigan
    Yes, I use thread inserts often when building industrial machinery. This is basically a thread insert, epoxied into/under the existing hole in the muffler. I can't think of a simpler solution that fixes the need for a threaded drain in these mufflers. Threading a valve into it instead of just a plug, that is adding a potential failure mode, I'm aware of that. But a pretty unlikely failure, and not a catastrophic failure.

    A 1/4" stainless ball valve is small and sturdy, reliable, well suited for this application. If it ever plugs, it will be a straight hole I can easily poke through, or unscrew the valve to make a bigger hole. If it leaks, I can plug it with a lot of things to get home.

    Putting a threaded plug into this thread insert will require two tools with both hands, and there just isn't access. I should be able to get one hand on this valve, or make a tool to reach in and turn the handle. I bought valves with longer handles for that reason.
    .

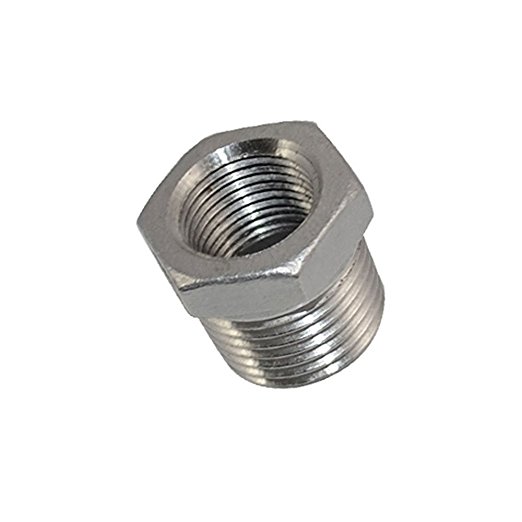

    ThreadReducer.jpg SSValve.jpg
  19. PacBlue

    PacBlue Senior Member

    Joined:
    Jan 9, 2009
    Messages:
    1,987
    Location:
    Dana Point, Ca
  20. 30West

    30West Member

    Joined:
    Nov 14, 2016
    Messages:
    240
    Location:
    Holland, Michigan
    That can't hurt. I described what I'm doing in an email to Centek, will see what they think.
